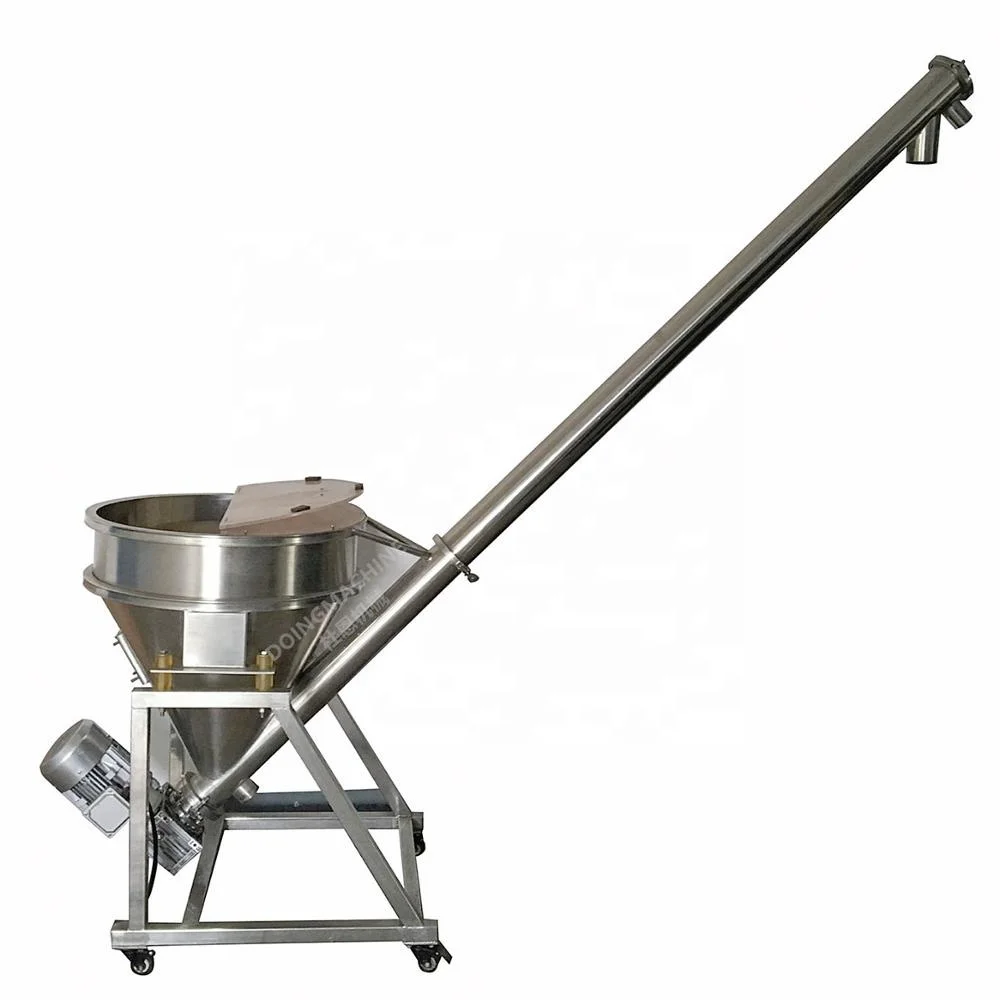

Automatic small stainless steel auger screw feeder
- Category: >>>
- Supplier: Changzhou Doing Machine Co. Ltd.
Share on (60436567779):
Product Overview
Description
Product Description
Main features
1. Transport bulk materials from place to place within a factory
2. Conveying capacity: 100-8000 kg/h
4. Inclination angle: 0-45 degree
5. Conveying length: ≤ 10 meters
6. GMP design
Working principle
LS series helix screw conveyor, which usually consists of screw, conveyor tube, drive motor, hopper, flow-promotion device, sensor and controller, is one of the most reliable and cost effective methods for transporting bulk materials from one point to another in almost every industry.
Technical advantages
1. Dust free operation: The screw conveyor is totally sealed during operation and no air is used as conveying medium
2. Easy to clean: The conveying system can be easily dismantled for cleaning
3. Wide application: Screw conveyor is capable of handling a variety of bulk materials from sluggish to free -flowing
4. GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.
5. Low noise and power consumption
Main technical parameters
Model | LS-114 | LS-141 | LS-159 | LS-168 |
Conveying pipe diameter mm | 114 | 141 | 159 | 168 |
Max Capacity M3/h | 3 | 5 | 6 | 8 |
Motor power KW | 1.5 | 2.2 | 3 | 4 |
Rotation speed RPM | 20-140 | 20-140 | 20-140 | 20-140 |
Hopper volume L | 200 | 200 | 200 | 200 |
Detailed Images

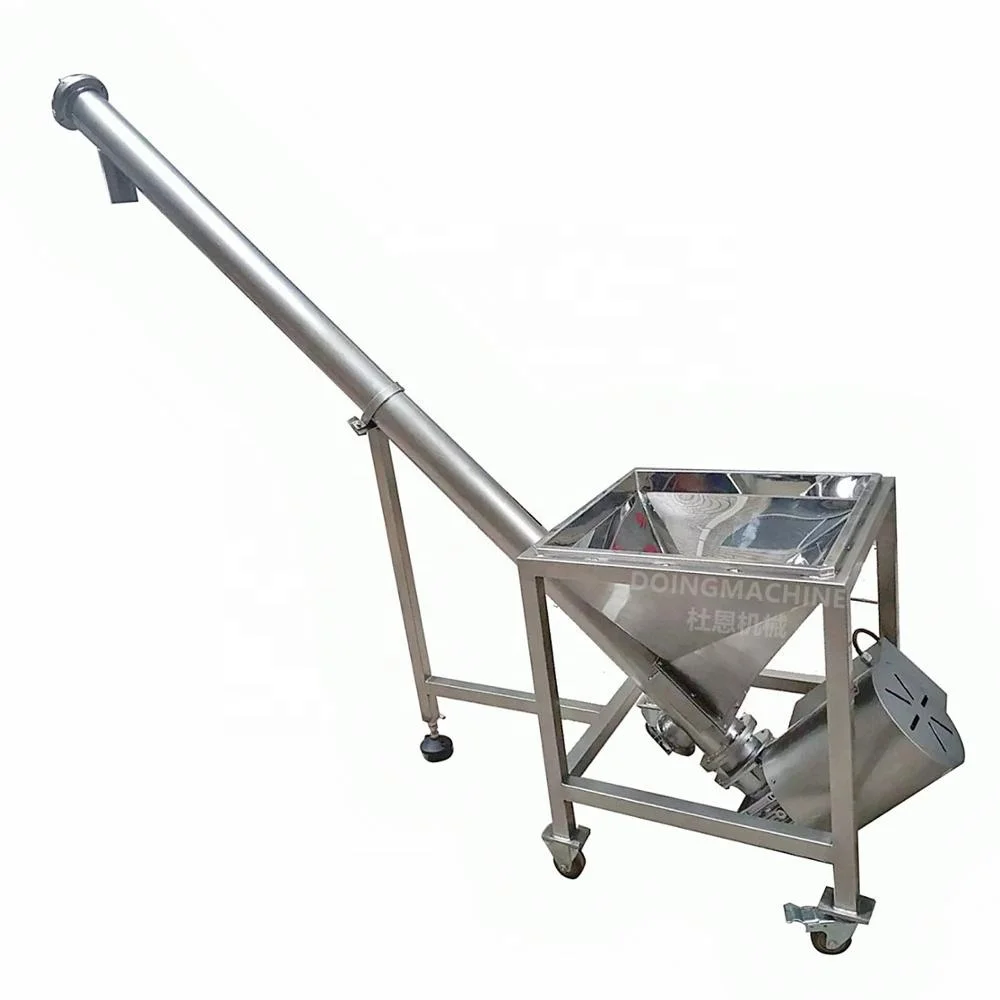

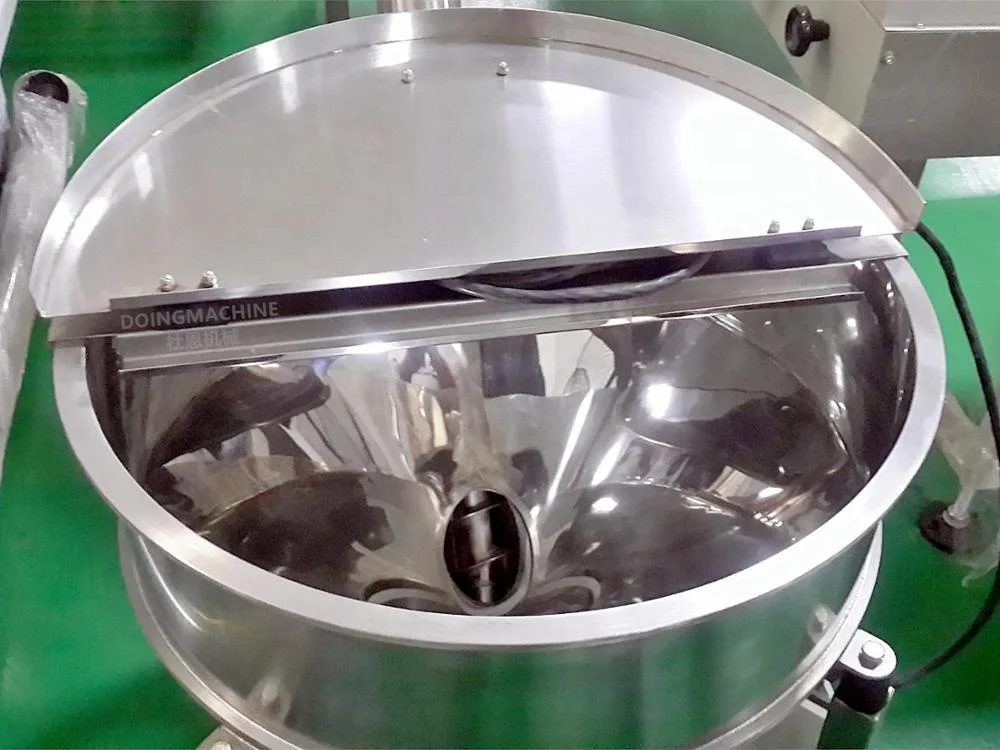

Hopper

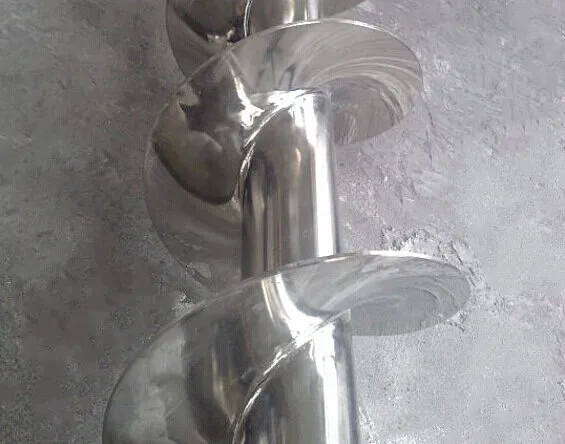

Mirror polished screw

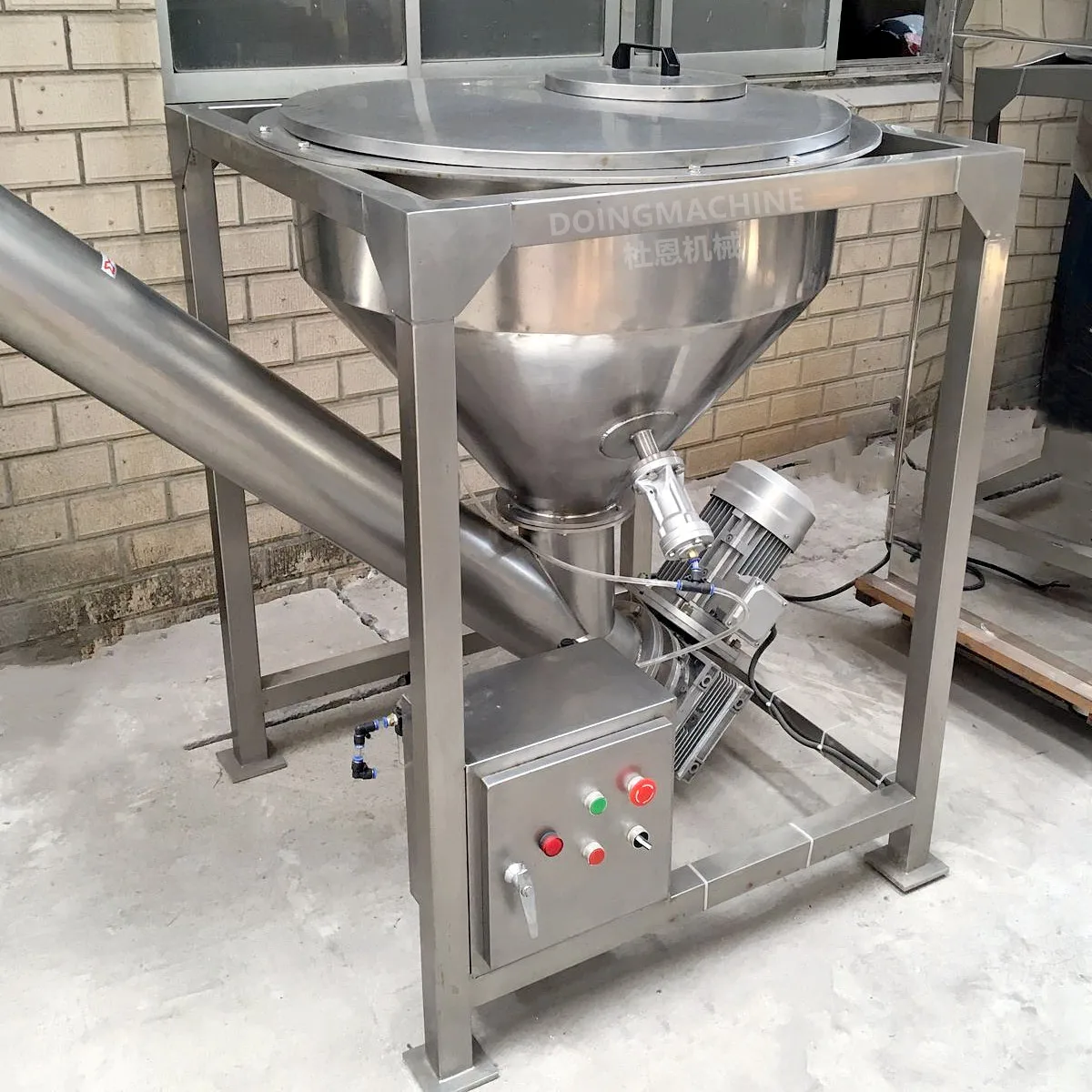

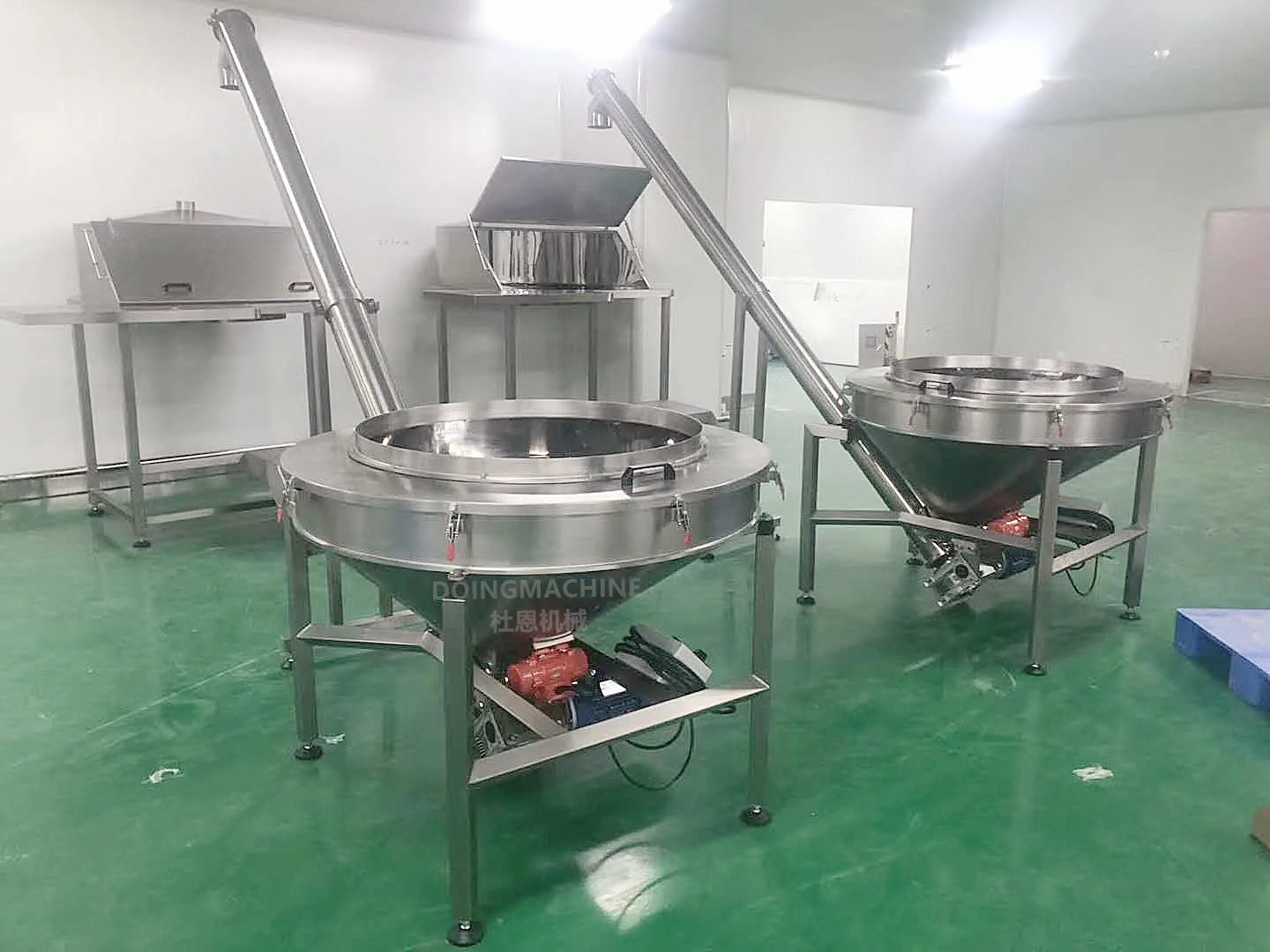

Hopper with flow-promotion device

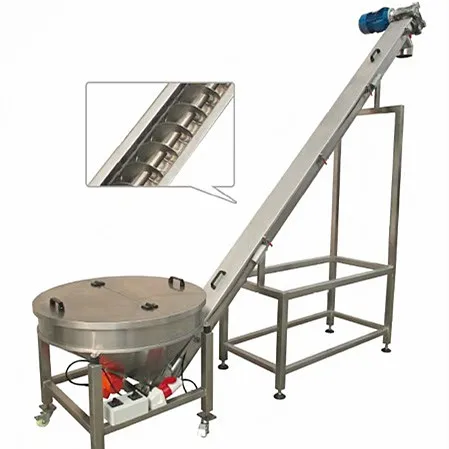

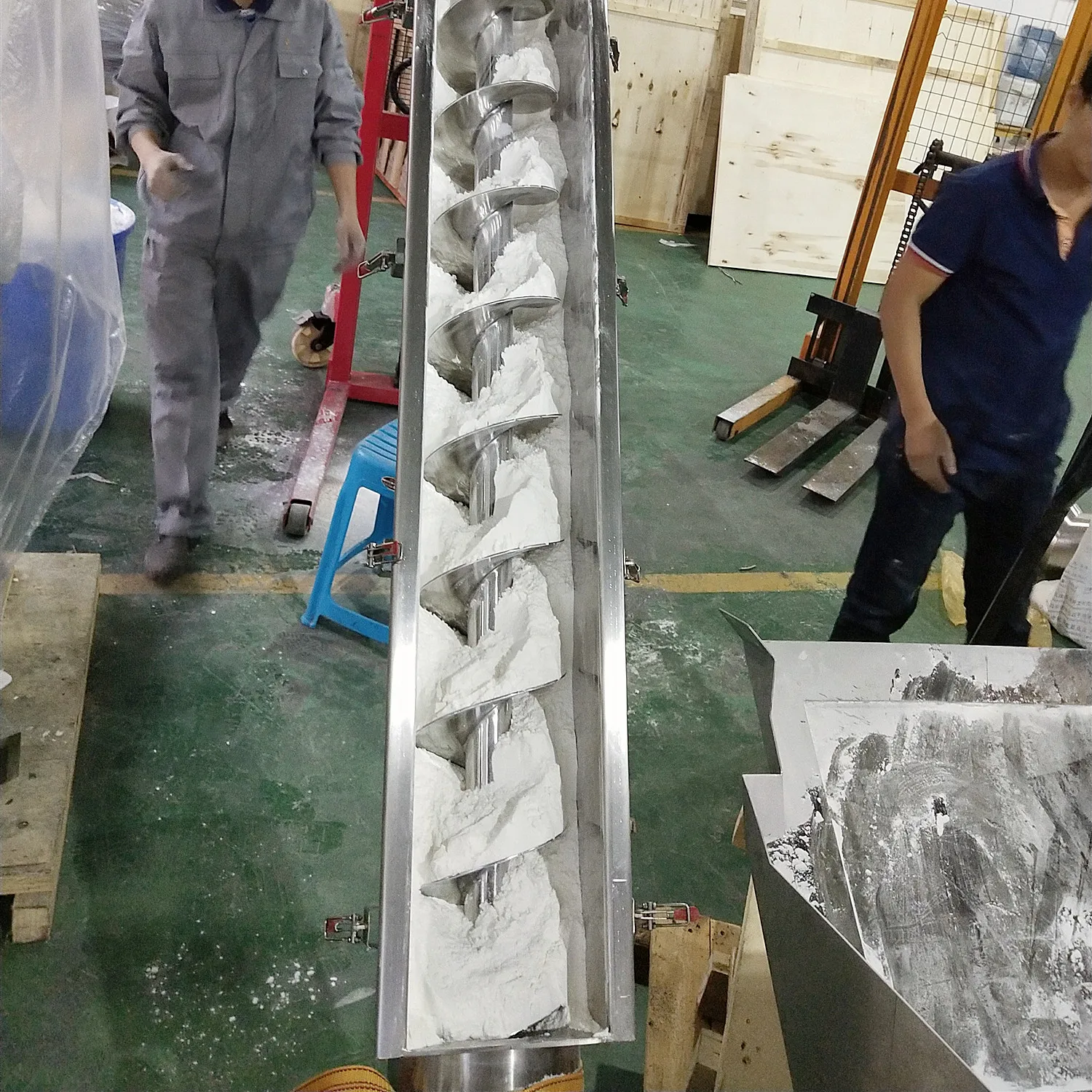

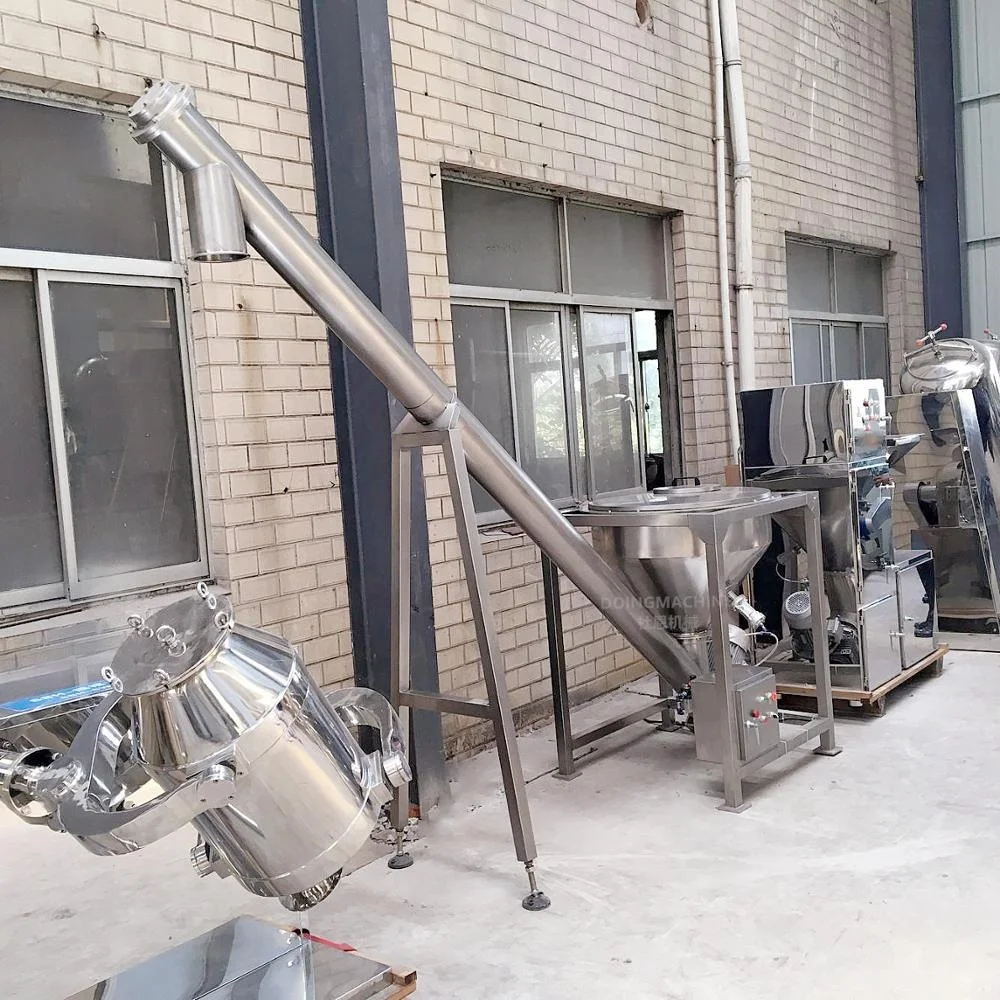

U-shape screw conveyor

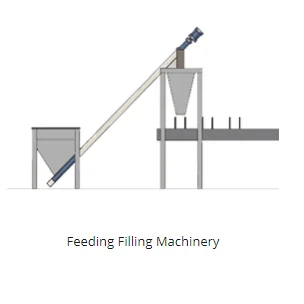

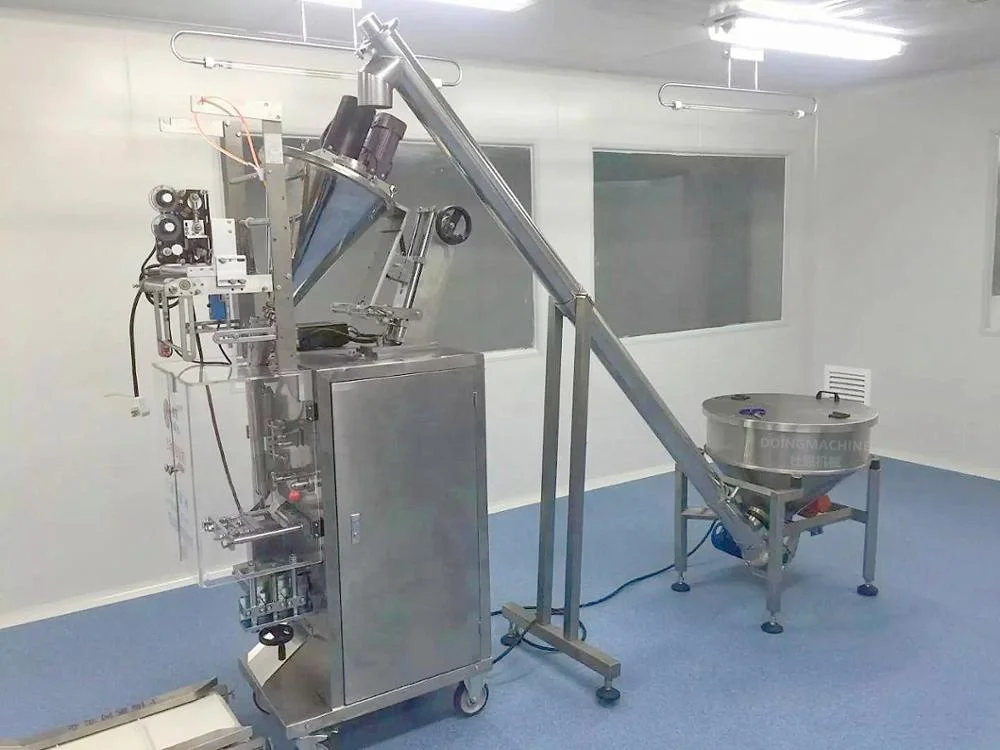

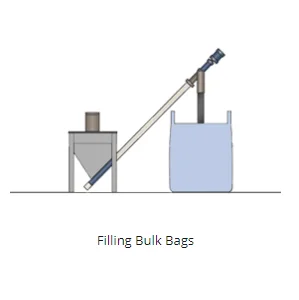

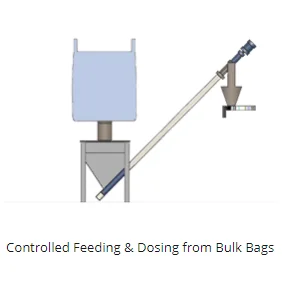

Typical Applications
Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our Helix screw conveyor is customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to convey
2) Product particle size and bulk density
3) Conveying distance and height
4) Conveying capacity in kg/h
Q: How the machine will be delivered ?
A: The conveyor is packed in plywood box for shipping
