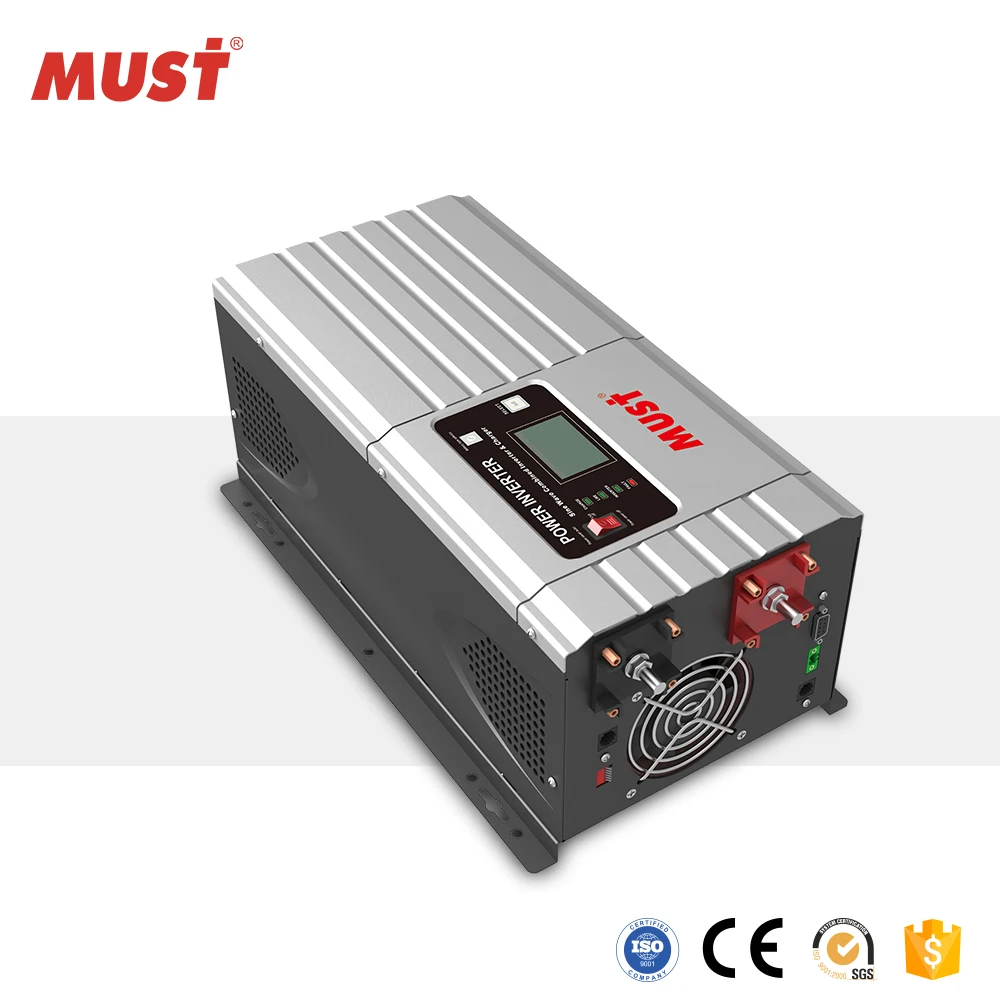

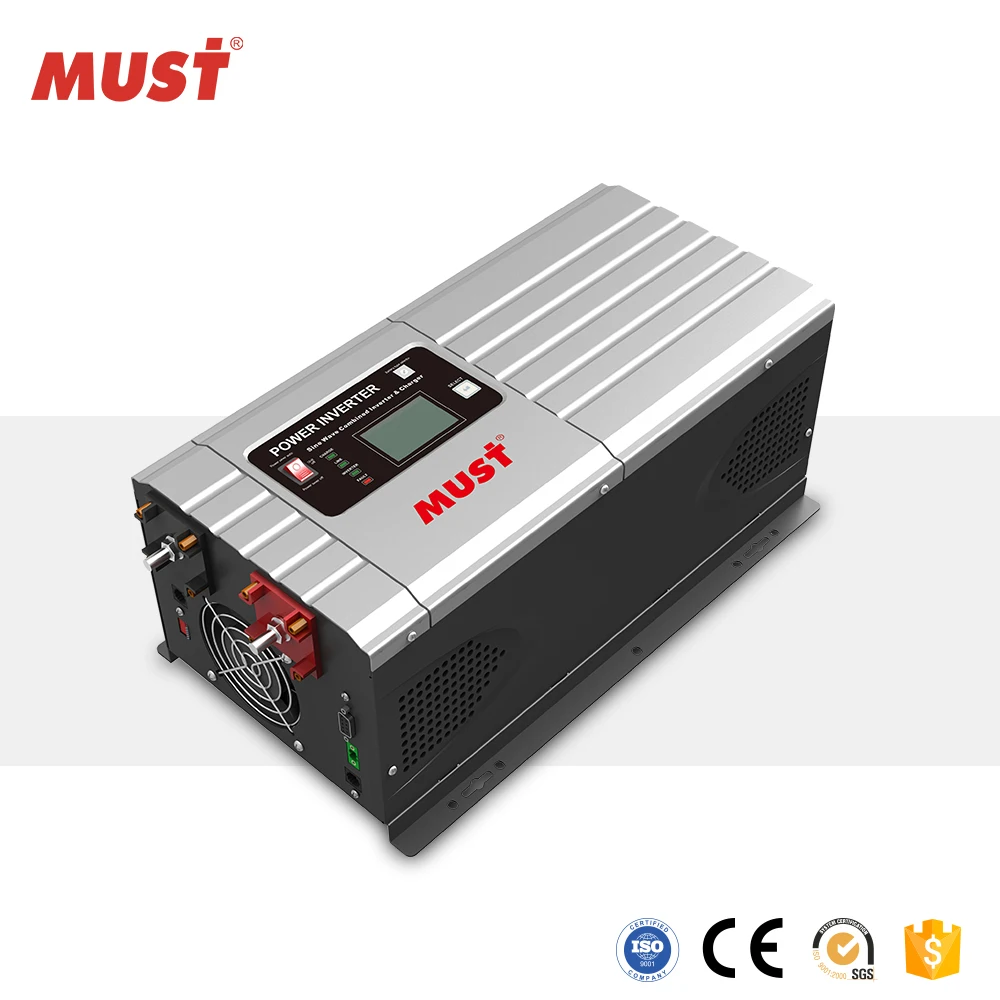

MUST RS232 Communication Port AC Power Indicator 3KW 2HP Solar Inverter With Toroidal Transformer
- Category: >>>
- Supplier: Shenzhen Must Power Limited
Share on (60436642308):
Product Overview
Description
MUST RS232 Communication Port AC Power Indicator 3KW 2HP Solar Inverter Model:EP3000 Pro 1-6KW
Product Description
Solar Hybrid Off Grid Inverter in Ghana/Pakistan/Kenya/Nigeria

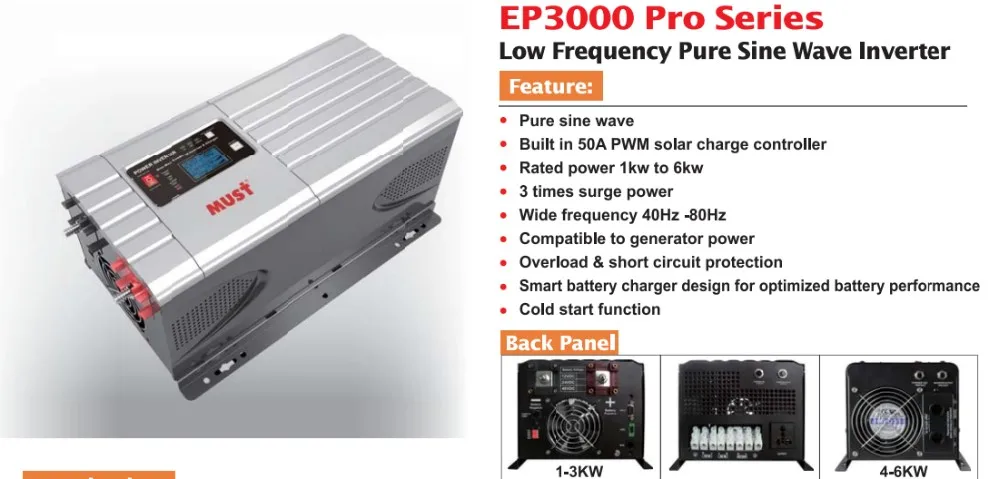

Features
- Pure Sine Wave
- Built in 50A PWM Solar Charge Controller
- Rated Power 1KW to 6KW
- 3 Times Surge Power
- Wide Frequency 40Hz-80Hz
- Conpiatible to generatot power
- Overload & Short Circuit Protection
- Smart battery charger design for optimized battery
- Cold start function
***MUST 2016 New Start-Welcome to join us!*****
Ada Ma
Skype:mustupsw
Whatsapp/Viber:+86 132 5953 2991
Wechat:852798252
Specifications
| MODEL | EP30-1KW PRO | EP30 PRO-1.5KW | EP30 PRO-2KW | EP30 PRO-3KW | EP30 PRO-4KW | EP30 PRO-5KW | EP30 PRO-6KW | |||||||||
| Default Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | |
| INVERTER OUTPUT | Reted Power | 1.0KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||||||||
| Surge Rating (20ms) | 3.0KVA | 4.5KVA | 6.0KVA | 9.0KVA | 12KVA | 15KVA | 18KVA | |||||||||
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 3HP | |||||||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | |||||||||||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(±10% RMS) | 220V/230V/240VAC(±10% RMS) | ||||||||||||||
| Output Frequency | 5OHz/60Hz±0.3 Hz | |||||||||||||||
| Inverter Efficiency(Peak) | >88% | |||||||||||||||
| Line Mode Efficiency | >95% | |||||||||||||||
| Power Factor | 1.0 | |||||||||||||||
| Typical Transfer Time | 10ms(max) 10ms(max) | |||||||||||||||
| AC INPUT | Voltage | 230VAC | ||||||||||||||
| Selectable Voltage Range | 96~132VAC 155~280VAC(For Personal Computers) | |||||||||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40~80Hz | |||||||||||||||
| BATTERY | Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, ) | ||||||||||||||
| Low Battery Alarm | 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, ) | |||||||||||||||
| Low Battery Cutoff | 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, ) | |||||||||||||||
| High Voltage Alarm | 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, ) | |||||||||||||||
| High Battery Voltage Recover | 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, ) | |||||||||||||||
| Idle Consumption-Search Mode | <25W when power saver on | |||||||||||||||
| CHARGER | Output Voltage | Depends on battery tvpe | ||||||||||||||
| Charger AC Input Breaker Rrating | 10A | 30A | 30A | 30A | 40A | |||||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode) | |||||||||||||||
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 30A | 65A | 35A | 70A | 40A | 75A | 50A | |
| BYPASS & PROTECTION | Input Voltage Waveform | Sine wave (grid or generator) | ||||||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | |||||||||||||||
| Output Short Circuit Protection | Circuit breaker | |||||||||||||||
| Bypass Breaker Rating | 10A | 30A | 30A | 30A | 40A | |||||||||||
| Max Bypass Current | 30Amp | |||||||||||||||
| SOLAR CHARGER | Maximum PV Charge Current | 50A | ||||||||||||||
| DC Voltage | 12V/24V/48 | |||||||||||||||
| PWM Range @ Operating Voltage | 15~80VDC | |||||||||||||||
| Maximum PV Array Open Circuit Voltage | 90VDC | |||||||||||||||
| Maximum Efficiency | >97% | |||||||||||||||
| Standby Power Consumption | <2W | |||||||||||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | ||||||||||||||
| Dimensions (W*H*D) | 426*206*178 mm | 601*206*178 | ||||||||||||||
| Net Weight (Solar CHG) kg | 16.5 | 17 | 21.1 | 20 | 26 | 24.5 | 24.8 | 38.2 | 35.8 | 45.2 | 45 | 45.2 | 45 | |||
| Shipping Dimensions(W*H*D) | 570*335*300mm | 750*335*300mm | ||||||||||||||
| Shipping Weight (Solar CHG) kg | 19.3 | 20 | 24.1 | 22.8 | 29.1 | 27.5 | 27.5 | 42.3 | 40 | 49.5 | 49.3 | 49.5 | 49.3 | |||
| OTHER | Operation Temperature Range | 0°C to 40°C | ||||||||||||||
| Storage Temperature | -15°C to 60°C | |||||||||||||||
| Audible Noise | 60dB MAX | |||||||||||||||
| Display | LED+LCD | |||||||||||||||
| Standard Warranty | 1 year | |||||||||||||||
More pictures
- Back Panel

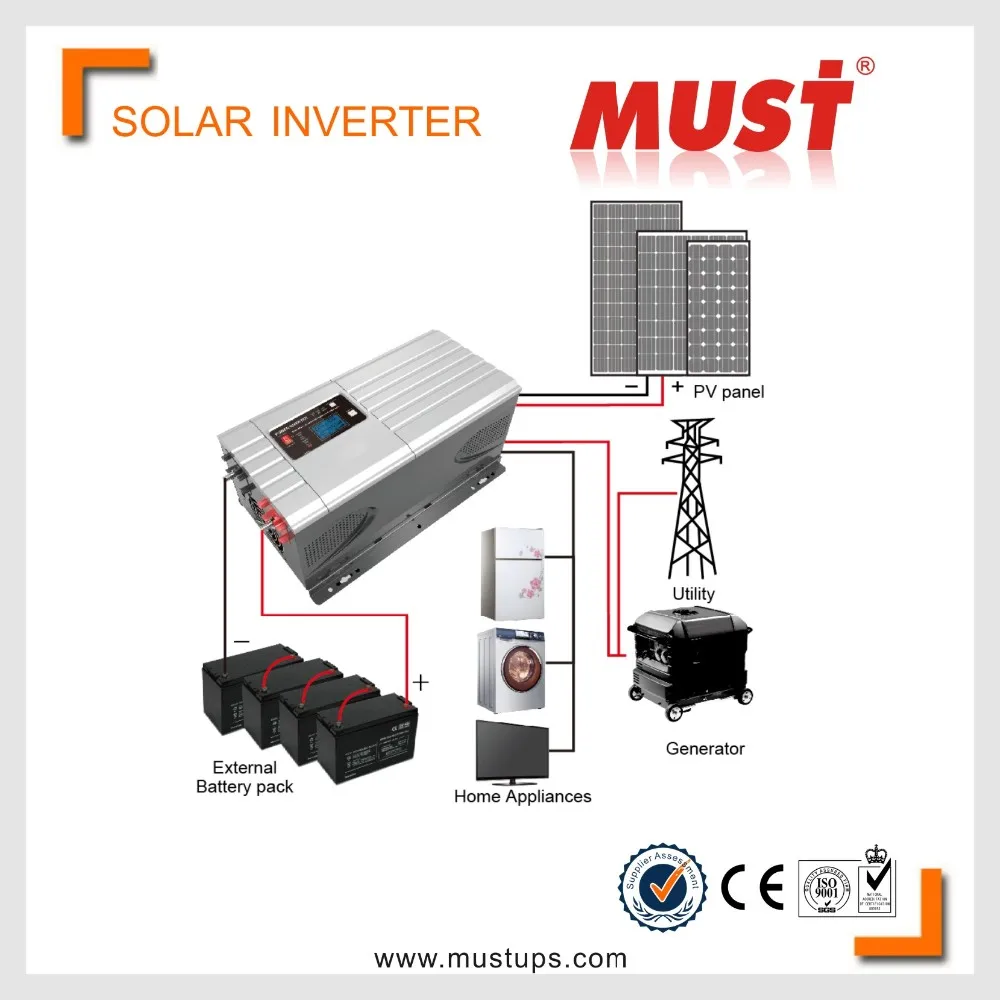

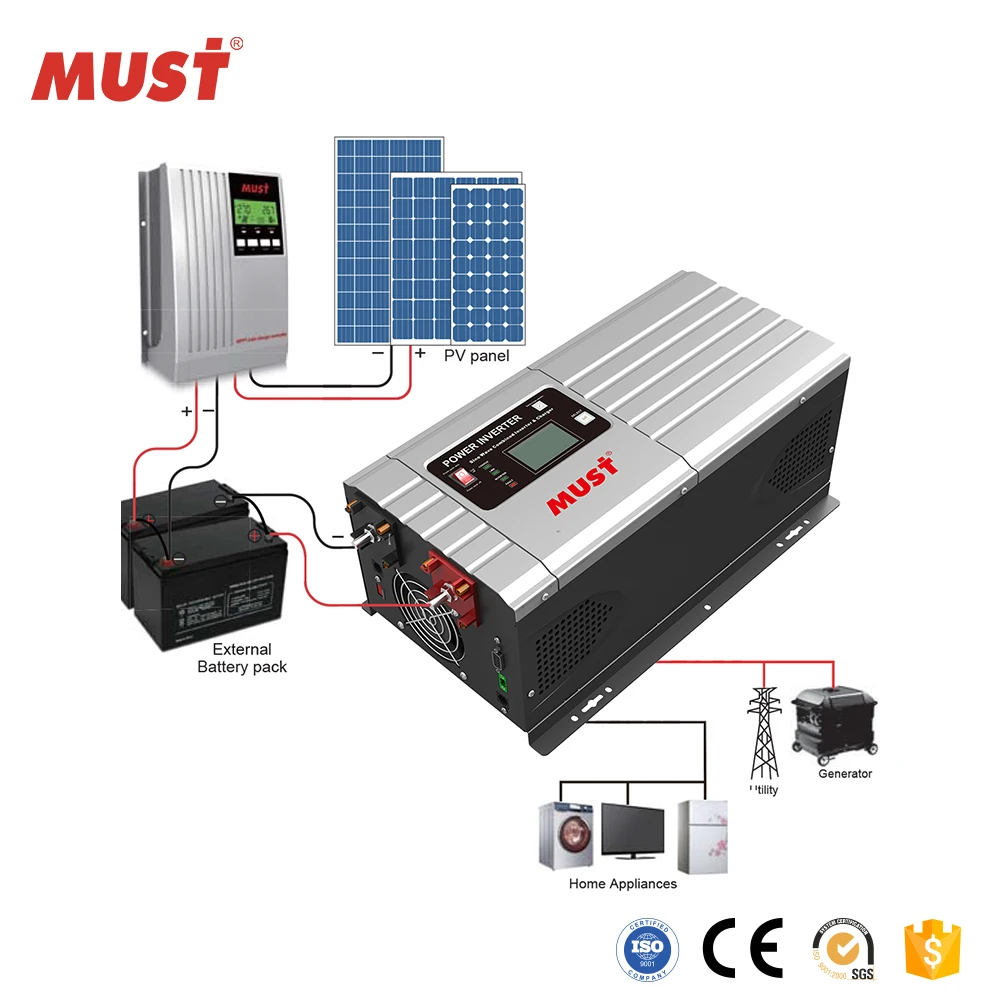

- Solar System Connection

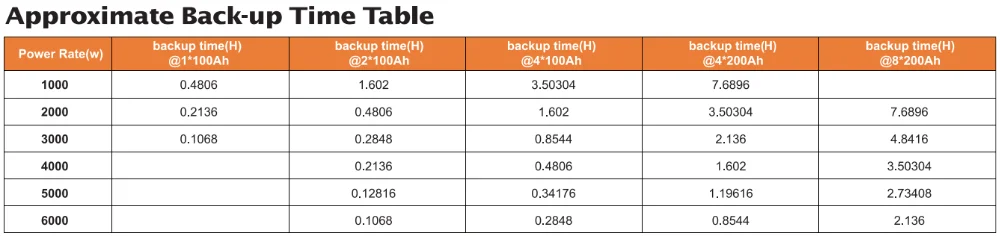

- Back-up Time
Packaging & Shipping
What is the packing?
1.Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations. Package designed by Clients is welcomed.
2.Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.
3.Payment: T/T( telegraphic transfer (T/T) and Western Union
4.Welcome to your Sample Order to test First.
Our Services
Samples and OEM
Samples are Available for Testing and Market Test. OEM is welcomed for us.
1-Year Warranty on Must-Solar Products
MUST Solar provides a 1-year limited warranty (“Warranty”) against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).
Guides and After-service Consultancy
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily.
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Delivery time: 7 workdays for sample; 20-25 workdays for mass order
3. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
**Welcome Sample Order to test quality firstly**
Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
Guides and After-service Consultancy
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
Want to know more about our Company, Products, Price, Packing, Shipping and
any discount? Let's Inquiry with Ada NOW !!!!!
Company Information
MUST POWER LIMITED NEW FACTORY:
Shenzhen Must Power Limited established in 1998, which is a professional hi-tech enterprise specialized in Power Inverter,Solar Power, and Battery development, manufacturing, sales and after-service.
MUST ® comprehensive product lines include: Power inverter, Solar inverter, Solar charge controller, Solar battery, Solar power Pack and some other related Solar products.
Factory Tour
- Established in 1998, Headquarter in HongKong
- 10-year Professional Factory Manufacturer in Shenzhen, China
- Product Range: Power Inverter, Solar Inverter, MPPT Solar Charge Controller, Solar Battery, UPS
- Main Market : Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya,etc.
- Four-Floor Factory Building, 10000 Square Meters, Two Manufacturing Centers, QA Office, Aging Test Area and Two Teams of R & D.
- Certificate: ISO 9001, SGS Certificate, CE, etc
- 6-Year Alibaba Gloden Supplier
MUST Showroom
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the difference between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
We have a aftersales office in Pakistan Lahore, then we will open more and more office all over the world.
