High Quality 3 Channel Ecg Holter Monitor

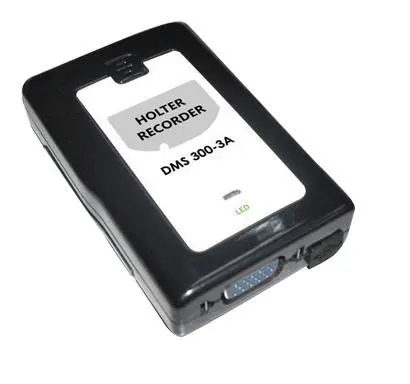

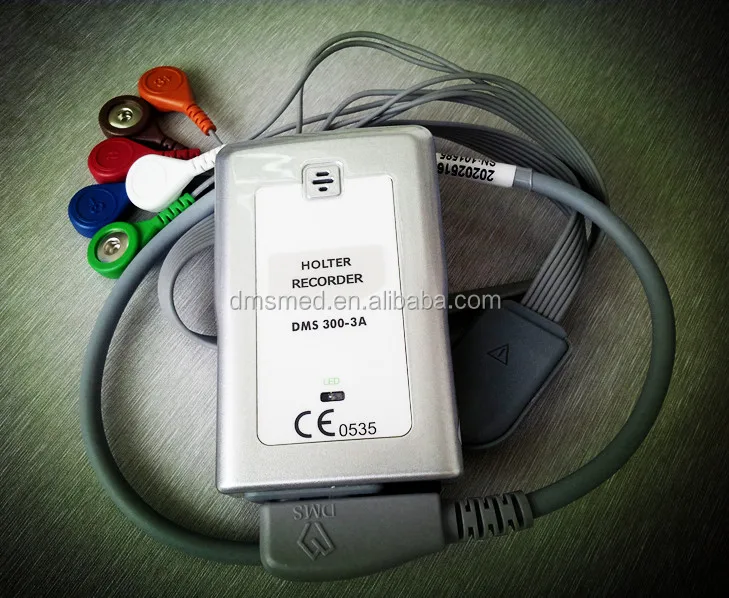

Holter ECG Recorder

Functions & Features:

Multi-day Holter recorder upto 7 days

4096 Hz sample rate

Holter recorder’s playback time is less than 3 minutes

1 AAA battery power supply

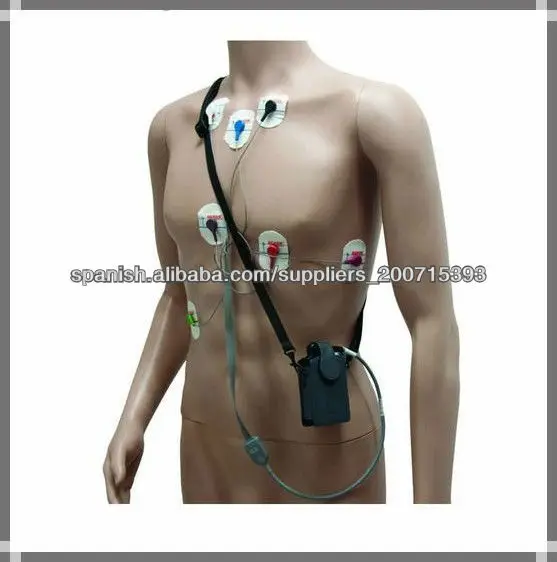

Standard 3 channel Holter recorder (5 or 7 leads wires)

Event button to record patient abnormal events

Isolation USB playback cable to view ECG ave in real time

Connect Holter recorder with PDA by USB playback cable to view & print ECG wave in real time

Support SAECG (VLP) function

Portable, environment friendly design

Technical specification

Lead: Standard 3 leads(5 or 7 leads wires)

Resolution: 8

Sampling rate: 256-4096Hz read, write 128Hz

Memory: ≥256MB

Playback time: ≤ 3 minutes

Record time: Multi days

ECG data deletion:  Two deletion methods: Inserts the new battery to delete the ECG files, USB playback deletes the ECG files

Power supply: 1 AAA alkaline battery

Dimensions: 88mm×55mm×21mm;

Weight: ≤ 100 grams

HARDWARE

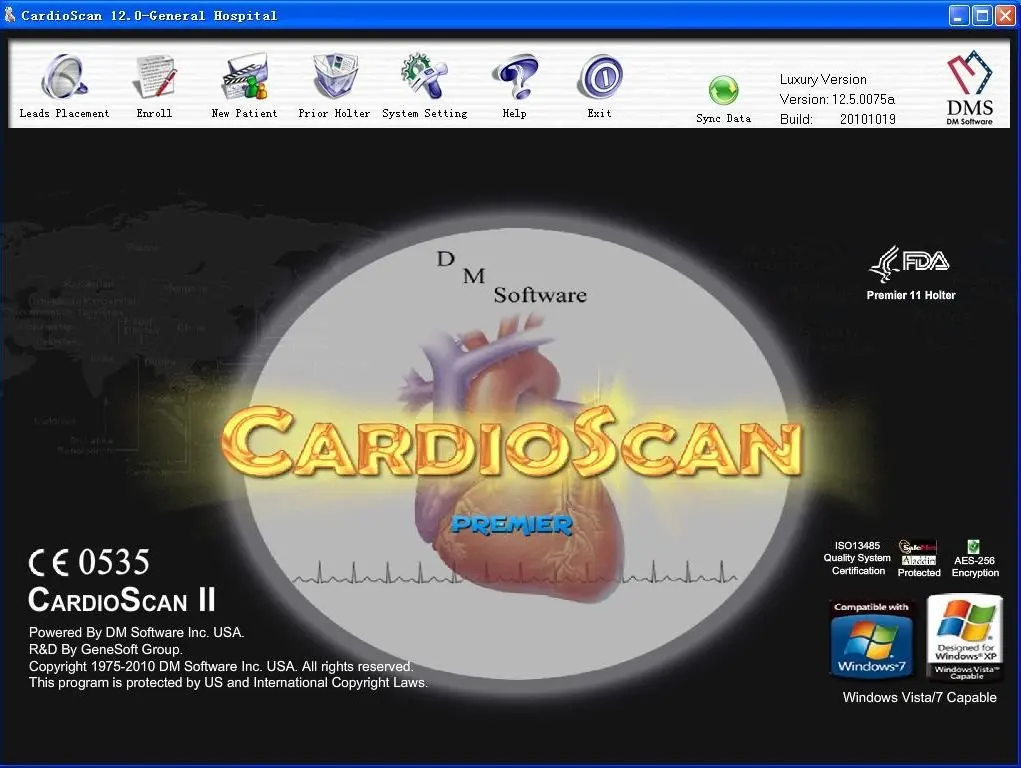

SOFTWARE (Core Competence)

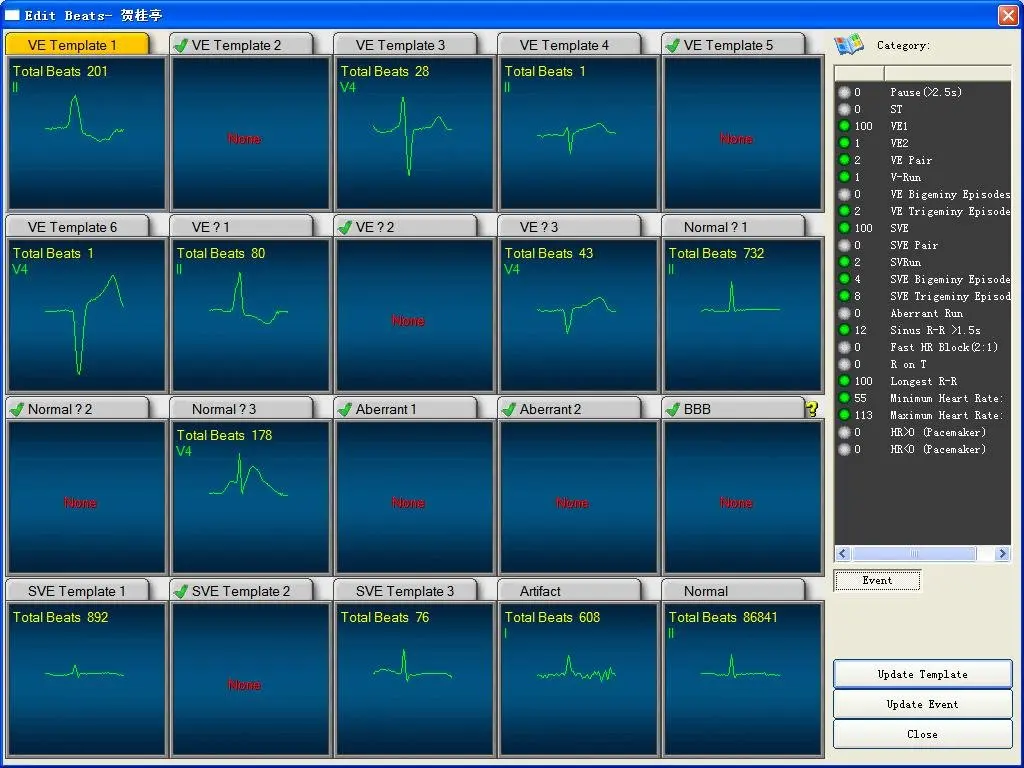

1.Edit

2.Page Scan

3.Mega Scan

4.QT Validation

5.A-Fib/Flu

6.HRV

7.ST Scan

8.ECG Strip

9.Hourly

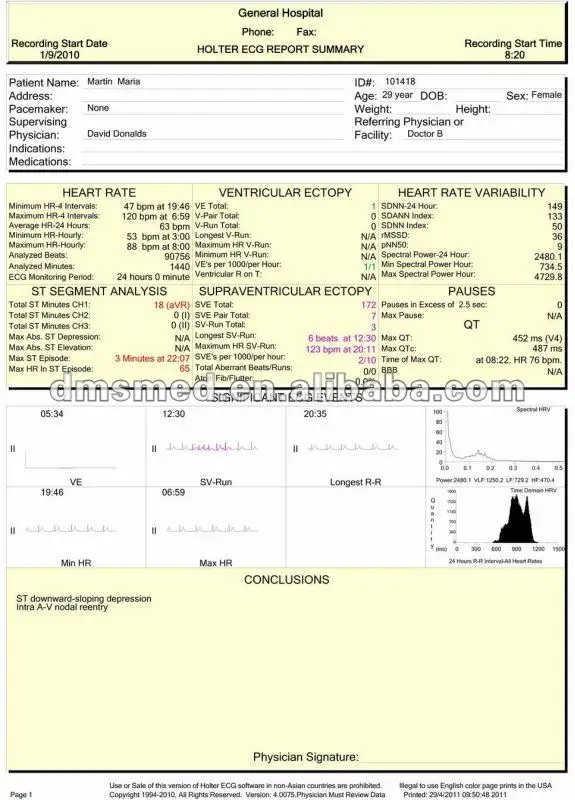

10.Report

Maintenance of the Holter Recorder

1. Keep Holter recorder clean.
2. The Holter recorder should not work in humid environment.
3. Remove battery if not use for a long time
4. Do not use the detergent with the content of alcohol to clean the Holter recorder. Do not let
liquid flow into the Holter recorder.

Warranty Liabilities

1. This product is warranted for a period for 12 months beginning from the date of purchase
against defects in manufacturing, materials or workmanship in accordance with the product
manufacturer’s specification provided at the time of purchase. (The warranty does not
include disposable spare parts.)
2. This warranty is voided if the product is damaged by accident, abnormal handling or misuse.
3. The repair service provided after warranty period is subject to appropriate charge.
