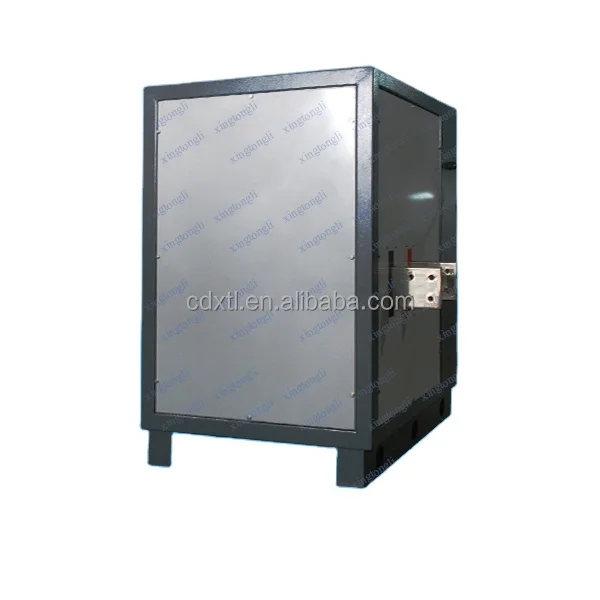

36kw Output Power 380v 415v 480v Input Voltage Rectifier
- Category: >>>
- Supplier: Chengdu Xingtongli Power Supply Equipment Co. Ltd.
Share on (60436795583):
Product Overview
Description
Product Information
GKD36-1000CVC | ||
control mode | cc/cv operation mode | |
local/remote control operation mode | ||
AC input voltage | 380v 3 phase 50/60hz | |
output voltage | 0~36v continuously adjustable | |
output current | 0~1000a continuously adjustable | |
cc/cv accuracy | less than 1% | |
output efficiency | more than 85% | |
output power | 36kw | |
switch frequency | 20KHZ | |
cool method | air cooling/water cooling | |
mechanical structure | single cabinet | |
dimension | 665*490*270 mm | |
weight | 200kg | |
protection function | input overvoltage:stop operation itself | |
undervoltage or phase:stop operation itself | ||
short circuit,overheating,overcurrent | ||
isolation degrate alarm:isolation degrade of output positive and negative bus | ||
Direct current 36v rectifier adopts IGBT high frequency inverting soft switch rectifier technology,and mainly used on metal and nonmetal surface electroplating rectifier power supplies,and also can be used on electrolytic rectifier power supply,ordinary anodizing power supply,dc heating power supply,and other occasions where dc power supply used.
Product Display
Application field
It is widely used in industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military industry, medical treatment, shipbuilding, railway and other high-tech fields.
Motor category
Electric vehicle motors, electric vehicle controllers, DC motor testing, etc.
Electric appliances
LED testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten filament gasification, etc.
Automotive
Automotive electronics, DC motors, car motor controllers, car lights, cigarette lighters, car audio and video
Electronics
Capacitors, resistors, relays, transistors, sensors, etc.
Display category
Display screen, liquid tank screen, touch screen, car DVD, mobile phone display, etc.
Electrochemical
Electrolysis, electroplating, anodizing, non-ferrous metal research, etc.
Other categories
Other areas of product testing and research and development that require DC power supply
It is widely used in industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military industry, medical treatment, shipbuilding, railway and other high-tech fields.
Motor category
Electric vehicle motors, electric vehicle controllers, DC motor testing, etc.
Electric appliances
LED testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten filament gasification, etc.
Automotive
Automotive electronics, DC motors, car motor controllers, car lights, cigarette lighters, car audio and video
Electronics
Capacitors, resistors, relays, transistors, sensors, etc.
Display category
Display screen, liquid tank screen, touch screen, car DVD, mobile phone display, etc.
Electrochemical
Electrolysis, electroplating, anodizing, non-ferrous metal research, etc.
Other categories
Other areas of product testing and research and development that require DC power supply
Related Products
Company Profile
Packaging / Transportation
FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent,
shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles.
Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent,
shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles.
Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
