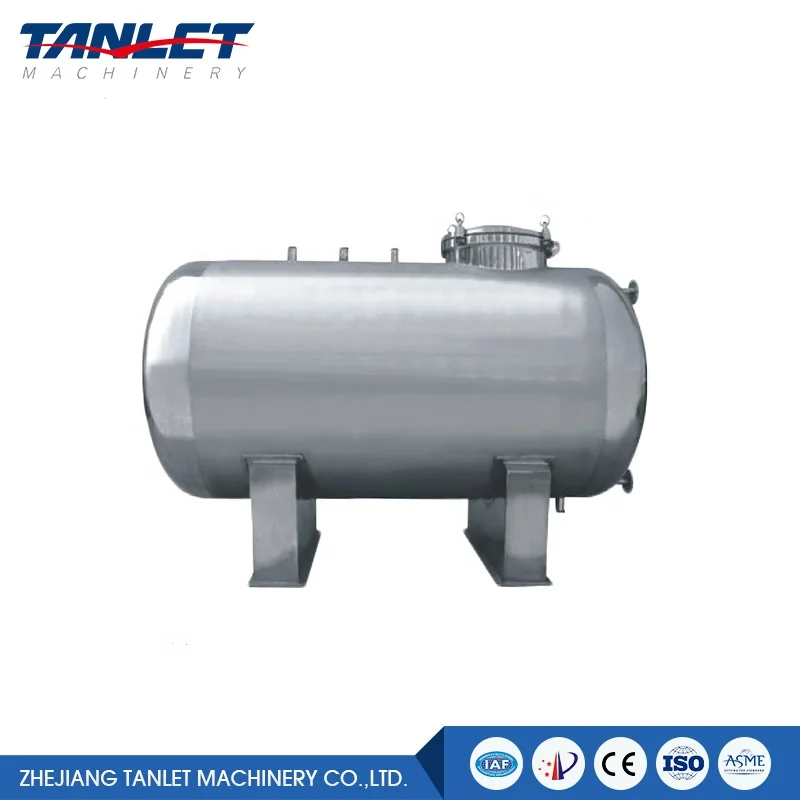

High pressure stainless steel beer liquid milk oil wine water storage tank
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (60436890834):
Product Overview
Description
Product Description

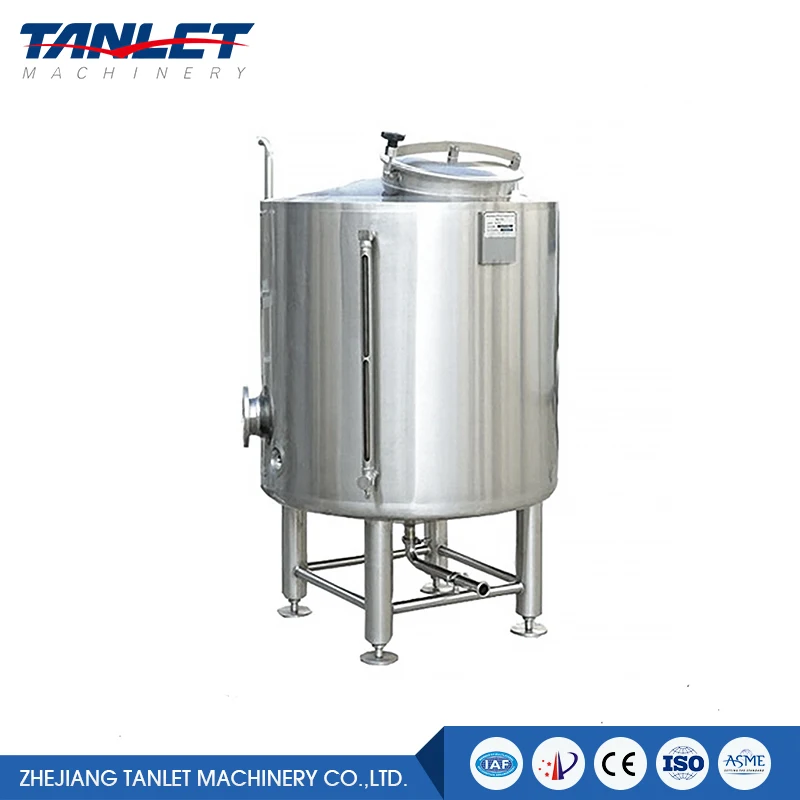

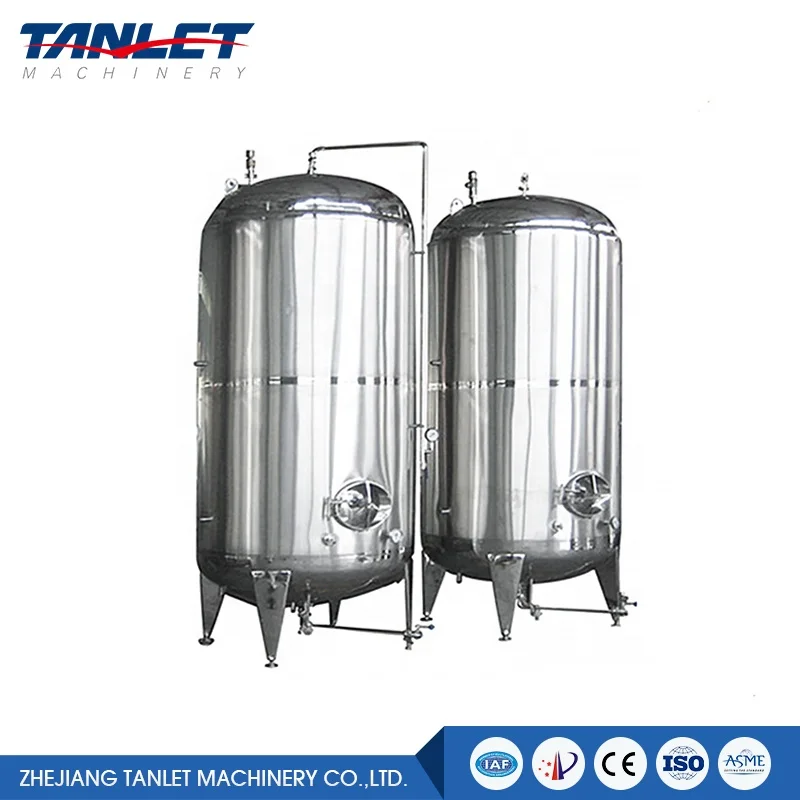

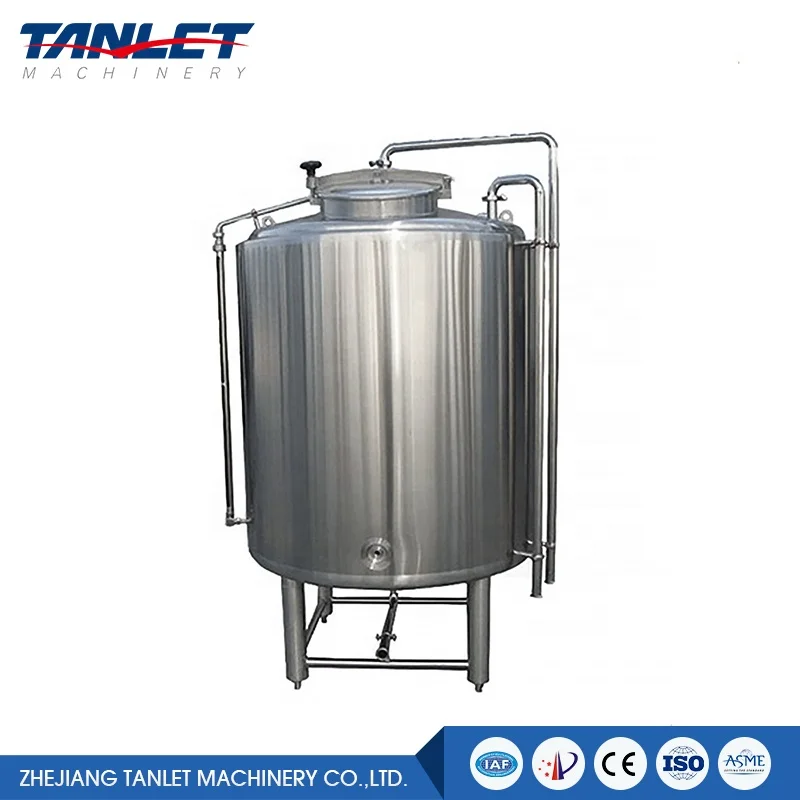

High pressure stainless steel beer liquid milk oil wine water storage tank
Brief

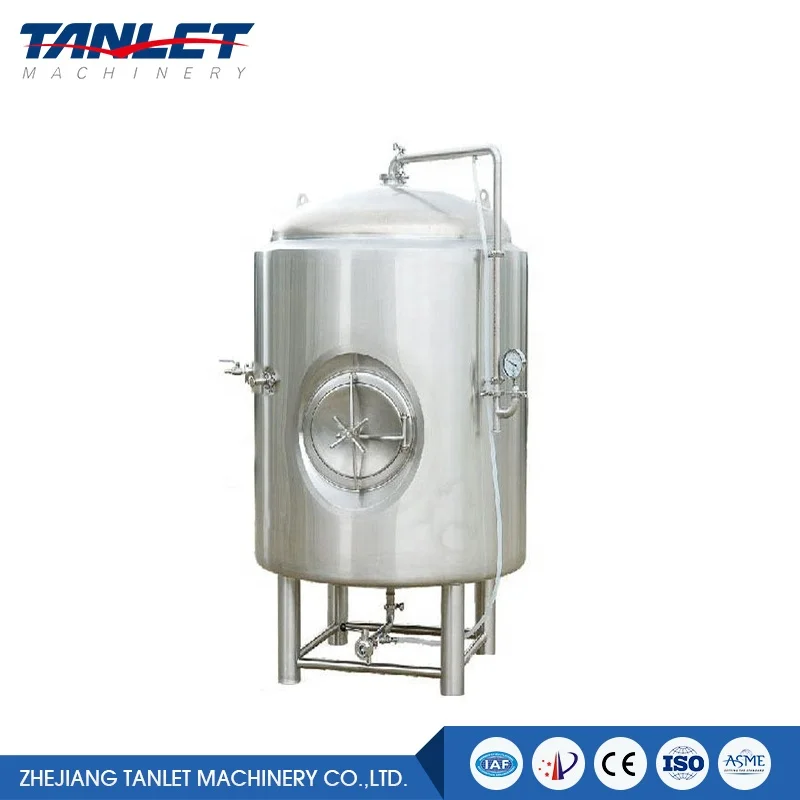

The vertical storage tank is applicable to the storage of Chinese medicine, food, chemical industry and liquid material. It has advantages of high efficiency and convenient
operation. To ensure complete cleaning, it is equipped with auto-rotating cleaning
sprinkler. The materials are SUS304 or SUS316L. The surface adopts the treatment
of polishing or glass painting according to GMP standard.
Main Parameter
| Specs (L) | D (mm) | D1 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H (mm) | DN (mm) |
| 200 | 700 | 800 | 400 | 800 | 235 | 1085 | 32 |
| 250 | 800 | 900 | 400 | 850 | 235 | 1135 | 32 |
| 300 | 800 | 900 | 460 | 910 | 235 | 1195 | 32 |
| 500 | 900 | 1000 | 640 | 1140 | 270 | 1460 | 40 |
| 600 | 900 | 1000 | 830 | 1130 | 270 | 1450 | 40 |
| 800 | 1000 | 1100 | 880 | 1430 | 270 | 1750 | 40 |
| 1000 | 1100 | 1200 | 880 | 1480 | 270 | 1800 | 40 |
| 1200 | 1100 | 1200 | 1100 | 1700 | 270 | 2020 | 40 |
| 1500 | 1200 | 1300 | 1150 | 1800 | 270 | 2120 | 40 |
| 2000 | 1400 | 1500 | 1220 | 1970 | 280 | 2300 | 40 |
| 2500 | 1500 | 1600 | 1150 | 1980 | 280 | 2310 | 40 |
| 3000 | 1600 | 1700 | 1220 | 2120 | 280 | 2450 | 40 |
| 4000 | 1800 | 1900 | 1250 | 2250 | 280 | 2580 | 40 |
| 5000 | 1900 | 2000 | 1500 | 2550 | 320 | 2950 | 50 |
| 7000 | 2200 | 2300 | 1450 | 2650 | 320 | 3050 | 50 |
| 8000 | 2200 | 2300 | 1750 | 2950 | 320 | 3350 | 50 |
Packaging & Shipping
Pcaking: Standard packing
Wooden case is avaliable for steel beer liquid milk oil wine water storage tank
Delivery: 1-45 days after the deposit confirmed
Our Services
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Vertification service
Engineers are avaliable to go abroad to help stallation.
Click here to see more products
Click here to learn more about us
Click here to contact us
Company Information
Here is a brief on us:
- Since 1998, with 20+ years of experience
- 3 factories totally covered 40,000+sq.m.
- Annually sales $31.5million, still keeps growing.
- 30+ R&D, 200+ employees professional service.
- Leader of this industry in nationwide.
FAQ
| Q: Are you manufacturer or trading company? |
| A: TANLET is a professional manufacturer. |
| Q: Where is your factory located? |
| A: All of our three factories are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hours to Guangzhou, 2.5 hours to Beijing. |
| Q: What is your business scope? |
| A: Chinese Herbal, Western Medicine, Food, Beverage, Dairy and B |
| Q: How could we confirm the details of the products? |
| A: TANLET will provide all the drawings for you to confirm. |
| Q: Will you charge us for drafting if we have special requests? |
| A: No, we will not. Free of charge to make a draft or offer. ODM |
| Q: How long the warranty will be? |
| A: 1 Year warranty |
| Q: How about the installation? And what if the machine goes down |
| A: Yes, we will do that. There are two options |
| a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. |
| b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side. |
| Q: Do you take L/C? |
| A: Yes, we accept Western Union, T/T and irrevocable L/C payable |
| Q: Can we become your distributor in our country? |
| A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. |
