hot sale T80 small mini landfill bulldozer price
- Category: >>>
- Supplier: Wuhan Kudat Industry & Trade Co. Ltd.
Share on (60436983502):
Product Overview
Description

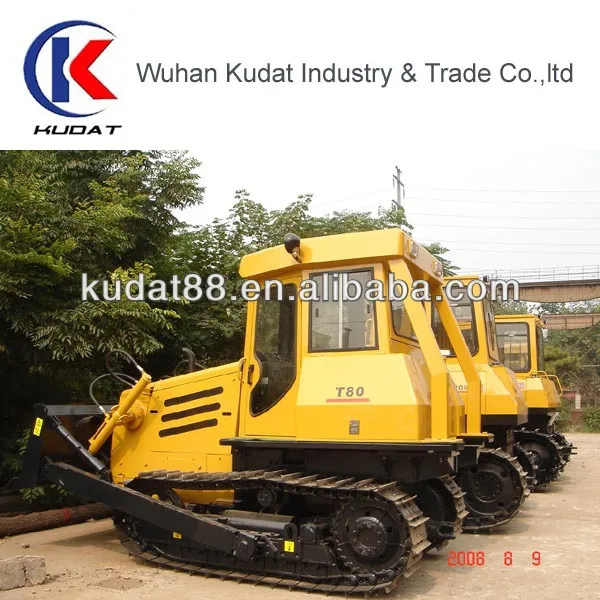

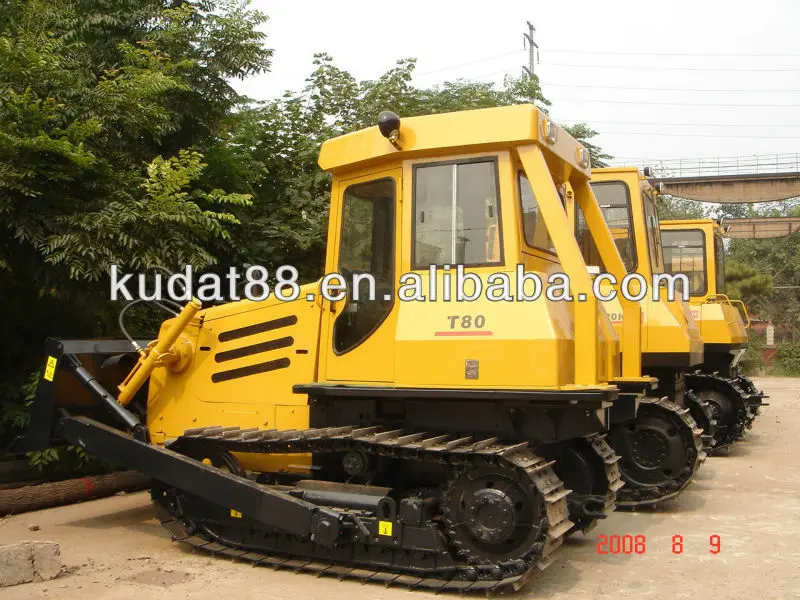

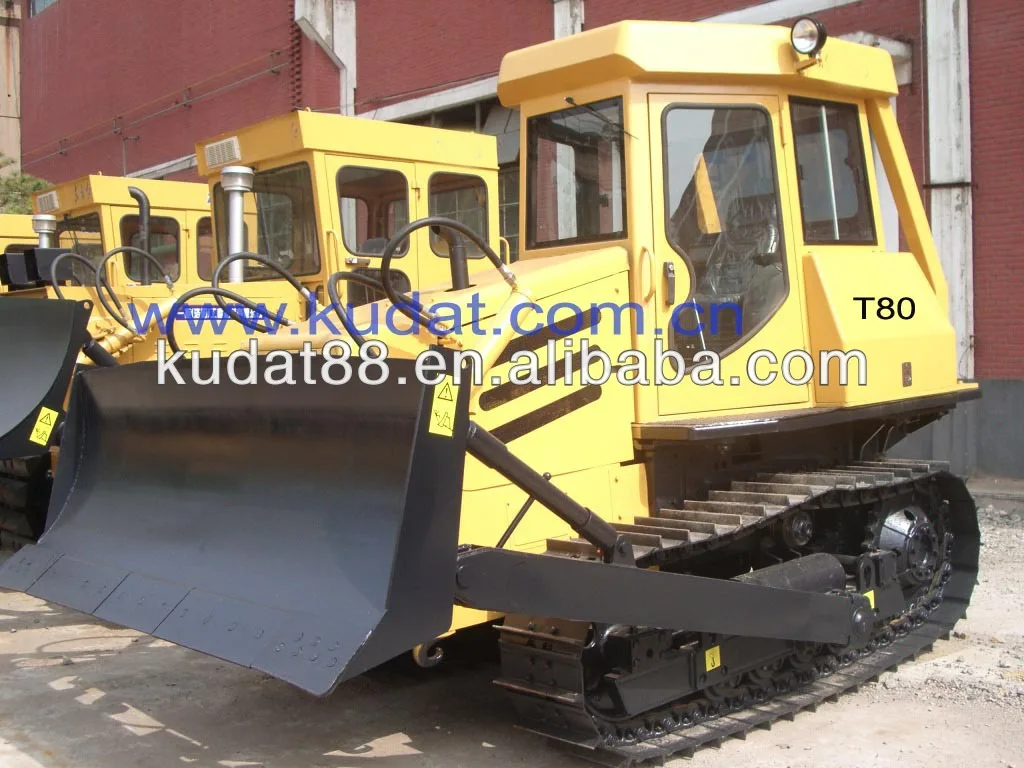

Mini bulldozer T80
- The machine is installed with the DONGFANGHONG LR4 105ZG52 boosting engine, with high power, low noise, energy conservation and low consumption.
- Gearbox is 4F+2R fixed-shaft mechanical gear shifting, applicable for varies environments.
- Integral trolley traveling construction adopting rigid chassis and semi-rigid hanger.
- Advanced operation control system, fully hydraulic aided steering, with flexible and labor-saving operation.
- Driver cab is welded with profile steel, with high strength, resistant impact, and good protection safety.
- Applicable for construction in narrow ground, with flexible working and high operation efficiency.
- The complete machine has good economical power and high reliability, being an ideal machine for project construction.
Technical Parameter:
Model | T80 |
Total weight | 8700kg |
Max. towing force | 69kN |
Engine model | LR4A3Z-22 |
Engine rated power | 70KW |
Engine rated speed | 2200 r/min |
Fuel consumption rate | ≤246 g/kw.h |
Engine Max. torque | 313.9N.m |
Forward 4 gears | 2.4~10.4 km/h |
Reverse 2 gears | 4.9~8.9 km/h |
Max. slope angle | ≥30° |
Track board width | 400mm |
Land pressure | 53kpa |
Overall length | 4860mm (If with Scarifier) |
Overall width | 2480mm |
Overall height | 2740mm |
Landfill Blade width | 2300mm |
Landfill Blade height | 800mm |
Blade Max. lifting height | 736.5mm |
Blade Max. digging depth | 370mm |
Cutting angle(adjustable) | 55° |
Towing equipment/Scarifier(Optional) | Fixtel/3 teeth |
About us
Since 1990 Wuhan Kudat Industry & Trade Co.,Ltd (Kudat) has exported engineering machinery, construction machinery and algricuture machinery to international market. Satisfying customers" stated and implied needs has always been the focus of business policy of Kudat. As a futher stelp to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO9001:2000, the international quality management system. And some of our products have also passed CE and EPA certification.
After-Sales Service
After got the complaint from the clients, first need got the following information:
1. Photos, video and problems description (as more details as better)
2. Checking the machine’s seal No., Engine No. and the date of arrived. Asking the clients supply the working hour
3. If it is in the warranty, supply free parts according the warranty policy; If not, supply necessary technical supply to help client fix the problem and offer paid parts
4. Ask the part No. according the part catalogue when fixed the problem and supply the parts
