SONY SNC EM632RC 1080p/30 fps /SNC EM602RC 720p/30 fps Outdoor IR ruggedizedcamera powered by IPELA ENGINE EX
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60436984810):
Product Overview
Description
Product Description
SONY SNC-EM632RC 1080p/30 fps /SNC-EM602RC 720p/30 fps Outdoor IR ruggedizedcamera powered by IPELA ENGINE EX
Sprcifications:
Tough, round-the-clock surveillance with excellent Full HD picture quality and IR illumination.

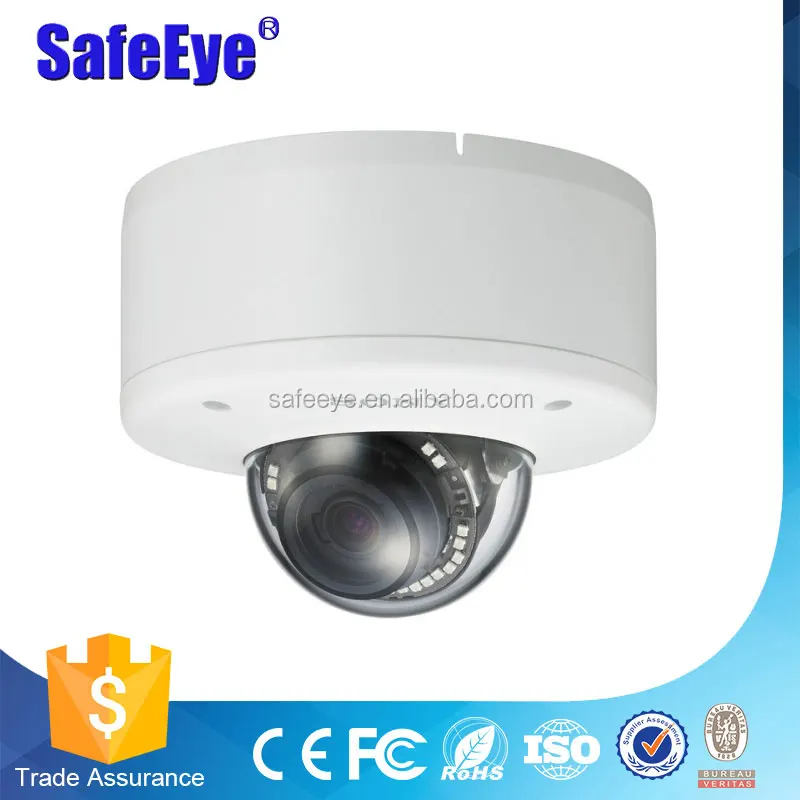

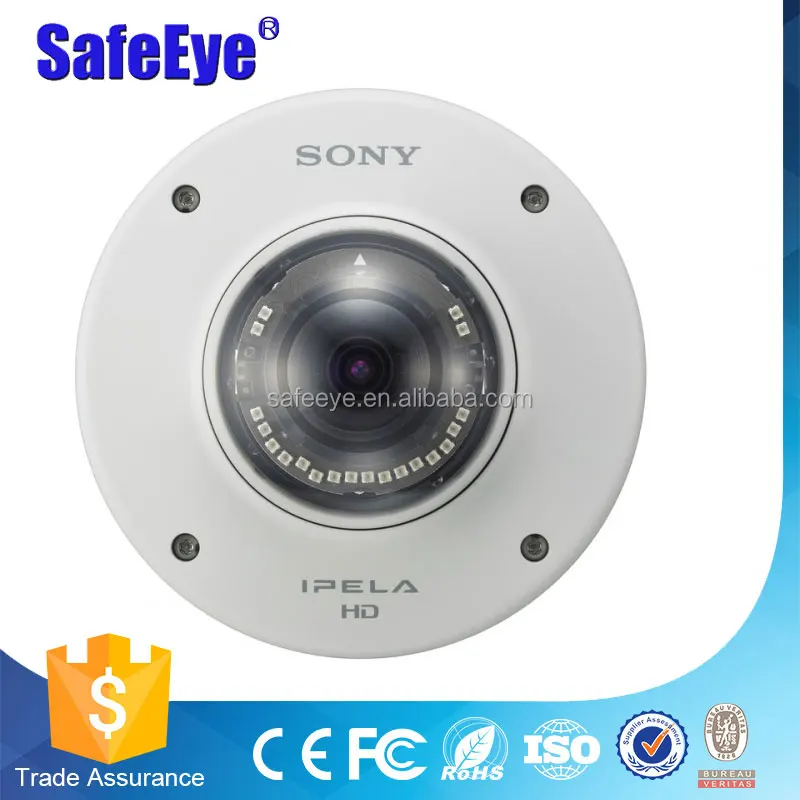

This ruggedized minidome camera delivers Full HD quality images around the clock in tough environments – indoors or outside in harsh weather.
The vandal- and weather-resistant SNC-EM632RC is ideal for a wide range of demanding security, surveillance and monitoring applications, from banks, factories, shopping malls and offices to airports, car parks and transportation systems.
Full HD picture quality is assured by the sensitive, high-resolution Exmor™ CMOS sensor that’s teamed with Sony’s advanced IPELA ENGINE EX signal processing system. Every scene looks clearer, sharper and more detailed – even in challenging low-light conditions or with harsh backlighting where other cameras struggle. Extra intelligence is added by DEPA Advanced Intelligent Video Analytics that can intelligently trigger an alarm based on user-defined rules.
On-board image stabilisation helps keep images crisp, clear and minimizes the effects of mechanical vibration, even if the camera’s buffeted by wind on an outdoor pole or overlooking a busy motorway.
This ‘single box’ solution also includes built-in IR (infrared) illumination, allowing viewing of objects up to 30m from the camera in complete darkness.
PoE (Power over Ethernet) capability carries IP video and power over a single connection cable, while easy focus and zoom adjustment further reduces installation time and maintenance costs.
The totally sealed minidome unit assures dependable operation in challenging indoor and outdoor environments. It's capable of operating in extreme temperatures (from -40°C to +50°C with PoE+, or from -30°C to +50°C with PoE). For even greater resilience, the camera’s vandal-resistant design meets the IK10 standard (protection against mechanical impact), and is IP66 rated for protection agains water and dust.
*Product shown with housing/accessory. Housing/accessory not included
Please be aware that the features/specifications can differ from country to country:
Technical Specifications:
| Camera | |
| Image Sensor | 1/2.9-type progressive scan Exmor CMOS sensor |
| Number of Effective Pixels | Approx. 2.14 Megapixels |
| Signal System | NTSC/PAL (switchable) |
| Sync System | Internal synchronization |
| Minimum Illumination (50 IRE) | Color: 0.1 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0 lx (IR LED On) | |
| Minimum Illumination (30 IRE) | Color: 0.06 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0 lx (IR LED On) | |
| Dynamic Range | Equivalent to 90 dB with View-DR technology |
| S/N Ratio (Gain 0 dB) | More than 50 dB |
| Gain | Auto |
| Shutter Speed | 1/1 s to 1/10,000 s |
| Exposure Control | Exposure compensation, AGC, Shutter speed |
| White Balance | ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual, Indoor, Outdoor |
| Lens | Built-in varifocal lens |
| Easy Zoom | Yes |
| Zoom Ratio | Optical zoom 3x |
| Digital zoom 4x | |
| Total zoom 12x | |
| Easy Focus for Setup | Yes |
| Horizontal Viewing Angle | 105.3° to 35.6° |
| Vertical Viewing Angle | 56.9° to 20.1° |
| Viewing Tilt Angle | 127.6° |
| Focal Length | f = 3.0 mm to 9.0 mm |
| F-Number | F1.2 (Wide) to F2.1 (Tele) |
| Minimum Object Distance | 300 mm |
| Pan/Tilt/Rotation Angle (manual) | ±192 ° |
| -7 ° to +75 ° | |
| -99 ° to +99 ° | |
| IR Illuminator | Yes |
| Wave length (typical): 850 nm , IR LED: 20 pieces) | |
| IR Working Distance | 30 m (50 IRE) |
| 98 ft. (50 IRE) | |
| Camera Features | |
| Video | |
| Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) |
| Compression Format | H.264 (High/Main/Baseline Profile), JPEG |
| Maximum Frame Rate | H.264: 30 fps (1920 x 1080) |
| JPEG: 30 fps (1920 x 1080) | |
| Bitrate Control Mode | CBR/VBR (selectable) |
| Range of Bit Rate Setting | 64 Kbps to 32 Mbps |
| Solid PTZ | Yes |
| e-Varifocal | Yes |
| Adaptive Rate Control | H.264 |
| Bandwidth Control | JPEG |
| Multi streaming Capability | Yes (3) |
| Number of Clients | 20 |
| Network | |
| Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), FTP (client), SSL |
| *SSM (Source Specific Multicast) is supported. | |
| Number of IP Address/Mac ADDRESS | 1 |
| QoS | DSCP |
| Multicast Streaming Support | Yes |
| ONVIF Conformance | Profile S |
| Authentication | IEEE802.1X |
| General | |
| Power Requirements | IEEE802.3at compliant (PoE/PoE+ system) |
| Power Consumption | Max. 17 W (IEEE802.3at (PoE+), PoE+) Max. 12.95 W (IEEE802.3af/at (PoE/PoE+), PoE) |
| Operating Temperature | -40°C to +50°C (PoE+) -30°C to +50°C (PoE) |
*If the camera is installed in high-temperature environments and subjected to direct sunlight, it is highly recommended to use the optional SNCA-WP602 Weather Protector. | |
| -40°F to +122°F (PoE+) -22°F to +122°F (PoE) | |
| Built-in Heater | Yes |
| Dimensions *1 | φ166 x 128 mm |
| φ6 5/8 inches x 5 1/8 inches | |
| Mass | 1580 g |
Our Services
- The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
- Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
- Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
- All the above products have CE ,FCC and ROHS certificates
- Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
- Power adapter isn't included in above prices, it's optional
- Price Validity: 30 days from issuing date.
- Warranty: 2 years after receiving goods,unlimited lifetime Technique support.
- If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
