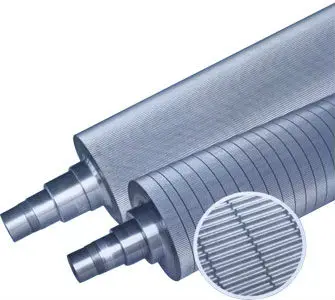

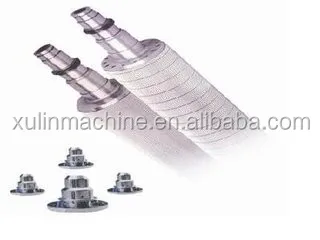

Paper corrugator rollers/Cardboard corrugation rolls/Corrugating reels

Product Overview

Description

Paper corrugator rollers/Cardboard corrugation rolls/Corrugating reels

Characteristics:

1.The diameter of corrugated roller is Φ260-280mm, Φ310mm, Φ320mm,Φ360mm, Φ430mm. It is made from alloy steel 48CrMo or tungsten carbide. The roller with heat treatment is polished, plated with chrome, the hardness of its surface reaches above SH75.

2.The surface of the corrugated roller can be coated with carbon tungsten, which makes the roller wear-resisting and highly effective, reduces the shrinkage ratio of corrugated paper, and ensures long service life.



Characteristics of Flute
Flute Type	Flute Height(mm)	Quantity/300mm Length	Note
A	4.6-4.9	34±2	Usually used for lining
C	3.6-3.9	38±2	Usually used for lining
BC	3.2-3.3	44±2
B	2.6-2.9	50±2	Usually used for printing
D	2.0-2.2	78±4
E	1.5-1.8	88±2	Usually used for color printing,
	1.1-1.5	92±2
F	0.8-1.0	128±2
