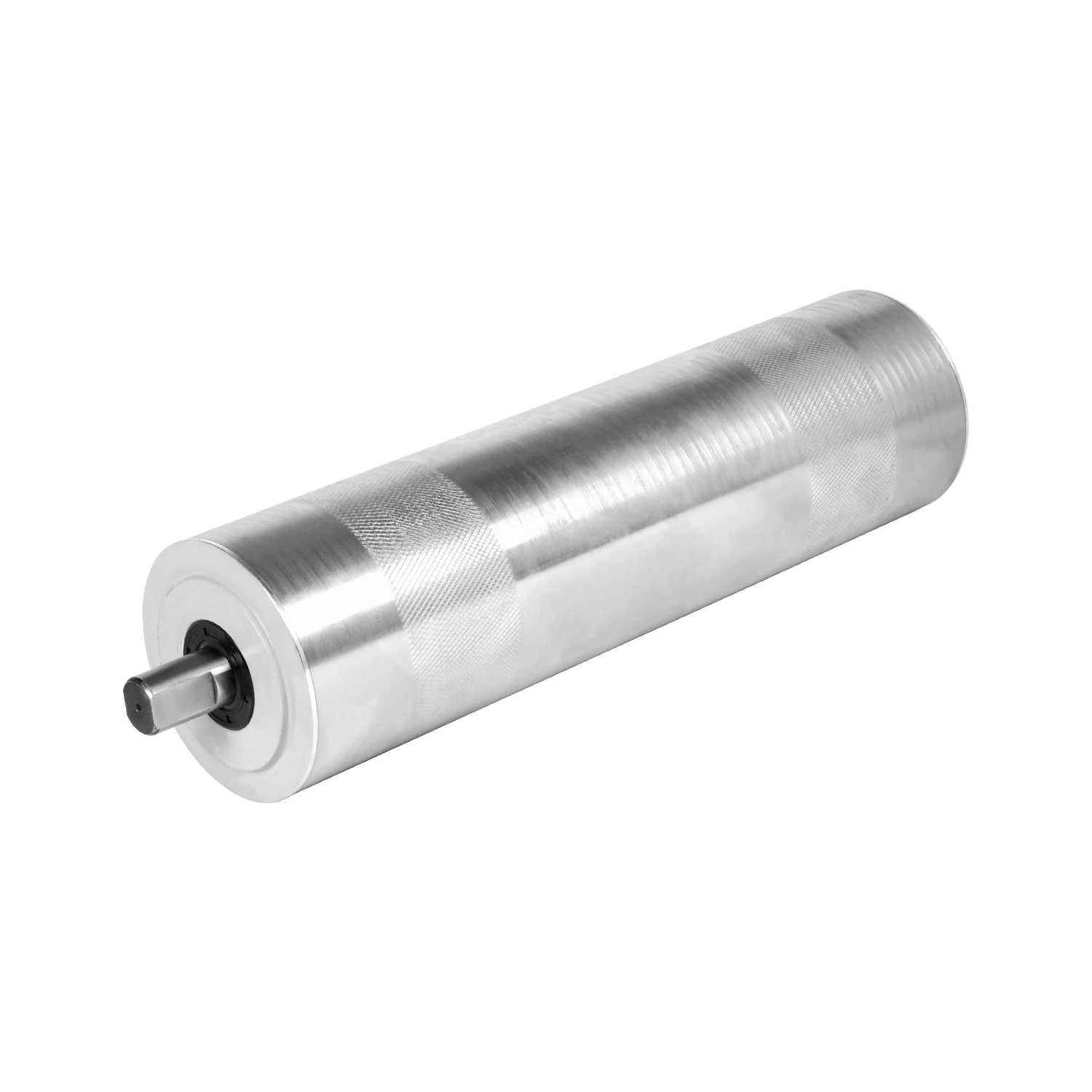

ZD Leader 24V 36V 48V 50mm 60mm 80mm 113mm 138mm 165mm Drum Motor Roller Conveyor Belt
- Category: Motors >>>
- Supplier: Ningbo Zhongda Leader Intelligent Transmission Co. Ltd.
Share on (60437042467):
Product Overview
Description
Products Description
1:What is a Drum Motor?

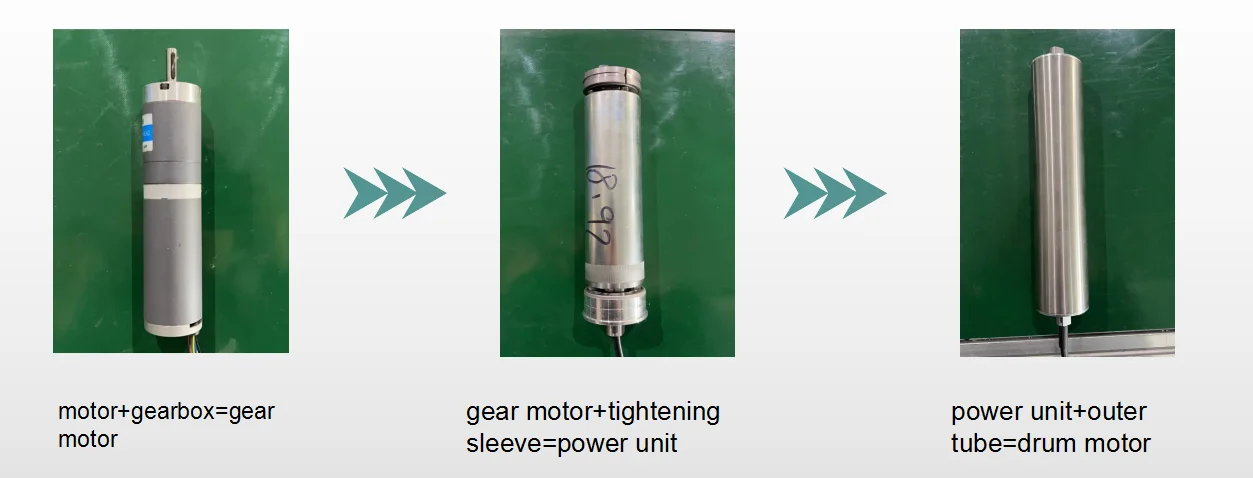

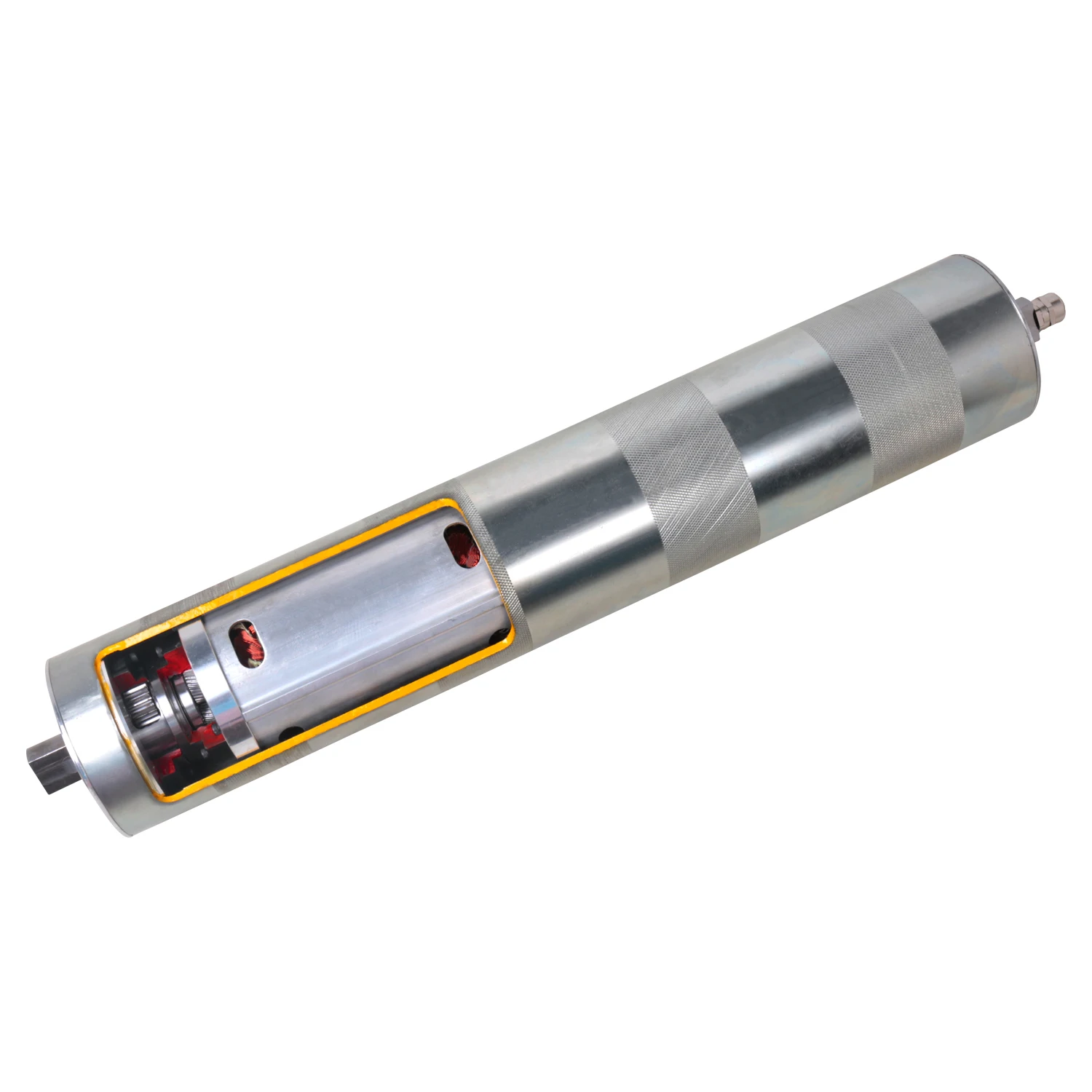

Drum motor is a new type of driving device that puts the motor and reducer together inside the drum body. It is mainly used in stationary and mobile belt conveyors, instead of traditional motors, and a separate drive device where the reducer is in addition to the drive drum.

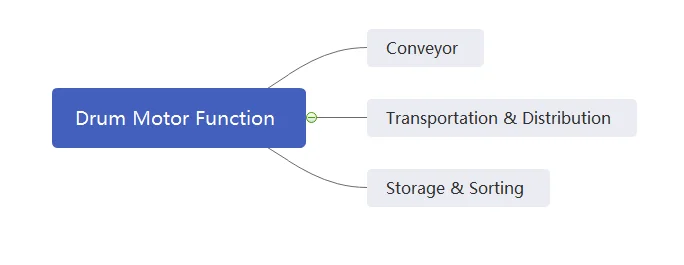

2:What is the main function of Drum Motor?
Compared with traditional helical gear motors, angle gear motors, drum motors can better realize the transmission function.

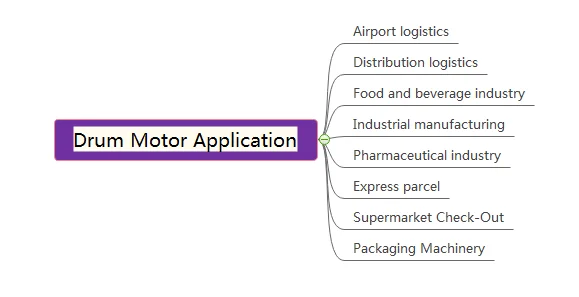

3:What is the application of Drum Motor?

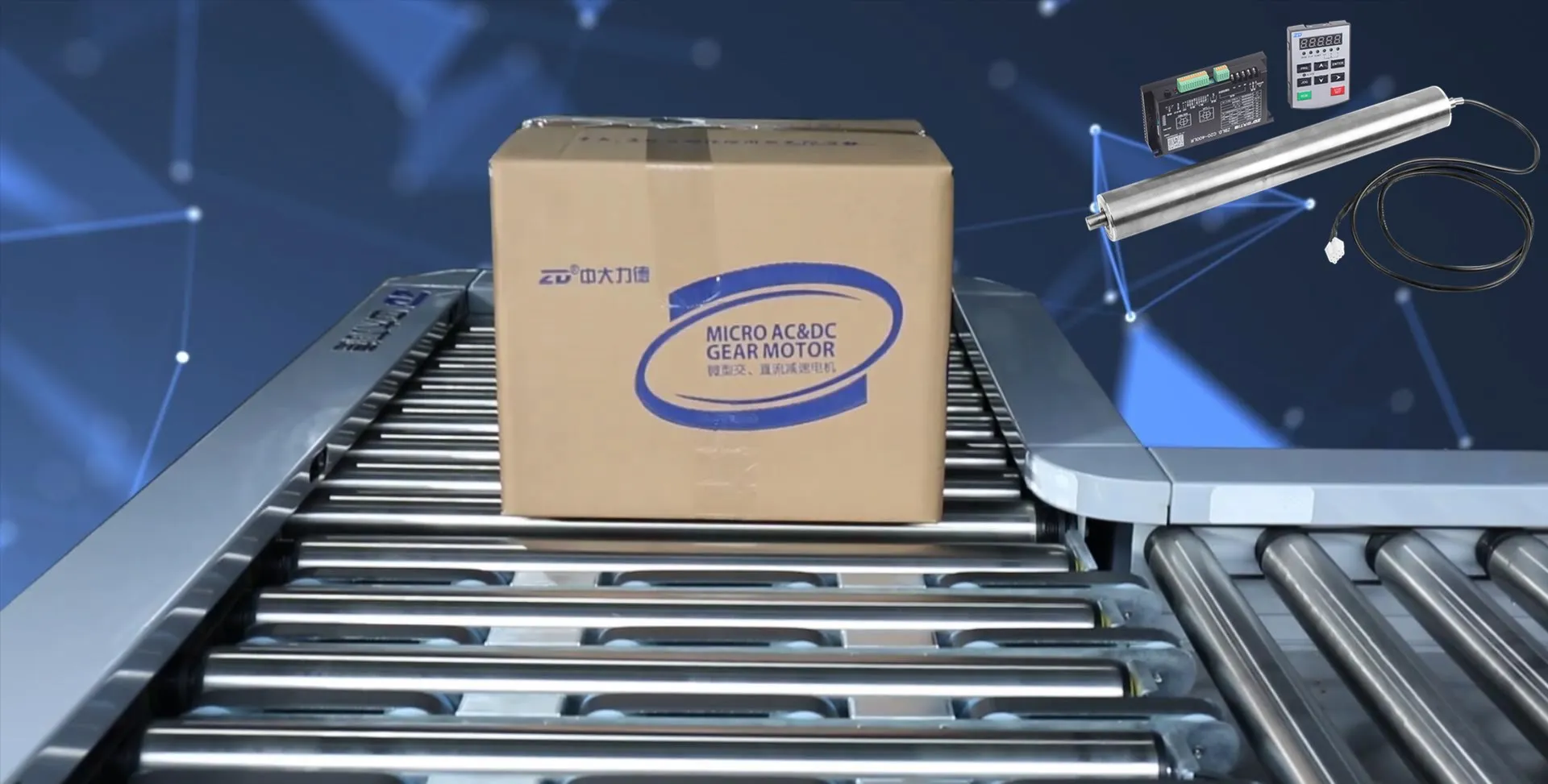

Drum motors have been more and more widely used in traditional industries and emerging industries.
Feature Overview
Series | BL50 |
Built-in Motor Type | DC brushless motor |
Rated Power | 40 watts |
DC Power Supply | 24VDC/36VDC/48VDC |
Speed Control Range | 200~3000 rpm |
Material of Drum Body (Optional) | 1:Carbon Steel Tube 2:304 Stainless Tube |
Linear Speed | 1.5~129 m/min |
Drum Length | 260~800 mm |
ZD Drum Motor Model Read:
ZD BL T 50 -A-25-380-40-D-24-G1 a b c d e f g h i j k
a | “ZD” stands for our company name"Zhongda Leader" | ||||
b | “BL” stands for motor type is dc brushless motor | ||||
c | “T” stands for Carbon Steel Tube material / “S” stands for 304 Stainless Steel Tube material | ||||
d | “50” stands for Drum diameter is 50 mm | ||||
e | “A” stands for Cylindrical Drum Shape | ||||
f | “25” stands for linear speed is 25 m/min | ||||
g | “380” stands for drum length is 380mm | ||||
h | “40” stands for rated power is 40w | ||||
i | “D” stands for voltage type is dc power supply, 1 stands for single phase AC power supply | ||||
j | “24” stands for Voltage is 24V | ||||
k | "G1" stands for lead wire type, normally it is straight out | ||||
Product Paramenters
Rated Power（W) | Gear Stage | Reduction Ratio(i) | Max Linear Speed V(m/min) | Rated Speed n (rpm) | Allowable Torque T (N.m) | Driving Force F（N） | Length L (mm） | |||||||
40W | 1 stage | 3.65K | 129 | 821.9 | 0.420 | 3.600 | 260~800 | |||||||
5.36K | 88 | 559.7 | 0.610 | 48.800 | ||||||||||
6.55K | 72 | 458 | 0.750 | 60.000 | ||||||||||
8.63K | 54.6 | 347.6 | 0.990 | 79.200 | ||||||||||
2 stages | 13.53K | 35 | 221.7 | 1.390 | 111.20 | 270~800 | ||||||||
18.92K | 25 | 158.6 | 1.950 | 156.00 | ||||||||||
24.65K | 19 | 121.7 | 2.540 | 203.20 | ||||||||||
28.05K | 16.8 | 106.9 | 2.890 | 231.20 | ||||||||||
33.92K | 14 | 88.4 | 3.500 | 280.00 | ||||||||||
44.69K | 10.5 | 67.1 | 4.610 | 368.80 | ||||||||||
58.22K | 8 | 51.5 | 6.000 | 480.00 | ||||||||||
3 stages | 67.08K | 7 | 44.7 | 6.240 | 499.20 | 290~800 | ||||||||
81.11K | 5.8 | 37 | 7.540 | 603.20 | ||||||||||
91.36K | 5 | 32.8 | 8.490 | 679.20 | ||||||||||
102.88K | 4.6 | 29.2 | 9.560 | 764.80 | ||||||||||
118.98K | 4 | 25.2 | 11.060 | 884.80 | ||||||||||
145.36K | 3.2 | 20.6 | 13.510 | 1080.80 | ||||||||||
165.64K | 2.8 | 18.1 | 15.000 | 1200.00 | ||||||||||
231.61K | 2 | 12.9 | 15.000 | 1200.00 | ||||||||||
301.68K | 1.5 | 9.9 | 15.000 | 1200.00 | ||||||||||
This parameter is used for motor speed range in 200~3000 rpm. | ||||||||||||||

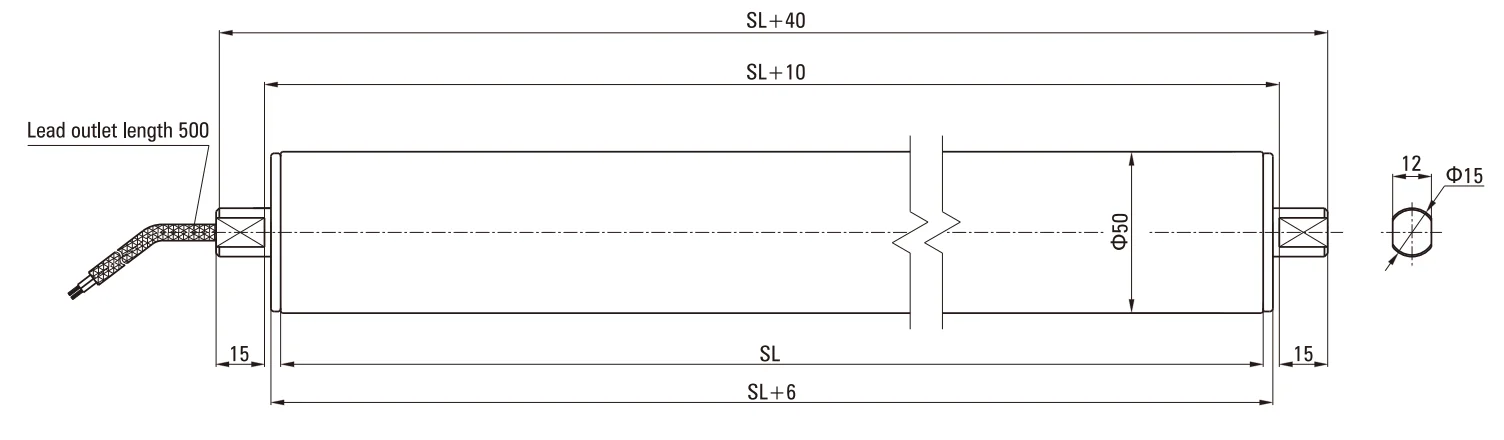

Dimensions（Unit mm）
BL50 Outlining Dimensions :
Diameter: 50mm Wall thickness:t1.5 Power supply: DC24/36/48V
