SC Cable Lug Types battery cable lug battery terminal
- Category: >>>
- Supplier: Guan Tong Electric Equipment Manufacturing Co. Ltd.
Share on (60437084419):
Product Overview
Description

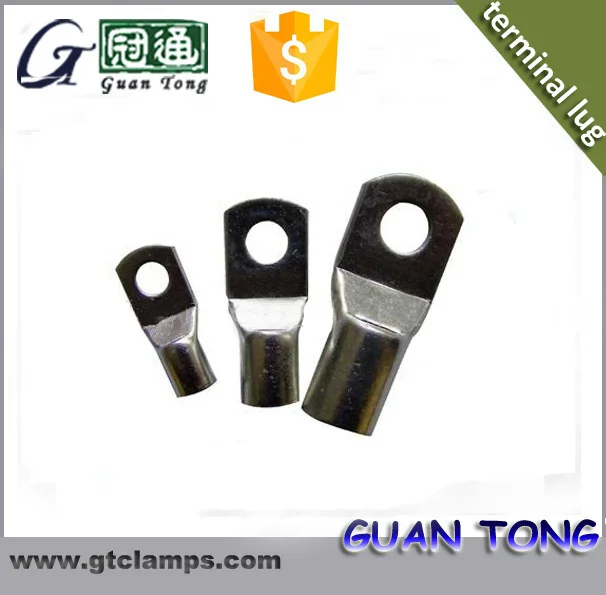

battery cable lug
Product Description
Guan Tong- The Icon Of High Quality
CLICK PHOTO FOR DETAIL
DTL-2 Bimetal Cable Lug SC Copper Cable Lug DTL-1- Bimetal Cable Lug
GTY Connecting Tube SV Fork Type Terminal Lug OT Ring Type Terminal Lug
JM Cable Lug JB Cable Lug GTL Bimetal Cable Lug
Specification
| Model NO SC | d2Φ(mm) | Dimention(mm) | wire size(mm2) | ||
| dΦ | DΦ | L | |||
| SC 1.5-4 | 4.2 | 1.8 | 3.5 | 18 | 1.5 |
| SC 1.5-5 | 5.2 | 1.8 | 3.5 | 18 | 1.5 |
| SC 2.5-4 | 4.2 | 2.5 | 4 | 19 | 2.5 |
| SC 2.5-5 | 5.2 | 2.5 | 4 | 19 | 2.5 |
| SC 2.5-6 | 6.2 | 2.5 | 4 | 19 | 2.5 |
| SC 4-5 | 5.2 | 3.1 | 4.8 | 21 | 4 |
| SC 4-6 | 6.2 | 3.1 | 4.8 | 21 | 4 |
| SC 6-5 | 5.2 | 3.8 | 5.5 | 24 | 6 |
| SC 6-6 | 6.2 | 3.8 | 5.5 | 24 | 6 |
| SC 6-8 | 8.2 | 3.8 | 5.5 | 24 | 6 |
| SC 10-6 | 6.2 | 4.5 | 6.8 | 25.5 | 10 |
| SC 10-8 | 8.2 | 4.5 | 6.8 | 25.5 | 10 |
| SC 16-6 | 6.2 | 5.5 | 7.5 | 30.5 | 16 |
| SC 16-8 | 8.2 | 5.5 | 7.5 | 30.5 | 16 |
| SC 16-10 | 10.5 | 5.5 | 7.5 | 30.5 | 16 |
| SC 25-6 | 6.2 | 7 | 9 | 34 | 25 |
| SC 25-8 | 8.2 | 7 | 9 | 34 | 25 |
| SC 25-10 | 10.5 | 7 | 9 | 34 | 25 |
| SC 35-6 | 6.2 | 8.2 | 10.5 | 38 | 35 |
| SC 35-8 | 8.2 | 8.2 | 10.5 | 38 | 35 |
| SC 35-10 | 10.5 | 8.2 | 10.5 | 38 | 35 |
| SC 35-12 | 12.5 | 8.2 | 10.5 | 38 | 35 |
| SC 50-8 | 8.2 | 9.8 | 12.5 | 46.5 | 50 |
| SC 50-10 | 10.5 | 9.8 | 12.5 | 46.5 | 50 |
| SC 50-12 | 12.5 | 9.8 | 12.5 | 46.5 | 50 |
| SC 70-8 | 8.2 | 11.5 | 14.5 | 49 | 70 |
| SC 70-10 | 10.5 | 11.5 | 14.5 | 49 | 70 |
| SC 70-12 | 12.5 | 11.5 | 14.5 | 49 | 70 |
| SC 95-10 | 10.5 | 13.8 | 17.5 | 55 | 95 |
| SC 95-12 | 12.5 | 13.8 | 17.5 | 55 | 95 |
| SC 120-12 | 12.5 | 15.5 | 19.5 | 64.5 | 120 |
| SC 120-16 | 16.5 | 15.5 | 19.5 | 64.5 | 120 |
| SC 150-12 | 12.5 | 16.5 | 21 | 67 | 150 |
| SC 150-16 | 16.5 | 16.5 | 21 | 67 | 150 |
| SC 185-16 | 16.5 | 18.8 | 23.5 | 78 | 185 |
| SC 240-16 | 16.5 | 21 | 26.5 | 84 | 240 |
| SC 300-16 | 16.5 | 24 | 30 | 94 | 300 |
| SC 300-20 | 20.5 | 24 | 30 | 94 | 300 |
| SC 400-16 | 16.5 | 26.5 | 34 | 109 | 400 |
| SC 400-20 | 20.5 | 26.5 | 34 | 109 | 400 |
| SC 500-16 | 16.5 | 30 | 38 | 123 | 500 |
| SC 500-20 | 20.5 | 30 | 38 | 123 | 500 |
| SC 630-20 | 20.5 | 35 | 45 | 135 | 630 |
| SC 800-20 | 22.5 | 39 | 50 | 170 | 800 |
| SC 1000-20 | 22.5 | 44 | 56 | 200 | 1000 |
Our Electric Power Fitting Line Including:
* machine bolt * double arming bolt * square nut * washer
* carriage bolt * shoulder oval eye bolt * brace bolt * cable lug
* alley arm brace * thimble clevis * wedge connector * Insulator
* angle bracket * cross arm clevis * secondary bracket * guy hook
* thimble eye nut * guy clamp * insulated clevis
* Anchor Shackle * insulator spindle * forged thimble eye bolt
* anchor expanding * flat crossarm brace * secondary rack
* cross arm plate * ground plate * guy attachment
* pole bands Pole Clamp * double arming plate * cable suspension clamp
* Strain Clamp * dead end clamp * Tension clamp
* Anchor Clamp * suspension clamp * Piercing Connector
* socket clevis * transformer lead pins * u bolt u shackle
* socket eye * ball clevis * pole top pins
* single/double upset bolt * Anchor Rod stay rod * ground rod earth rod
* D Iron Bracket * ground rod clamp * staple gound wire
* guy bonding clamp * insulated clevis * insulator pin
* anchor assemble * oval eye nut * parallel clamp
and so on
Packaging & Shipping
Export Carton Box Package ,which is suitable for loading, storage in most popular Condition. Custom packing will be charged reasonably to favor customer’s requirement .
Packaging & Shipping
Export Carton Box Package ,which is suitable for loading, storage in most popular Condition. Custom packing will be charged reasonably to favor customer’s requirement .
Our Services
1, Fast Response Time
2, Quality and Certified Products
3, Resonable Price
4, Cheap and Reliable Transportation
5, 7*24 Hours After Sales Service
Company Information
Company Show
Guan Tong is a key player in electric power fitting industry. We manufacture and OEM electric cable clamp and accessories. The innovative spirit in our enterprise makes us not only the best one, but the first one in the section.
