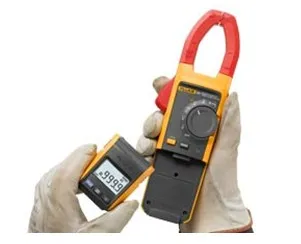

1000V ac/dc voltage tester clamp meter Fluke 381 remote power calmp meter
- Category: >>>
- Supplier: Shenzhen Yearstar Intelligent Technology Co. Limited
Share on (60437138669):
Product Overview
Description
Product Description
Fluke 381
Features
- Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy
- The removable magnetic display can be conveniently mounted where it is easily seen
- iFlex Flexible Current Probe expands the measurement range to 2500 A AC
- CAT IV 600 V, CAT III 1000 V
- Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Three-year warranty
- Soft carrying case
Safety Conformance
IEC/EN 61010-1:2001, 1000V CAT III, 600V CAT IV
Specification:
Fluke 381 | Range | Resolution | Accuracy |
AC Current via Clamp | 999.9A | 0.1A | ±2 % ± 5 digits |
AC Current via iFlexTM | 2500A | 0.1/1A | ±3 % ± 5 digits |
DC Current | 999.9A | 0.1A | ±2 % ± 5 digits |
AC Voltage | 1000 V | 0.1 V | ±1.5 % ± 5 digits |
DC Voltage | 1000 V | 0.1 V | ±1 % ± 5 digits |
Resistance | 60,000Ω | 0.1Ω(Max) | ±1 % ± 5 digits |
Frequency | 500Hz | 0.1Hz | ±0.5 % ± 5 digits |
True RMS measurement | • | ||
Countinuity testing | • | ||
Data hold | • | ||
Back light | • | ||
Max/Min value hold | • | ||
Inrush current | • | ||
LPF(Lowpass filtering) | • | ||
Wireless display | • | ||
18" iFlex Flexible Current Probe | included | ||
10" iFlex Flexible Current Probe | optional accessory | ||
Size | meas | 280×88×43mm | |
jaw size | 34mm | ||
Weight(g) | 340g | ||
Security class | CAT III 1000 V CAT IV 600V | ||
Warranty | three years | ||
