Product Overview

Description




-3-_01.jpg-3-_02.jpgDMX Signal Decoder

Product Description

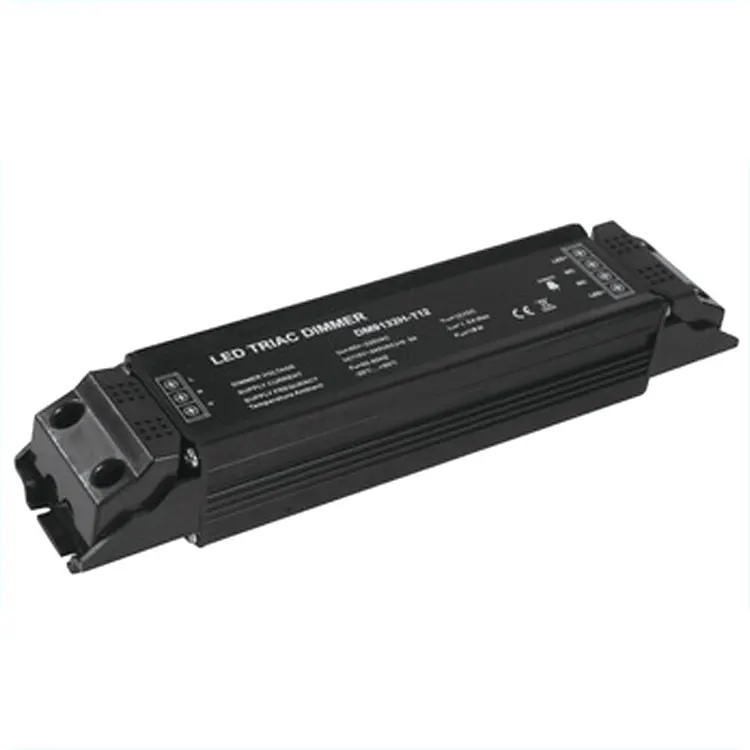

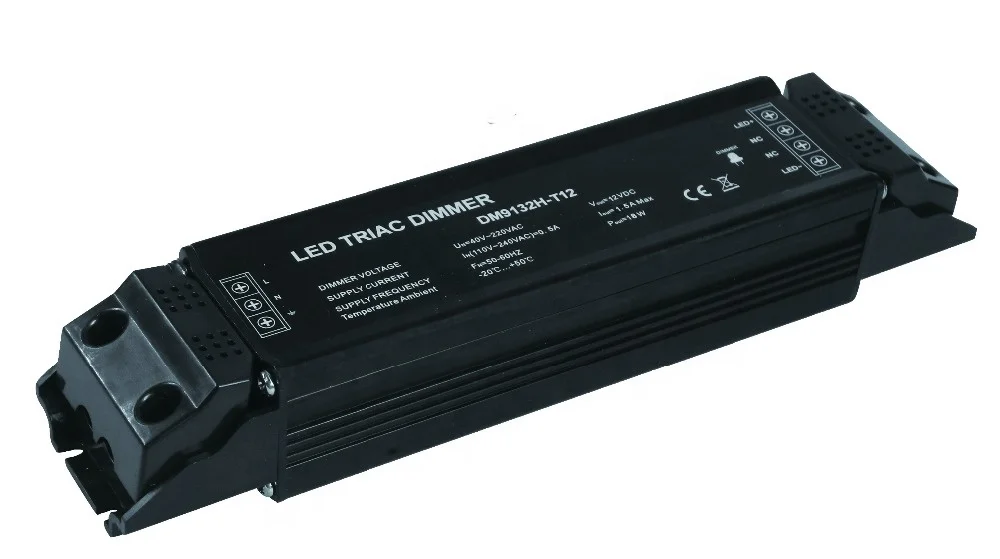

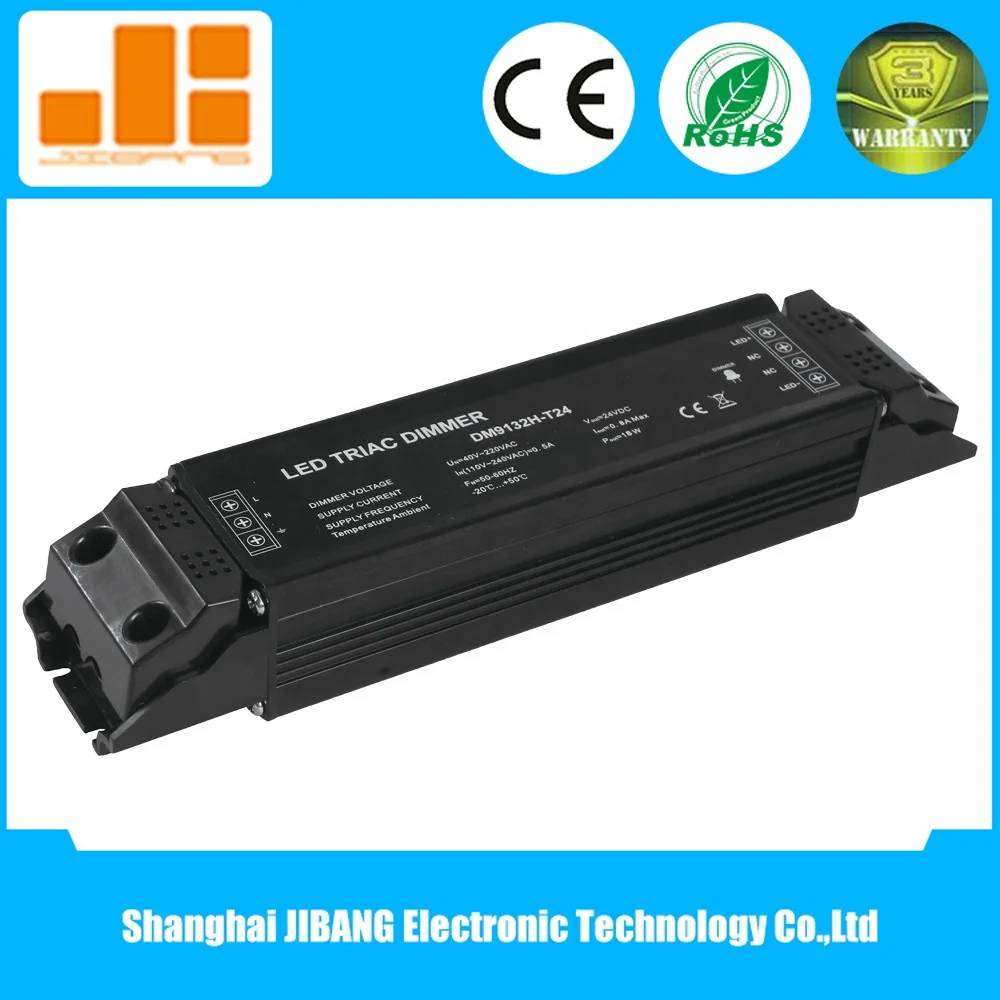

Output PWM Dimmable Triac 18W LED Driver

118W LED Driver

Features of Triac 18W LED Driver

1,AC 40V--220V triac dimmer and dimmer curve smoothing, according to the triac rectifier output

voltage is proportional to the curve.with Leading/Trailing edge switch functions .

2,With output short circuit protection, power protection, overheating protection function.

3,The driver cascade when using please choose appropriate power triac dimmer.

Specifications of Triac 18W LED Driver

ModelDimming VoltageFrequencyInput CurrentEfficiencyOutput CurrentOutput Voltage
DM9132H-T1240V-220V AC50/60Hz0.5A max80%Min1.5A maxDC 12V
DM9132H-T2440V-220V AC50/60Hz0.5A max80%Min0.8A maxDC 24V
AC Constant Voltage Triac Dimmable LED Driver Series
Model NO.Dimming VoltageInput VoltageMax Current LoadMax Output Power
DM9132H-T12AC40-220V110~240VAC12V/1.5A 18W
DM9132H-T24AC40-220V110~240VAC24V/0.8A  18W
DM9130H-T12AC40-220V110~240VAC12V/3A 35W
DM9130H-T24AC40-220V110~240VAC24V/1.5A 35W
DM9129H-T12AC40-220V110~240VAC12V/4.2A 50W
DM9129H-T24AC40-220V110~240VAC24V/2.1A  50W
DM9123H-T12AC50-220V110~240VAC12V/6A 75W
DM9123H-T24AC50-220V110~240VAC24V/3A 75W
DM9120H-T12AC50-220V110~240VAC12V/6A 100W
DM9120H-T24AC50-220V110~240VAC24V/6A 100W
DM9119H-T12AC50-220V110 SWITCH 240VAC 12V/12.5A  150W
DM9119H-T24AC50-220V110 SWITCH 240VAC 24V/6.5A 150W
DM9118H-T12AC50-220V110 SWITCH 240VAC 12V/16.7A  200W
DM9118H-T24AC50-220V110 SWITCH 240VAC 24V/8.5A  200W
DM9105H-T12AC40-220V110 SWITCH 240VAC 12V/29A 350W
DM9105H-T24AC40-220V110 SWITCH 240VAC 24V/14.5A  350W

Details of Triac 18W LED Driver


Product On-line


Product On System


Remark:

1. Use of switching power supply power on before, please check whether the input and output lines connect to (alternating current (ac) line of fire, zero line, the grounding wire, dc voltage positive and negative), suggest using wire sectional area more than 0.75 mm copper wire; In order to ensure the safety of using and reduce interference, please ensure that grounding end is good reliable grounding.

2.When dimming,the output has the LED dimming instructions.

3.The Triac dimmer can cooperate with LUTRON and DYNALITE system.
