SHENPENG DN 2HS PP woven bag sewing machine
- Category: >>>
- Supplier: Hebei Shengong Sewing Machine Manufacturing Co. Ltd.
Share on (60437180736):
Product Overview
Description
DN-2HS PP woven bag sewing machine
Product Description
Applications
1.DN-2HS Single needle,plain feed ,flat bed, double thread chain stitch sewing machine for seaming and hemming from light to heavy weight material such as multi-wall paper,pp/pe woven cloth, jute /gunny bag etc.
2.DN-2HS Single Needle Automatic Bag Sewing Machine is a high speed one needle chain stitch bag sewing machine.
3.With a speed of 3,000 rpm, works more efficient, which is the fastest sewing machine.
4.Fully enclosed structure design, all parts are enclosed and protect in the casting housing, dust-proof, suitable for applyin high dust and corrosive environment, and no need for oiling;
5.Main parts are made of 20CrMnMo anti-friction alloy, extended the longer service life.
Features
- Single needle double thread chain stitch 401;
- Maximum stitching capacity up to 8 mm (5/16in.), 24 plies of paper;
- Adjustable stitch length from 7 to 12 mm;
- Drop feed system;
- Fully enclosed structure;
- Automatic lubricating;
- Main parts are made of 2OCrMnMo antifriction alloy;
- Well assembly quality, ensure the stable running and long service life;
- DN-2HS bag making machine can be used as a sewing unit of automatic bag sewing machine system.
Specifications
Model | DN-2HS |
Max. sewing speed | 3,000.p.m |
Stitch length | 7-12mm |
Max. Sewing capacity | 8mm(5/16in.) |
Stitch Type | Single Needle Double Thread Stitch 401 |
Feed Mechanism | Drop Feed |
Lubrication | Automatic |
Net Weight | 40gk |
Gross Weight | 45kg |
Dimension | 400×380×220mm |
Attention:
- Please oil the machine throughly before running;
- Please follow the safety instruction strictly before put the machine into operation;
Machine Picture

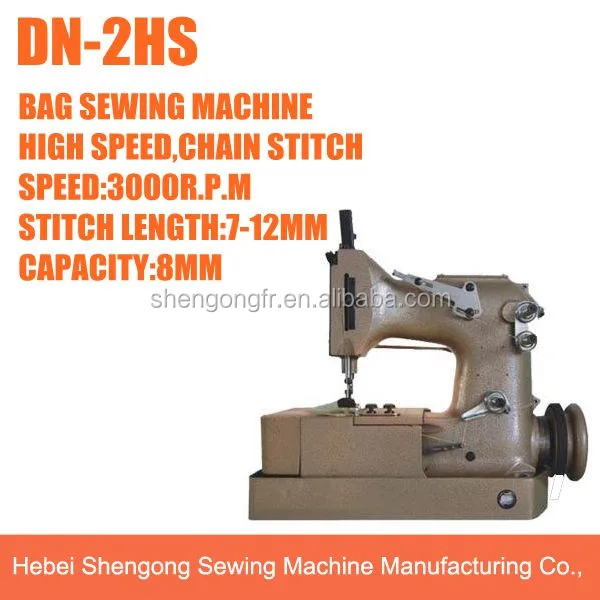

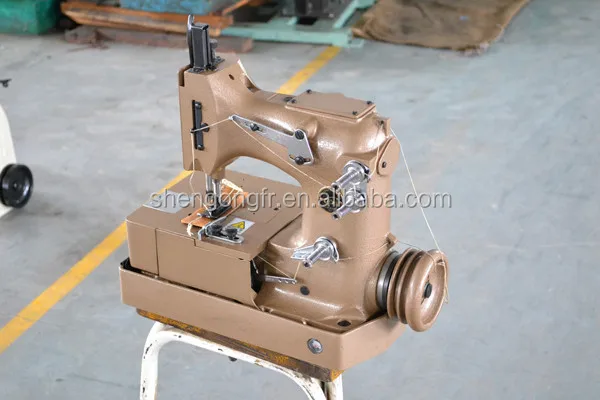

DN-2HS SEWING MACHINE HEAD

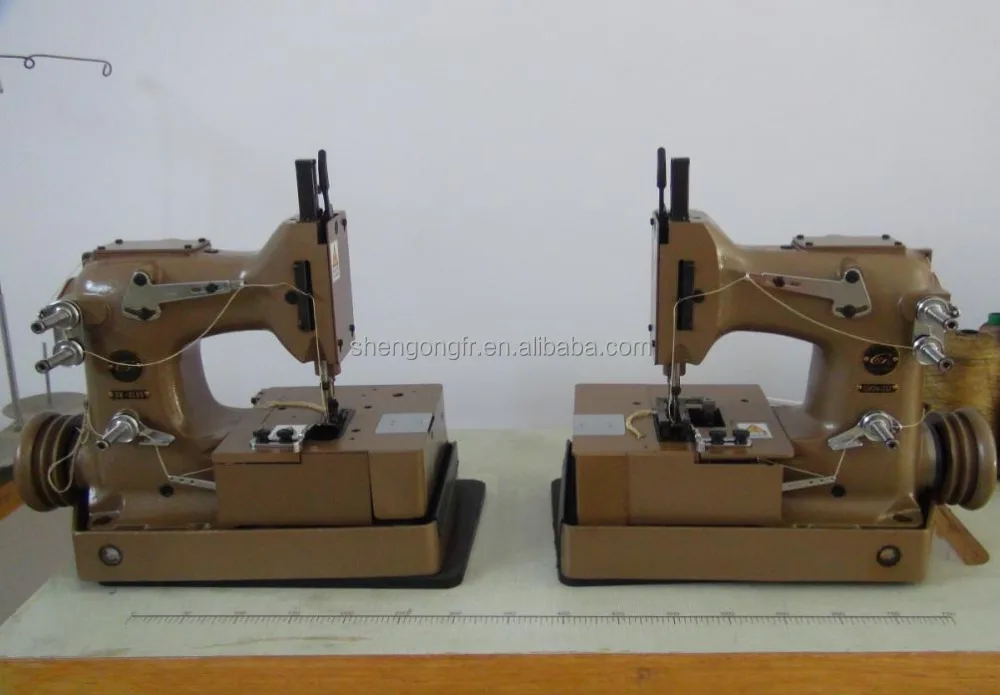

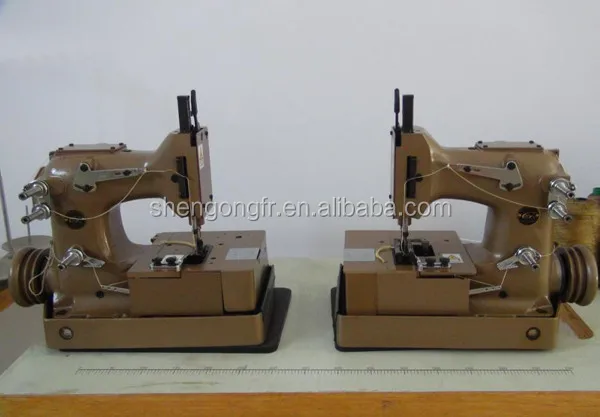

DN-2HS AND DN-2LHS SEWING MACHINE HEAD

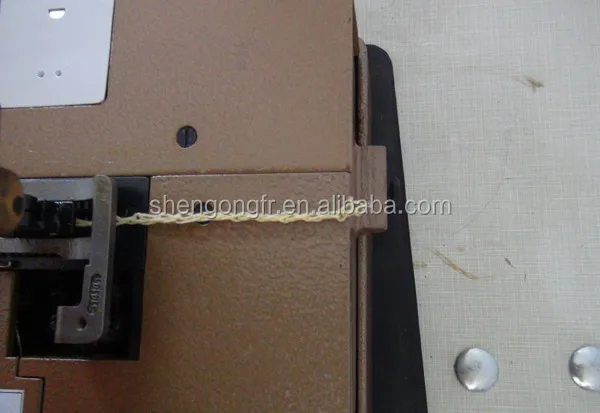

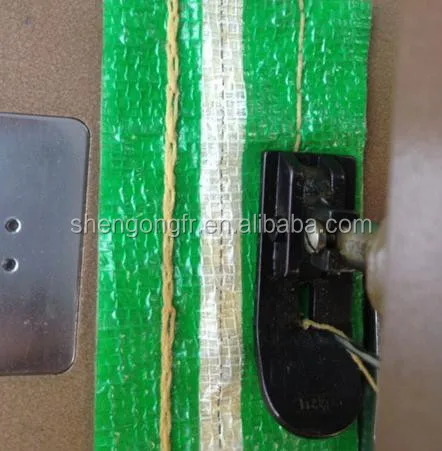

DN-2HS STITCH SAMPLE AND SEWING SAMPLE
DN-2HS INTERNAL STRUCTURE
Packaging
DN-2HS PACKAGING
Advantages
Buying Guides
Packaging & Shipping
Our Services
1.Professional technical consulting;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5.Maintenance and spare parts services.
Company Information
FAQ
1. Q: Do you have your own export right ?
A: Yes, we are able to export the sewing machine to any country or region
2. Is machine sample available?
A:No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.
3. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
4. Q: Could i visit your factory ?
A: Yes, at the same time you can enjoy more favorable price if buy sewing machine
5. Q: Is your machine could replace Union Special or Newlong sewing machine function?
A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.
6. Q: Do you supply spare parts?
A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.
7. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
Our related sewing machine:
1. DN-2HS to make bags could replace Newlong DN-2HS.
2. DN-2LHS, same with DN-2HS but left hand sewing.
3. DN-2W is the double needle version of DN-2HS.
4. GKN-2UHS, same with DN-2HS but with upper feed.
5.GKN-2LHS, same with GKN-2UHS but left hand sewing.
