CT C серии циркулирующий горячим воздухом круг печь для сушки трав

Product Overview

Description

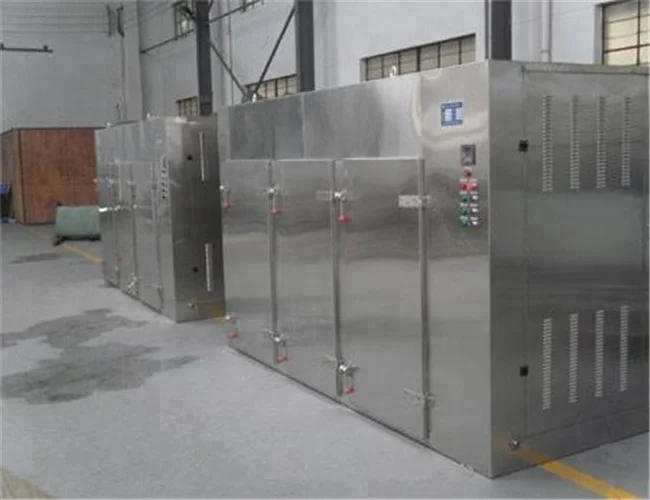

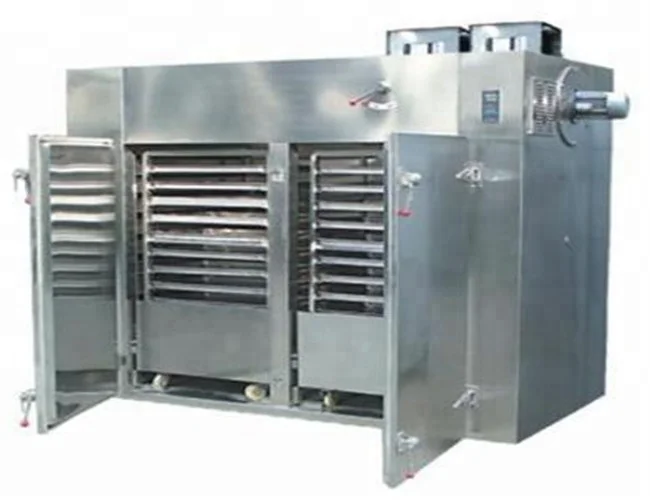

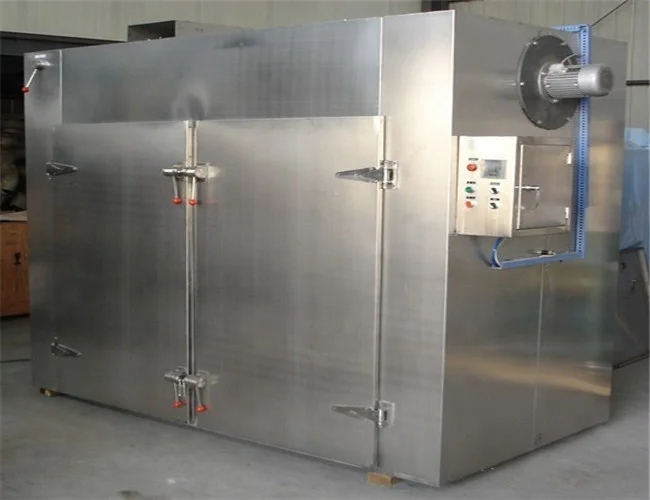

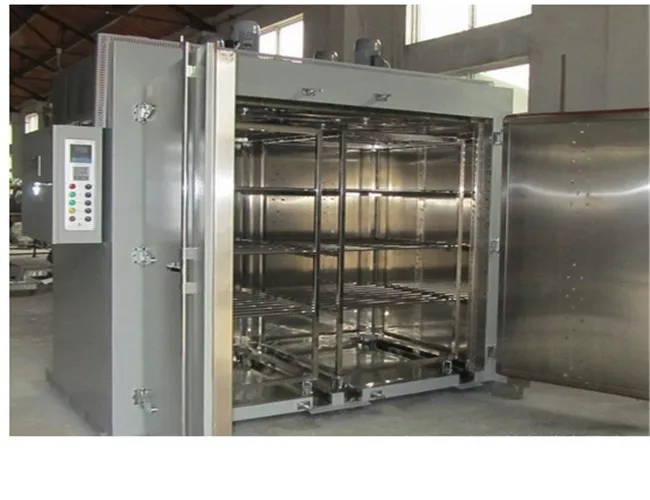

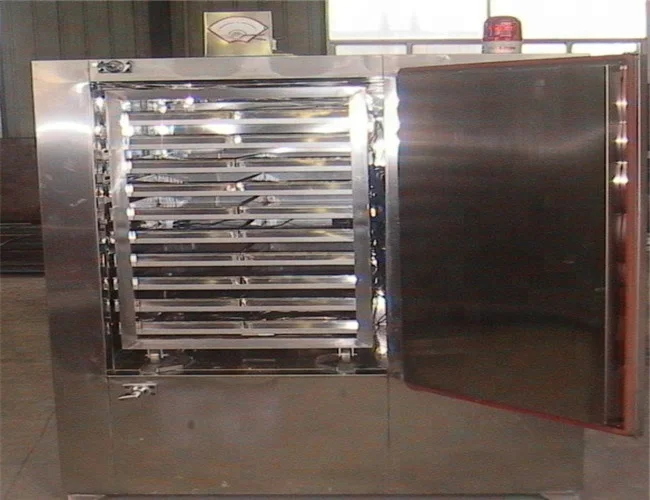

 CT-C series Hot air circulating circle drying oven herb dryer

CT-C series hot air circulation drying oven uses alow noise and high temperature proof axial flowe blower and an automatic temperature control system.The whole circulation system is the fully envlosed to make that efficiecny of the drying oven increases from 3-7% of the traditional drying oven makes that the hot air circulation drying oven in our country catch the dvanced level both at home and abroad.In order to save a large quantity of the energy in our country,in order to enhance the economic results of the enterprises.In 1990,the medicine management bureu of the state issued the industry standard and the uniform type is RXH.



Main technical parameters of hot air circle oven and relevant explanation

Original Model

C T ——C

RXH



Specfficatkxtd

Tho 3" Improvement and desigh (egulppea with autoimdic oontrol

Qenerai dry equipment

Asemebte and    typ

system



1,For         the heating source, there are two kinds; the steam, and the electrecal or far infrared steam for our users to choose.

2,The       temperatures to be us©d;steam heating50~130^<C,Max.140tJ.

3,The        moisture while using the electrical or temperatures:50~300^<C.

4,There     are the automatic control system and the computer control system for users's election.

5,Commonly       used steam pressure 0.2~0.8Mpa(2~8kg/cm⁴)

6,If the electrical heating and type one,the calculation is 15KW, and the pra ctlcal use is 5~8KW/h.

rements should be indicated at thetime of order, non-standard oven should be consulted. ure8 more thean 140t) and less than 60t) should

tfonnin

7,The      special requirt

8,The        price for the

9,The        use temperatu be indicat ed at the time of order.

10,The      ovens and baking plates made bu our factory are the dlmens Ions,and can be exchanged each other.

11 v The baking plte dlmon8lons:460 x 640 x 46mm.

l, drying and dehydration J8tiy, chemical Industry, products, squatic products, laterials can be

so on, The raw materials

or raw Immersed electical dehydrati on v

 Application



v materials Chinese traditional medicine, tablet of drink, nary,powder,granule,packing bottle,pigment,dyestutf, egetable.dtied fruit and melons,banger,pla3ttc resin, ts.diylng vanish and so on.



CT,CT-C Series Hot Air Circle Oven Technical Parameters

Type for the Industry standard	Type and specrtcatlon	Drying Capacity for each tm(kg)	steam to be consumed(kg/h)		Heat radiation area (m2)	Air capacity K/h)			Overall dimension WxDxH(mm)
RXH-14-B	CT-I	100	1.1	20	20	3400	±2	48	2430x1200x2375	2
RXH-27-B	CT-II	200	1.1	40	40	5200	±2	96	2430x2200x2480	4
RXH-41-B	CT-III	300	2.2	60	80	9800	±2	144	3430x2200x2620	6
RXH-54-B	CT-IV	400	2.2	80	100	9800	±2	192	4460x2200x2620	8
RXH-6-C	CT-C-O	25	0.45	5	5	3450	0	16	1280x1100x1750	0
RXH-7-C	CT-C-IA	50	0.45	10	10	3450	±2	24	1400x1200x2000	1
RXH-14-C	CT-C-I	100	0.45	18	20	3450	±2	48	2300x1200x2000	2
RXH-27-C	CT-C-II	200	0.9	36	40	6900	±2	96	2300x2200x2000	4
RXH-27A-C	CT-C-IIA	200	0.9	36	40	6900	±2	96	4460x1200x2290	4
RXH-41-C	CT-C-III	300	1.35	54	80	10350	±2	144	2300x3220x2000	6
RXH-42A-C	CT-C-IIIA	300	1.35	54	80	10350	±2	144	3430x2200x2000	6
RXH-54-B	CT-C-IV	400	1.8	72	100	13800	±2	192	4460x2200x2290	8
RXH-25-A	High effloency and high temperature far Infrared bacte<ium reducing baking oven								1200x1000x1600	1

<1%. Note: The material will carbon stoel,aluminum alloy or stinless

The material will be carbon steel,aluminum alloy or stalnless.The final mototure of raw material(damp)wlll be lees

Features



Most of hot air is drided inside the oven,The hot efflciency is high; The energy source can be saved;

It uses enhanced ventilation and equips with divider air distributing plate inside the oven, Raw material can b© dried evenly; The hot source can be steam,hot water, electricity or far Infrared.

The machine has low noise and stable operation .The temperature can be controlled automatically .The installation and maintenance are very convenient.

The applied fields are wide and can be suitable for all kinds of raw materials.lt is a comprehensive drier.
