OPERATING TABLE SERIES
Nantong Medical manual hydraulic surgical operation table OT table for orthopedic surgery c arm compatible
Product Description
PRODUCT DESCRIPTION
1. This table is suitable for surgical procedures of the head,neck, thorax and abdomen,perineum and extremities as well as for gynecology, otorhino-laryngological and orthopaedics operation.
2. The table's elevation,lowering ,reversed trendelienburg, trendelenburg, lateral tilt can be all automatically controlled.

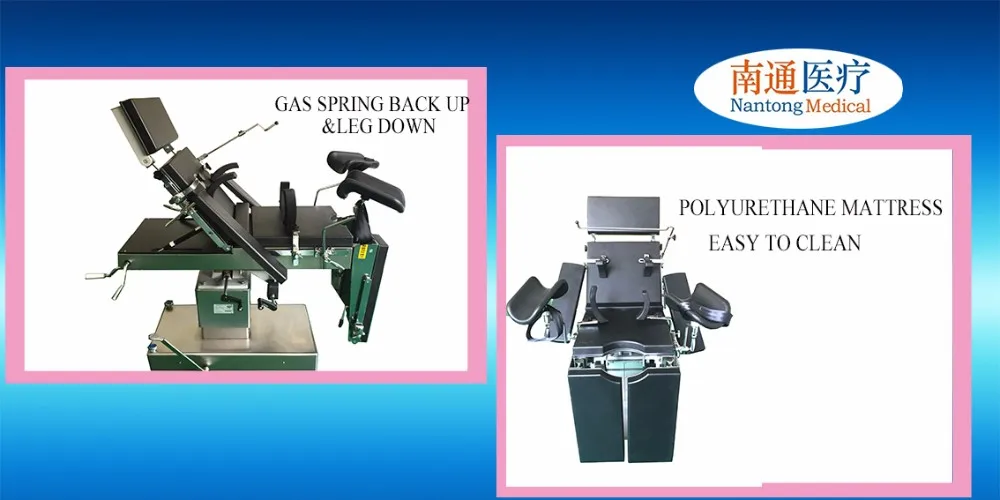

3. Leg section can be rotated, opened, disassembled and adjusted easily.
4. It is most suitable for the urological operation,The table top made of high strength glass, can move backwards and forwards. X-Ray examination can be carried out on it, It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both sides.

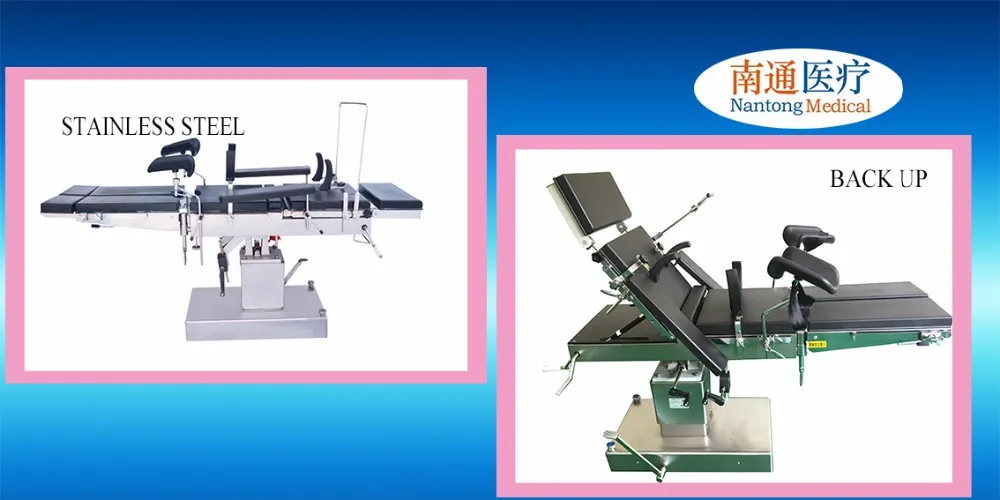

5. Chassis inside an outside covers are stainless steel.
SPECIFICATION
| Overall Length | 2100mm |
| Width | 500mm |
| Height | 750~950mm |

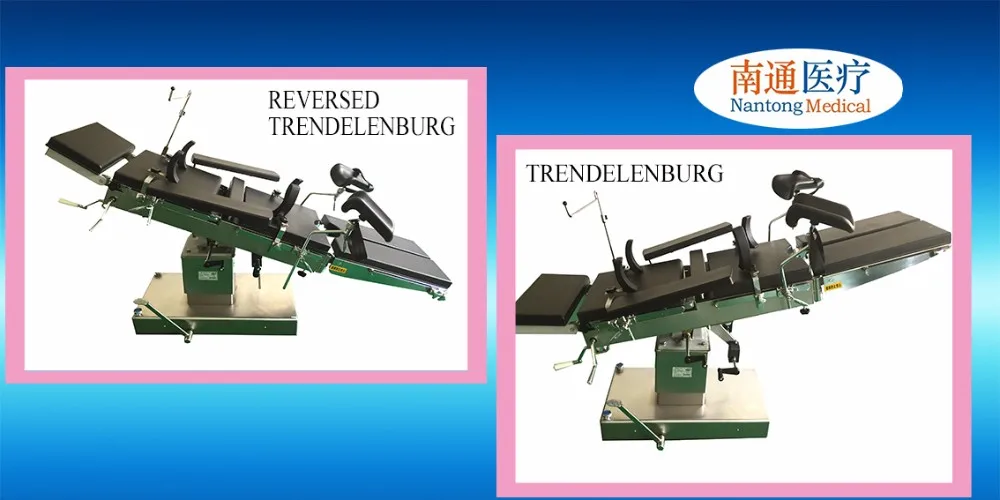

| Reversed Tendelenburg | 15° |
| Trendelenburg | 20 ° |

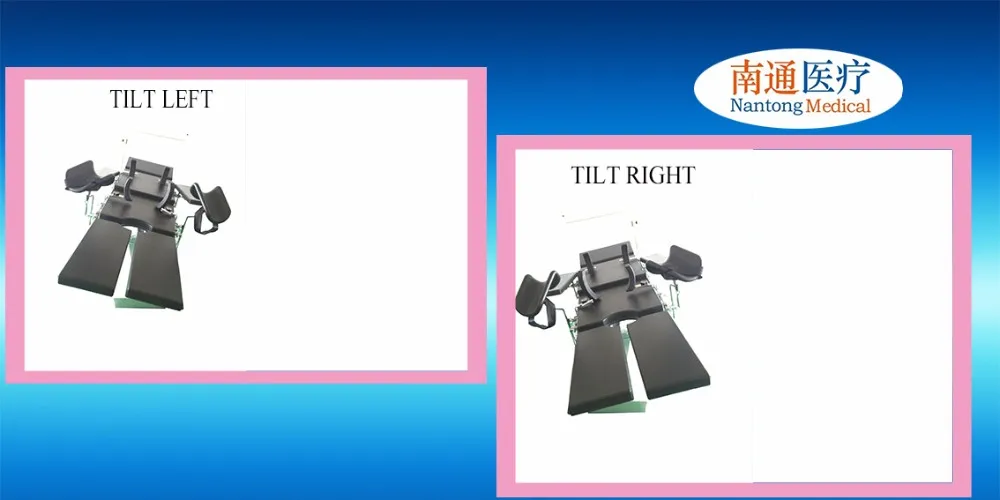

| Lateral tilt | 18 ° |

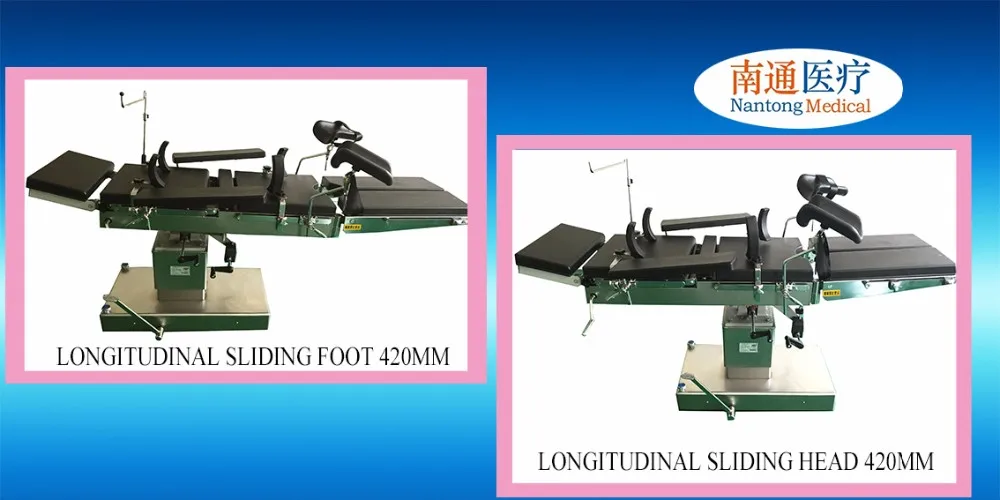

| Longitude Movements | 400mm |
| Head Section fold up/down | 45°/-90° |
| Kidney Bridge Elevated | 120mm |
| Leg Section fold down | 900 |
| Leg Section opened | 900 |
| Back Section fold up | 550 |
| Safe Load | 150kg |
| Name of accessories | Qty | |
| 1 | Head section | 1 |
| 2 | Anaesthetic Screen | 1 |
| 3 | Body support | 2 |
| 4 | Shoulder support | 2 |
| 5 | Arm rest | 2 |
| 6 | Knee crutch | 2 |
| 7 | Cushion | 1 |
