fish farming oxygen generator 60l, aquaculture oxygenator, 10l/20l/30l oxygen concentrator
- Category: >>>
- Supplier: Guangzhou Quanju Ozone Technology Co. Ltd.
Share on (60437410377):
Product Overview
Description

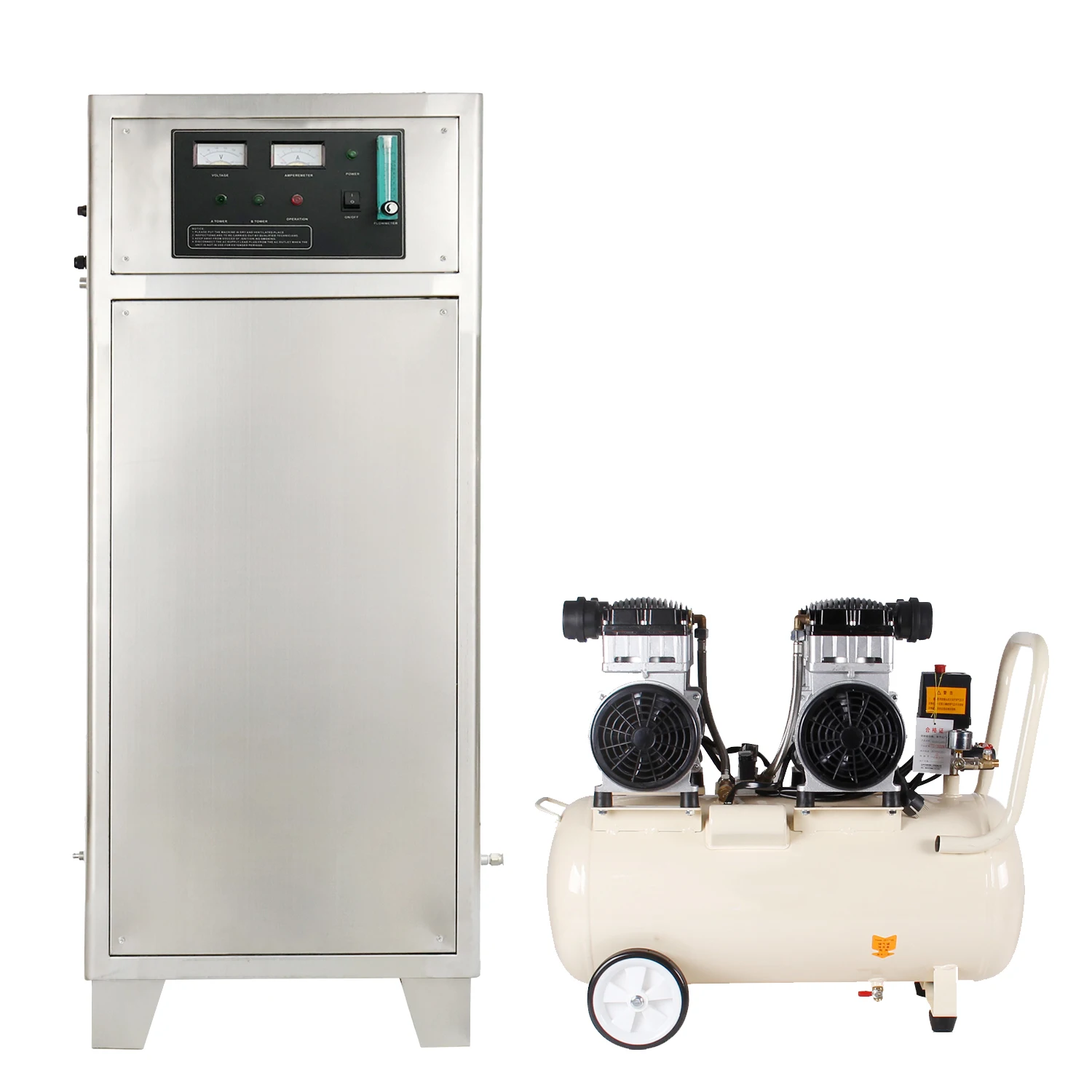

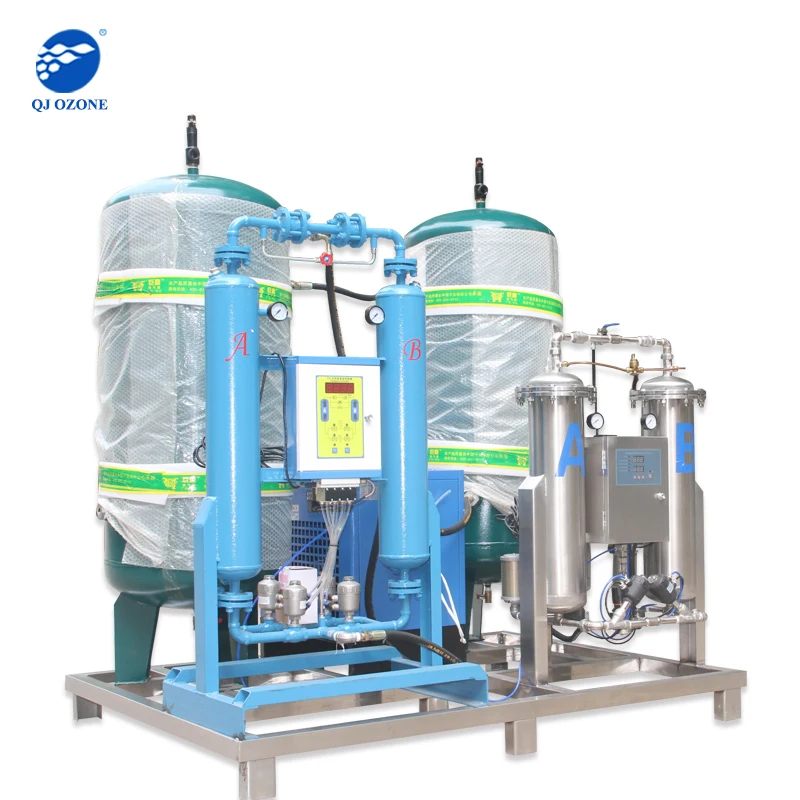

PSA OXYGEN GENERATOR
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material.
Specific adsorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.)are used as a trap,
preferentiallyadsorbing the target gas species at high pressure. The process then swings to low pressure to
desorb the adsorbed material.
Specific adsorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.)are used as a trap,
preferentiallyadsorbing the target gas species at high pressure. The process then swings to low pressure to
desorb the adsorbed material.
Technique principle
1. Purified air drying treatment, role of pressure swing adsorption to achieve separation of oxygen and nitrogen
2. Due to selective adsorption characteristics of zeolite, nitrogen molecule is adsorbed in zeolite, oxygen generator in gas phase obtained, as product output.
3.System device has two absorption tower, production of oxygen adsorption tower, tower desorption recycling, pay latent and continue.
Advantage
1. Simple device for air compressors, only cooler.
2. Molecular sieve requirements is relatively low, the same oxygen equipment, quantity of molecular sieve.
3. Small size , so the cost is relatively low.
4. Requires relatively low degree of automation of the entire equipment, air compressors, freeze dryer/condenser and oxygen separately start-stop control or joint control.
1. Purified air drying treatment, role of pressure swing adsorption to achieve separation of oxygen and nitrogen
2. Due to selective adsorption characteristics of zeolite, nitrogen molecule is adsorbed in zeolite, oxygen generator in gas phase obtained, as product output.
3.System device has two absorption tower, production of oxygen adsorption tower, tower desorption recycling, pay latent and continue.
Advantage
1. Simple device for air compressors, only cooler.
2. Molecular sieve requirements is relatively low, the same oxygen equipment, quantity of molecular sieve.
3. Small size , so the cost is relatively low.
4. Requires relatively low degree of automation of the entire equipment, air compressors, freeze dryer/condenser and oxygen separately start-stop control or joint control.
3-20lpm oxygen generator system
Model | Unit | QJ-OX-3L | QJ-OX-5L | QJ-OX-10L | QJ-OX-15L | QJ-OX-20L | ||||||
Oxygen output | L/min | 3 | 5 | 10 | 15 | 20 | ||||||
Size | cm | 40*60*71 | 40*30*76 | 55*40*113 | 55*40*124 | 55*40*134 | ||||||
Power supply | V/Hz | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | ||||||
Concentration | % | 92+-3 | 92+-3 | 92+-3 | 92+-3 | 92+-3 | ||||||
Weight | kg | 35 | 38 | 48 | 58 | 68 | ||||||
Outlet pressure | Mpa | 0.05 | 0.05 | 0.05 | 0.05-0.1 | 0.05-0.1 | ||||||
Requirements of Air Condition: | ||||||||||||
Temperature | -5~40°c | |||||||||||
Humidity | 60-80% | |||||||||||
Air with Dust Content | <=20mg/m3 | |||||||||||
Air with H2S, SO2 | <=5ppm | |||||||||||
Air with CO2 | <=250ppm | |||||||||||
Air with C2H2 | <=0.5ppm | |||||||||||
Air with CmHm | <=20ppm | |||||||||||
Air with Acidic Gas | No more Pungent Smell and Corrosive smell | |||||||||||
Ventilation | Dry and cool environment | |||||||||||
We also manufacture 30LPM-1000LPM oxygen generator system
Model | Unit | QJ-OX-30L | QJ-OX-40L | QJ-OX-50L | QJ-OX-60L | QJ-OX-80L |
Oxygen output | L/min | 30 | 50 | 50 | 60 | 80 |
Power supply | V/Hz | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
Concentration | % | 92+-3 | 92+-3 | 92+-3 | 92+-3 | 92+-3 |
Outlet pressure | Mpa | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
1. Metallurgy industry
Electric arc furnace steelmaking, blast furnace oxygen-enriched, shaft furnace oxygen-enriched Combustion
2. Nonferrous Smelting industry
Lead, copper, zinc, aluminium smelting, furnace oxygen-enriched

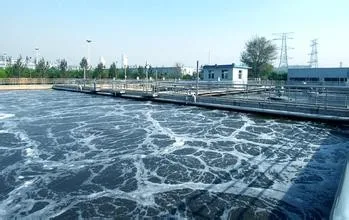

3. Environmental protection industry
Drinking water treatment, wastewater treatment, pulp bleaching sewage biochemical treatment
4. The chemical industry
Various oxidation reactions of ozone production, coal gasification
5. Other industries
Fermentation, cutting, glass furnaces, air conditioning, waste incineration
6. Medical professions
Oxygen, oxygen therapy, sports health care

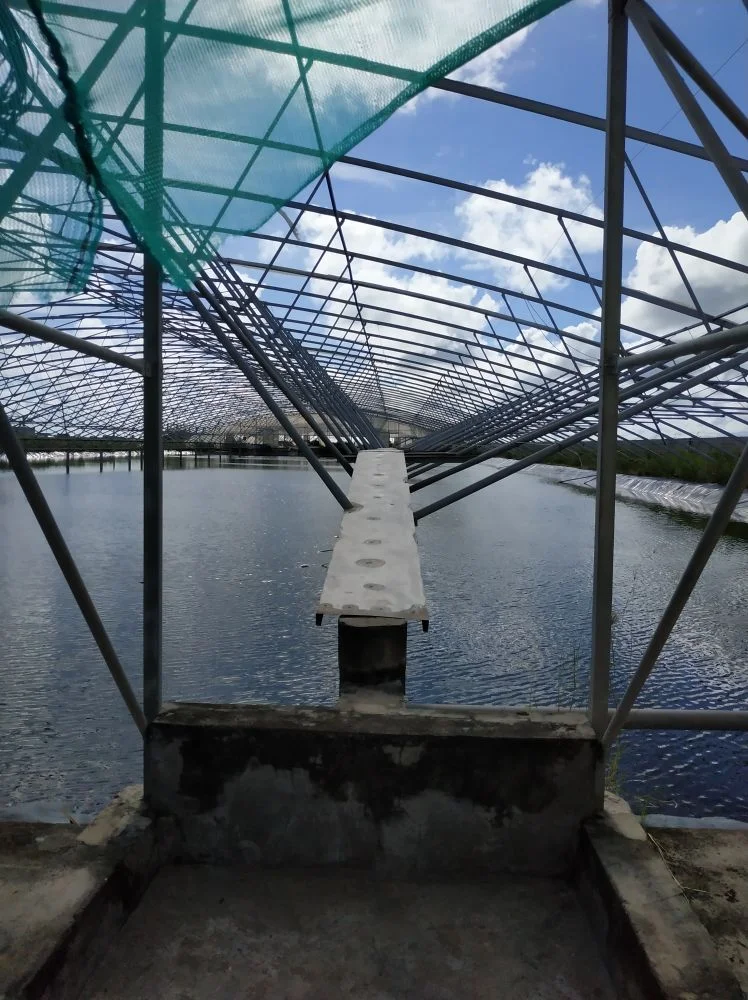

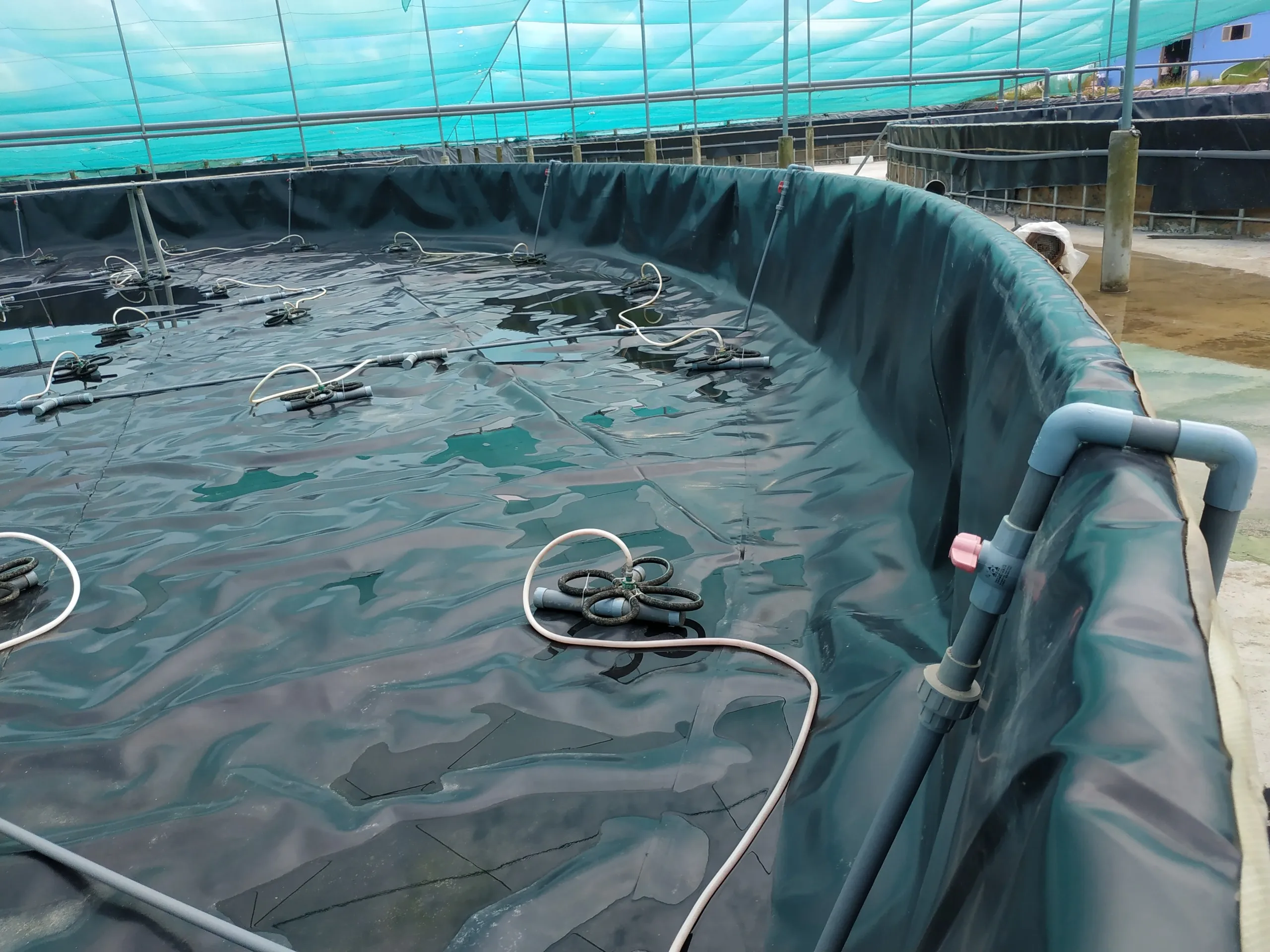

7. Aquaculture
Marine and freshwater aquaculture, fish farming
Electric arc furnace steelmaking, blast furnace oxygen-enriched, shaft furnace oxygen-enriched Combustion
2. Nonferrous Smelting industry
Lead, copper, zinc, aluminium smelting, furnace oxygen-enriched
3. Environmental protection industry
Drinking water treatment, wastewater treatment, pulp bleaching sewage biochemical treatment
4. The chemical industry
Various oxidation reactions of ozone production, coal gasification
5. Other industries
Fermentation, cutting, glass furnaces, air conditioning, waste incineration
6. Medical professions
Oxygen, oxygen therapy, sports health care
7. Aquaculture
Marine and freshwater aquaculture, fish farming
