Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.
3 Brand Cooling Unit for Choose
Thermo King (US)
Cooling gas: R134a
400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz
Temperature Range:
-40℃ (-40F) to 30℃ (86F).
Carrier(US)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin (Japan)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)
Specification for reefer container
10ft
20ft
40ft HC
External Size
2991x2438x2591mm
6058x2438x2591mm
12192x2438x2896mm
Internal Size
2389x2294x2273mm
5468x2294x2273mm
11590x2294x2554mm
Door Opening(W*H)
2290x2264mm
2290x2264mm
2290x2569mm
Inside Cubic Capacity
12.5
28.4
67.9
Maximum Gross Weight
15000
30480
34000
Tare Weight
2600
2900
4560
Maximum Payload
12400
27580
29440
Allowable Stacking Weight
86400
216000
216000
Cooling Capacity /W
6300/5580 AT -18℃ Inside/ 38℃ Outside
60/50HZ
Main Circuit
3 PHASE AC 440, 460V/380, 400, 415
60/50HZ
Consumption /KW
MAX 13.5 60HZ
Heat Leakage
23
Air Leakage
5
Warranty
Container Body
1 Year
Cooler Units
1 Year
Compressor
3 Years
Marks
5 Years
Heat Leakage(Kcal/Hr.°c)
20ft Reefer Container
40ft Reefer Container
ISO1496-2:1996
≤26
≤51
ACE Prodcut:
23
43
Result:
Good
Good
Air Leakage(Cbm/Hr):
20ft Reefer Container
40ft Reefer Container
ISO1496-2:1996
≤10
≤10
ACE Prodcut:
5
5
Result:
Good
Good
Detail Images
Compressor
Control Panel
CSC Plate

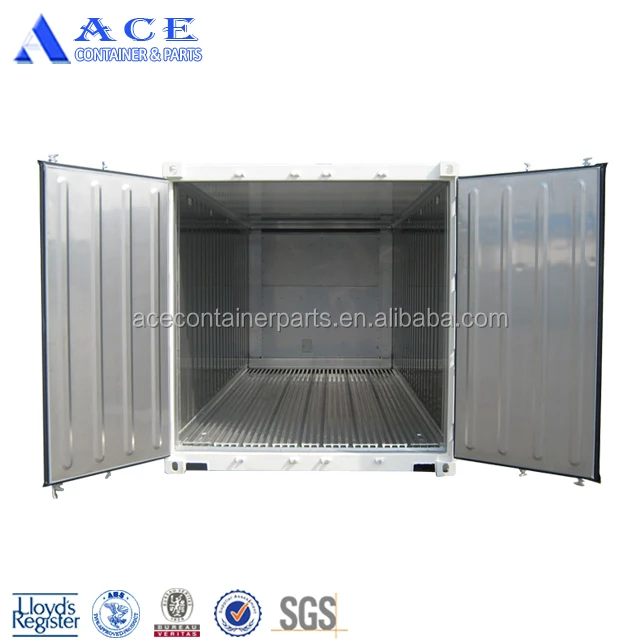

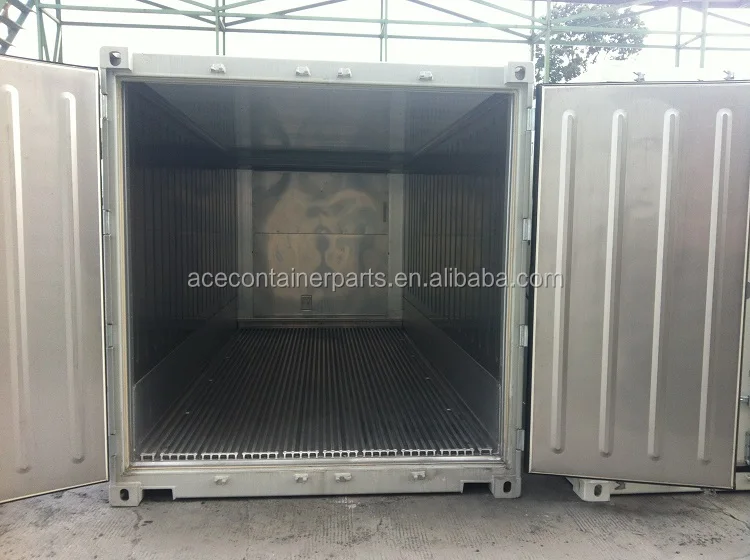

Reefer Container Inner
( Stainless Panel)
T type Floor
(Aluminum Material)
Power Plug
Cable Length: 18m
Packing and Delivery
Packing: No package for 20ft reefer container.
Delivery: 1-10pcs need 3 weeks
10-20pcs need 4 weeks
Our Company
ACE Container & Parts Co., Ltd.
As one of the most famous and professional Container and Parts supplier in China, we have been in container industry for over 10 years. Eexported our product to 81 countries by the end of 2018, including Janpan, Korea, Southeast Asia, North and South America, Aferica etc.
Certification
FAQ
1. Can we choose the cooler system? Sure, you could choose one from Daikin / Carrier / Thermoking
2. Do you supply generator ?
Yes, we have.
3. Do you supply reefer container parts? Yes, we provide parts for repair the container body. For cooler system, the supplier(Daikin, Carrier, Thermo king) provide global service.
4. Can you delivery to our supplier's factory? Sure, but there will be extra land freight.
5. Are your container meet with ISO requirement?
Yes, our container are BV, GL, DNV approval and meet with ISO requirement.
