Wall cladding klinker brick for facade system, ventilated terracotta panel facade floor ceram tile

Product Overview

Description

 ZS terracotta panels

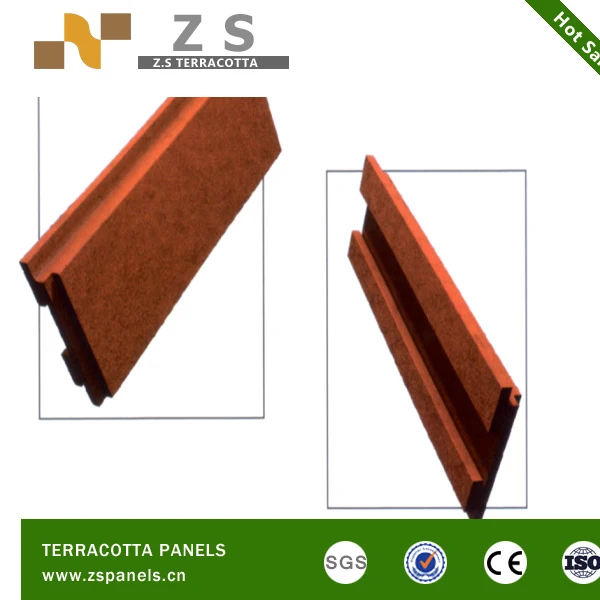

Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature with the advanced hollow structure and dry hanging system which it is widely used in curtain wall and interior wall

Three conditions are required to allow water movement through building envelopes:



• A source of water.
• A pathway for water to flow.
• A force to drive water along the pathway.

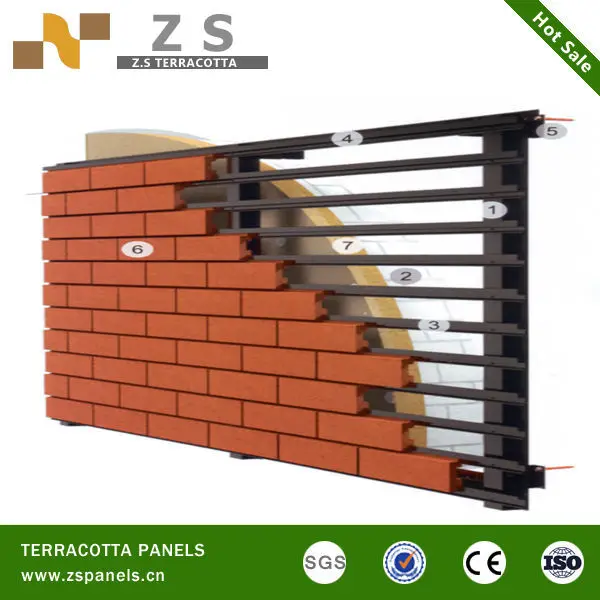

If any one of these conditions is eliminated, moisture penetration cannot occur. Applying rainscreen construction principles to the design of the exterior envelope controls and manages the driving forces that generate water movement into and through the envelope. The basic rainscreen system configuration incorporates two distinct material layers. The outermost layer is the facade cladding and the interior is the insulated and weather protected backup wall. These are separated by a properly ventilated air gap. Rainscreen exterior envelopes, although superior to the traditional face sealed barrier envelope systems, can be expensive and time consuming to construct.







1. Terracotta sunscreen products advantages

*Natural clay material -100% green material and hollow structure



*Heat preservation and sound insulation



*No-static and no-radiation product



*Rich color and surface available

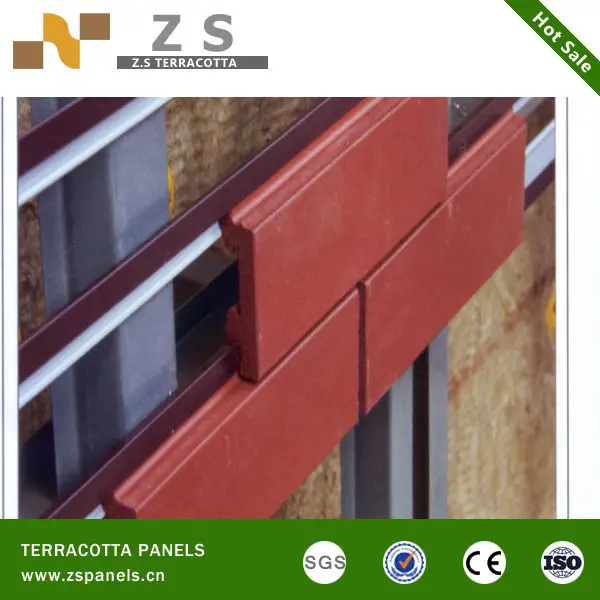

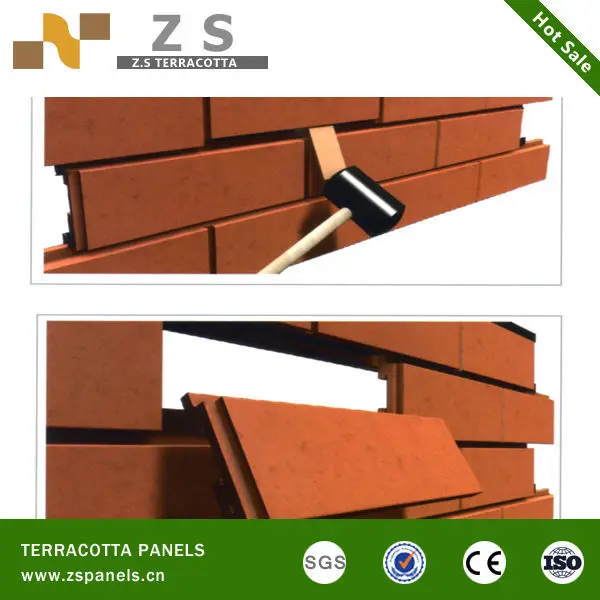

*Easy dry hanging system



*Non of the light pollution



*Self-cleaning system



*Never color fading



*Light weight





2. Terracotta usage

Terracotta panel have the dry hanging system which it is widely used in curtain wall, interior wall, floor and roof etc, it is the advanced and green building material, it normally called Terracotta panel for exterior wll, terracotta wall panel, Terracotta louver, Terracotta tube,   terracotta panel for curtain wall. etc







3. Normal colors

Red: Bright red, coral red, burgundy red, coffee

Yellow: Ivory, wheat yellow, maize yellow, orange yellow

Gray: Light gray, great wall gray, deep gray, dark gray

White, green ,blue

Terracotta panels Hot selling colors





4. Terracotta panels Normal size

* Verious ceramic terracotta floor tiles &wall panels  thinckness:18mm, 30mm

 * Verious ceramic terracotta floor tiles &wall panels  width: 300mm, 400mm 450mm 500mm 550mm 600mm 650mm

 * A grade Verious ceramic terracotta floor tiles &wall panels length: 300mm 600mm 900mm 1200mm 1500mm

 * Verious ceramic terracotta floor tiles &wall panels  OEM and ODM are available

5. Terracotta panels for rainscreen wall Normal surface

Natural /stripy/groove/glazed/wood grain/napping



6. Terracotta panels for rainscreen wall Technical Data

A) Net weight: 31kgs/sqm for x18mm(thickness), 44kgs/sqm for x30mm(thickness)



B)Size error: within  +-1%, max is within +-2mm



C)Thickness error: within +-4.5%-8%



D)Center curvature: within +-1%



E)Side straight and right angle: within +-1%



F)Anti-pollution: Grade 3



G)Anti-corrasion: Grade UA



H)Wind pressure test  10 Kpa



I)Water absorption: 1%-7%



J)Frost resistence: No crack in -100 centigrade



K)Breaking strength: minium 3244N(300x600x18mm)



L)Fire-proofing Grade A1



M)Anti-impact:0.51-0.78



N)Anti-pollution: Grade 3



O)Noise-isolated 7-10DB



P) Rupture modulus are 16.2mpa

Our  Terracotta panels work shop  pictures:



7. ZS Terracotta panel advantage

Advantages of ZS Terracotta Panel , comparing with Stone and Glass
NO.	Contents	Terracotta Panel	Nature Stone	Glass
1	Material	Natural Clay, 100% green material	granite,marble, sandstone	quartz alkaline colloid
2	Dry Weight	hollow structurer, 30-32kg/m2, 70% weight of the Nature Stone	2.4-2.7kg/m³	2.5kg/m³
3	Dry-hanging System	with its own groove for dry-hanging, standard, safe and easy handle.	on-site processing, fragile,security risk	on-site fixing
4	Color	Never fading, color inherent,stable color for each production.	natural color, but it is greatly affected by mine or location	heavy-metal oxide
5	Durability	not new in ten years, not old in one hundred years.	easy to be second weathering	easy to be errosion
6	Acid and alkaline resistance	high	middle	low
7	Radiactivity	none	with radiactive elements	With radiactive elements for bright color glass
8	Low-carbon ability	hollow structure ,good heat and sound insulation, light-weight, greatly saving steel,half of stone's heat-conducting, recycling.	low heat and noise insulation, heavy, needing to be reinforced.	high light-transimission, no heat-insulation
9	environmental protection of the processing	using shale and terracotta, or coal waste, easy for exploration, no need to process too much, little waste	much wasting water, stone material is limited, causing great damage to environment.	limited good silicon
10	Light pollution	no, matte surface	no	high,dazzling



Terracotta panel Packing

Terracotta panel Projects

Terracotta panel Certificate

More information, pls feel free to contact with us! Thanks!
