LTE Wireless Outdoor CPE use POE power supply (B28) Wireless Outdoor CPE

Product Application

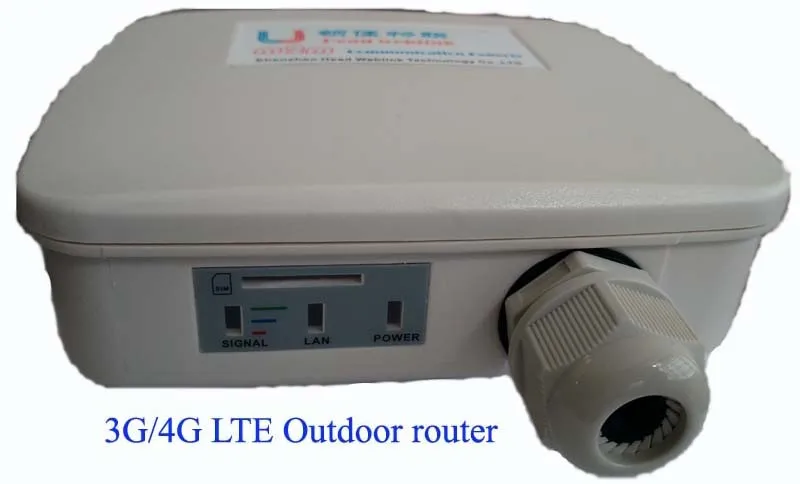

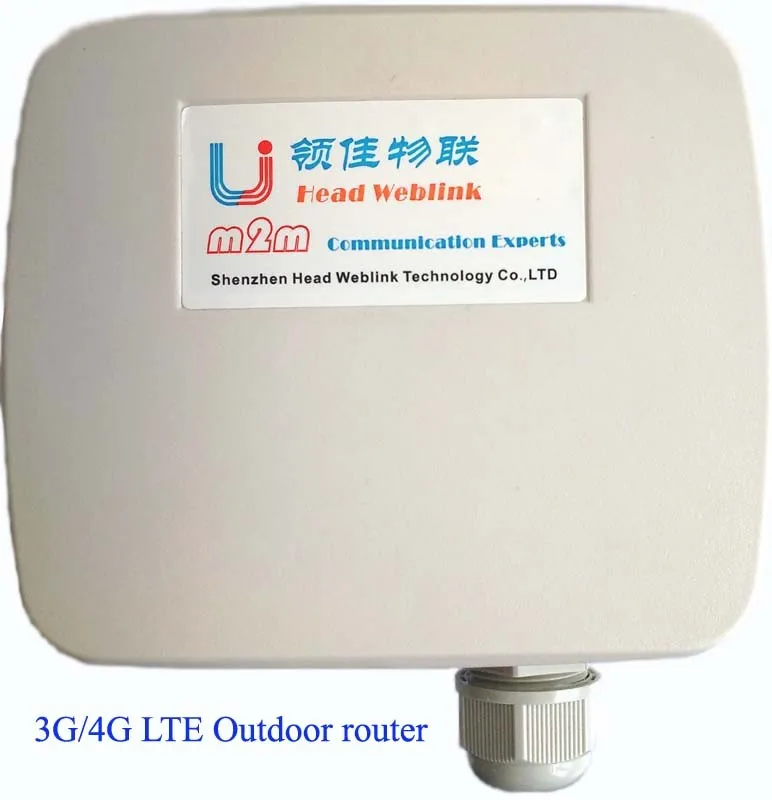

HDR100 outdoor router integrated machine, is designed for global market, It’s designed waterproof, dustproof, lighting protection feature.Because of the industrial quality and multiple RF band combination.HDR100 outdoor router provides stable and reliable data connection for user device such as RTU, Kiosk, Power Ammeter and other remote device management application. In order to achieve permanent online, some key features such as watch-dog function, wide temperature and multiple RF band/mode are supported by HDR100 outdoor router, making it can be used in any environment of worldwide.

Main Features

1)Industrial Quality: Industrial designing, waterproof, dustproof, lightning protection, making it stable and reliable;
2) POE supply:Support POE power supply via LAN port. It can be extend 100m long via Ethernet cable.
3) High gain:High gain directional antenna , achieve 6DBi. It’s suitable for poor signal region.

High light

1). Waterproof and dustproof level. IP65
2). Lightning protection.


Frequency bands

* 4G LTE router.
HDR1004GO Series

Version A

LTE FDD. B2,4,5,17
UMTS. 850/1900MHz

Version E

LTE FDD. B1,3,7,8,20
LTE TDD B38, B40
UMTS. 900/2100MHz
GSM. 900/1800MHz

Version C

LTE FDD. B1,3,7,8
LTE TDD B38, B39, B40, B41
UMTS. 900/2100MHz
TD-SCDMA. 1880~1920MHz & 2010~2025MHz
GSM. 900/1800MHz

Version JC

LTE FDD. B1,B3,B8,B18,B19
LTE TDD. B41
UMTS. B1,B6,B8
GSM. 900/1800MHz

Version JE

LTE FDD. B1,B8
UMTS. B1,B8
GSM. 900/1800MHz

* 3G router.

HDR1003GWO+

WCDMA. 850/1900MHz & 900/2100MHz
GSM. 850/900/1800/1900MHz

HDR1003GEO.

EVDO 800MHz & 800/1900MHz

*Note.
We can provide customized frequency bands for customers.

Data rate

4G LTE router.
HDR1004G
FDD LTE. DL,100Mbps UL,50Mbps
TDD LTE. DL,50Mbps UL,25Mbps
WCDMA. DL 42Mbps UL5.76Mbps
TD-SCDMA. DL 2.8Mbps UL 2.2Mbps

Or

LTE Category 4 - 150 Mbps (DL)
LTE Category 4 - 50 Mbps (UL)


3G router.
1). HDR1003GWO+
WCDMA. DL 14.4Mbps, UL 5.76Mbps

2).HDR1003GEO
EVDO. DL 3.1Mbps, UL 1.8Mbps

Powerful function.

1. Supports multiple WAN connection mode, including static IP, DHCP,L2TP, PPTP, PPPOE, 3G/LTE.
2. Supports VPN client (PPTP, L2TP, VPN, IPSEC &GRE).
3. Supports remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS and so on.
4. Supports APN/VPDN.
5. DHCP server and DHCP client, DHCP binding MAC address, DDNS, firewall and NAT DMZ host, QoS, traffic statistics, real-time display data transmission rate functions and so on.
6. Supports TCP/IP, UDP, FTP, HTTP network protocol.


Power supply
Input. 100V~240V,50Hz~60Hz
Output. +12~+24V,1000mA

Conditions
Operating Temperature. -30℃ -- +70℃
Operating humidity. 5%--95%

Main Features

1)Industrial Quality: Industrial designing, waterproof, dustproof, lightning protection, making it stable and reliable;

2) POE supply:Support POE power supply via LAN port. It can be extend 100m long via Ethernet cable.

3) High gain:High gain directional antenna , achieve 6DBi. It’s suitable for poor signal region.

Machine Parts

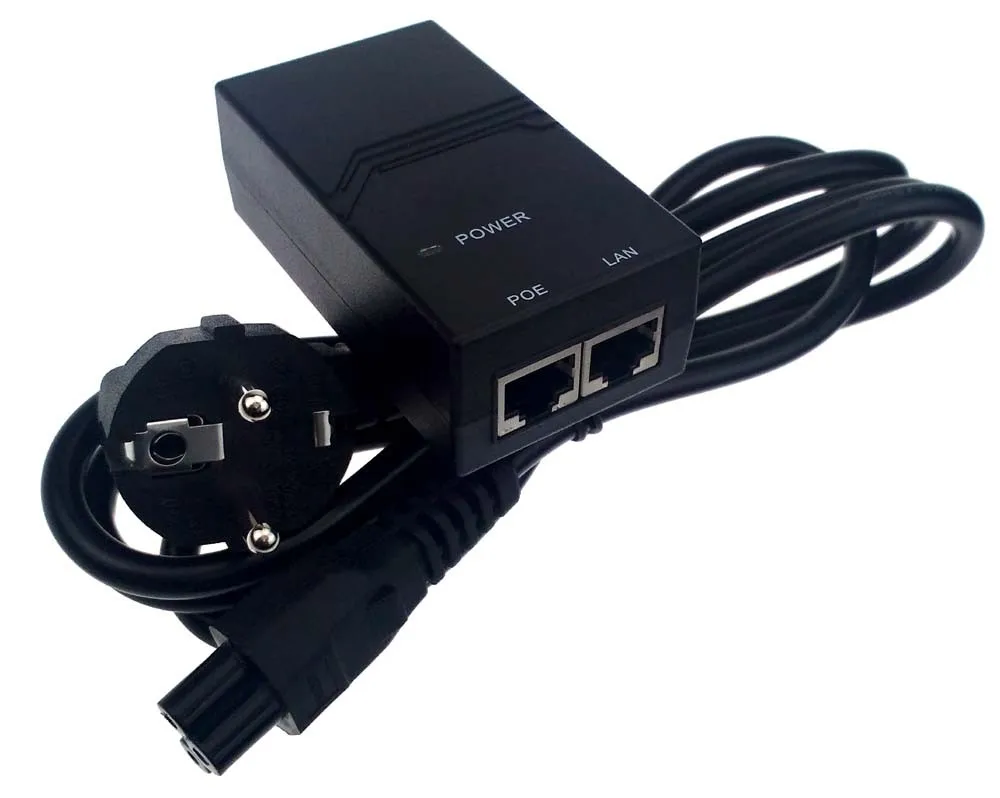

Name: POE

Brand: Head Weblink

Original: China

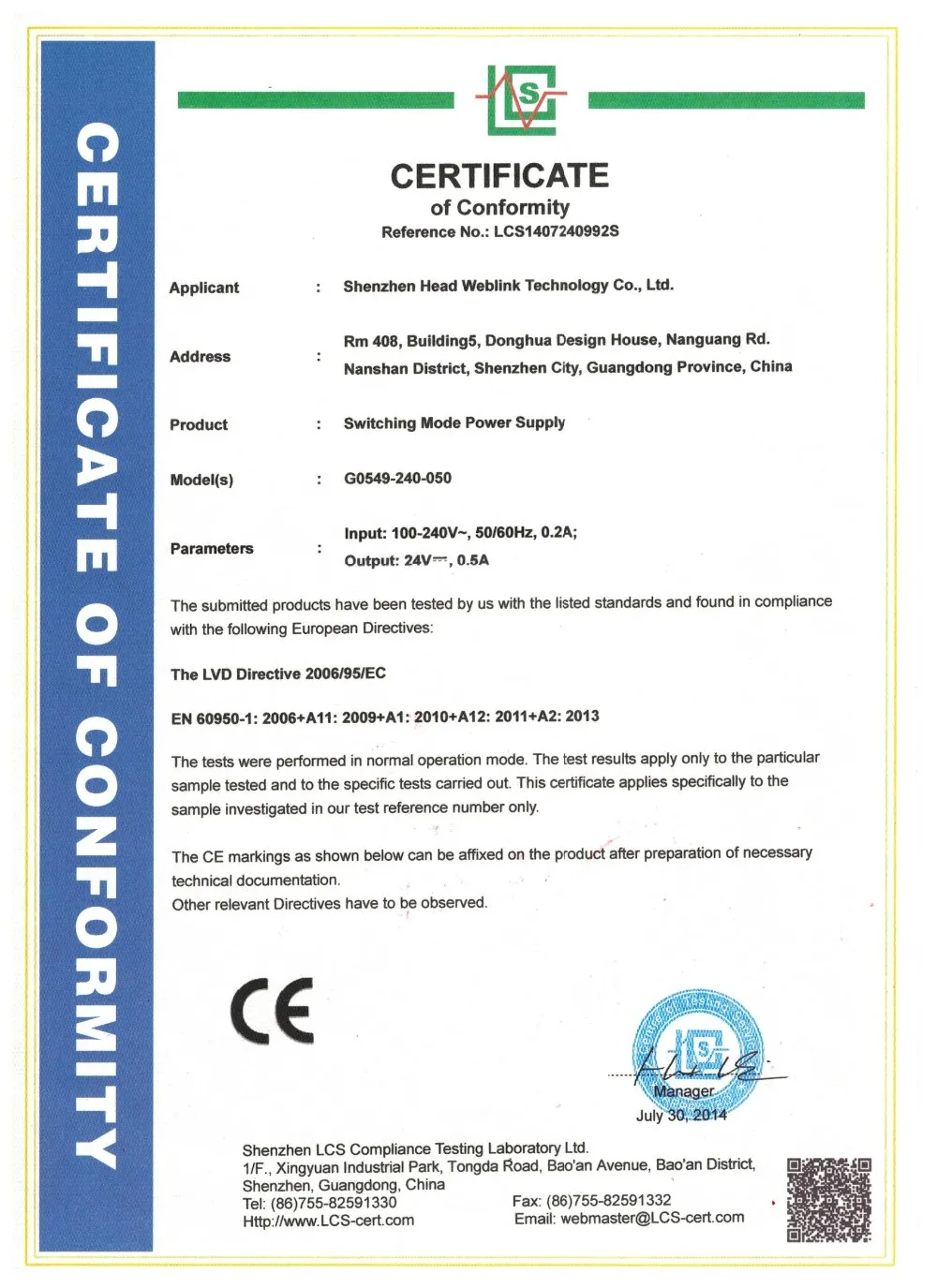

G0549-240-050 Input Voltage. 100Vac to 240Vac input AC voltage Out put Voltage. +2
