Horizontal Boring Machine

Share on (60437916240):


Price:RUB 3,790,900.00

Quantity:


Product Overview

Description



 TPX6111B Horizontal Boring Machine





1. Main technical parameter



Specifications

Units

TPX6111B

Table size

mm

1100X960

X/Z axis travel of worktable

mm

900X1000

Number/Width of T-slot

mm

7-22

Vertical travel of headstock

mm

900

Max.load of worktable

kg

2500

Spindle diameter

mm

110

Spindle travel

mm

600

Facing head tool holder's radial travel

mm

180

Spindle taper



MT6

Spindle speed range

rpm

8-1000

Facing head speed range

rpm

4-200

Spindle motor power

kw

7.5

Rapid travel (X/Y/Z/W)

mm/min

2500

Overall dimension

mm

4910X2454X2750

Machine weight

kg

13000





 2. Detailed pictures

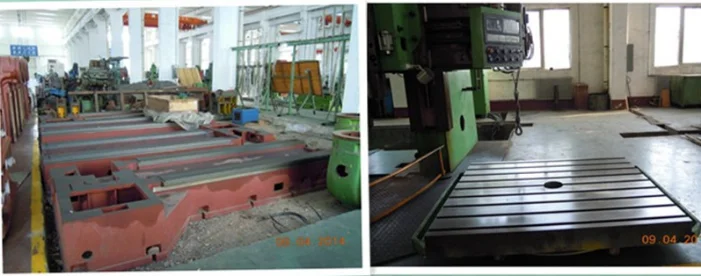

Body before spray paint&Table



Body before spray paint&Table.png

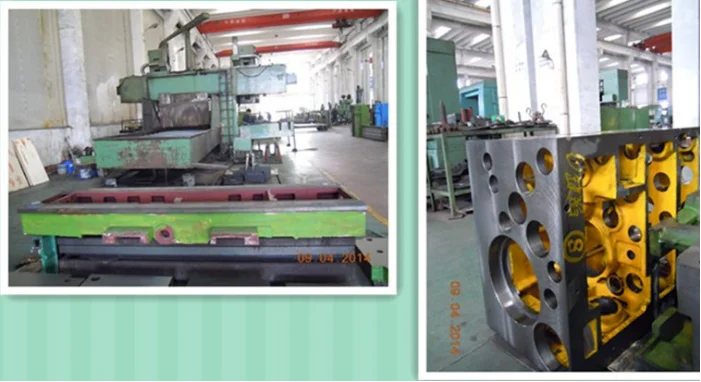

Slider before spray paint&Spindle box

Slider before ppray paintSpindle box.png

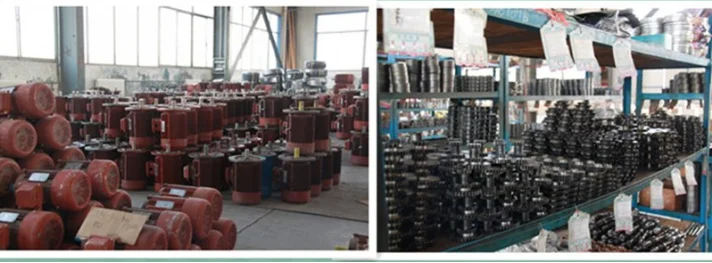

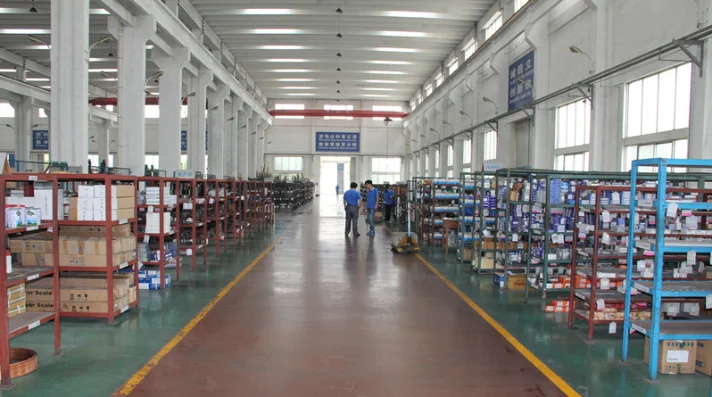

Workshop show



workshop show2.pngWorkshop show.png

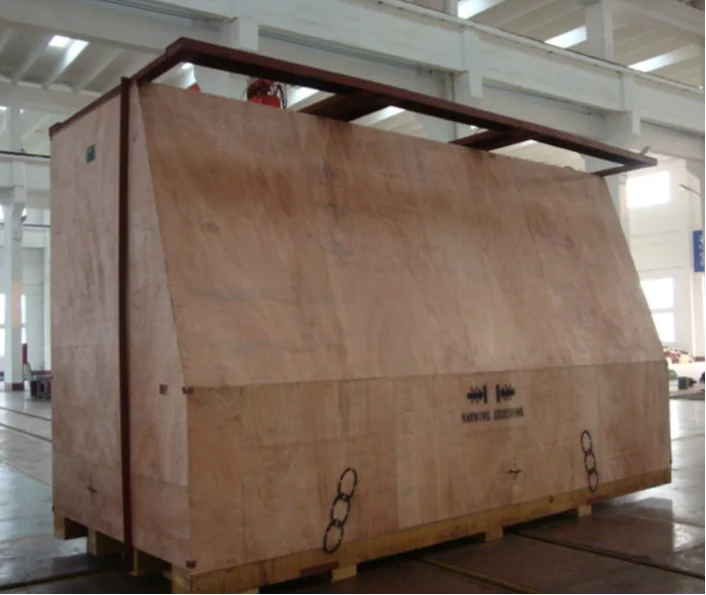

Package:Wooden case

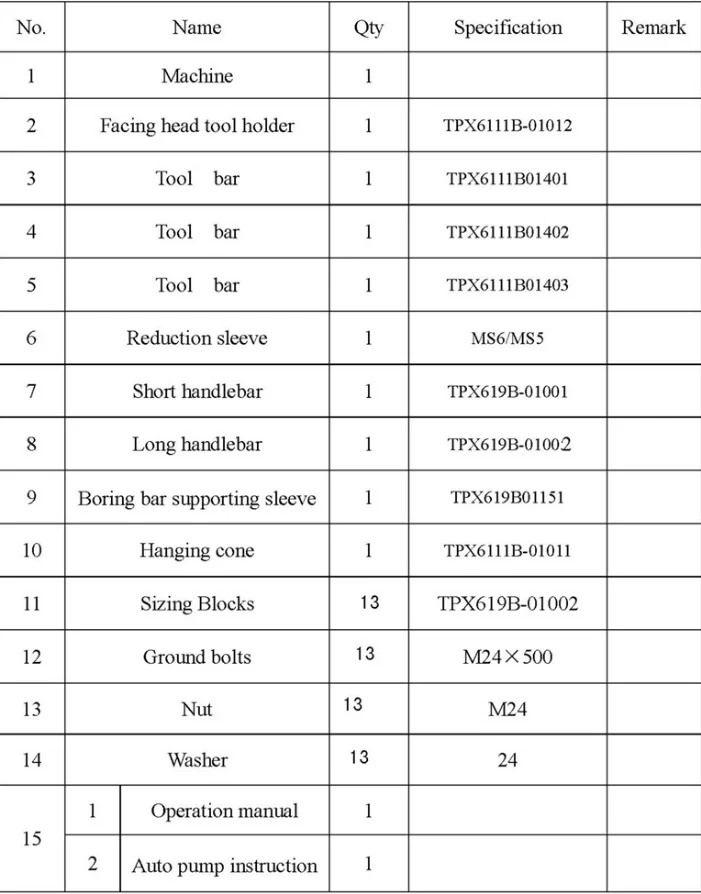

3. Parts list



parts list.png

FAQ

Q: Are you manufacturer?

A: Yes, we are manufacturer of heavy duty lathe machines and deep hole boring machines, we have our own technical team, and about 80,000 sq.m workshop.7 years of trading experience also makes us golden supplier of Alibaba.Welcome to visit us!



Q: What kind of payment term you can do?

A: We are flexible in payment terms, we can also help you on financing, please contact us for details.



 Q: What should I do if I just start a new business?

A: Please contact us ASAP, we provide free consultant pre-sales service. Also we can help  you to solve the worker training.



Q: How do you do QA?

A: We have special team do strict QA.



Q: Do you provide training and maintenance?

A:Yes. For your efficiency of production, when the machine has arrived at the importer’ s port.Our company will send engineers to install the machine and be responsible for training the worker of customer until they can operate the machine skillfully.

  One year from the date when goods are shipped from China port. If the machines have any problem during the using process in guarantee period, firstly buyer could ask for help by telephone, fax or email, seller will assist to solve within 24 hours, if the problem still could not be solved, we could send maintenance staffs to your site for free maintenance, the round trip air tickets cost and board and lodging expenses abroad of maintenance staffs should be undertaken by buyer.



Certifications

machine tool company
