plastic high strength China original formwork manufacturer

Product Overview

Description

#1 plastic high strength China original formwork manufacturer





 Product Description





BOFU plastic concrete formwork is an easy and intuitive system of PC-ABS formworks for building concrete walls, basements, columns. Compared with the traditional timber or steel systems,  plastic concrete formwork is handier, more cost effective and faster to set up, save time and labor charge.  plastic concrete formwork has panels of various sizes, fastened together by means of fast-lock nylon handles. Thanks to the several possible panel combinations, and special inner and outer corner elements, the possible wall thickness goes from 10 to 40 cm.







Specifications





1. light weight, high strength
2. sustainable and enviroment friendly
3. reusable for about 100 times
4. eco-friendly
5. easy operation





Concept







Dalian BOFU Construction Material Co., Ltd. is the professional supplier of  plastic concrete formwork scaffolding, couplers, prop, etc. As the leading supplier of  plastic concrete formwork in North East China, BOFU endeavour to help you build faster and conveniently, and most important, guarantee the safety for workers.



Thanks to our credibility and high quality products, BOFU has built long term cooperation relationship with many world class enterprises such as Saudi Arabia ATCO group, Russia Sakhalin Energy Investment Company, Italy Geoplast Company, etc.





 Product Characteristics



product name	plastic concrete formwork
origin	China
color	Black
material	PC-ABS
weight	11kg
tensile strength	80KN
brand	BOFU
reusable	100 times
model	CPANE0120



Product Introduction



Handier



The biggest panel of plastic concrete formwork is 120x60cm, weight only 10.5kg, which can be lift and set up by only one person easily, need no crane or similar equipment on the site.







easy set up



 Different size of plastic concrete formwork panels can be firmly locked by simply turn the special handles to 90 degree. The panels have rib on the back, which makes the system need not traditional wood blocks and nails.

The panels have holes to fit tie rod, guarantee the strength of the whole system.





Strength



The material of plastic concrete formwork is PC-ABS mixied with special glass fibres which enable panels to hold high pressures. The handles are made by high strength Nilon, each panel
locked by at least 4 handls, which makes the whole system strong enough to pour 40cm walls.





enviroment friendly



The plastic concrete formwork system need not cut and nail due to the variety size, and nearly need no wood, the material can be recycled after broken, will not pollute the enviroment. In propely use, the formwork system can be reused about 100 times.







Consequent



Concrete does not stick to plastic, thus the panels need no oil before using, and can be cleaned simply by water. The surface of the wall which built by plastic concrete formwork is smooth, can be left without rework.

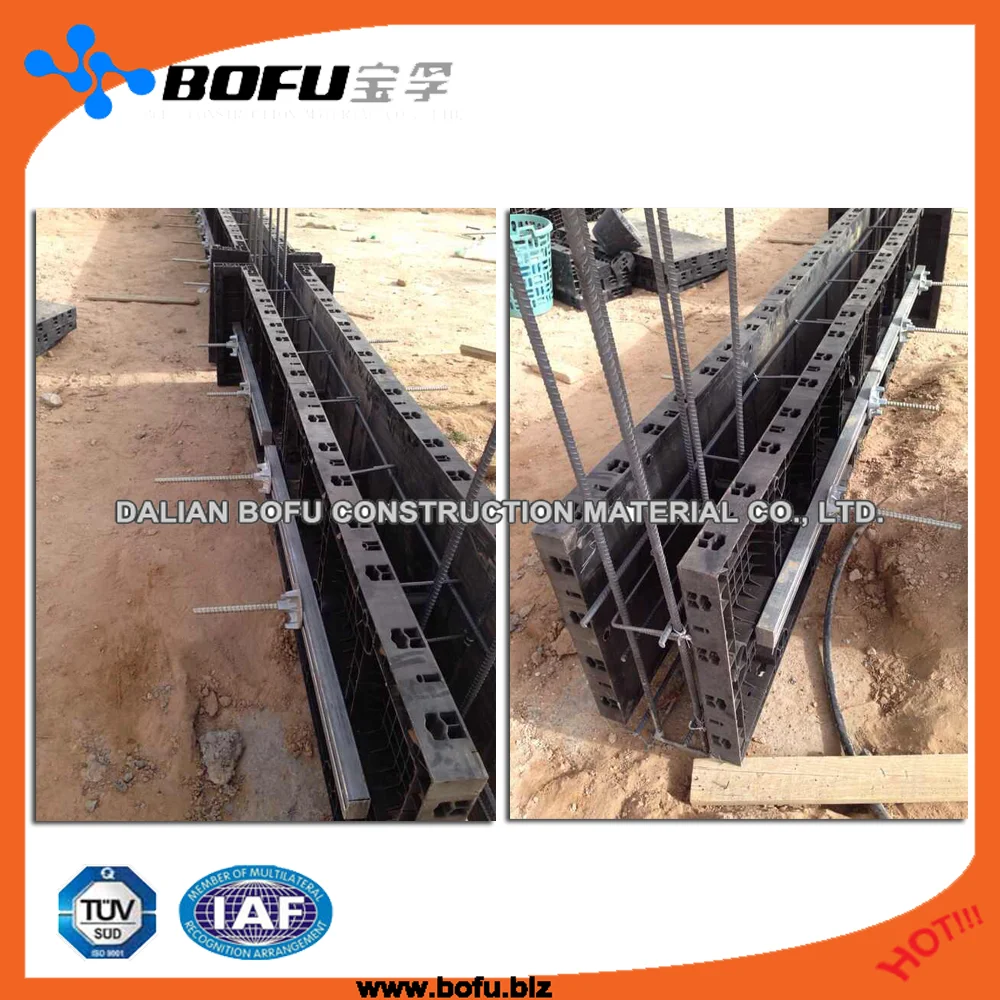

Walls and corners



Using  plastic concrete formwork it is possible to pour up to 40cm thick and 3 meters highstraight walls one time. Combining with special corners and compensation panels, right angle walls, three way T-walls and four way cross walls can be fomed easily. The low weight and modularity of plastic concrete formwork makes it ideal for fence walls as it is possible to move large gangforms by hand.







Basins and elevator shafts



The low weight of plastic concrete formwork simplifies the pouring of tanks, basins and swimming pools in areas with limited or no access to heavy equipment. plastic concrete formwork also ideal for elevator shafts as it can use without aid of crane, can make an easy, fast and precise job by hand.







Doors and windows



To make doors and windows by plastic concrete formwork is simple, by inserting inside the formwork a wooden frame corresponding to the size of the opening needed, and then pour the walls with doors and windows.

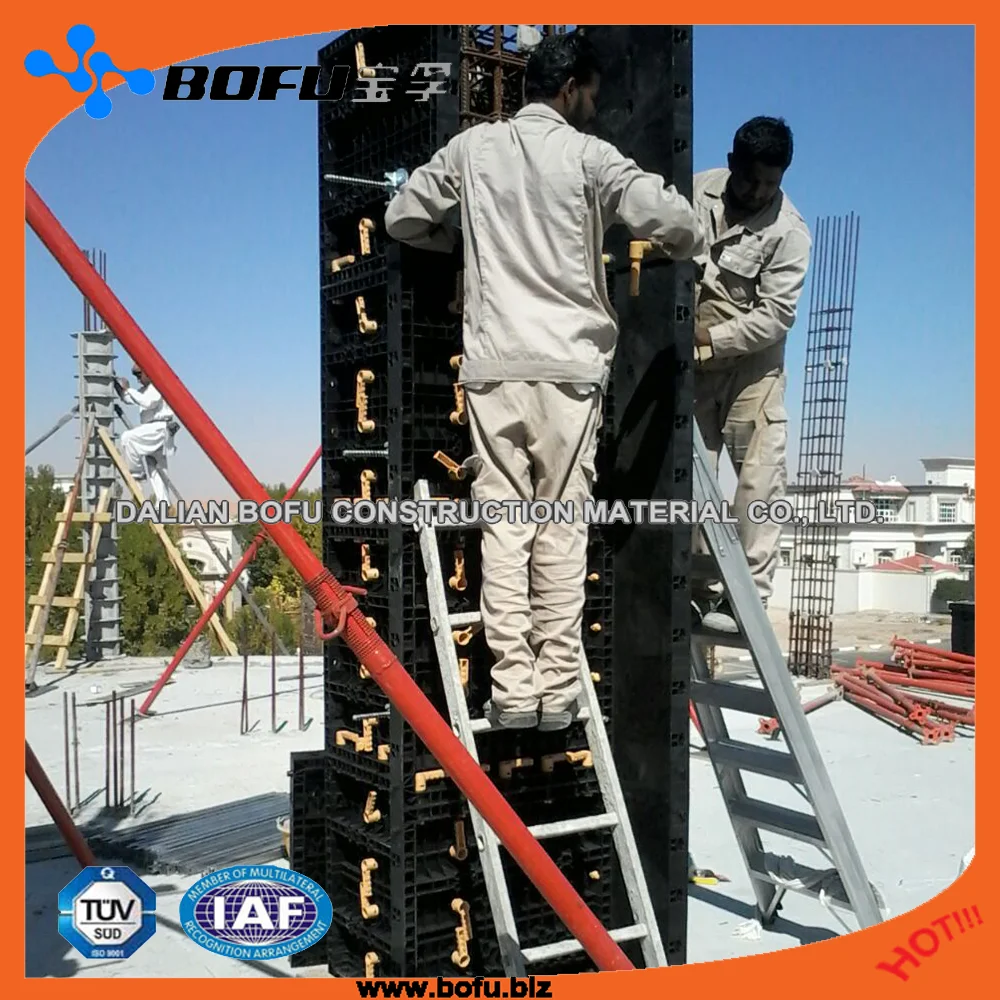

 Adjustable Column panel







The plastic concrete formwork column panels are interconnected using the standard nylon locking handles. Each panel will require 9 handles. The forming face has 6 parallel rows of fixing holes to allow the orthogonal connection of the panels in a “star” shape. The rows are placed at a distance of 100/50mm the one from the other, allowing the forming of square and/or rectangular columns with side of 150 to 600mm.







 Set up Showing

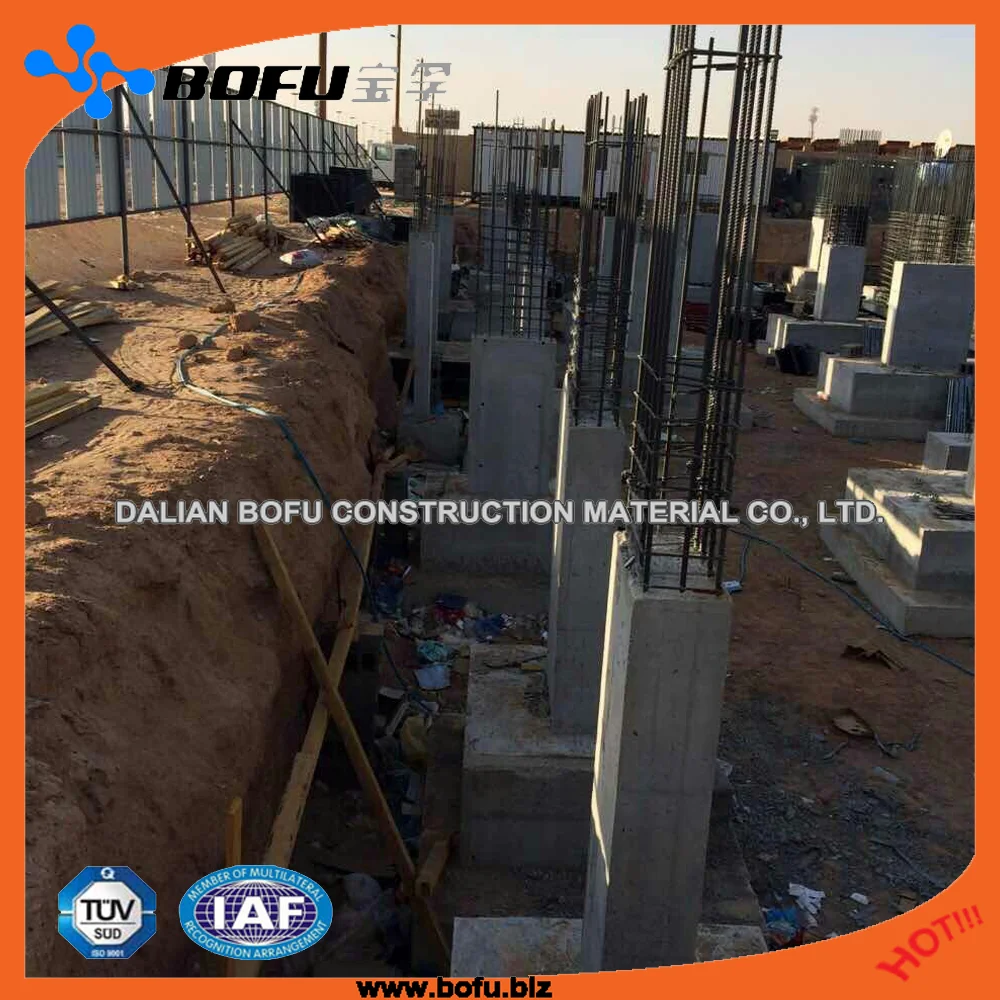

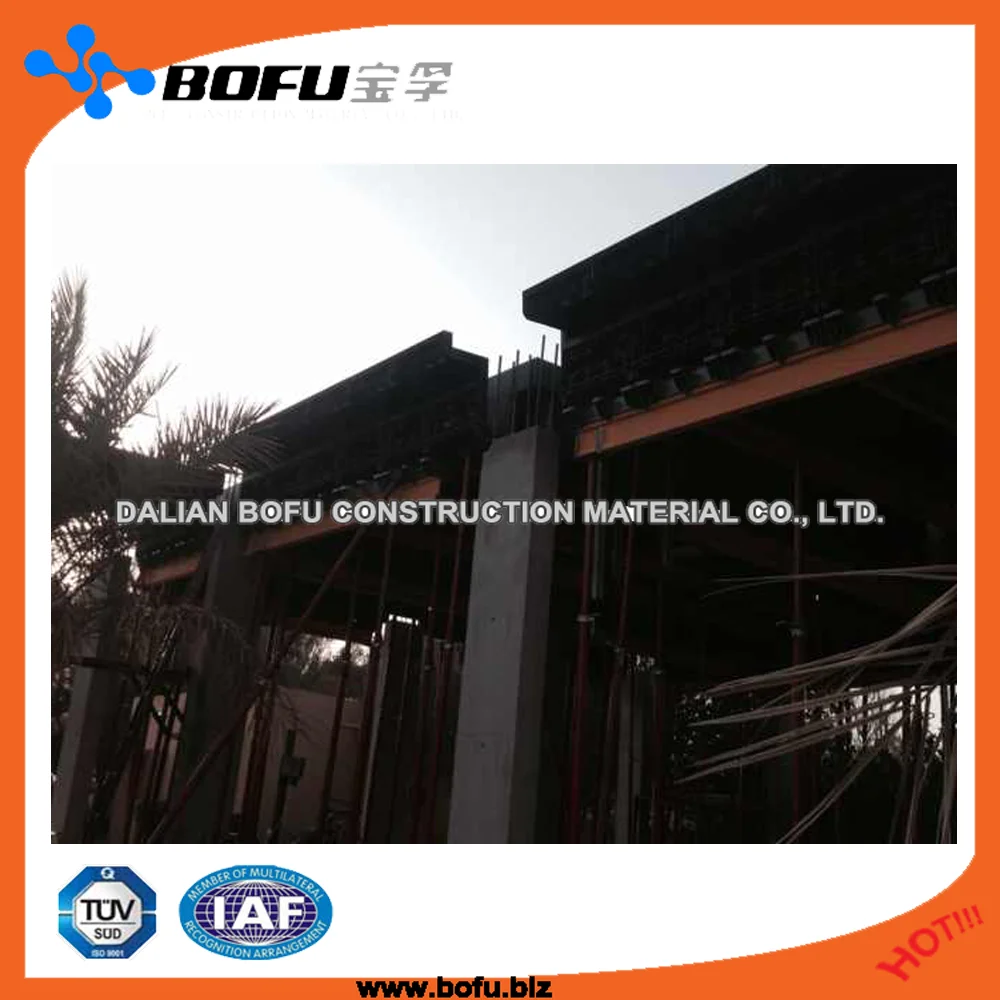

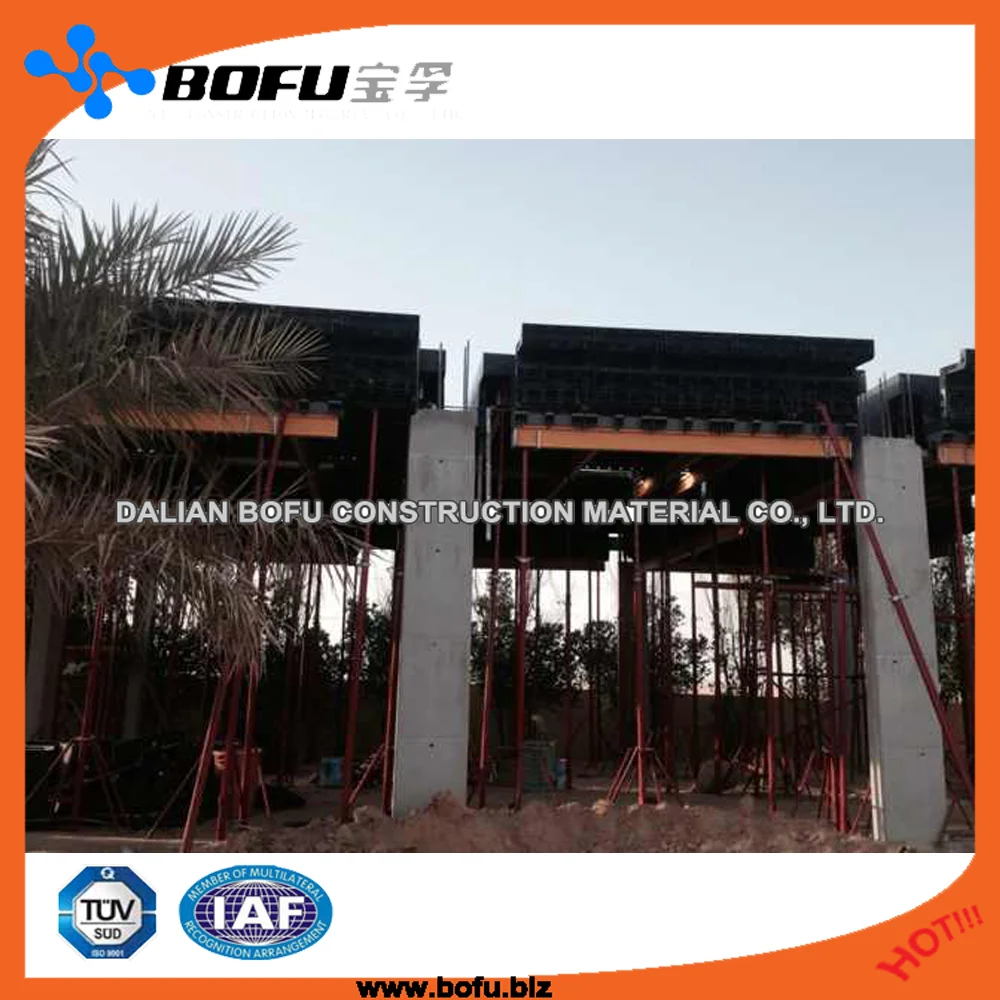

project Sample





 project in Russia





project in Kazakhstan





 project in Saudi Arabia





Please send your project design drawing in .dwg to us, we will help to make formwork solution for you.
