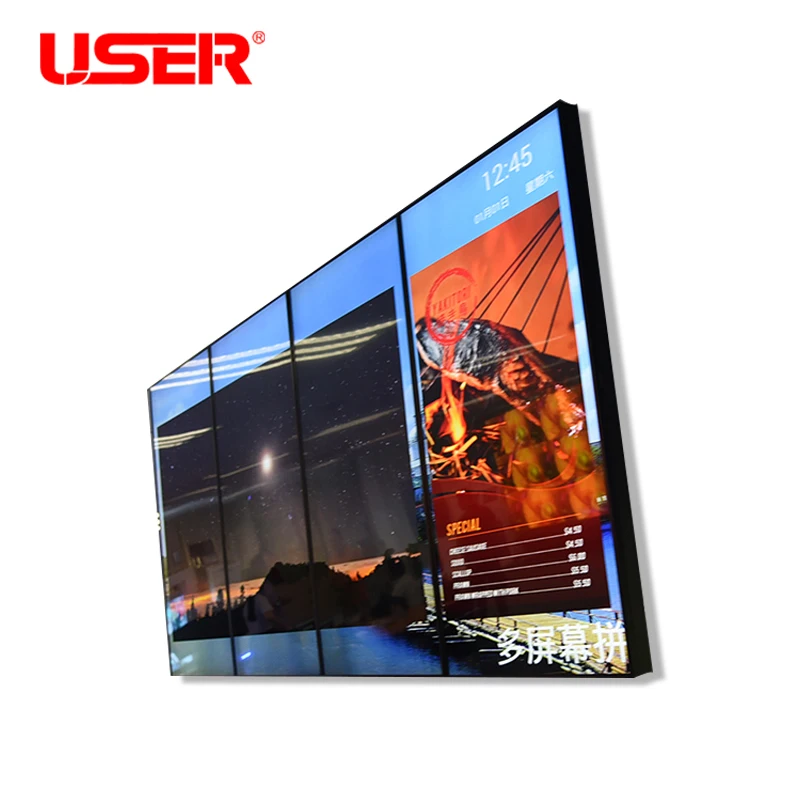

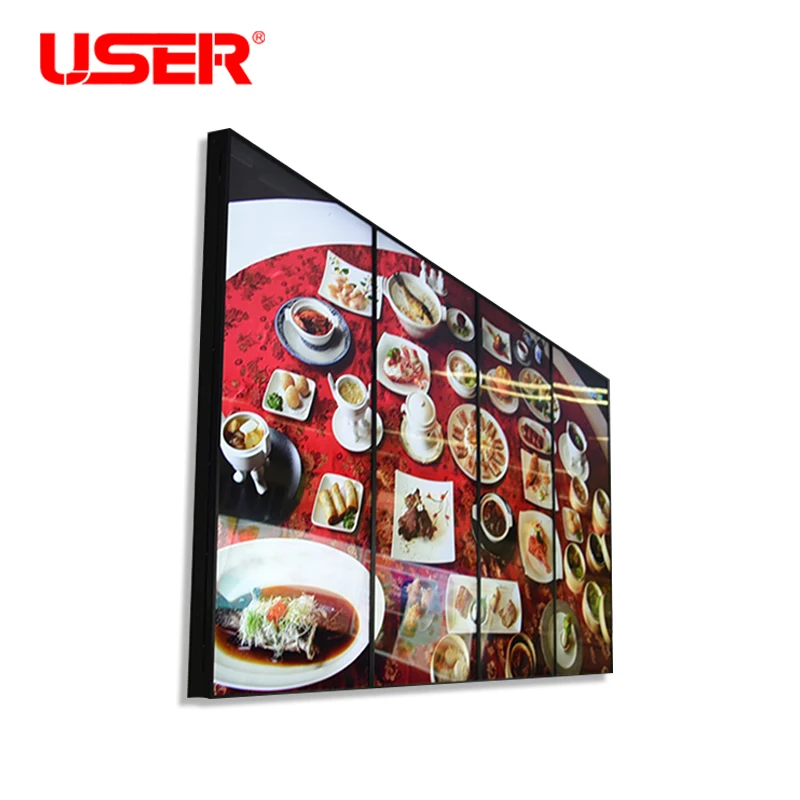

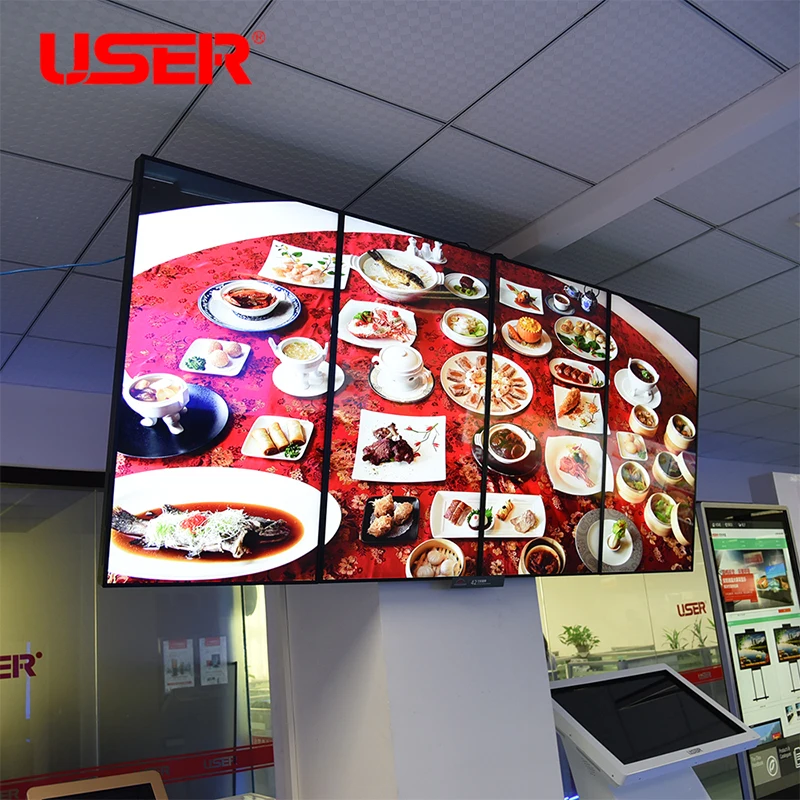

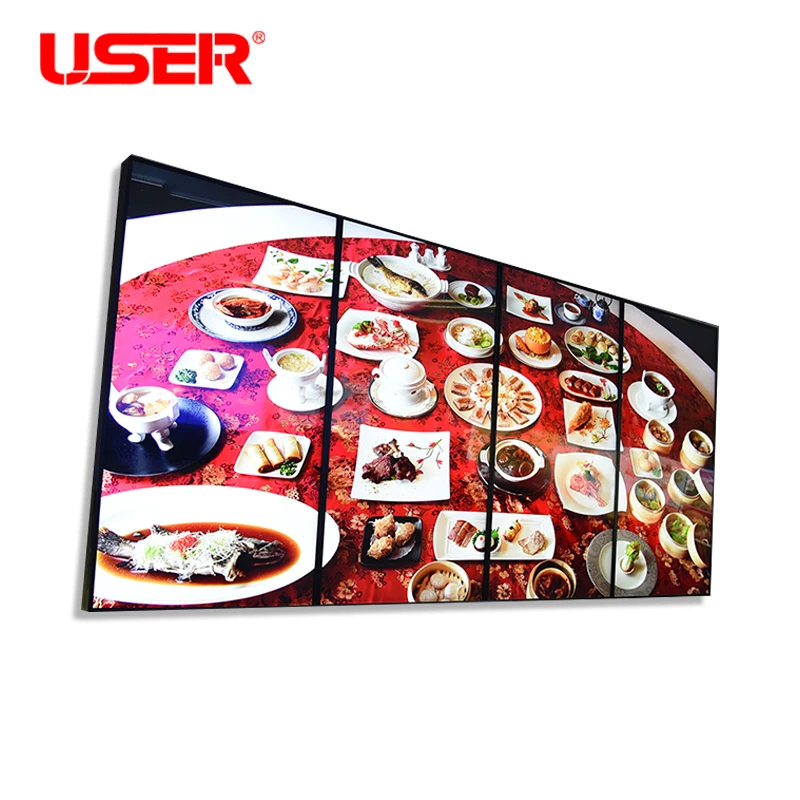

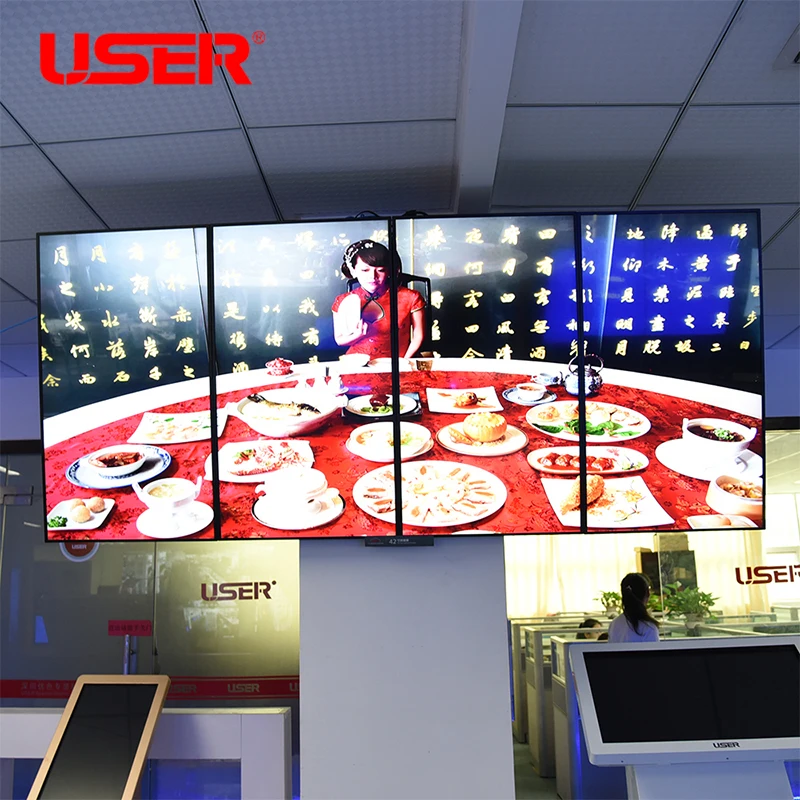

46 inches video wall screen, sharp image and crisp colors for perfect quality viewing

Share on (60438114063):


Price:

Quantity:


Product Overview

Description


46 inches video wall screen, sharp image and crisp colors for perfect quality viewing


1. narrow border design of the current width of only 2.65mm at present


2. Full-screen high definition display, up to 1080P


3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone


4. DID using proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.


5. Long life, stable operation, no burns, injuries, low maintenance costs


A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.


 6.Brand-new wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.




















































































































LCD Video Wall Screen (DID panel)
Specifications
Model No.US-PJ4601
Panel Size46''DID LCD Screen(super narrow bezel 5.3mm)
Aspect Ratio16:9
Max Resolution Support1920x1080
 Color8Bit,16.7M
Brightness (nits)500cd/m2
Contrast4000:1
Visual Angle (H/V)178°
Response Time<=6ms
Life(hrs)>60,000(hrs)
lcd video wall_Input and output
DVI1
D-15 RGB Input(VGA)1
YUV/YPbPR1(3xBNC)
S-(YC)1(2xBNC)
Composite Video Input/(AV)3(3xBNC)
Composite Video Output2(2xBNC)
AUDIO INPUT1
Split ScreenSupport Picture in Picture(PIP/POP/PAP)
lcd video wall_Power
Power SupplyAC100V~240V
Maximum Power Consumption250W
Standby Power Consumption<=3W
lcd video wall_Temperature
Working Temperature0°C~50°C
Working Humidity20%-80%
Dimension1024x578.6x123.3mm














































































Video Wall Controller(Built-in each Screen)
Model No.US-P817W
InputCVBS1*BNC port, support PAL/NTSC all formats
DVI1*DVI-I port, support SVGA/XGA/WUXGA
VGA1*D15 port, support SVGA/XGA/WXGA
OutputLVDSSupport signal or double LVDS output, and WUXGA (1920*1080) display
CVBSsupport PAL/NTSC all formats
DVI1*DVI-I port, support SVGA/XGA/WUXGA
Operate modePanel key operation(needs customization)
Standard RS232 port( provide free control software)
ADD Code
Engineering softwareXK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
Working temperature 0~70 ℃
working humidity5~95 %RH
AC voltage power supply100-240V/50, 60Hz
power consumptionMax 300W,according to different Screen models
Dimension307×283×55(mm)
WeightAbout 3.5KG





Verifiled info 2



Production Capacity:

















Product Line NameProduction Line CapacityActual Units Produced(Previous Year)
Optoelectronic DisplaysLCD Video Wall: 460 Sets/Month, CCTV LCD Monitors: 3000 Sets/Month, Digital Signage: 600 Sets /Month, Screen All-in-one PC: 430 Sets /MonthLCD Video Wall: 4300 Sets, CCTV LCD Monitors: 33000 Sets, Digital Signage: 6200 Sets, Screen All-in-one PC: 4800 Sets



Export Market Distribution:


















































































MarketRevenue(Previous Year)Total Revenue (%)
North AmericaUSD 530,0008.02
South AmericaUSD 450,0006.81
Eastern EuropeUSD 150,0002.27
Southeast AsiaUSD 380,0005.75
AfricaUSD 430,0006.51
OceaniaUSD 190,0002.88
Mid EastUSD 380,0005.75
Eastern AsiaUSD 270,0004.09
Western EuropeUSD 450,0006.81
Central AmericaUSD 150,0002.27
Northern EuropeUSD 445,0006.73
Southern EuropeUSD 325,0004.92
South AsiaUSD 370,0005.6
Domestic MarketUSD 2,088,00031.59



Production Machinery:










































Machine NameBrand & Model No.QuantityNumber of Year(s) UsedCondition
Semi-Automatic Aluminium Alloy Production LineN/A35.0Acceptable
Aging LineN/A15.0Acceptable
Aging ShelfN/A55.0Acceptable
Aging VehicleN/A42.0Acceptable



Testing Machinery:




















































































Machine NameBrand & Model No.QuantityNumber of Year(s) UsedCondition
Ground Resistance TesterLK2678B12.0Acceptable
Hi-Pot TesterLK2670A13.0Acceptable
Voltage RegulatorTDGC2-2KVA13.0Acceptable
CameraUS-YQ-01533.0Acceptable
I3 Computer Testing BoxN/A32.0Acceptable
Transportation VibrostandKXJ2311.0Good
Torsion TesterSR-5013.0Acceptable
Soldering Iron Temperature TesterHAK019113.0Acceptable
Wrist Strap TesterTAK-49813.0Acceptable
Digital Power MeterLW-90115.0Acceptable
