ELECTRODE.WELDING ROD.E6013 E7018, AWS, A5.1 , DIA. 2.6 MM, 20 KG PACKAGE

Product Overview

Description

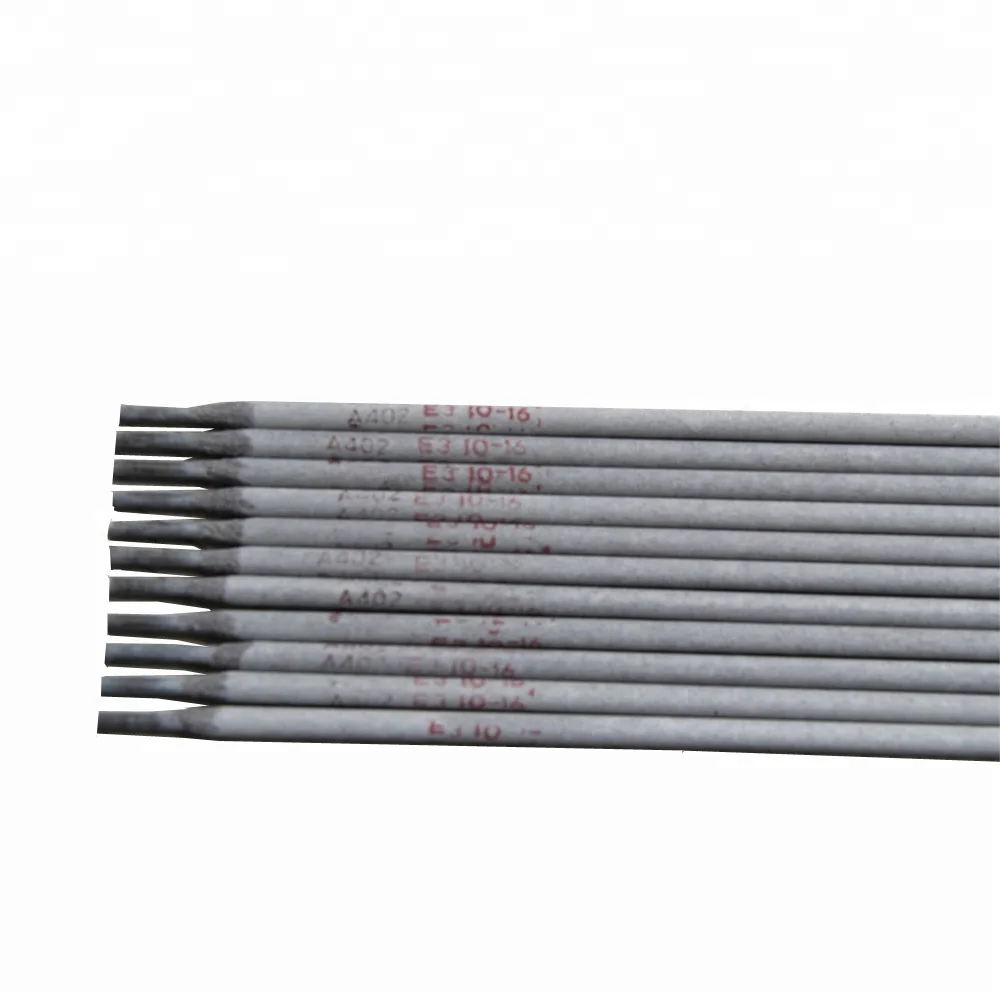

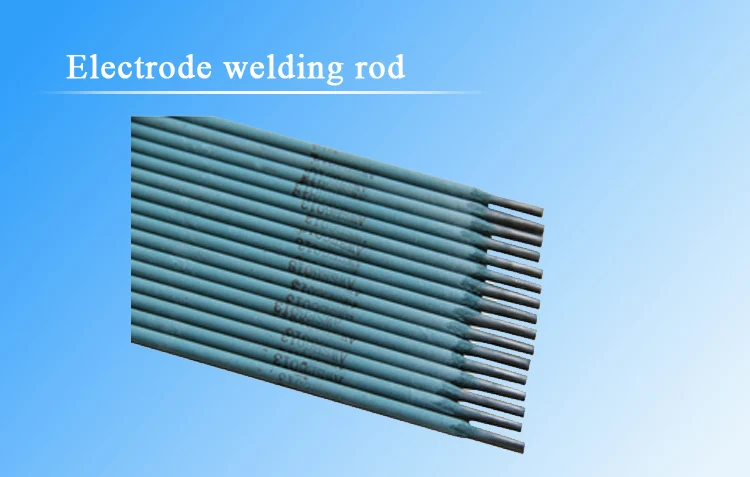

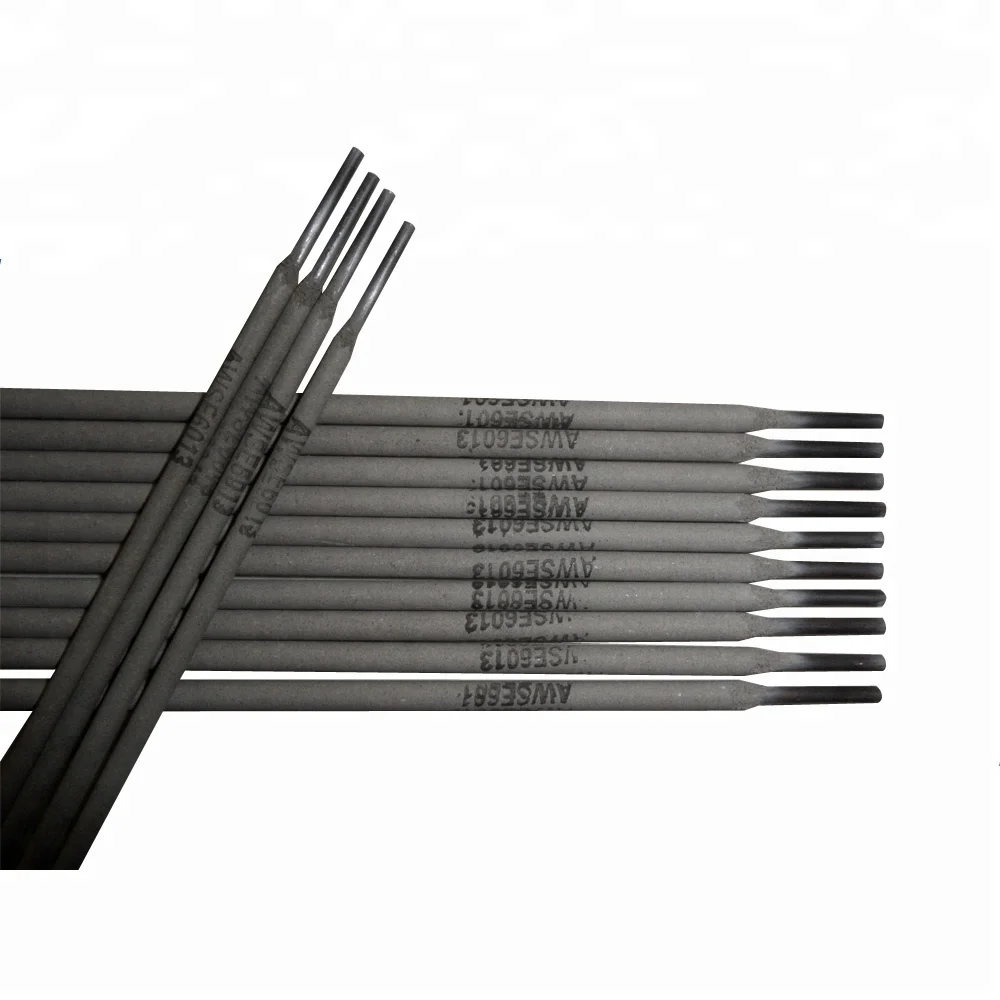

ELECTRODE WELDING ROD

Description:

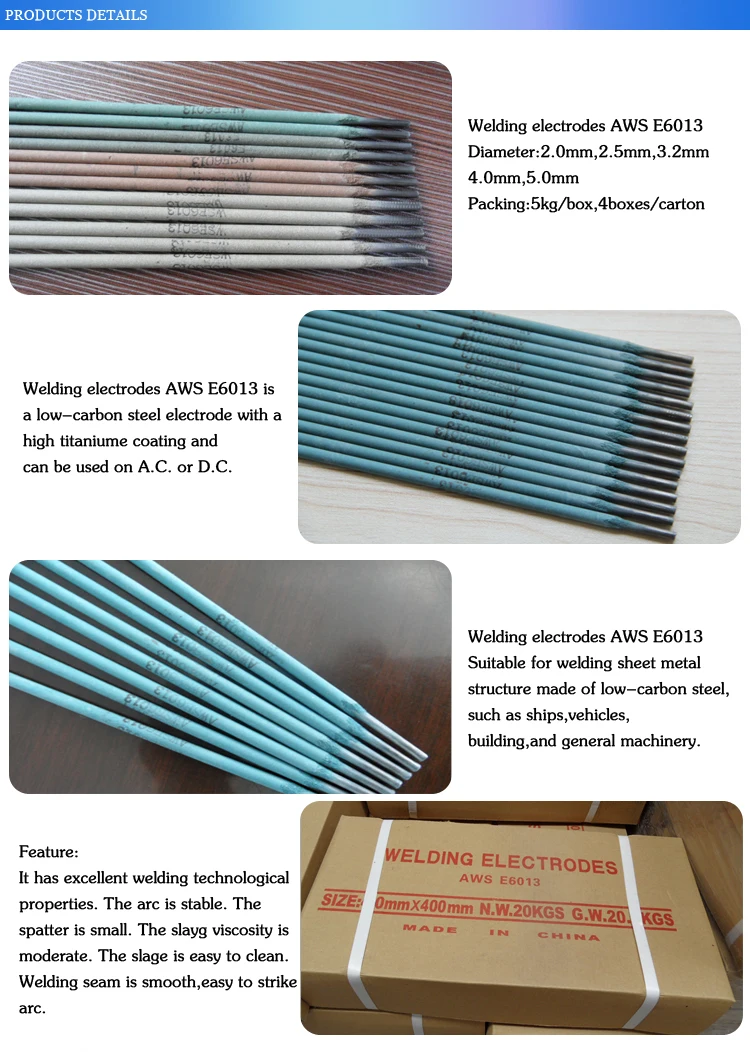

AWS E6013 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It  has excellent welding technological properties .  The  arc  is  stable .  The spatter is small. The slag viscosity is moderate. It can be used freely . The slag  is  easy to clean . The welded seam is smooth  and fine and easy to restrike the arc.
Application:
Suitable  for  welding  sheet  metal  structure  made  of  low-carbon  steel , such  as  ships, vehicles, building, and general machinery.

Detail package is following:

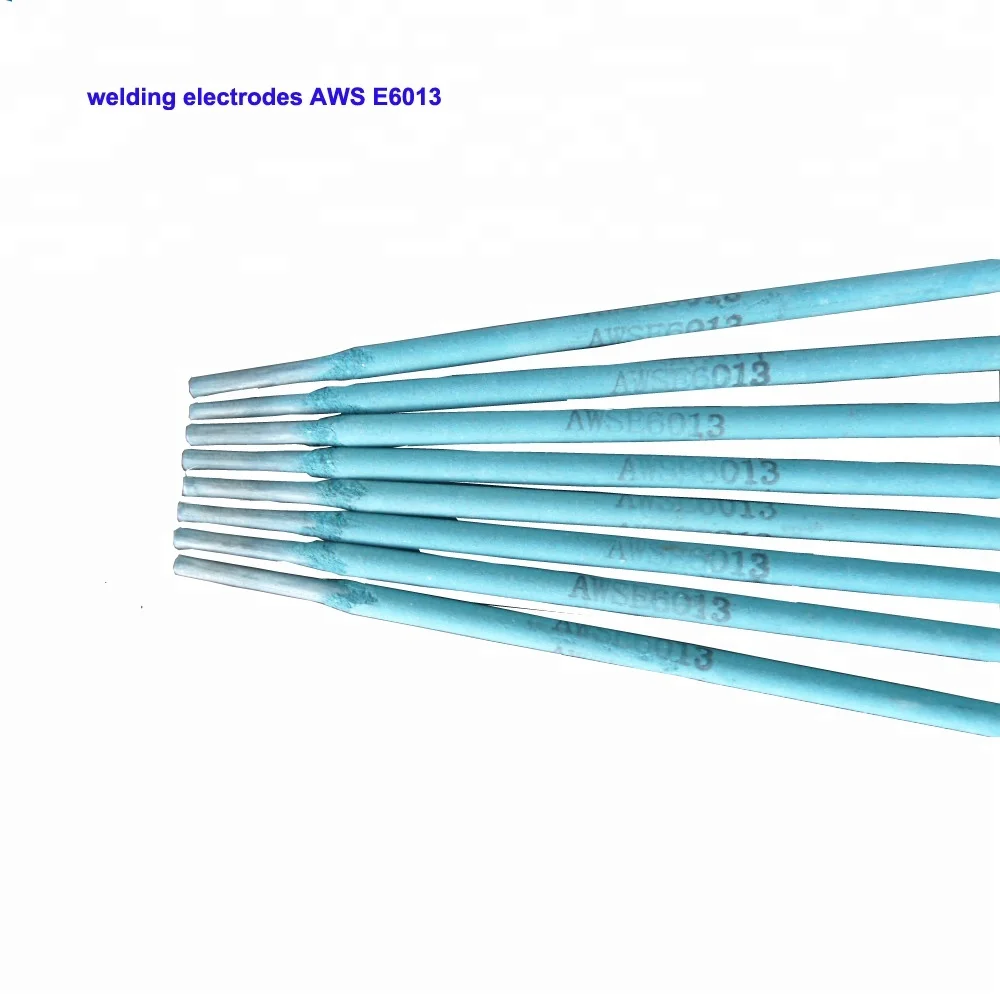

WELDING ELECTRODES STANDARD: AWS E6013
Size: 2.5MM X 300MM
Size: 3.2MM X 350MM
Size: 4.0MM X 400MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)



Chemical Composition of Wire(%):

C	Mn	Si	S	P
≤0.12	0.3-0.6	≤0.35	≤0.035	≤0.040

Mechanical Properties of Deposited Metal:

Test Item	σb(MPa)	σc(MPa)	δs(%)	AKV(J)
Guarantee Value	≥420	≥330	≥17	-

Recommended Welding Current:

Electrode Diameter(mm)	2.0	2.5	3.2	4.0	5.0
Current Range(A)	40-70	50-80	80-120	150-190	180-240



Q: Do you accept small order and what's your MOQ?

A: Yes,We accept small order and trial order ,MOQ is 1set

Q: What is your payment terms?

A: T/T, L/C, Western Union, Cash etc.

Q: Can you ship to my country?

A: Yes, no problem .We will book a fast ship for you.Please let me know

your destination port and I will check sea freight for you.

Q: How long is your delivery time ?

A: The finish time is about 10-40 days according to different products

and machines.

Q: I want more machines, how can I get latest catalogue for reference ?

A: You can contact us by Trade Manager, Whatsapp, Wechat or by email ,

We will give you our latest catalogue according to your information.

Q: How can you guarantee the quality and the warrenty ?

The products quality control by incoming material inspection, 100%

in-production check and random check after packaging.

The machines warrenty is one year for main frame. The spareparts

and technical solution provided timely for machine failure.
