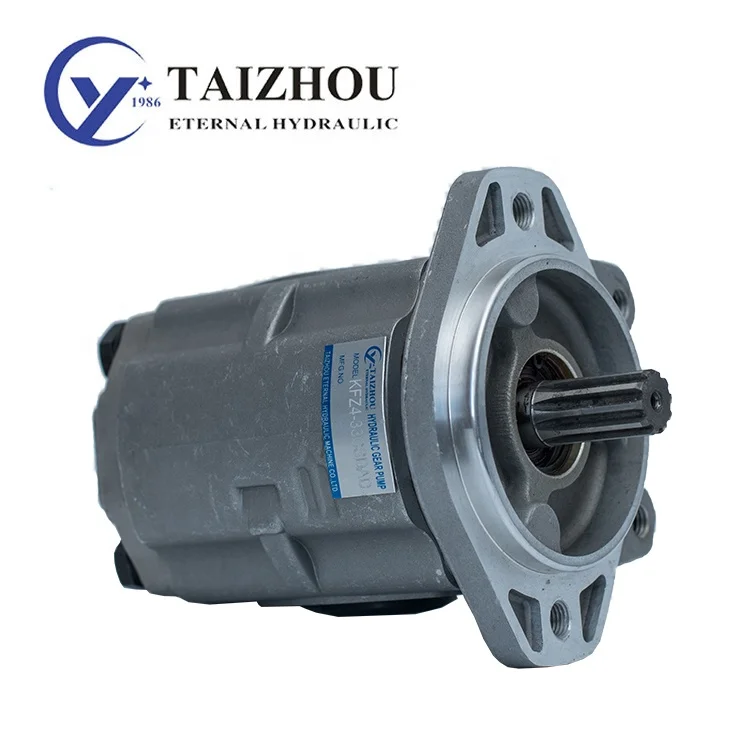

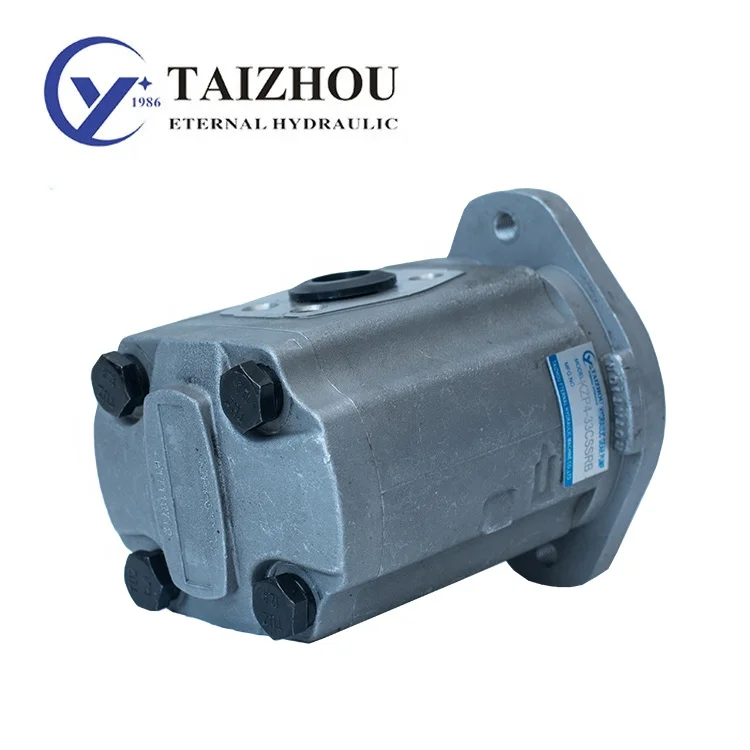

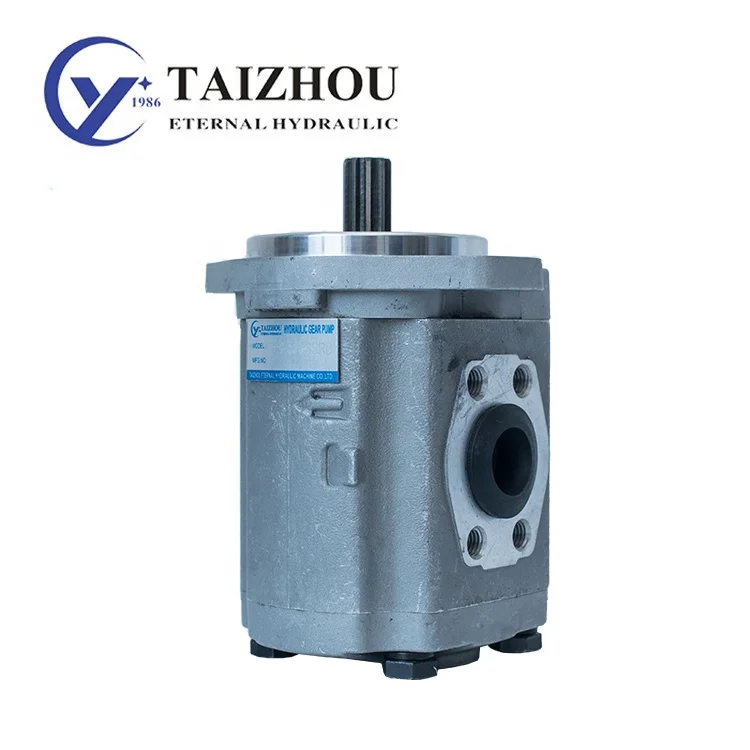

KZP4 Shimadzu Kayaba KYB Pump Hydraulic Gear Oil Pump For Forklift Credit Seller

Product Overview

Description

KZP4 Shimadzu Kayaba KYB Pump Hydraulic Gear Oil Pump For Forklift Credit Seller

Features:

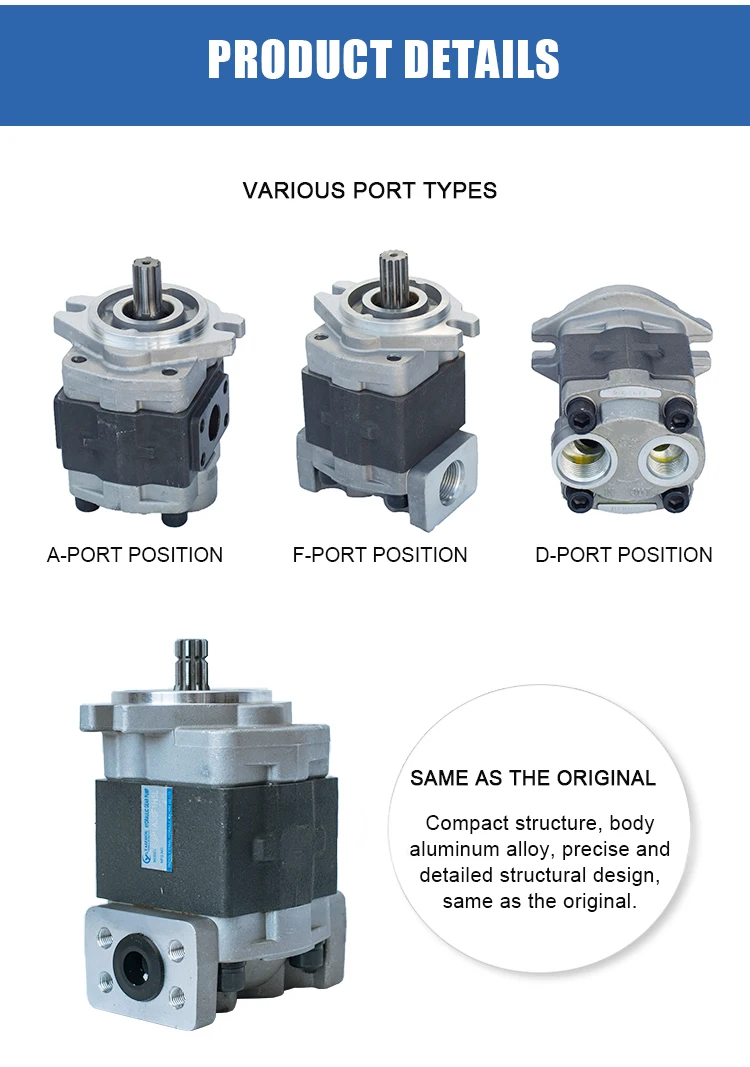

• Light weight, compact structure, body aluminum alloy, high precision molding design

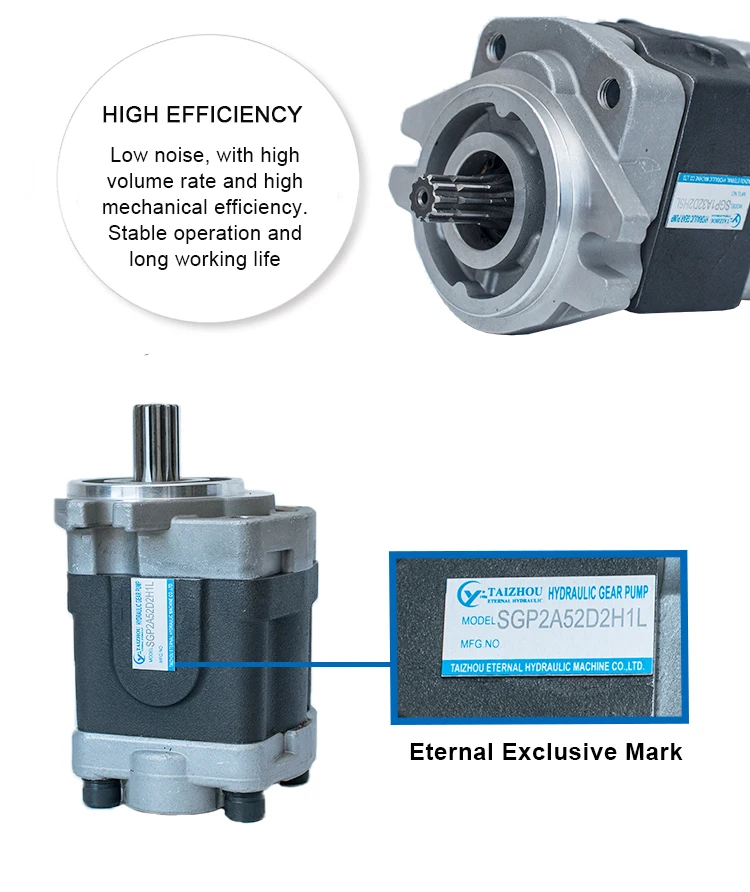

• High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency
• Low noise
• Stable operation and long working life

  Model	Nominal displacement (m/r )	Pressure (Mpa)		Rotation speed(r/min)		Inlet pressure (Mpa)	Weight (kg)
  		Rated	Max	Min	Max
  SGP2-32	32	24.5	29.4	400	3000	-0.02~0.2	5.7(5.1)
  SGP2-36	36				3000(2500)		5.9(5.3)
  SGP2-40	40	22.6	27.5				6.1(5.4)
  SGP2-44	44	20.6	24.5				6.3(5.6)
  SGP2-48	48	18.6	22.6		3000(2500)		6.6 (5.9)
  SGP2-52	52	17.2	20.6				6.8 (6.1)



  Model	Nominal displacement (m/r )	Pressure (Mpa)		Rotation speed(r/min)			Volumetric Effciency(≥%)	Weight (kg)
  		Rated	Max	Min	Rated	Max
  SGP1-19	19	20	25	600	2500	3000	92	3.5
  SGP1-23	22							3.7
  SGP1-25	25							4
  SGP1-27	27							4
  SGP1-30	30							4.1
  SGP1-32	32							4.3
  SGP1-34	34							4.5
  SGP1-36	36							4.5
