Product Overview
Description

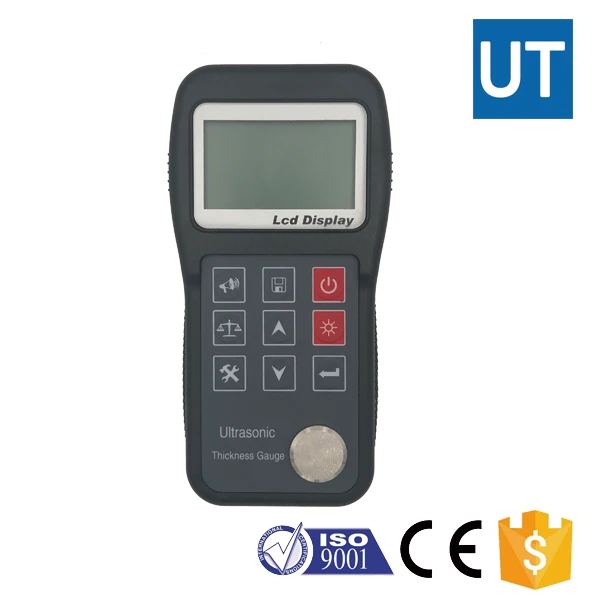

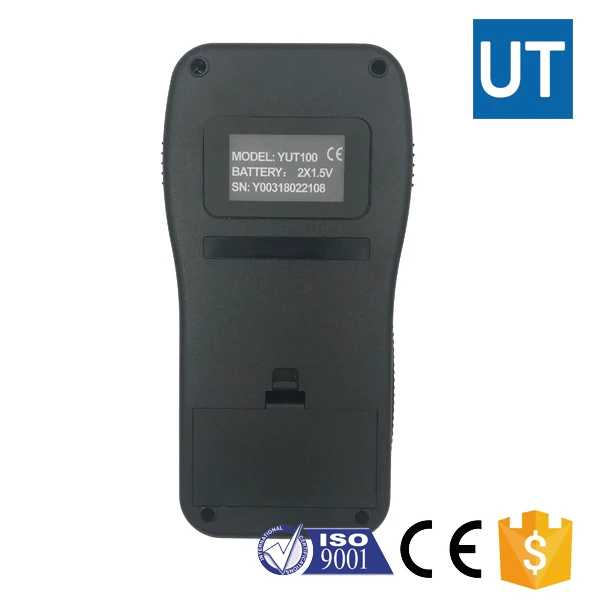

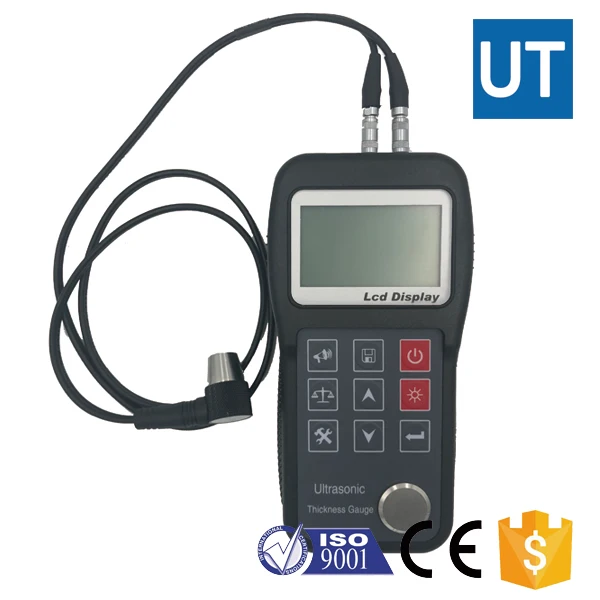

YUT100 NDT Industry Portable Digital Ultrasonic Thickness Gauge or Meter
Specifications
Easy to use handheld thickness gauge
Suitable for most metallic and non-metallic materials
Display current thickness or minimum thickness (menu selectable)
Upper-lower limits setting and sound alarm
Memory for 500 stored values
Two point calibration
Display resolution 0.1mm/0.01mm selectable
Display in mm or inch
LCD display with adjustable backlight
Low battery indicator
RS232 output for data transfer
Product Description
Our company was founded in 1988,which is one of the well known companies specialized in Non-dectructive testing(NDT)equipments. After 20 years' development,we have accumulated abundant technical force and established a wealth of design and practical experience.We are a manufacturer and trading company. .Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Our portable X-ray machines have the specifications from 100kV, 120kV, 160kV, 200kV, 220kV, 250kV, 300kV, 320kV to 350kV. Our portable machines have smaller size and lighter weight, and are more convenient for users to operate.
Our stationary X-ray machines have the specifications from 100kV, 160kV, 225kV, 300kV, 320kV, 350kV, 400kV, 420kV to 450kV. Our stationary machines have stronger penetrating power and also are more suitable for the online non-destructive testing.
Our products are finely developed and manufactured by adopting high technologies of many countries and manufacturers.They can be widely used in many fields such as mechanism,electron,petroleum,chemical industry,electric power,bridges,boats and ships,vehicles.aviation,heating power,boilers,pressure vessels and war industries.
Our sales network covers the whole world and we maintain good business relationship with more than 200 customers.
We will serve the first-class technology,first-class products and first-class service for you.
Tecnical specifications
| Measuring Range(Steel) | 1.2mm-225.0mm with 5MHz Transducer 5.0mm-300.0mm with 2MHz Transducer |
| Operating Temperature | -10 -- 60°C |
| Lower Limit Steel Pipes | Φ20mm*3.0mm |
| Display Resolution(Selectable) | 0.1mm/0.01mm or 0.01/0.001inch |
| Data Output | RS232 Output for Printer or PC |
| Measuring Accuracy | ±1% thickness+0.1mm |
| Sound Velocity | 1000m/s—9999m/s |
| Power Supply | 2pcs AA Batteries 1.5V |
| Battery Life | 100 hours without backlight |
| Dimensions | 152mm*74mm*35mm |
| Weight | 370g |
Transducer Specifications
| Transducer | Measuring Range (Steel) | Contact Area Diameter | Frequency(MHz) | Operating Temperature |
| TSTU32 | 5.0-300.0mm | 22mm | 2 | -10 -- 60°C |

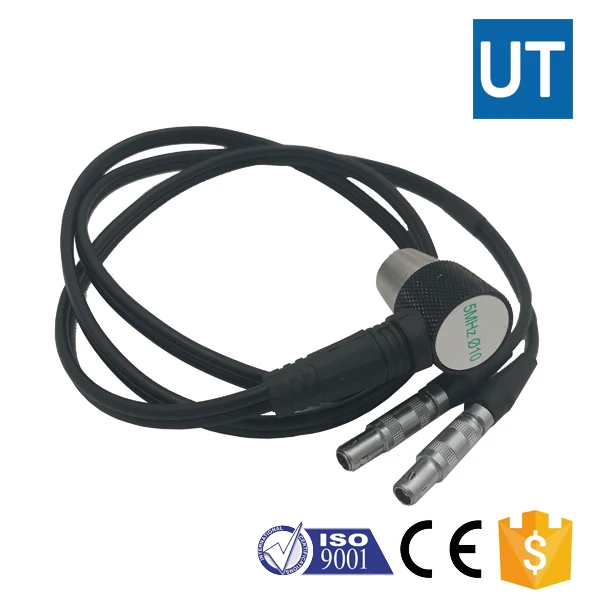

| 5PΦ10 | 1.2-225.0mm | 10mm | 5 | -10 -- 60°C |
Packaging & Shipping

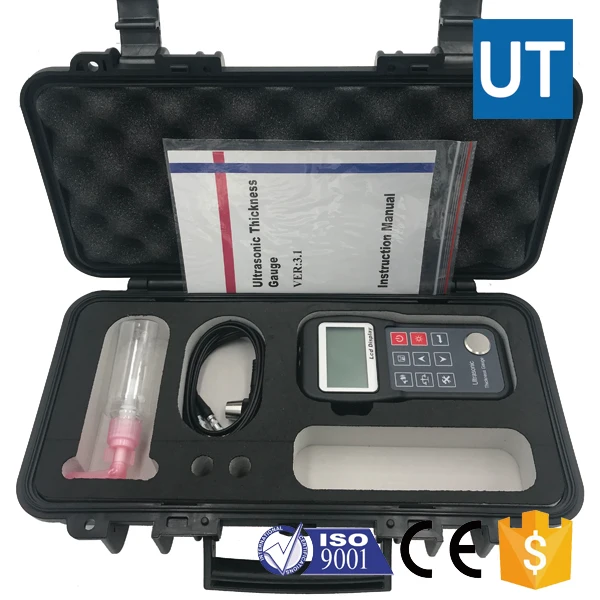

Standard Delivery
| Standard Delivery | No. | Name | Quantity |
| 1 | Main unit | 1 | |
| 2 | Transducer 5PΦ10 | 1 | |
| 3 | Ultrasonic couplant | 1 | |
| 4 | Batteries AA 1.5V | 2 | |
| 5 | Instruction manual | 1 | |

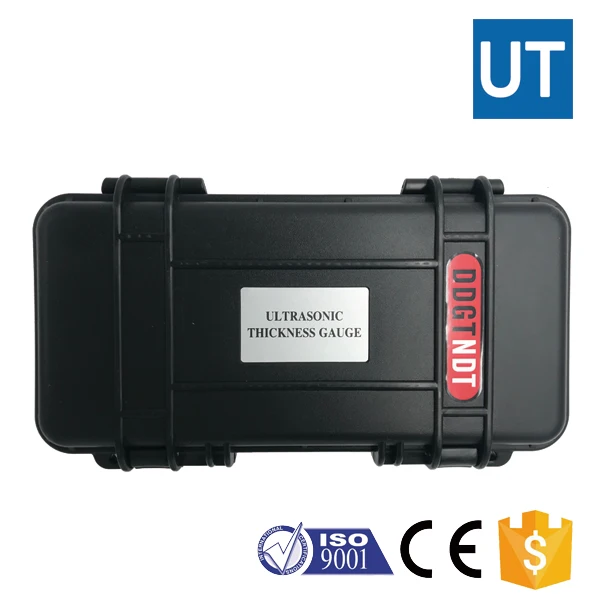

| 6 | Carrying case | 1 | |
| Additional Optional Delivery | 1 | Transducer TSTU32 (2MHz) | 1 |
| 2 | Transducer 5PΦ10(5MHz) | 1 | |
| 3 | Printer TA220S with cable | 1 | |
| 4 | Dataview with communication cable | 1 |
Our Services
1. Pre-sale service
Freely provide project designing, process designing, choosing suitable equipment for you.
2. Medium-sale service
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3. After-sale service
The quality guarantee period of our machine is 12 months.
We will provide necessary information for your purchasing equipment and be very willing to answer all the problems you have concerned about the device.
With the development of technology in our company, we will provide improved working state and information for you at any time.
Within the quality guarantee period, free parts replacement and corresponding service are available.
Beyond the quality guarantee period, we still provide widely and favorable technical support and spare parts supply.
