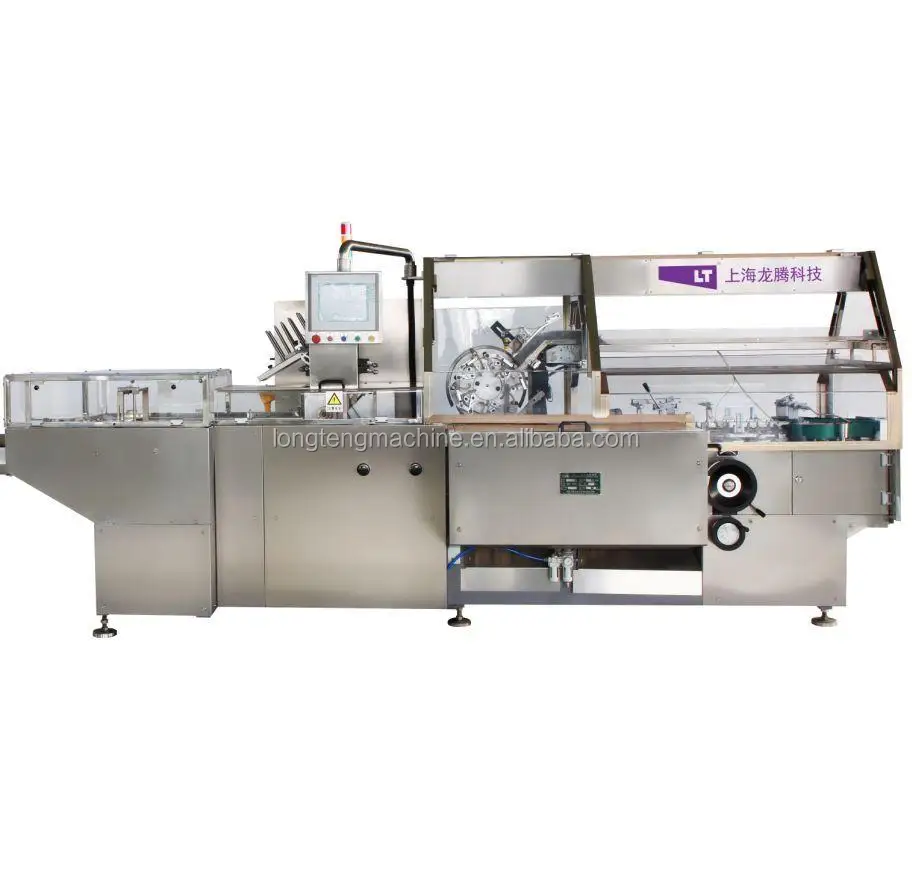

CM220 Intelligent Cartoner Machine is automatic horizontal type continuous operation equipment which is developed and designed and manufactured by our company, based on advanced machine type and combined with the actual circumstances of package. It is the integrated high–tech products of electro mechanics, totally corresponding to the GMP demands. This machine adopts overseas advanced transmission technology and controls each movement with the encoder and PLC communication programming through pneumatic products and machinery construction, the machine provides secure and stable production at high speeds via frequency converter to modulate the velocity to make package more precise. The whole machine advances both in configuration and allocation, and equipped with automatic alarm system on faulty, owning such characteristics as ease of handling for maintenance and cleaning and operation. The machine may be used independently, or work with the paper folding machine and carton package machine to unite into a production line., moreover equipped with transmit and fall system and automatic coding device, The max operation speed is 220 cartons per minute, normal production speed is 200-220 cartons per minute. It is suitable to package of medicines, cosmetics, leisure food, toothpaste and the corresponding chemical products packed in the hose, plate and bottle etc. greatly improved the production efficiency.
SPECIFICATIONS FOR CM220 CARTONING MACHINE
Heads amount of opening carton
5
Speeed
200-220box/min
Power supply
380v 50Hz
Main motor
2.2 Kw
Vacuum pump
1.3Kw
Conveyer belt and others
1Kw
Air compressed
Consumption
40NL/min
Pressure
0.6MP
Weight
3000Kg
Main Features
1) High Speed,can meet varied carton package requirements.
2) High Technology type & mechcanical memory device,easy&convenient for size changeover by adjusting of hand –wheel through dial panel..
3) Totally corresponding to the GMP demands,adopting overseas advanced transmission technology and controls each movement with the encoder and PLC communication programming through pneumatic products and machinery construction,
4) Taking HIGH market share in China market for carton package requirements, widely used in pharmaceutical,food,cosmetic,daily use industry.
5) Apply a linker to connect with the conveyor ,which can directly inline with upstream machine to form a production line .
Certifications
Detailed Images
Leaflet Folding Device
Name: GUK leaflet folding machine
Brand: GUK
Original: Germany
Using Original GUK folding machine to make sure of One to One Correspondence on Leaflet&Cartons,folding leaflet smoothly to enhance the package efficiency.

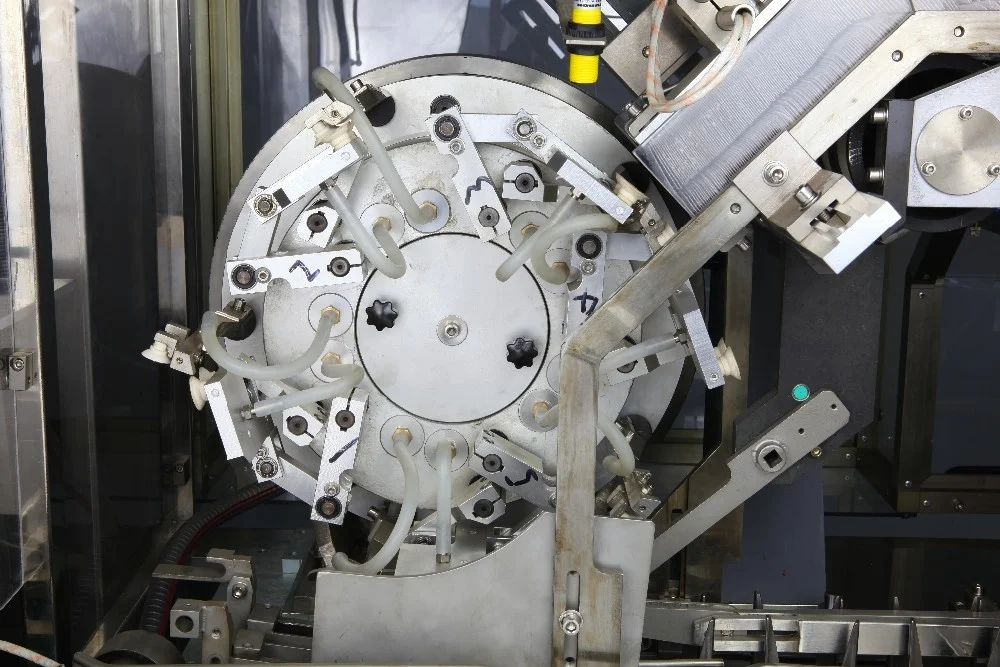

5 Heads Carton Opening Device
Name: 5 heads carton openning device Brand: LONGTENG Original: CHINA Differently from domestic open carton manner of package machine, the machine adopts two vacuum suck heads to suck two adjacent face, among which one suck head makes the carton open 110º degree and then releases when putting into the station, carton automatically restores to 90º Degree and is fixed, the open-carton manner can guarantee a higher open carton rate.
Steel Figure Embossed Coding Device
Name: Carton embossed coding device Brand: LONGTENG Original:CHINA Designed & productioned carton steel figure embossed device,clear&clean and in the fixed place,we also can equip with Nordson glue machine for optional coding requirements.
Products Infeeding Device
Name: bottle infeeding device Brand: LONGTENG Original: CHINA Design&Production products infeeding device according to different material and customer requirements,transmit the products into cartoner machine, equipped with excessive products automatic rejection device, the fall-in device control the products to fall in the correct bucket.
Our Service
Pre-Sales Service
* Inquiry and technical consulting support.
* Professional project proposal,machine recommendation and price offer according to customer package requirements.
* View our Factory and machine technical communication.
After-Sales Service
* Provide Training service for how to operate the machine, how to maintenance the machine& machine troubleshooting.
* Engineers available to service machinery SAT and commissioning overseas.
* Supply Spare&wear parts at a discounted price in machine life time.
* Quick response to machine troubleshooting.
Packing & Delivery
Packaging
Size
5700 (L) * 1900 (W) * 2100 (D)
Weight
4.0T
Packaging Details
The inside package is PE film bundling&Moister-Barrier Bag for sea transporation,outter package is export wooden case.
