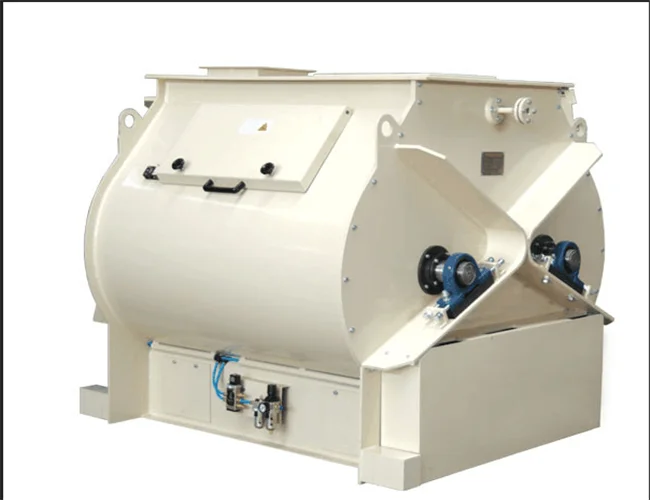

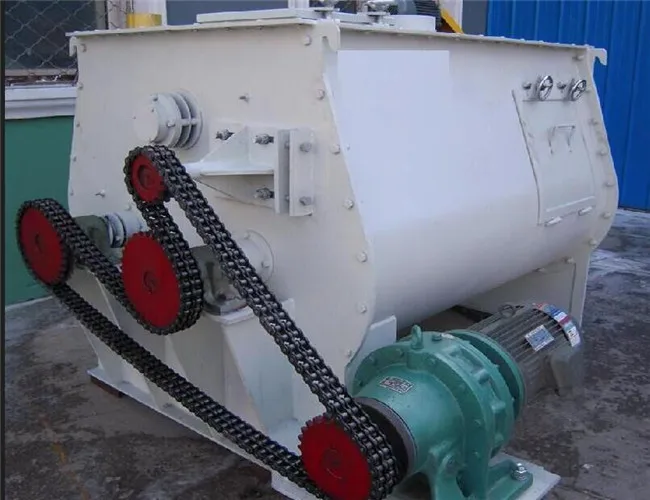

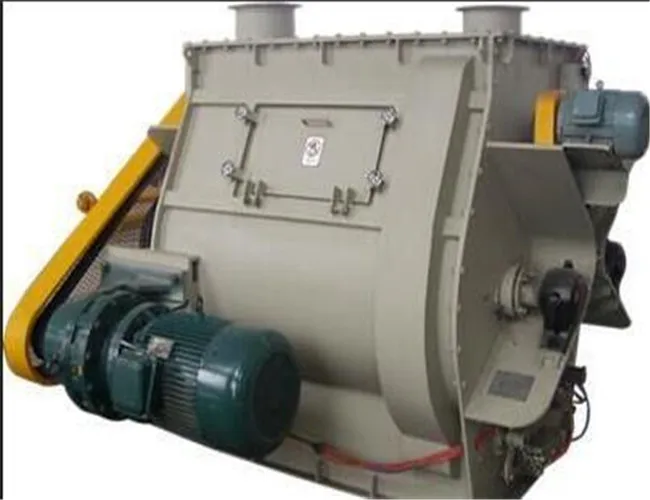

WZ Series Non Gravity double Shaft Paddle type Mixer

Product Overview

Description



WZ Series Non Gravity double Shaft Paddle Mixer



Product Description:



WZ Series Non Gravity Twin Shaft Paddle Mixer has characteristics of powerful motion and high efficient mixing.There are two paddles in the horizontal container rotate reversely at a constant speed.The design ensures materials move radially calculating and axially in order to mix in a very short time.



Main Application:



It is applied in industry of chemical,pharmaceutical,detergent,coating,resin,glass oxide silicon,pigment,pesticides,feedstuff,additive,wheat powder,milk power,micro dosage of additive,coffee,salt,plastic and mush drying.



Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.



Type(m3)	one time mixing(kg)	Power(kw)	Weight(kg)
WZ-0.05	4-30	2.2	250
WZ-0.1	40-60	3	360
WZ-0.3	120-180	4-5.5	750
WZ-0.5	200-300	5.5-7.5	880
WZ-1	400-600	7.5-11	2100
WZ-2	800-1200	11-15	2740
WZ-3	1200-1800	18.5-22	3800
WZ-4	1600-2400	22-30	5100
WZ-6	2400-3600	30-37	6200
