Product Overview

Description


Our Company

                Jiangyin Bangnuo Machinery Co., Ltd. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings. With economic development, building light steel building applications on the growing popularity of the increasing demand for production equipment, production equipment automation requirements are also increasing, company investment, research and development of various types of color steel pressure plate (W) production line and C, Z-beam (purlin) production equipment, the use of simple, improve productivity, reduce production costs. Various existing models of steel pressure plate (W) C, Z-beam (purlin) automatic control production line are at the leading position at home and abroad, with a compact structure, reasonable design, constantly updated progress and much Strut Builders and products the favor and praise.
               Company specializing in the production of Dagong machines, floor plate machine, guardrail plate machine, corrugated tile machine, shearing machine, sub-board machine, highway guardrail, tile machine equipment, automatic tile press, iron Piva machine, iron tile machine, all automatic C-shaped steel machine, glazed tile machine.

Product Description

Composition of machine:

1.\t3T hydraulic decoiler
2.\tFeeding→pre-cutting→forming station→Post cutting system
3.\tTransmission table
4.\tHydraulic station
5.\tControl desk
6.\tElbow machine
7.\tSpare part list

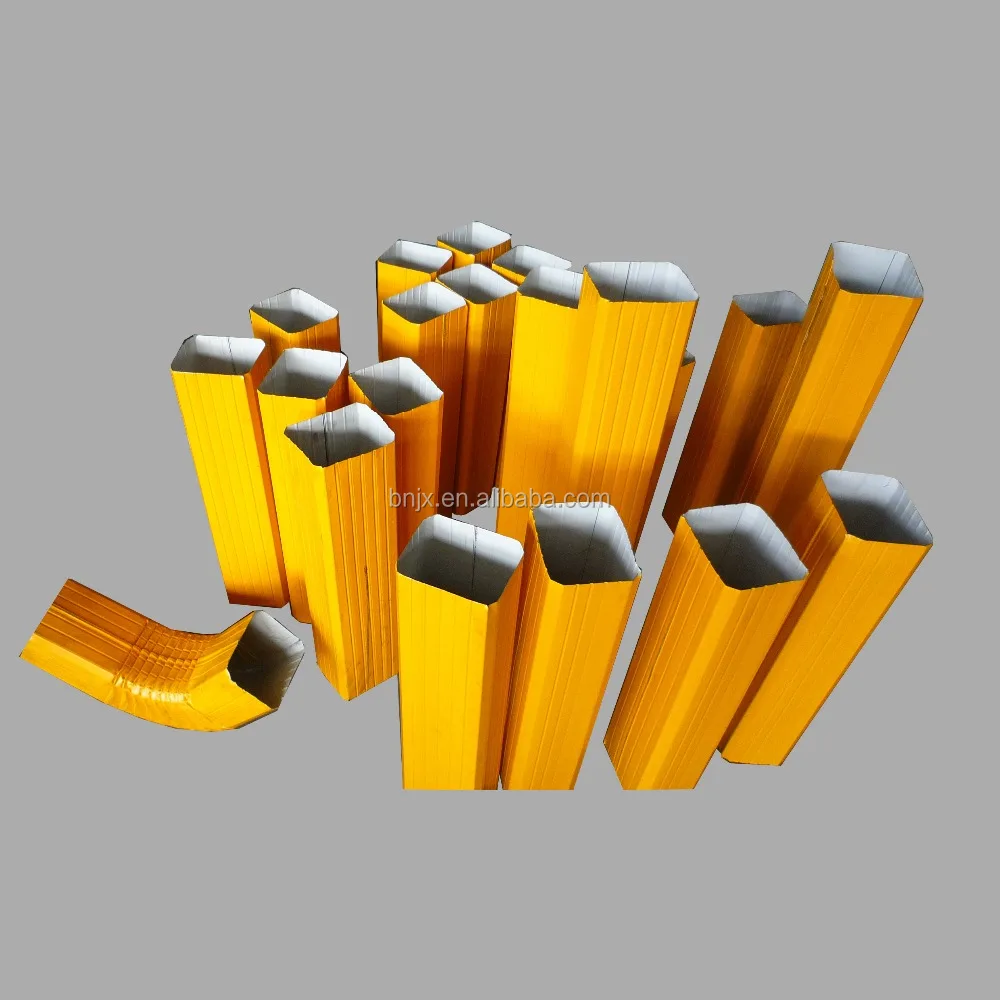

Profile, layout & production flow:

 Material of the profile: GI or color steel
 Thickness range: 0.4-0.7mm
 Coil width: 444 mm
 Seaming: 6mm
  Finished product length: from 500 mm to (at least) 12'000 mm

Layout of machine(only for reference, the exactly one will be send to customer in 20 days after confirmed order)

 Working direction base on customer request:

The production flow of equipment:

Hydraulic decoiler→ Feeding→roll forming→post cutting

\t
1.3T hydraulic decoiler
\t
 Single unrolling machine, one side can put material
\t
 Adopt automatic hydraulic system for expand
\t
Coil weight (Max)
\t
3000kg
\t
Inter diameter
\t
420mm-510mm
\t
Maximal out diameter
\t
1300mm
\t
Oil cylinder dia
\t
100mm
\t
Coil width (Max.)500mm
\t
Working speed
\t
0-15m/min adjustable
\t
 Main motor power
\t
4KW AC motor
\t
Hydraulic power
\t
3kw
\t
Frequency converter brand
\t
Yaskawa
\t
De-coiler should be with Loop control and hold down, and with baffle for forbid coil fall down
\t
Machine have function of forward and reverse working
\t
The decoiler has 4 segments
\t
Color
\t
blue or base on customer request
\t
 Quantity
\t
1

2.: Feeding→Pre-cutting→ roll forming →post cutting

\t
 Feeding
\t
 Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
\t
 Feeding type
\t
adjustable
\t
 Feeding width
\t
mm
\t
 Entrance and guide roller
\t
diameter is ￠56mm, material is SAE1045,surface with chrome
\t
 Quantity
\t
1
\t
 Pre-cutting
\t
Pre-cutting install after feeding
\t
 Cutting type
\t
manual
\t
 Function
\t
for coil replacement
\t
 Quantity
\t
1
\t

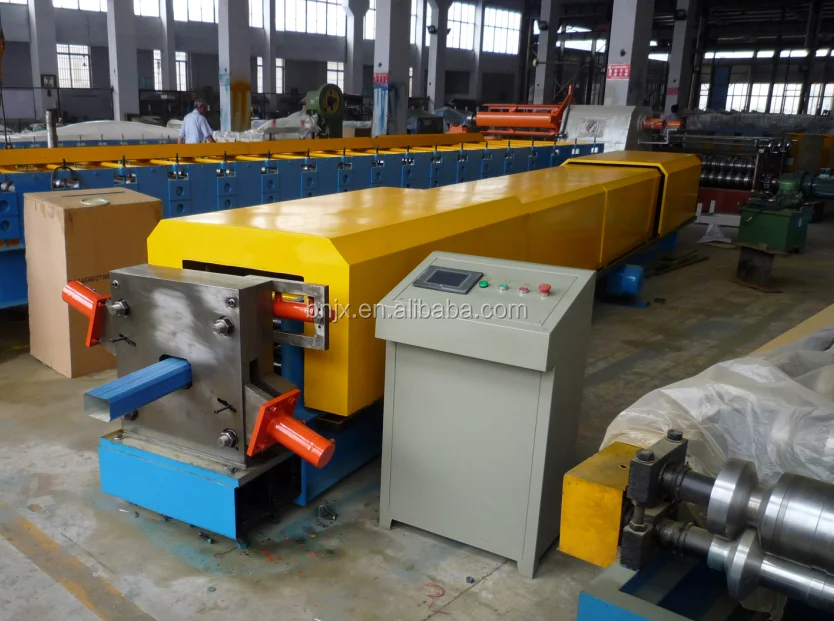

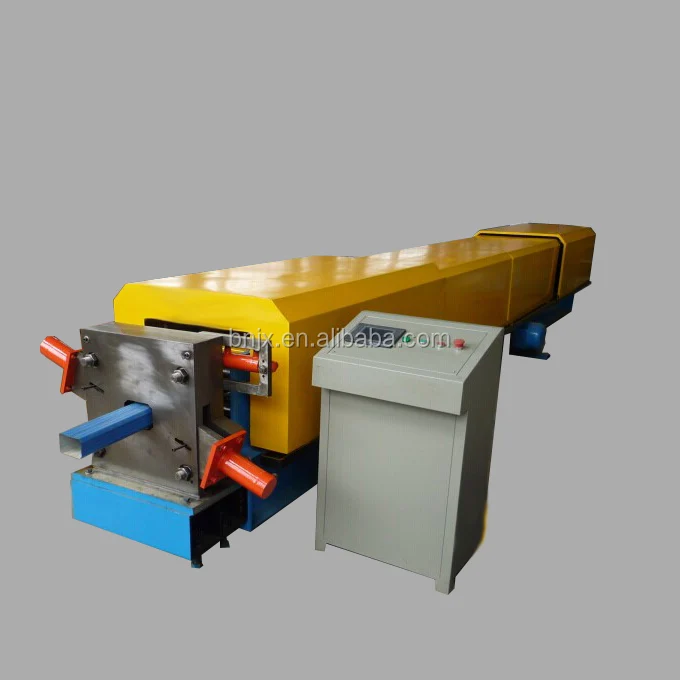

Forming Section
\t
 Material of the profile
\t
GI or color steel
\t
 Thickness range
\t
0.3-0.8mm
\t
 Main motor power
\t
3kw, AC motor, motor inside of main machine (Brand: Guomao of China)
\t
Machine Voltage, Frequency, Phase
\t
380 V, 50 Hz, 3Phase
\t
 Roll station
\t
about 20 stations (according the final design)
\t
 Roller material
\t
ASTM1045 chrome plated surface with chrome,CNC,
\t
Shaft diameter
\t
￠65mm material: SAE1045 with quenching and tempering
\t
 Machine roll forming speed
\t
not less than 10m/min
\t
 Transmission
\t
by chain, one inch, Single line
\t
 Roll former has leveling bolts in the base for adjust the leveling
\t
Machine base frame adopt H beam welding steel
\t
 In the main roll forming machine have 1 button for urgency stop if happen any malfunction.
\t
 Machine adopt metal new structure as station
\t
To avoid accidents, all of drive part adopt protect cover
\t
 Color of machine
\t
Blue and yellow (or base on customer request)
\t
 Quantity
\t
1
\t
Post cutting system
\t
Cutting after forming
\t
Cut the sheet after roll forming to required length
\t
 Material of blade
\t
Cr12, 58-62 HRC hardness
\t
 Cutting power by hydraulic, 5.5KW
\t
 Working pressure
\t
12Mpa adjustable
\t
 Length measuring
\t
Automatic encoder length measuring, brand: Omron
\t
 Tolerance of length
\t
+/- 1.5mm for each piece end product
\t
 Quantity
\t
1
\t
3: Hydraulic station
\t
 Hydraulic power
\t
5.5kw
\t
 Working pressure
\t
12Mpa adjustable
\t
 Solenoid valve
\t
1 group
\t
 Hydraulic oil
\t
46# hydraulic oil
\t
 Color
\t
Blue (or base on customer request)
\t
 Quantity
\t
1



\t
4: Control desk
\t
 Programmable setting of profile length and quantity
\t
 Automatic stopping of the equipment after completion of the cutting programme
\t
will be provided.
\t
 Operating system language
\t
 English and Chinese
\t
 Voltage, Frequency, Phase
\t
380 V, 50 Hz, 3Phase
\t
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
\t
 Length inaccuracy can be amended easily.
\t
 Control panel
\t
Button-type switch and touch screen
\t
 Unit of length
\t
millimeter (switched on the control panel)
\t
 PLC brand
\t
Panasonic
\t
 Frequency converter brand
\t
Yaskawa, quantity: 1
\t
 Touch screen
\t
Taiwan Weinview
\t

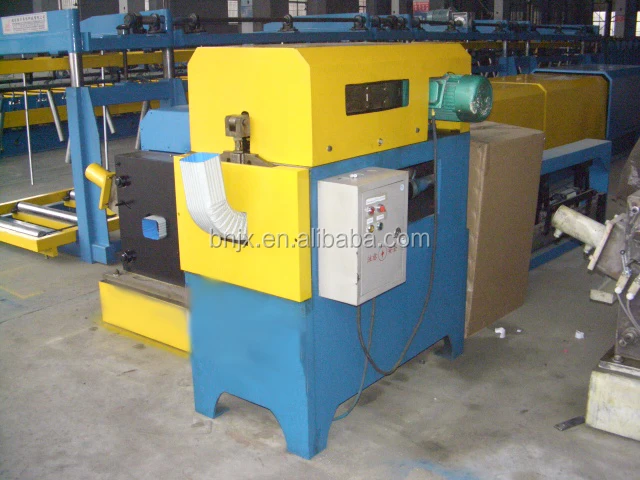

5: Down pipe elbow machine:
\t
1: control system
\t
Strong electrical current
\t
2: main motor power
\t
2.2kw
\t
3: max bend angle
\t
90°
\t
4: function
\t
bend and fasten at the same time
\t
5: dimension of the machine
\t
1300 mm×650 mm×1500 mm
\t
6: speed of bend
\t
0-5m/ min
Certifications
Our Service

Pre-sales service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
