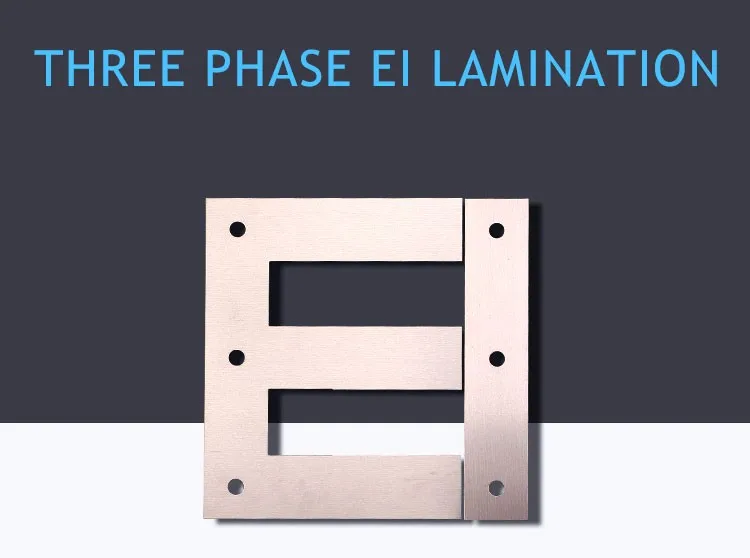

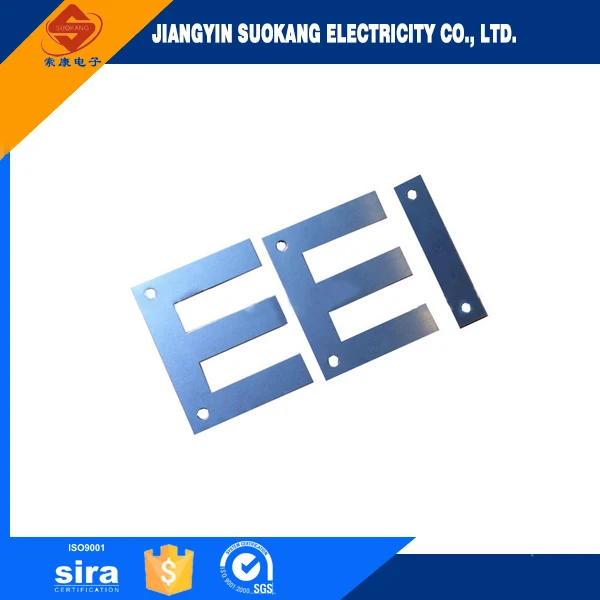

3PE 50 EI Lamination Industry used three phase transformer
- Category: Silicon Steel >>>
- Supplier: Jianyin Suokang Electricity Co. Ltd. [Jiangsu China]Jianyin
Share on (60438975427):
Product Overview
Description
1. A variety of different specifications to meet your requirements. Or customized according to your needs.
2. According to your needs, to recommend suitable materials, or in accordance with your request.
3. The advanced slitting machine from Taiwan cuts silicon steel coils into strips with different width.
4. With well-trained technicians and advanced equipments, we are very skilled in making moulds for various kinds of silicon steel products.
Specifications

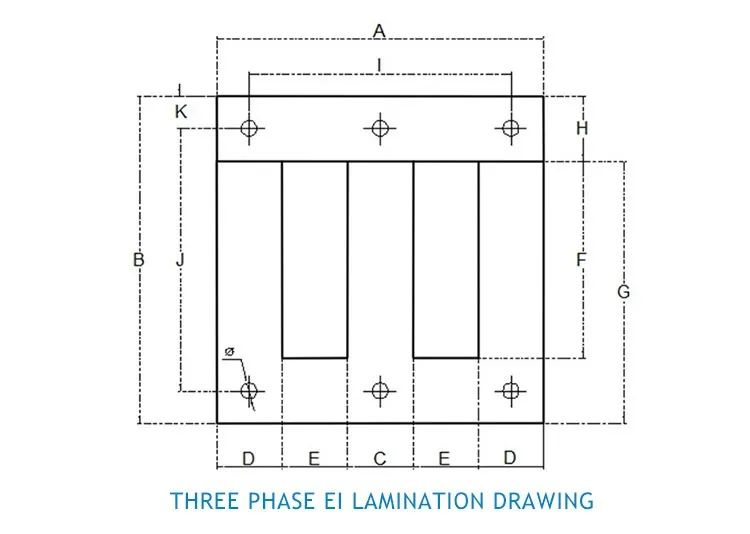

Three Phase EI Size List
| Specification | Dimension for each part | |||||||||||
| GOODS | A | B | C | D | E | F | G | H | I | J | K | Φ |
| 3 phase EI-100B | 100 | 100 | 20 | 20 | 20 | 60 | 80 | 20 | 80 | 80 | 10 | 6 |
| 3 phase EI-125B | 125 | 125 | 25 | 25 | 25 | 75 | 100 | 25 | 100 | 100 | 12.5 | 6 |
| 3 phase EI-150B | 150 | 150 | 30 | 30 | 30 | 90 | 120 | 30 | 120 | 120 | 15 | 8 |
| 3 phase EI-175B | 175 | 175 | 35 | 35 | 35 | 105 | 140 | 35 | 140 | 140 | 17.5 | 8 |
| 3 phase EI-190B | 190 | 190 | 38 | 38 | 38 | 114 | 152 | 38 | 152 | 152 | 19 | 8 |
| 3 phase EI-200B | 200 | 200 | 40 | 40 | 40 | 120 | 160 | 40 | 160 | 160 | 20 | 10 |

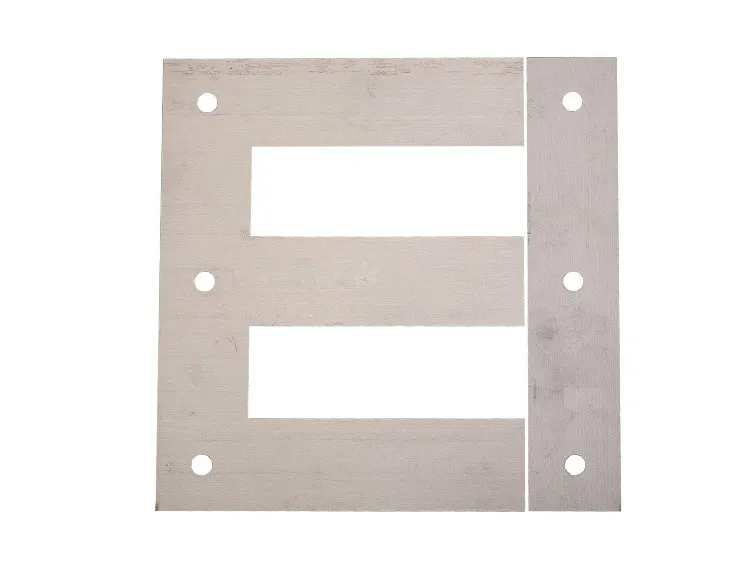

| 3 phase EI-225B | 225 | 225 | 45 | 45 | 45 | 135 | 180 | 45 | 180 | 180 | 22.5 | 10 |
| 3 phase EI-250B | 250 | 250 | 50 | 50 | 50 | 150 | 200 | 50 | 200 | 200 | 25 | 10 |
| 3 phase EI-275B | 275 | 275 | 55 | 55 | 55 | 165 | 220 | 55 | 220 | 220 | 27.5 | 10 |
| 3 phase EI-300B | 300 | 300 | 60 | 60 | 60 | 180 | 240 | 60 | 240 | 240 | 30 | 12 |
| 3 phase EI-350B | 350 | 350 | 70 | 70 | 70 | 210 | 280 | 70 | 280 | 280 | 35 | 12 |
| 3 phase EI-400B | 400 | 400 | 80 | 80 | 80 | 240 | 320 | 80 | 320 | 320 | 40 | 14 |
| 3 phase EI-450B | 450 | 450 | 90 | 90 | 90 | 270 | 360 | 90 | 360 | 360 | 45 | 16 |
| 3 phase EI-500B | 500 | 500 | 100 | 100 | 100 | 300 | 400 | 100 | 400 | 400 | 50 | 16 |
| 3 phase EI-600B | 600 | 600 | 120 | 120 | 120 | 360 | 480 | 120 | 480 | 480 | 60 | 16 |
Related Products
Company Information
+
Cold rolled non-oriented electrical silicon steel
The advanced slitting machine from Taiwan cuts silicon steel coils into strips with different width
Samller coils be punched by the use of automaticaly high-speed puching machine into laminations
The package for exportation is offered based on the shipping standard, such as, free-fumigation pallets, non-fumigation wooden boxes, or packing as per customer’s definite requirement.
The top quality is assured by the superior equipment. Soukang insists on developing automatization, intellingentizing, and high efficiency, in pursuit of manufacturing fine products to satisfy with customers.
