High heat conductivity ALCCL Aluminum copper clad laminate
- Category: >>>
- Supplier: Wuxi Chifeng Metal Products Co. Ltd.
Share on (60438976510):
Product Overview
Description
Product description
Al-CCL standard size is 1000*1200mm(40*48 inch),thickness from 0.4mm to 4mm.Thermal conductivity include 0.5,1,1.5,2.0W.And all our products have been compiled series with all complete specifications.
Aluminium copper clad laminats is widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.
Item Name | Al-CCL | Application | LED lamp |
Thermal conductivity | 0.5/1.0/1.5/2.0w | Material | Aluminium Core+copper |
Thickness | 0.4/0.8/1.0/1.5/1.6mm | Copper Thickness | 18/25/35/75micron |
Volume Resistivity | ≥1.0 ×106MΩ-cm | Dielectric Breakdown | ≥2KW |
Thermal Stress | 288℃≥120Sec | Heat Resistance | <2.0*10-4k.m2/W |
Peel Strength | >6 LBC/In | Glass Transition | E2/105℃ |
Bow/Twist | <1.5% | Moisture Absorption | <1.5% |
Surface Resistivity | ≥1.0 ×104MΩ | Flamm ability | FV-0 |
Standard Size | 1000*1200mm | Certifacation | ISO/SGS/UL |
Relevant product parameters
Cooper clad laminate | ||||||||||
AL CCL | FR-4 | FR-1 | CEM-1 | XPC | ||||||
Base material | aluminum | fiberglass | fiberglass | paper+fiber glass | paper | |||||
Color | blue film green film | light green，yellow | brown | yellow+white | brown | |||||
Copper foil | single or double side：18,25,35,70 micron | single side:18,25,35,70 micron | ||||||||
Sheet thickness | 0.4-2mm | |||||||||
Size | 1000*1200mm 500*600mm 1000*600mm 500*1200mm | 40''*48'' , 41''*49'' , 43''*49'' | 41''*49'' | |||||||

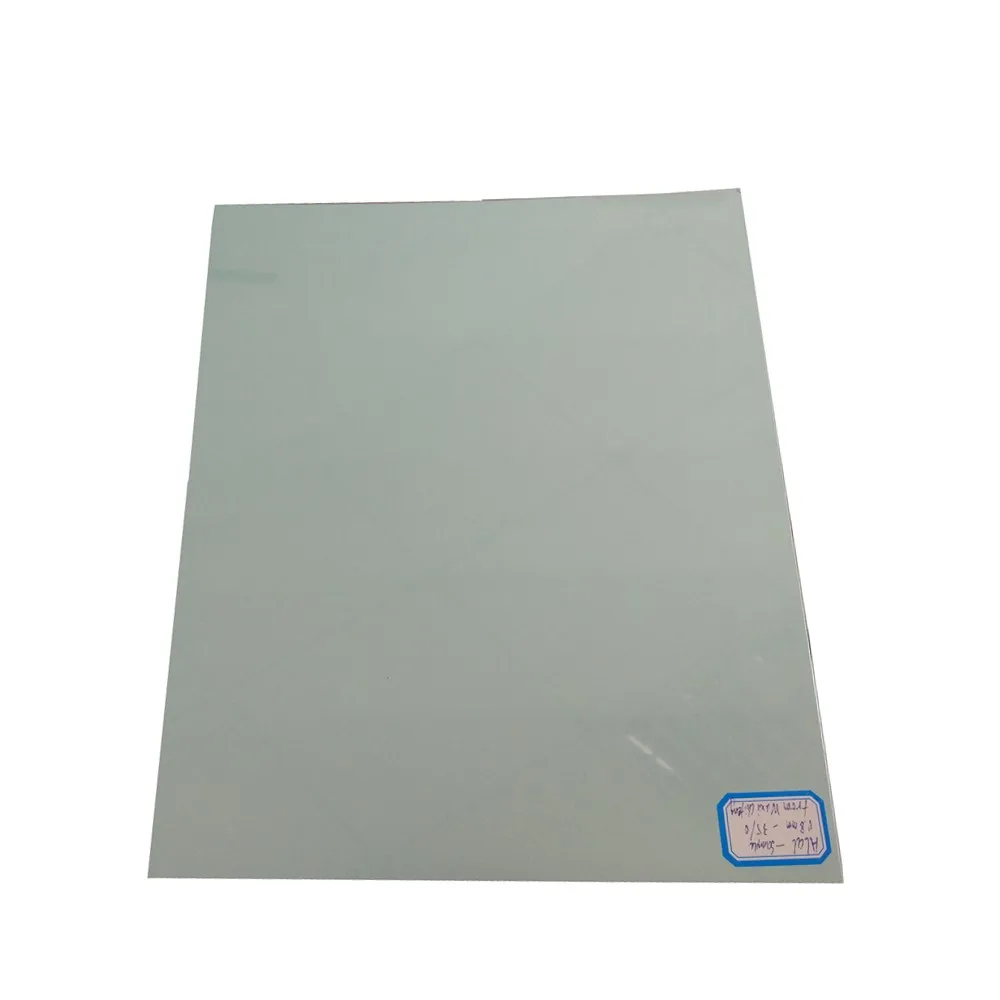

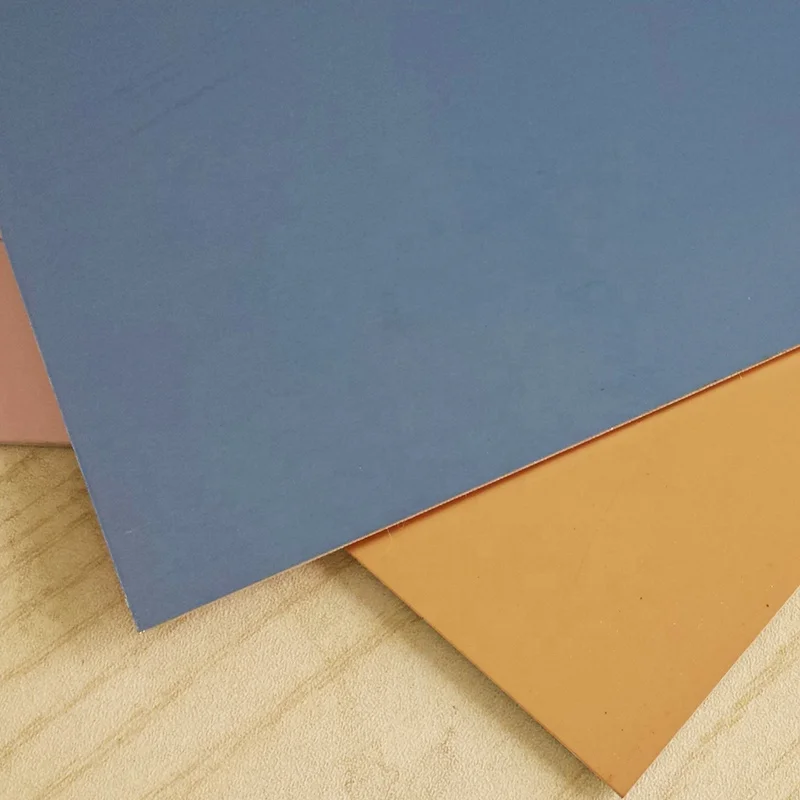

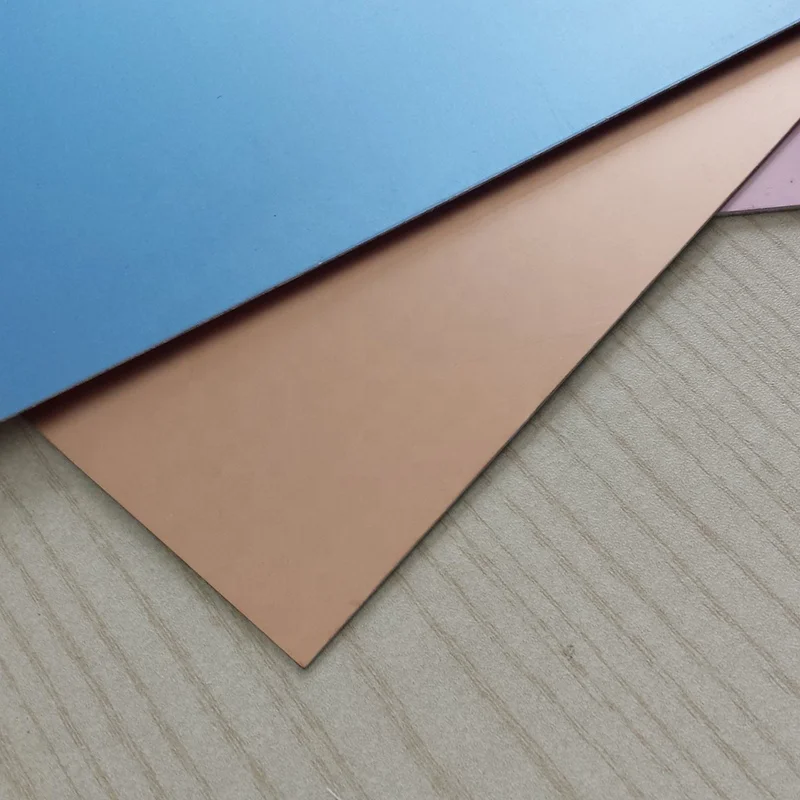

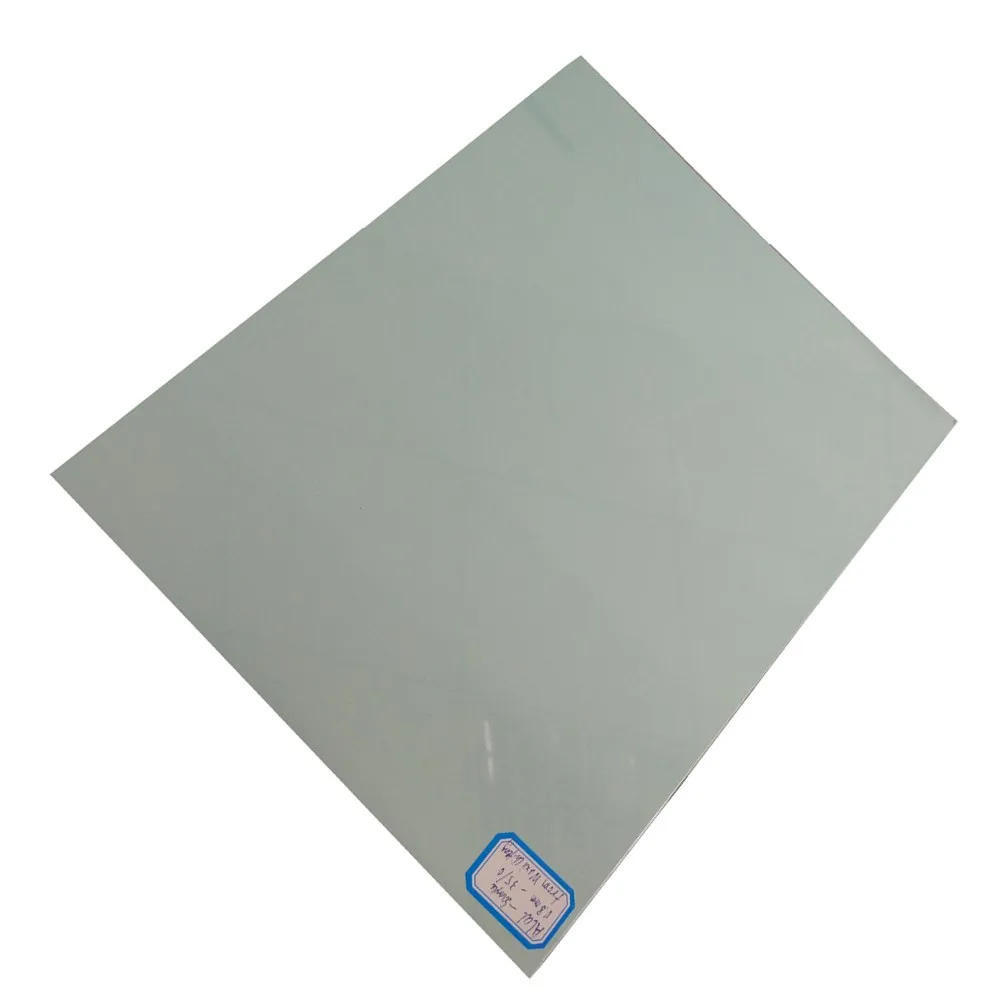

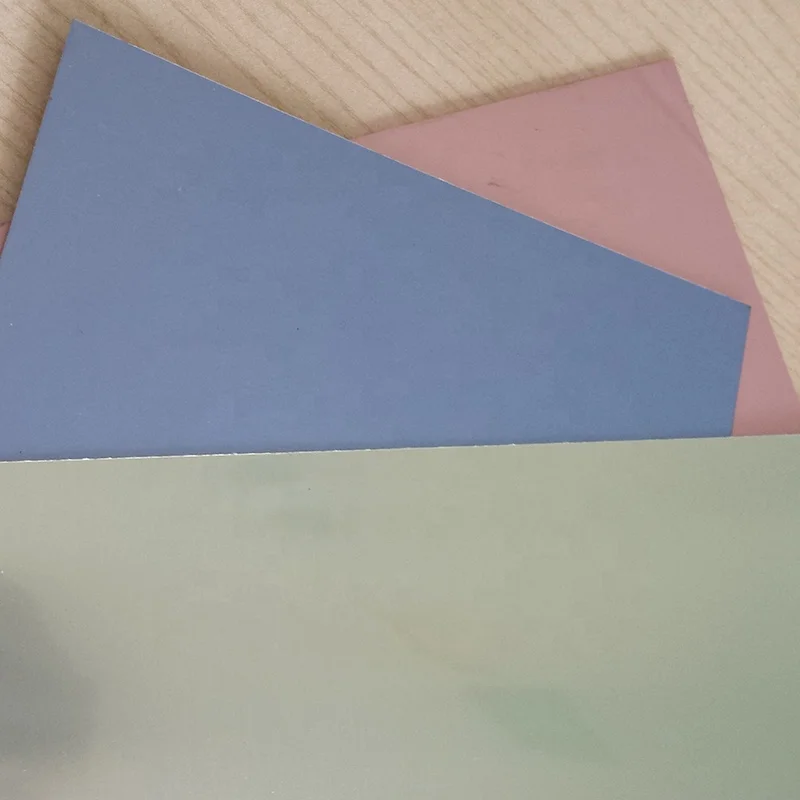

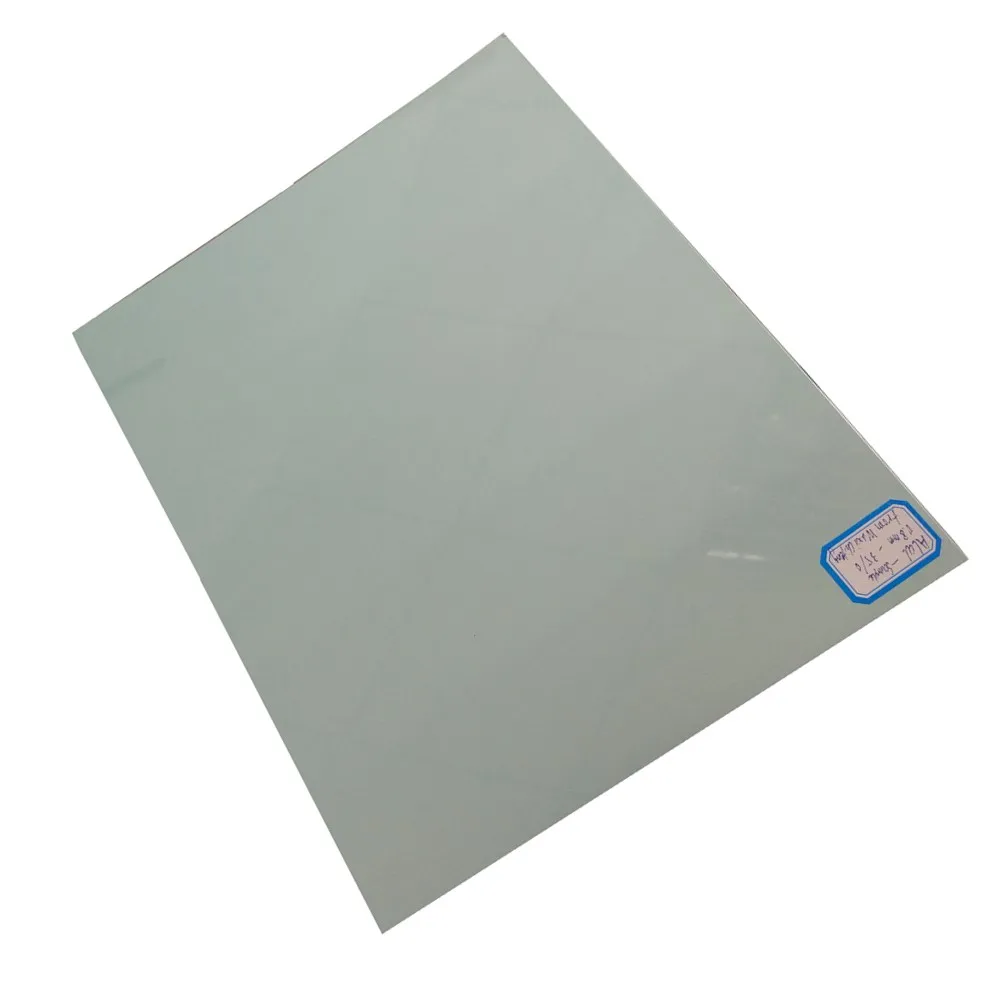

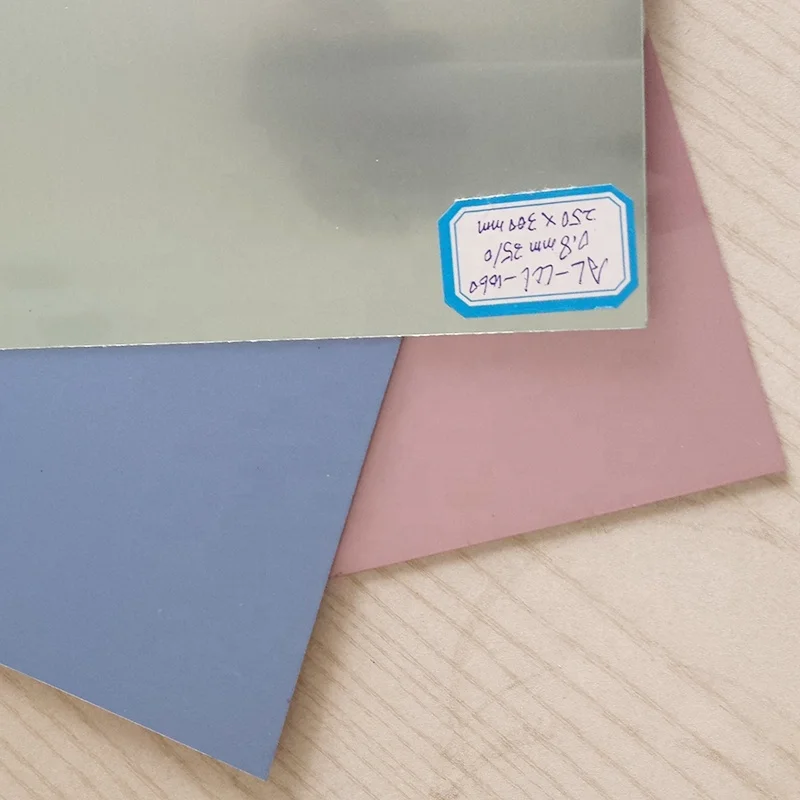

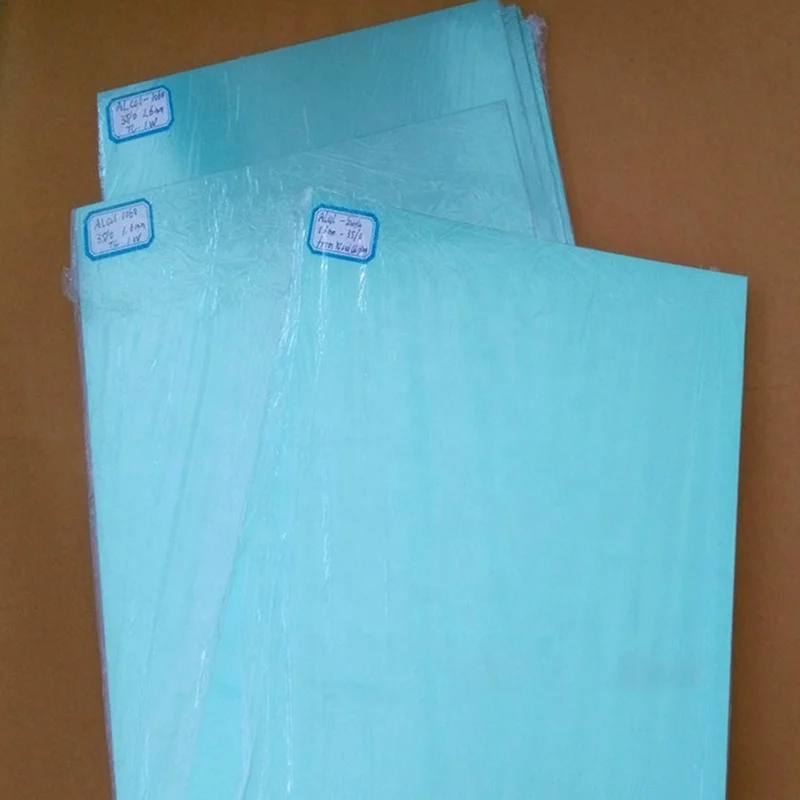

Product Photograph
Company advantage
Product advantage
Product display
Company Profile
Our services
FAQ
Q:What about the package of product?
A:1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden wooden pallet with wooden case. 4. According to .customer requirements.
Q:What's the payment?
A:30%TT advance , 70% after send the copy of the BL.We accept T/T,L/C, Western Union ,USD.
Q:If I need sample,what should I do?
A:It's our pleasure to send sample for you.You can send me your delivery address by email or message.We will send you . .free sample at first time.
Q:Can you give me a discount price?
A:It is depending on the volume. The larger the volume is, the more discount you can enjoy.
Q:Why is your price a bit higher than other Chinese suppliers?
A:To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each . item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.
Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A:Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q:How can you deal with quality issues that customer feedback after receiving the goods?
A:1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to . verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.
