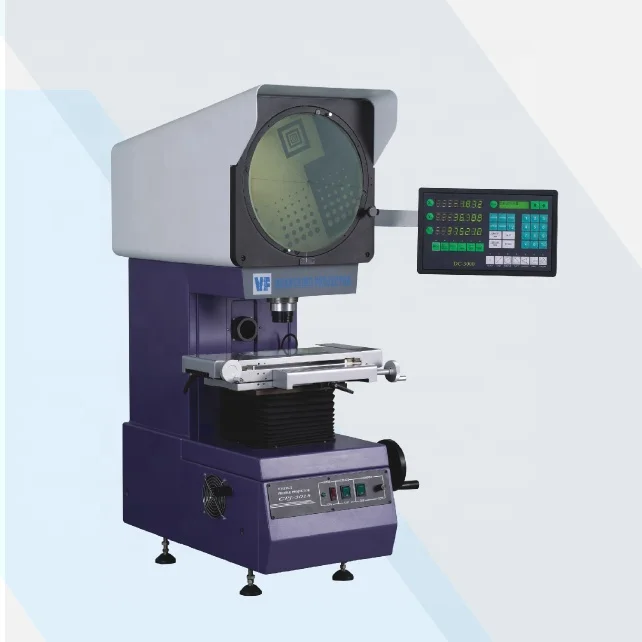

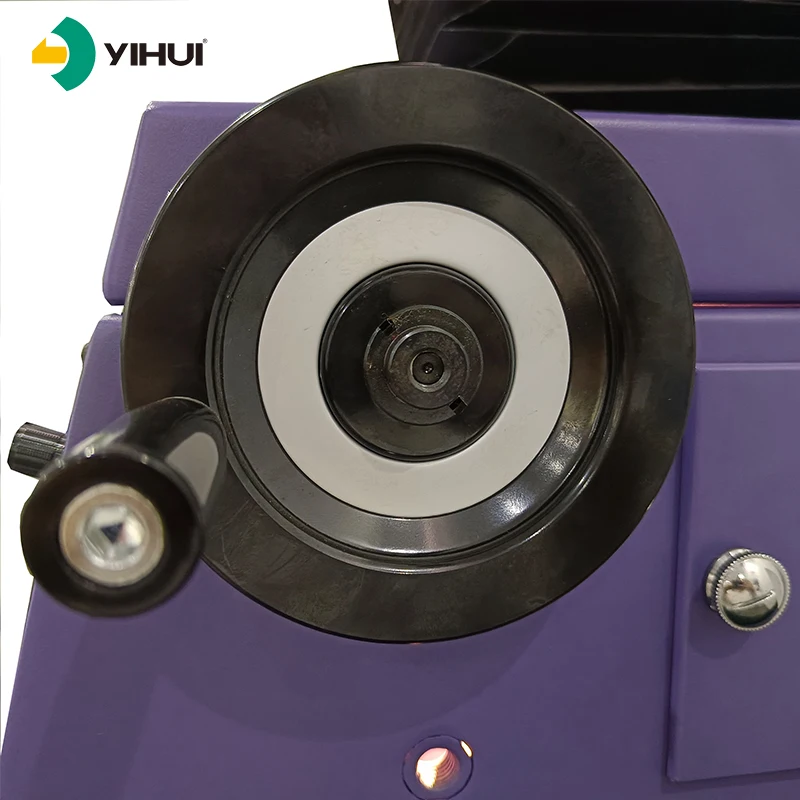

Parts Quality Control Measuring Usage Profile Projector
I.Vertical Profile Projector Usage
1. Profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2.It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department;
3.This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
II.Specifications

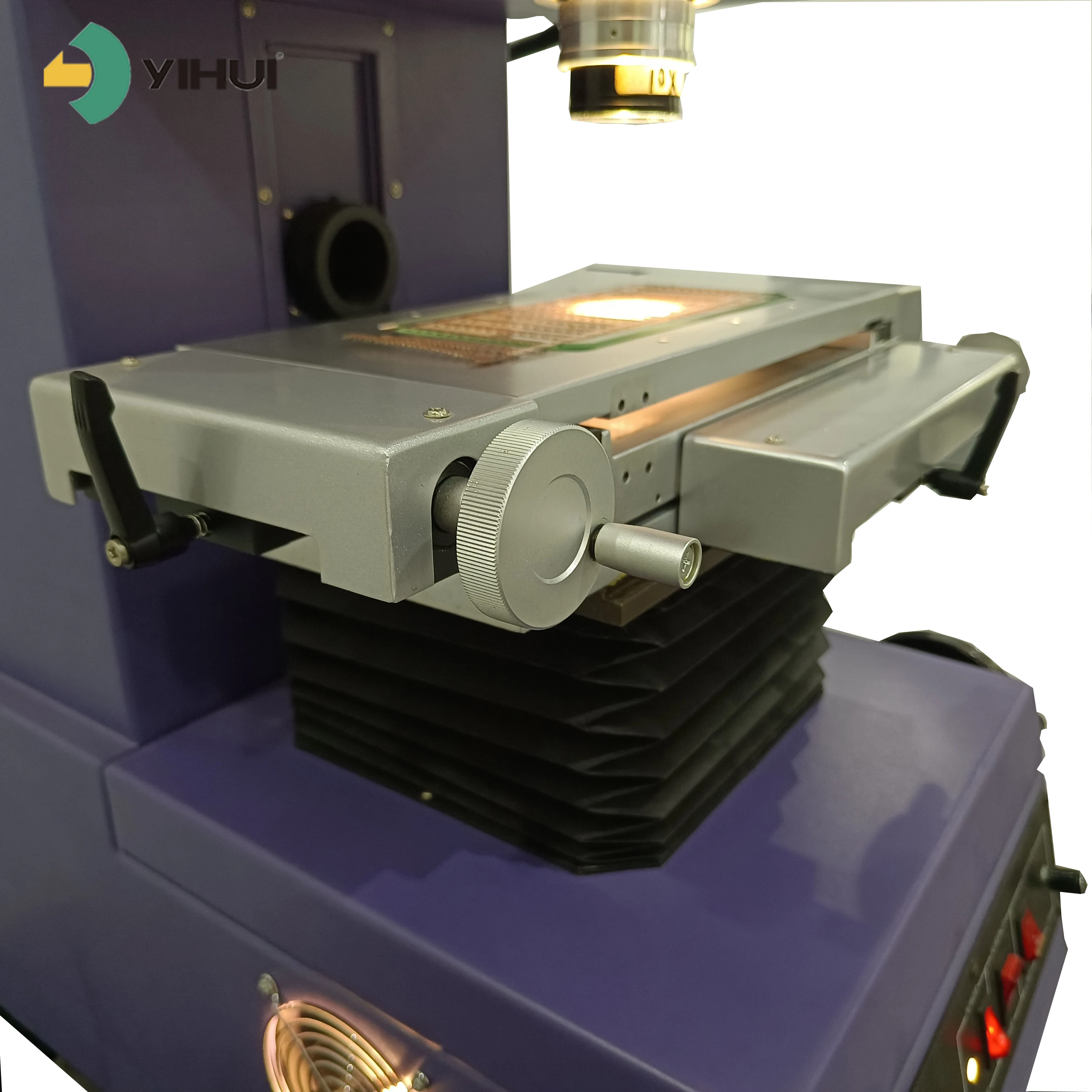

Model | CPJ-3015 | CPJ-3020 | CPJ-3025 | |
Worktable | Metal table’s size(mm) | 340*152 | 404*228 | 450*280 |
Glass table’s size(mm) | 196*96 | 260 *160 | 306 *196 | |
X-axis travel(mm) | 150 | 200 | 250 | |
Y-axis travel(mm) | 50 | 100 | 150 | |
Z-axis travel(mm) | 90 focus | 90 focus | 90 focus | |
Measuring accuracy(µm) (L unit: mm) | 3+L/200 | 3+L/200 | 3+L/200 | |
Resolution(X,Y axis):0.001mm | ||||
Projector screen | Screen size (mm):Ø 312 Used range>Ø 300 | |||
Screen rotary range: 0°~360° | ||||
Resolution(X-axis,Y-axis:1´ or 0.01° | ||||

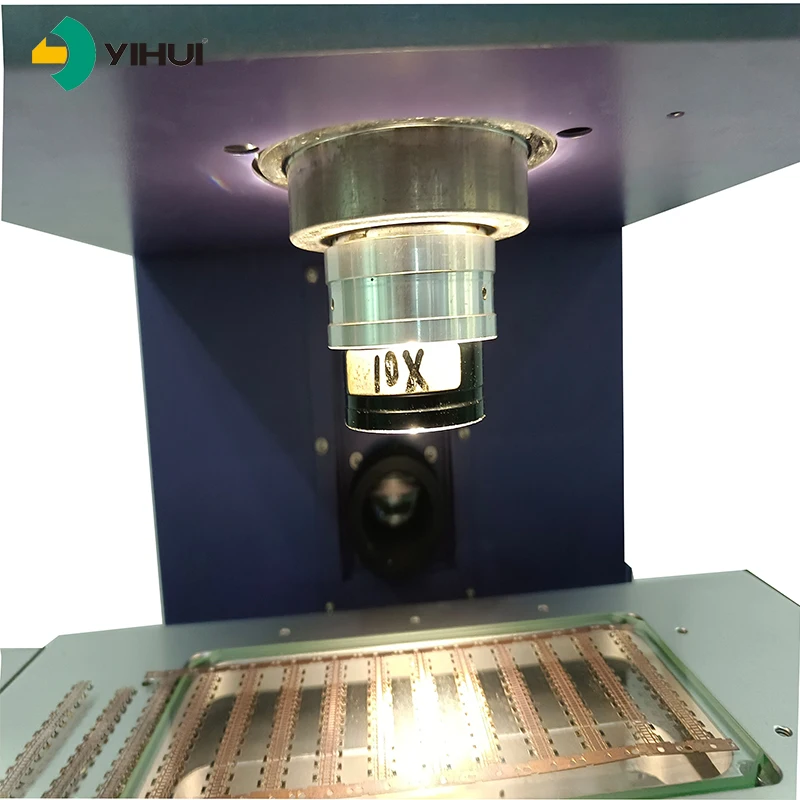

Lens | Lens multiple: 10X(option) 20X(option) 50X(option) 100X(option) | |||
Object view(mm): Ø30 Ø15 Ø6 Ø3 | ||||
Working distance(mm): 77.7 44.3 38.4 25.3 | ||||
Data Processing System | DC-3000 multi-function data processing system, can realize the transition of English and Chinese, it can be used to gather the data and measure the point, line, circle, angle and distance. | |||
Illumination | The illumination of transmission and reflection: 24V/150W-halogen lamp. | |||
Power | 110V/220V(AC), 50/60HZ, Total power:400W | |||
Cooling | Forced cooling | |||
Optional | Mini-printer, Edge detector,M2D software and so on, | |||
