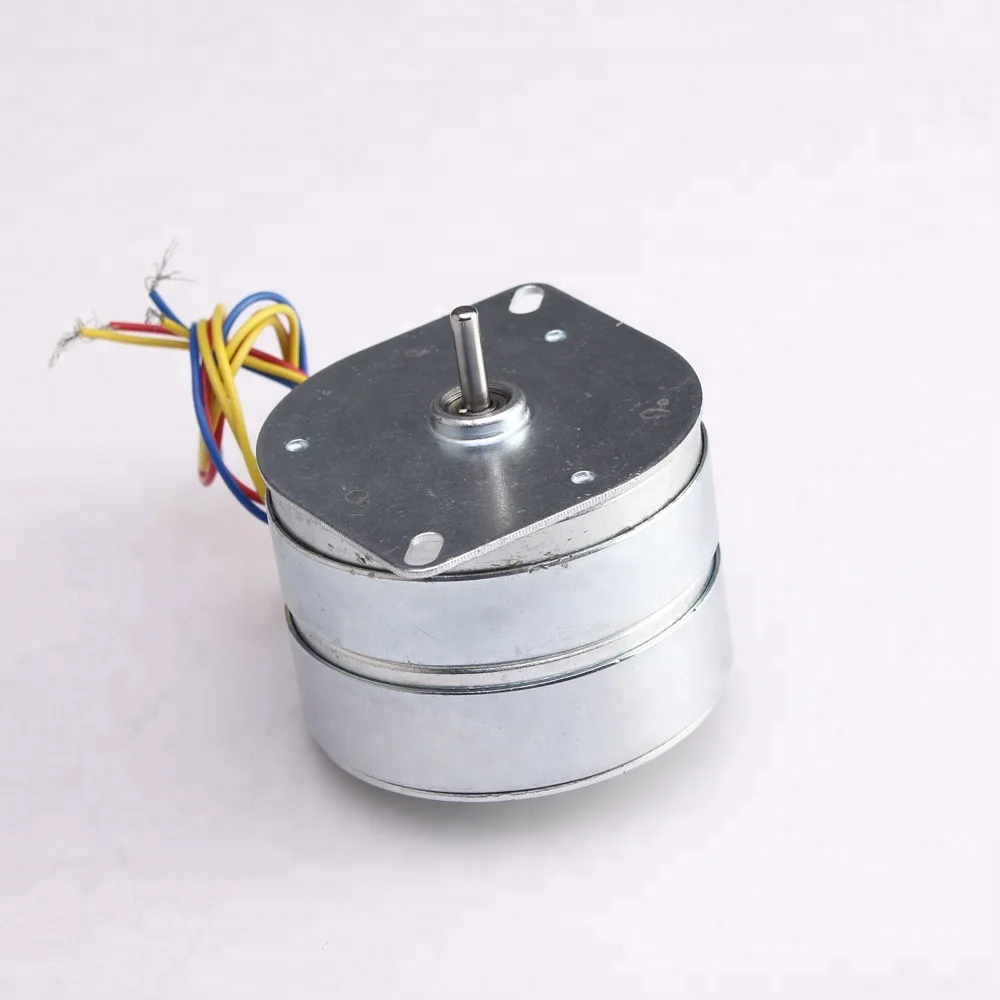

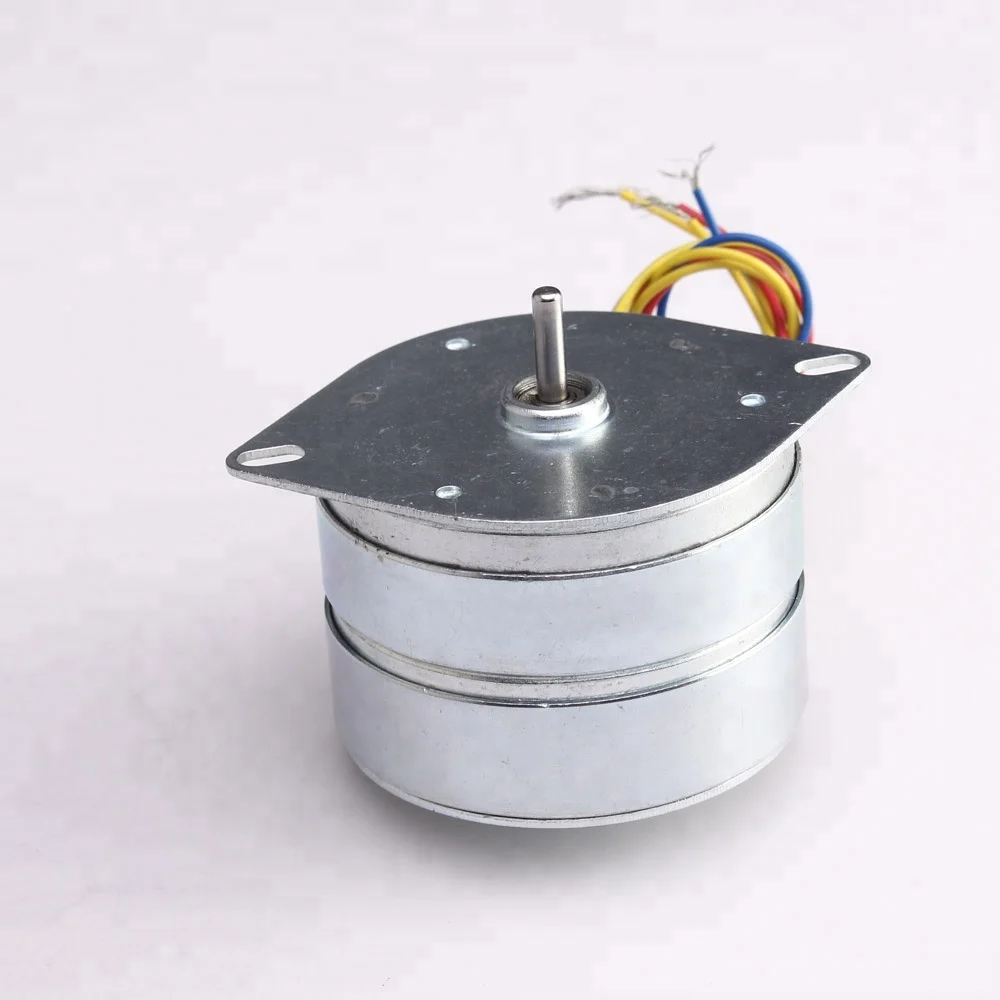

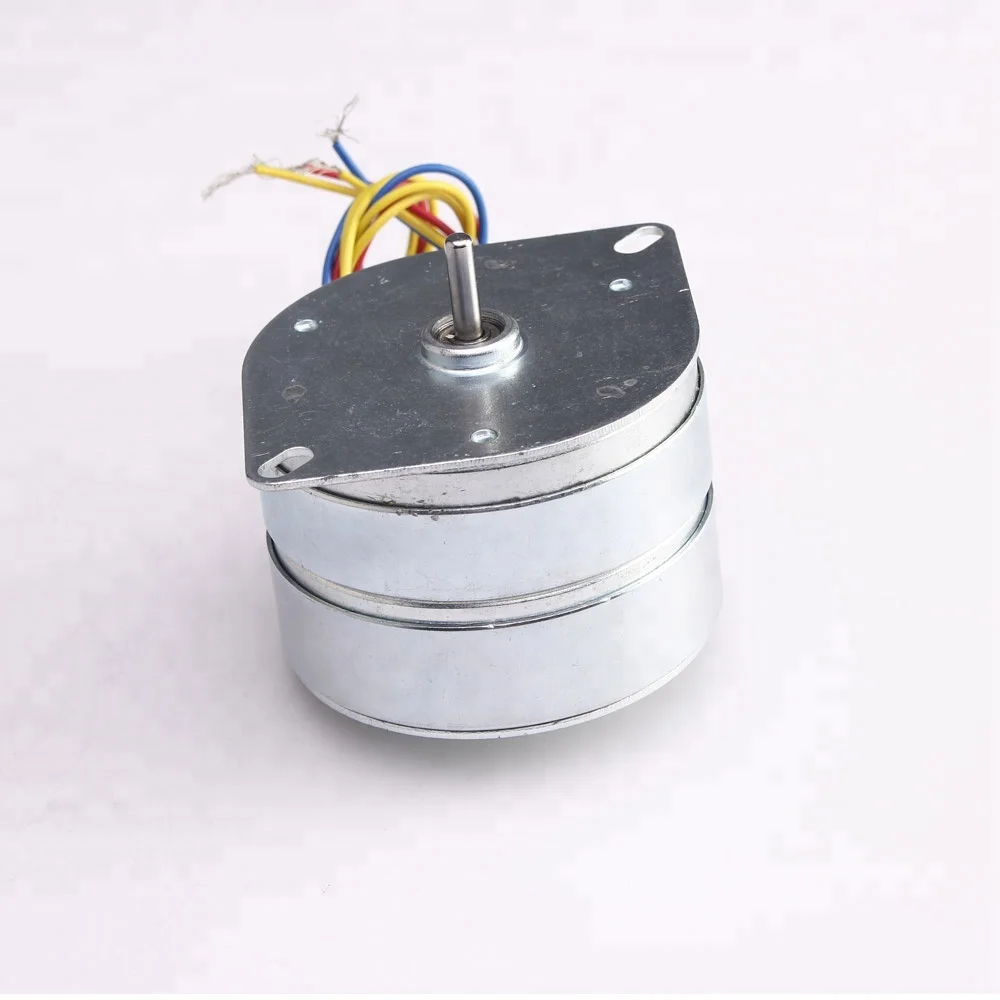

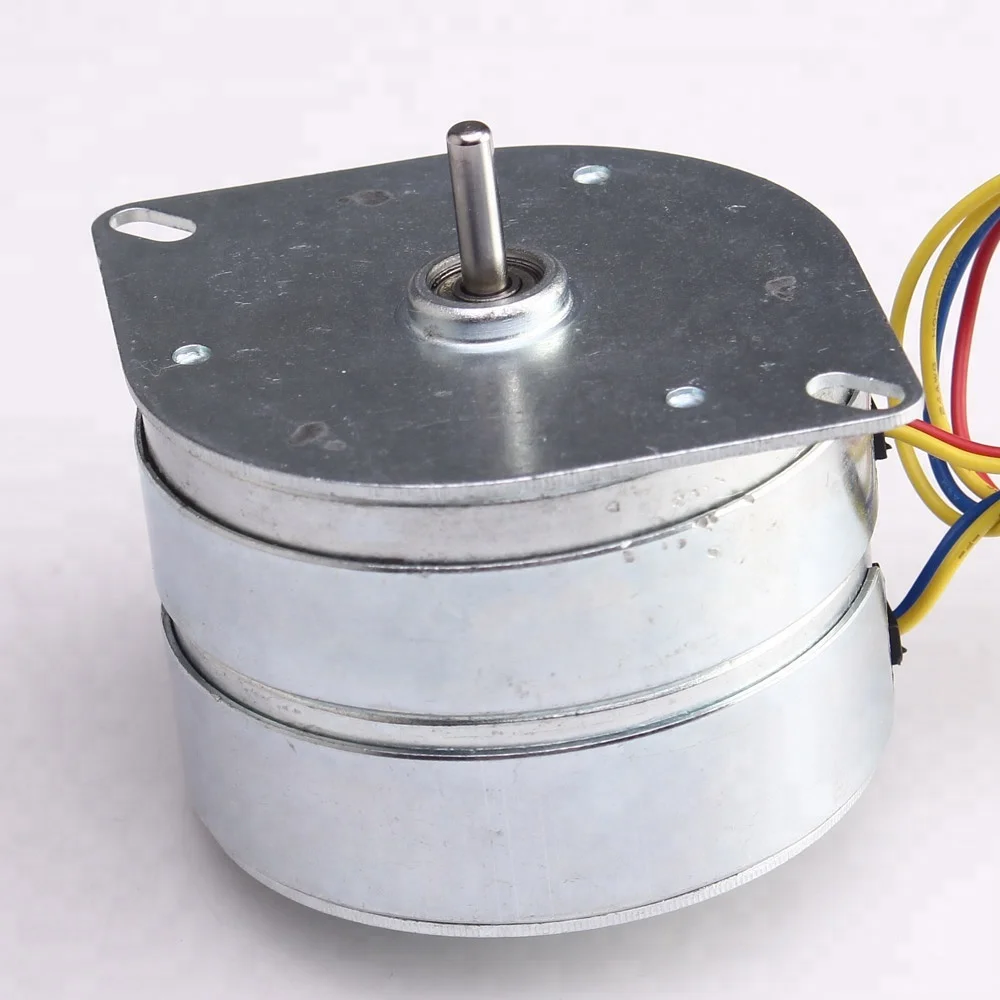

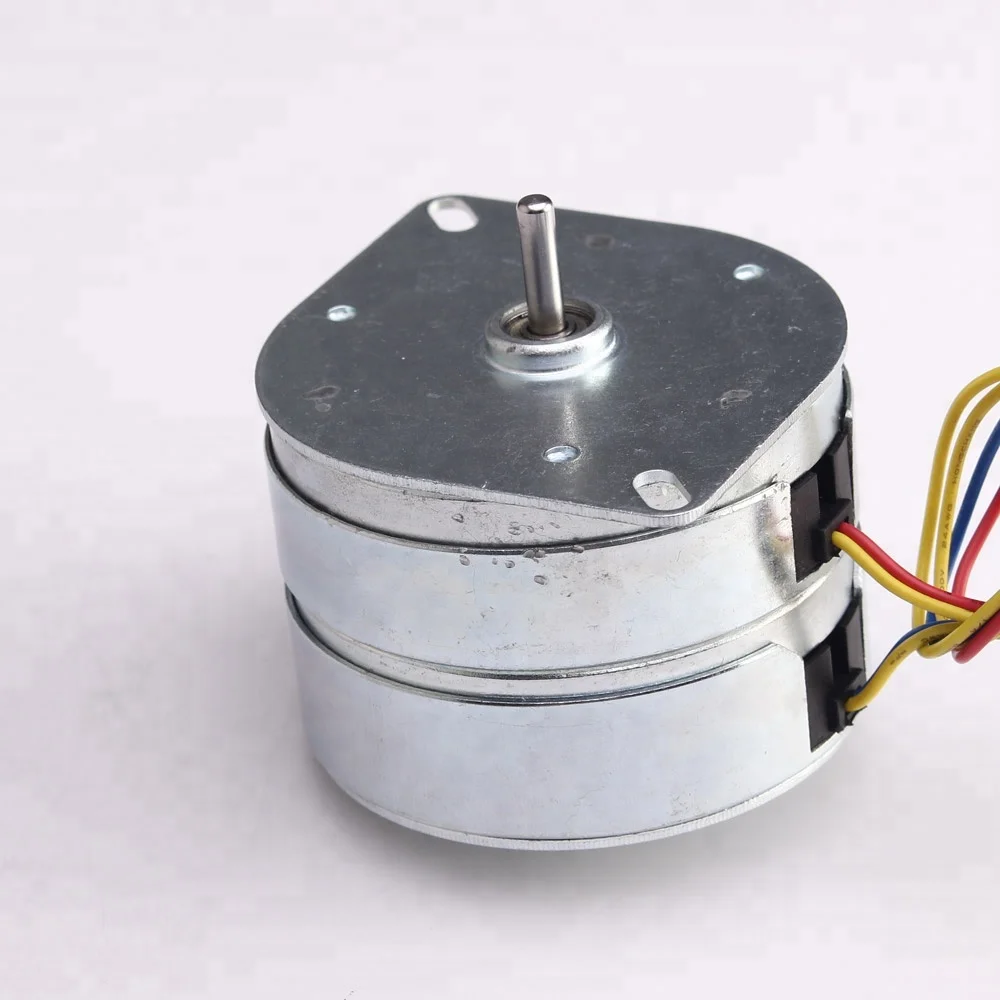

magnetic hysteresis synchronous motor TM600

Product Overview

Description







600TM Series Synchronous Motors
Operation at 50Hz and 60Hz. They are working voltage of 24, 115 or 230 V. They are of simply design ,
constant speed , long life span , can be coupled to gearbox for different application . like revolving
advertising displays , power-operated valves , pump , automation industry general .

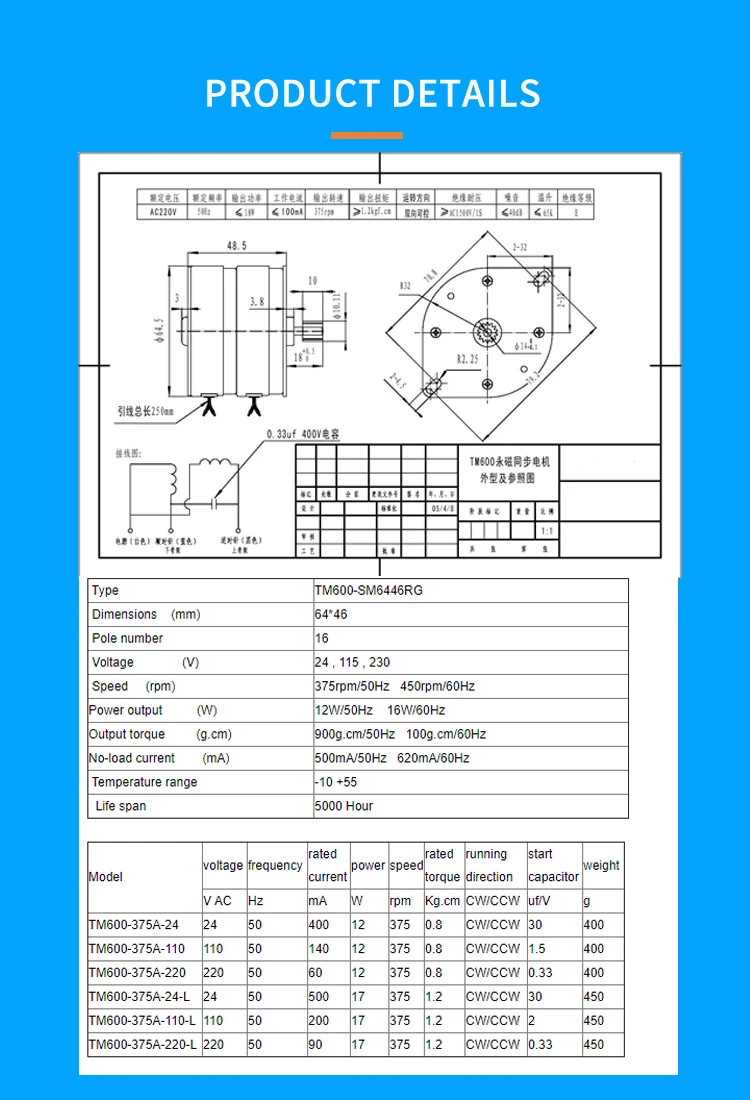

Type	TM600-SM6446RG
Dimensions    (mm)	64*46
Pole number	16
Voltage              (V)	24 , 115 , 230
Speed     (rpm)	375rpm/50Hz   450rpm/60Hz
Power output          (W)	12W/50Hz    16W/60Hz
Output torque         (g.cm)	900g.cm/50Hz   100g.cm/60Hz
No-load current        (mA)	500mA/50Hz   620mA/60Hz
Temperature range	-10 +55
Life span	5000 Hour

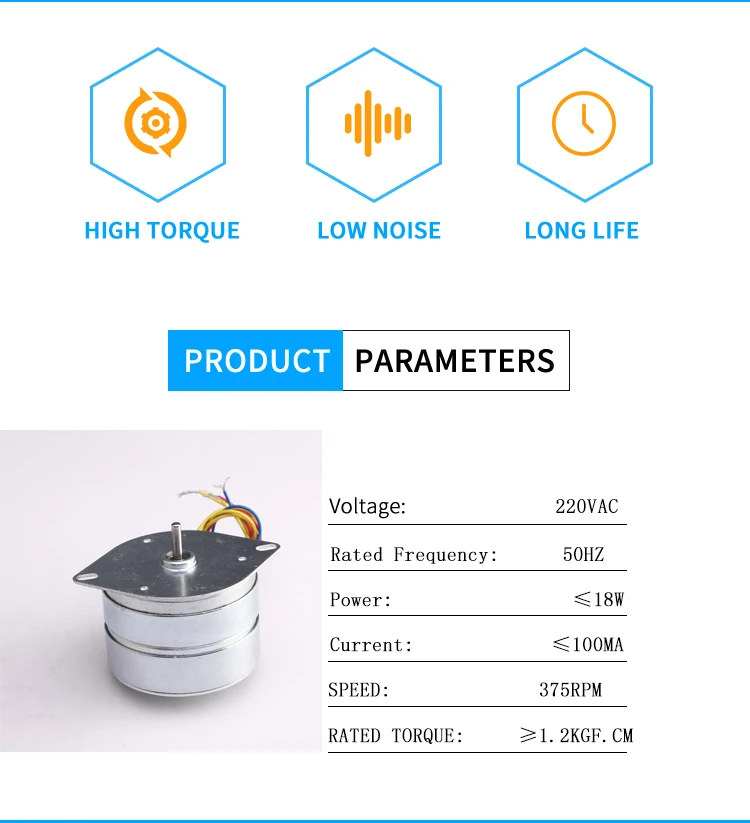

Model	voltage	frequency	rated current	power	speed	rated  torque	running  direction	start  capacitor	weight
	V AC	Hz	mA	W	rpm	Kg.cm	CW/CCW	uf/V	g
TM600-375A-24	24	50	400	12	375	0.8	CW/CCW	30	400
TM600-375A-110	110	50	140	12	375	0.8	CW/CCW	1.5	400
TM600-375A-220	220	50	60	12	375	0.8	CW/CCW	0.33	400
TM600-375A-24-L	24	50	500	17	375	1.2	CW/CCW	30	450
TM600-375A-110-L	110	50	200	17	375	1.2	CW/CCW	2	450
TM600-375A-220-L	220	50	90	17	375	1.2	CW/CCW	0.33	450
