High Tensile Strength Fiberglass Geogrids Prices for Asphalt Pavement Reinforcement for Sale

Product Overview

Description

High Tensile Strength Fiberglass Geogrids Prices for Asphalt Pavement Reinforcement for Sale

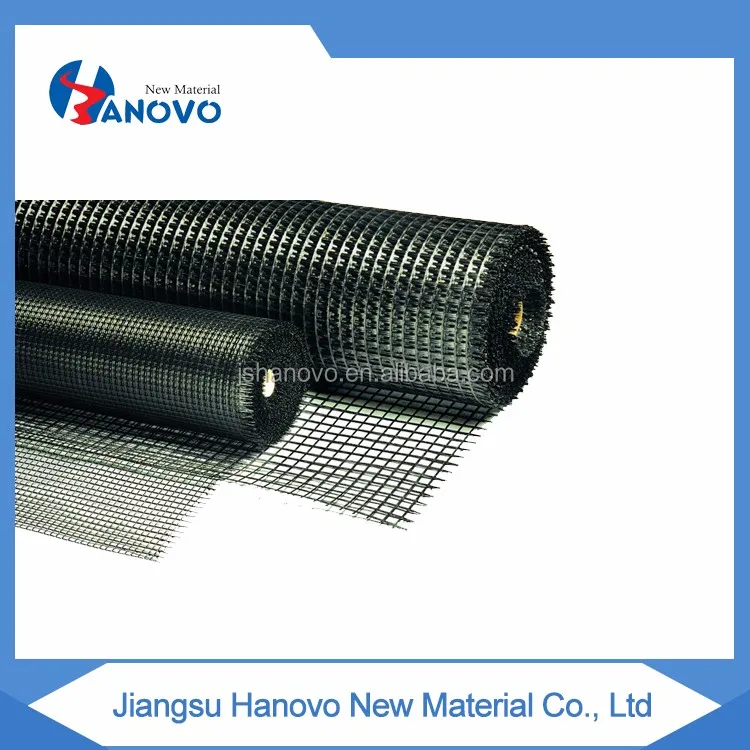

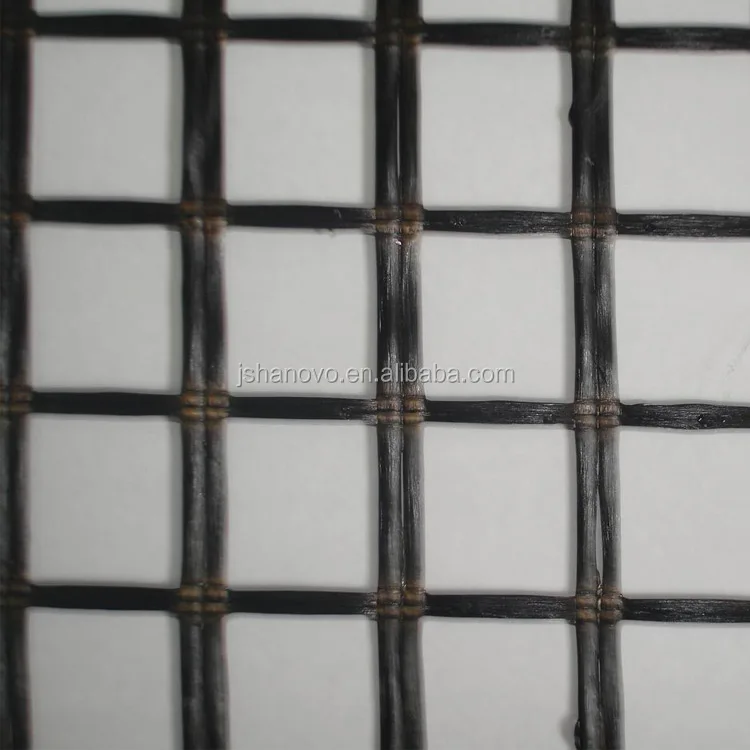

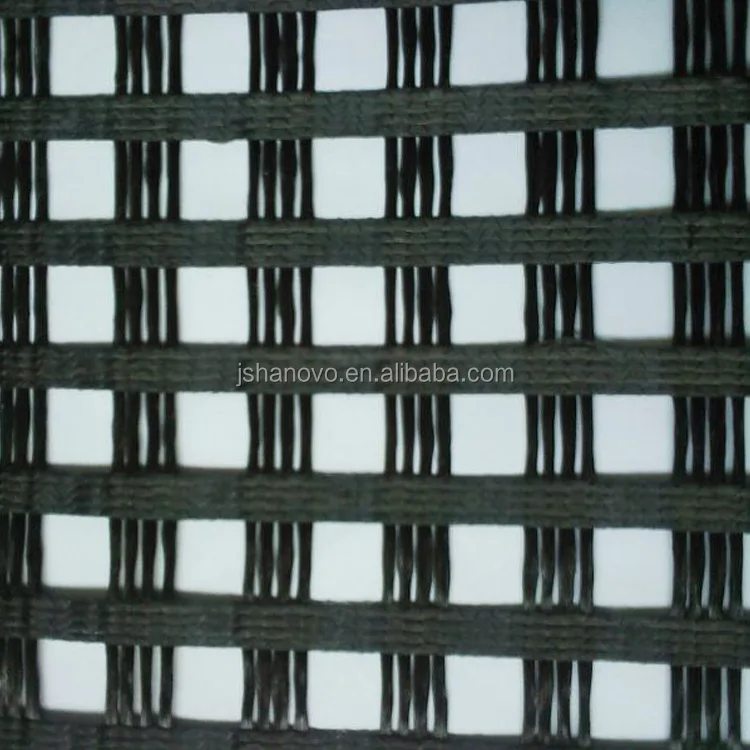

High Tensile Strength Fiberglass Geogrids Prices for Asphalt Pavement Reinforcement is the Self-adhesive Geogrids,it is the pavement reinforcement geogrid which composed of a series of fiberglass strands coated with an elastomeric polymer and formed into a grid structure. It’s the biaxial fiberglass geogrid with high adhesion strength reinforced overlays.Each strand has a remarkably high tensile strength, as well as a high modulus of elasticity at low elongation,making it stronger than steel by weight. The open grid structure promotes the efficient transfer of stress from both overlying and underlying asphalt layers.

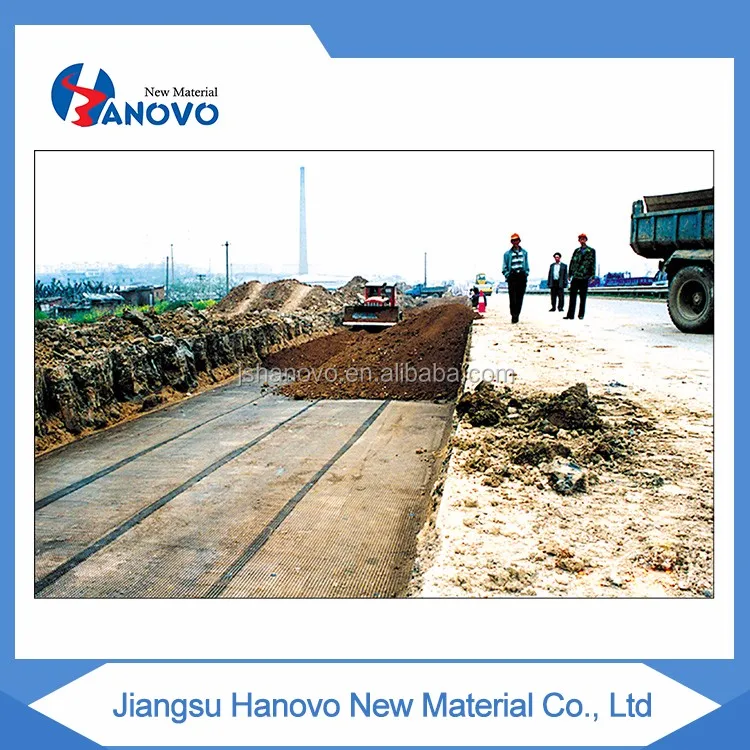

• Reinforces asphalt concrete overlays in pavement construction.
• Utilized in the road widening
• Utilized in repaving of the airport upgrade.
•  Reinforce roadbeds, railway, bridges, hydraulic, slope.

Type	Item No.	Tensile Strength (kN/m)		Elongation(%)		Mesh Size (mm×mm)	Width (m)
		Warp	Weft	Warp	Weft
Fiberglass Geogrid	EG5050	≥50	≥50	≤4	≤4	12~50	1~6
	EG100100	≥100	≥100	≤4	≤4	12~50	1~6
	EG200200	≥200	≥200	≤4	≤4	12~50	1~6
Self-adhesive Geogrid	EGA5050	≥50	≥50	≤4	≤4	12~50	1~6
	EGA100100	≥100	≥100	≤4	≤4	12~50	1~6
	EGA100200	≥100	≥200	≤4	≤4	12~50	1~6
	EGA200200	≥200	≥200	≤4	≤4	12~50	1~6
