Obverse four spindles EE series inductor coil automatic winding machine(SS864)
- Category: >>>
- Supplier: Sanshine (Xiamen) Industrial And Trading Co. Ltd.
Share on (60439348909):
Product Overview
Description
Product Description

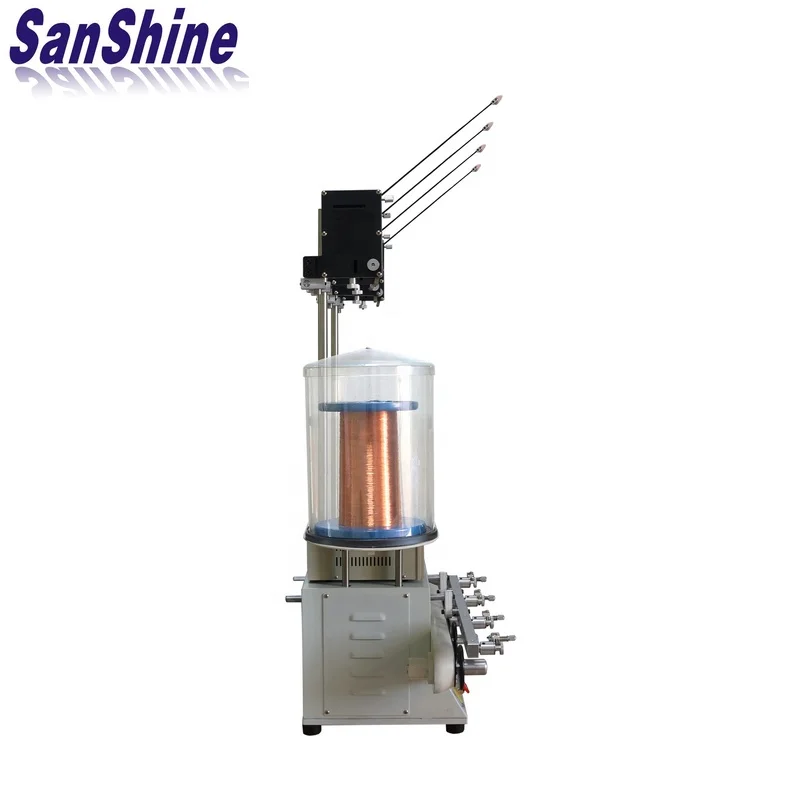

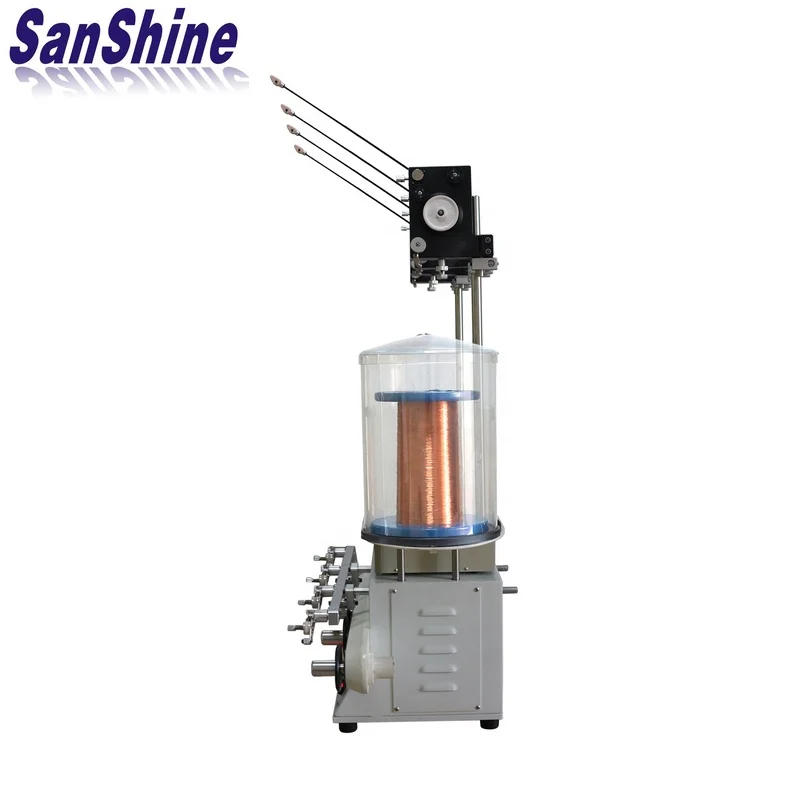

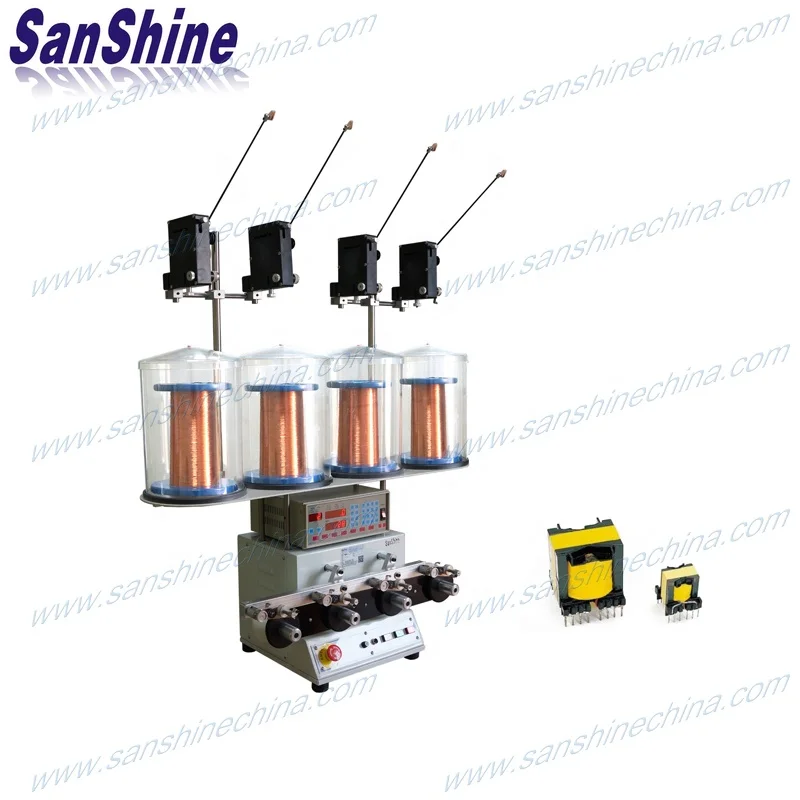

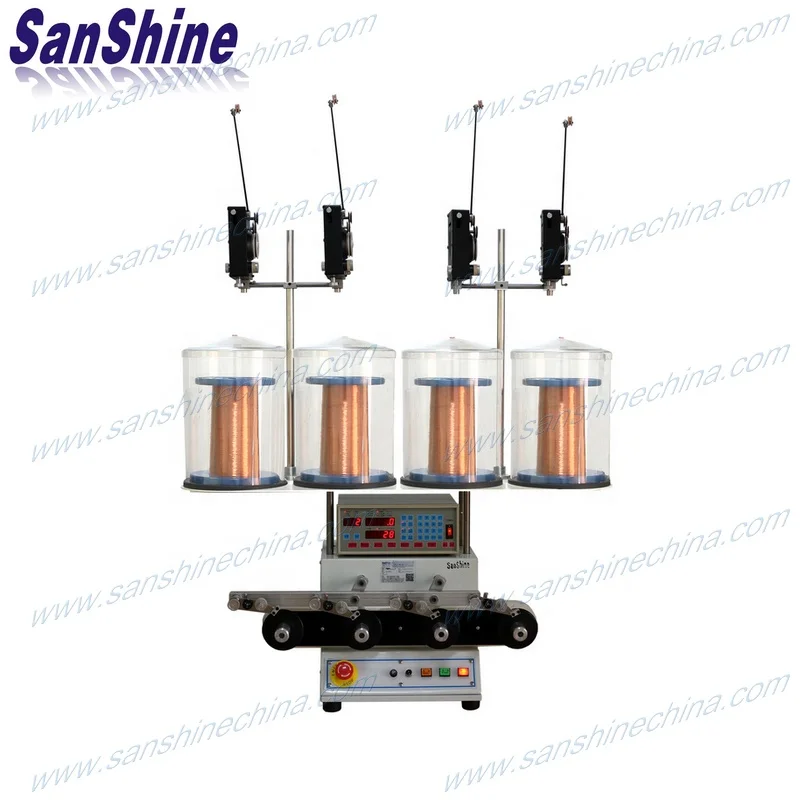

Description of SS864 Obverse four spindles EE series inductor coil automatic winding machine :
SS864 Obverse four spindles EE series inductor coil automatic winding machine are digital programmable High-speed coil winding machine, there are four models: One spindle, two Spindles, three spindles and four spindles. It's the highest efficiency equipment.
Feature of SS864 Obverse four spindles EE series inductor coil automatic winding machine :
1. Microprocessor design, easy for program-setting.
2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while
setting.
4. Wire spreading by nozzle type spreading head.
5. Wire passing through ceramic rollers prevent enamel from high temperature.
6. Multiple spindles winding synchronal for highest efficiency.
7. Foot-switch connection for better efficiency.
8. Winding parameters and options can be set independently for each step.
9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.
10. 3 types wire tensioner ( type A for wire diameter 0.02~0.25mm, type B for wire diameter 0.06~0.5mm, type C for wire diameter 0.3~0.8mm )
Specification of SS864 Obverse four spindles EE series inductor coil automatic winding machine :
SS864 Obverse four spindles EE series inductor coil automatic winding machine are digital programmable High-speed coil winding machine, there are four models: One spindle, two Spindles, three spindles and four spindles. It's the highest efficiency equipment.
Feature of SS864 Obverse four spindles EE series inductor coil automatic winding machine :
1. Microprocessor design, easy for program-setting.
2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while
setting.
4. Wire spreading by nozzle type spreading head.
5. Wire passing through ceramic rollers prevent enamel from high temperature.
6. Multiple spindles winding synchronal for highest efficiency.
7. Foot-switch connection for better efficiency.
8. Winding parameters and options can be set independently for each step.
9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.
10. 3 types wire tensioner ( type A for wire diameter 0.02~0.25mm, type B for wire diameter 0.06~0.5mm, type C for wire diameter 0.3~0.8mm )
Specification of SS864 Obverse four spindles EE series inductor coil automatic winding machine :
Model | SS861 | SS862 | SS863 | SS864 | |||
Spindles | 1 | 2 | 3 | 4 | |||
Wire size | 0.03~ 0.8mm (Depends on Tensioner & Nozzle) | ||||||
Spread pitch | 0~ 9.999mm | ||||||
Spread width | 100mm (Max. ) | ||||||
Coil diameter | 100mm (Max. ) | ||||||
Main motor | Brushless Motor | ||||||
Spread motor | Stepping motor | ||||||
Max. speed | 6000rpm | ||||||
Memory | 999 Sequences | ||||||
Power source | AC220V ±10%, 50/60 Hz | ||||||
Dimension (cm) | 45x67x100 | 50x67x100 | 75x67x100 | 100x67x100 | |||
Net weight(Kg) | 45 | 50 | 55 | 60 | |||
