007 COATING THICKNESS GAUGE MODEL CM 8823 COATING THICKNESS GAUGE

Product Overview

Description

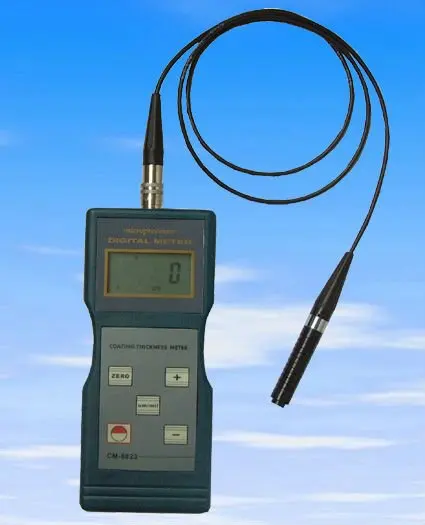

 MODEL CM-8823 COATING THICKNESS GAUGE



Application:

        This tester is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, ship building, power station, and machine manufacturing.



Technical Parameters:

Operating principle: eddy current (NF)

Measuring range:0-1000um

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AA (UM-3) battery

Auto power off

Operating conditions: 0-+45°C (32°F-104°F), ≤90%RH

Dimensions: 160 x 68 x 32mm

Weight: 250g (not including battery)



Optional accessories:

other range 0-200um to 15000um
