Feelworld tft lcd 800*480 3.5 viewfinder with hdmi input and output

Product Overview

Description

Feelworld tft lcd 800*480 3.5 viewfinder with hdmi input and output



 Using the EVF Flip-Up,you can operate any camera that has an HDMI port,with the correct form factor for

vedio with the camera "in-line" to the rod systerm and your eye in the Z-Finder offset. In addition to enhancing

stability for better resolution,the EVF Flip-Up allows for a comfortable eye position that enables low-mode

shooting. You can shorten your camera package, detach your EVF from the rig,and store it in a dolly or crane

 for car shots





Description:	3.5" Electronic Viewfinder
Model:	E-350
Resolution	800x480 pixels
Dot pitch	0.0315(W) x 0.094 (H)
Brightness	315cd/m²
Contrast:	800:1
Aspect Ratio:	15:9
Backlight:	LED
HDMI Support Mode:	1080/50i/60i/50p/60p; 720/50p, 720/60p;                               480i, 480p, 576i 576p
Inputs:	HDMI
Outputs:	HDMI
Viewing Angle:	80°/80°(L/R) 80°/80°(U/D)
Power Consumption:	≤3W
Input Voltage:	DC 6~ 14V

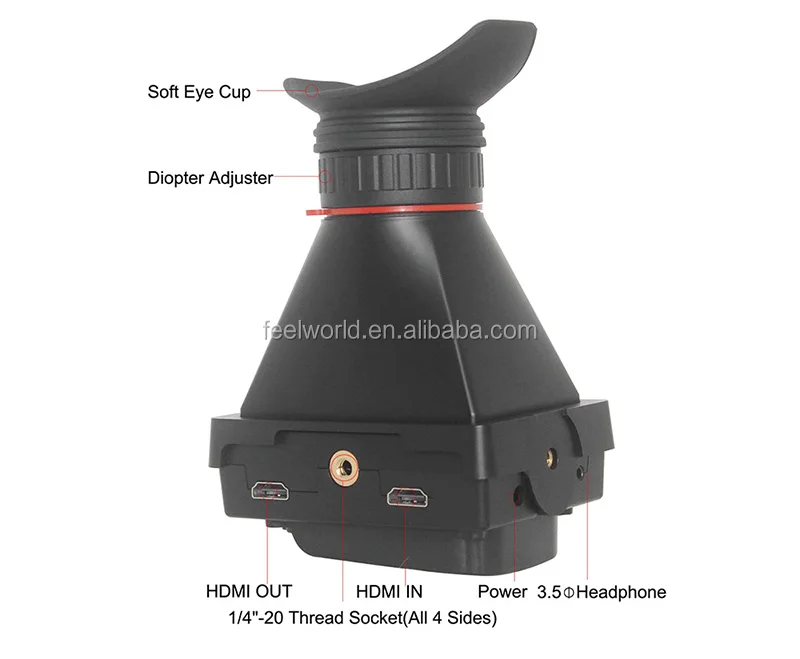

Install Way:	1/4"-20 Thread Socket(All 4 Sides)
Work Temperature:	-20°C~ 50°C
Store Temperature:	-30°C~65°C
Unit Size:	111.2L × 88.3W × 117.8H(mm)
Unit Weight:	400g



Standard Accessory	Optional Accessory	Packing Details
Canon LP-E6 Plate	Sony F970 Plate	Box size	26.5x15x9.7CM
Mini HDMI Cable	Panasonic D28 Plate	Per box G.W.	2.5kgs
Operation Manual	DC12V Power Adapter	Per Carton	10PCS
		Carton Size	53X37X33CM
		N.W.	13kgs
		G.W.	14kgs







Model No:E-350





> Adjustable sunshade eyepatch

> HDMI output

> Earphone stereo output convenient scene pick-up effect monitoring

> Placed multifunctional battery plate

> Support HD Video display

> Multiple position installation ways: convenient combine with hot shoe mount,magic arm, installed

in your best visual position, without considering the camera placement, more convenient for video shoot.

> Shortcut canon 5D Mark II mode. from viewfinder we can see recording NO time difference, image

 is NO deformation, NO Black Screen, No Delay, Perfect without distortion.

> Shortcut focus assist function, convenient the photographer to realize high-definition focusing.

> Shortcut button Black & White, Color, RGB three color Monochrome display switch

> Screen Marker(80%,85%,90%,93%,96%)

> Center Marker
