FL Air Cooled crusher food pulverizer

Product Overview

Description

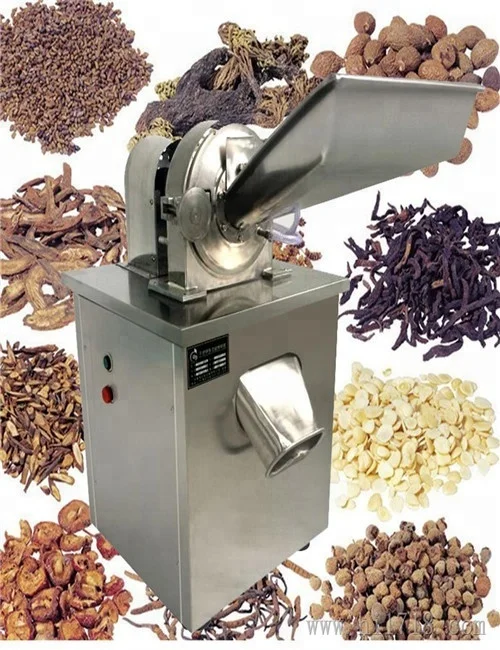

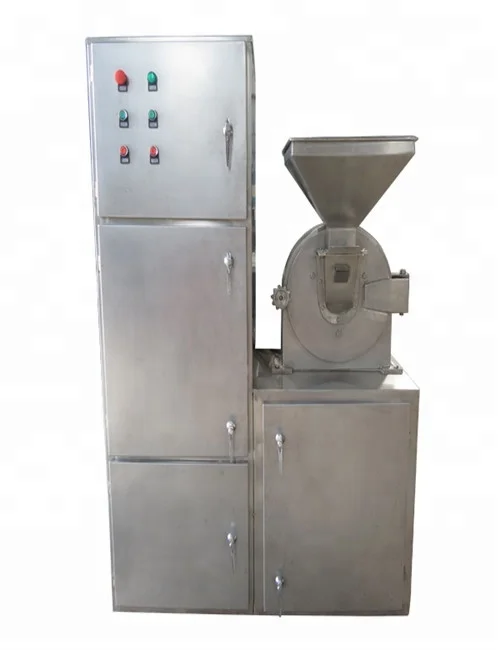

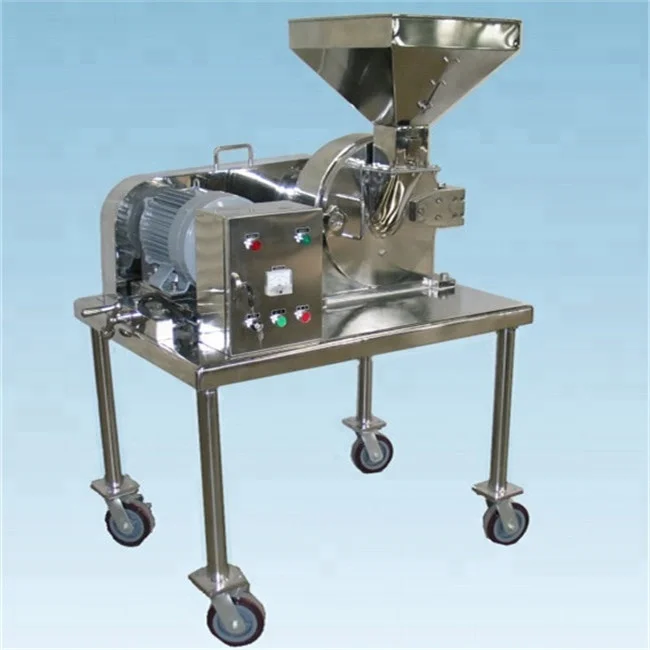

FL Air-Cooled crusher food pulverizer

Main Application:

FL Air-Cooled Dust Removal Crusher is used in the industries of pharmaceutics,chemical,food and etc.

Operating Principle:

The machine adopts a wind wheel type rotary cutter with adjustable speed and a fixed cutter for impacting,grinding and milling.Strong air flow is formed in the process in the grinding chamber and it brings the heat and the particles out through a filter.The size of the particles is decided by the changeable filter.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	Capacity(kg/h)	Spindle speed(r/min)	Feeding Size(mm)
20	60-150	4500	6
30	100-300	3800	10
40	160-800	3400	12
60	500-1500	2800	15
Crushing fineness(mesh)	Motor Power(kw)	Overall Size(L×W×H)	Weight(kg)
60-150	4	950×550×1250	200
60-120	5.5	1150×600×1630	300
60-120	7.5	1200×650×1550	420
60-120	15	1350×750×1680	620
