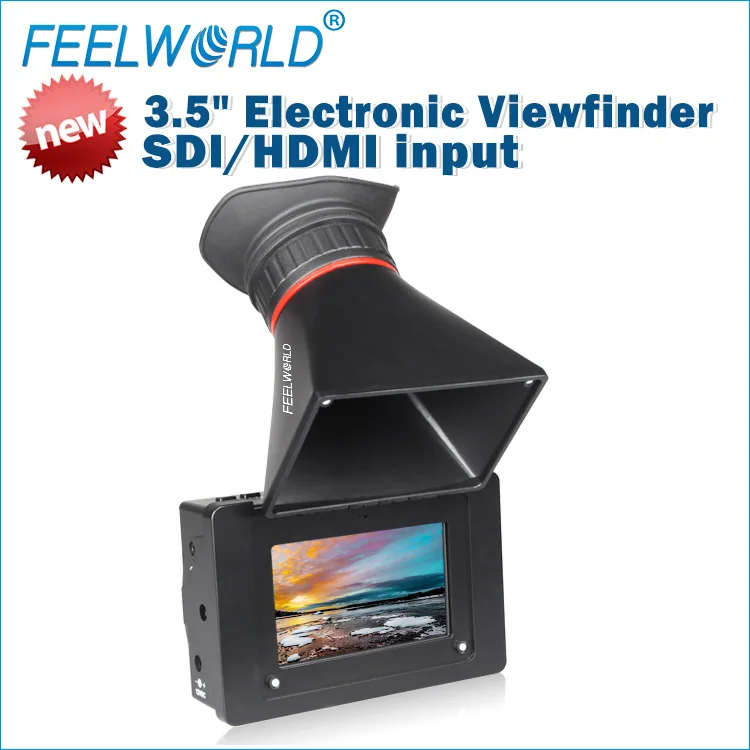

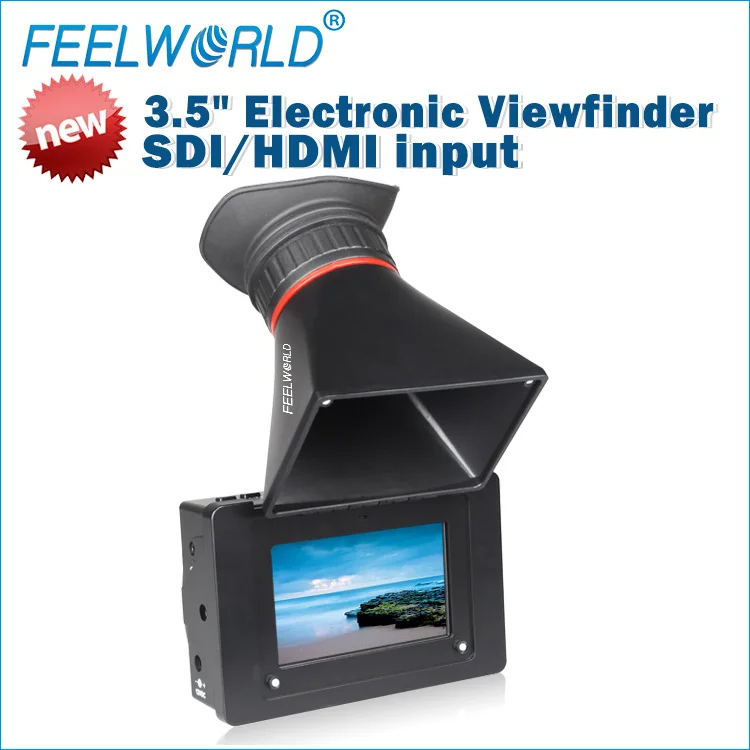

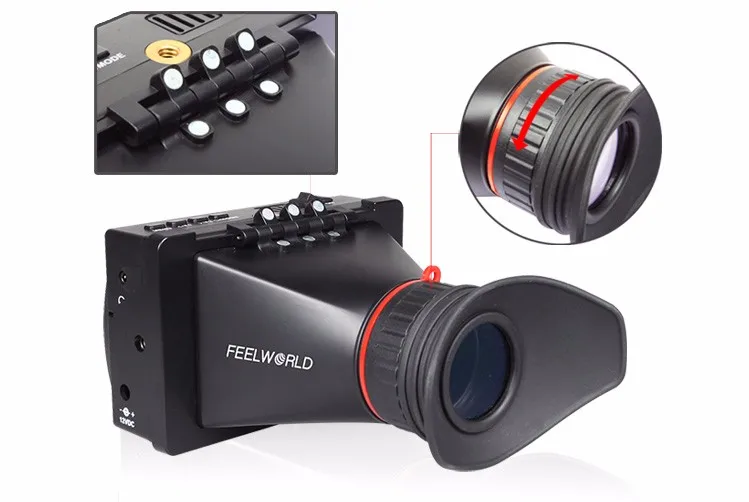

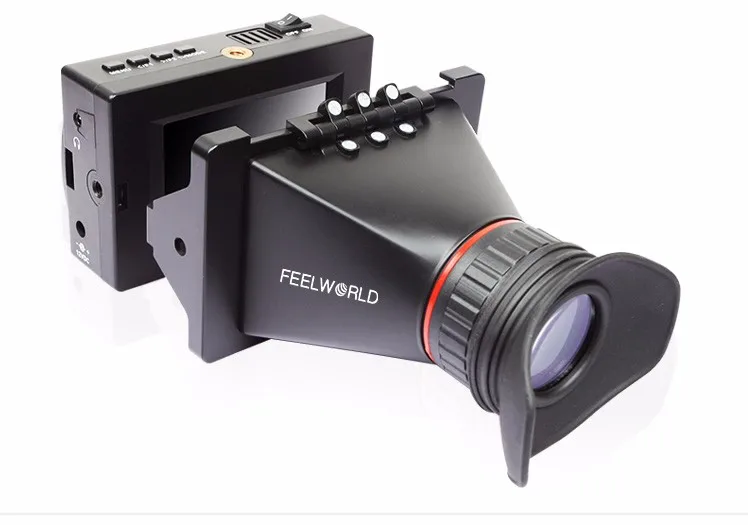

3.5 inch electronic viewfinder sdi hdmi input for pro video display

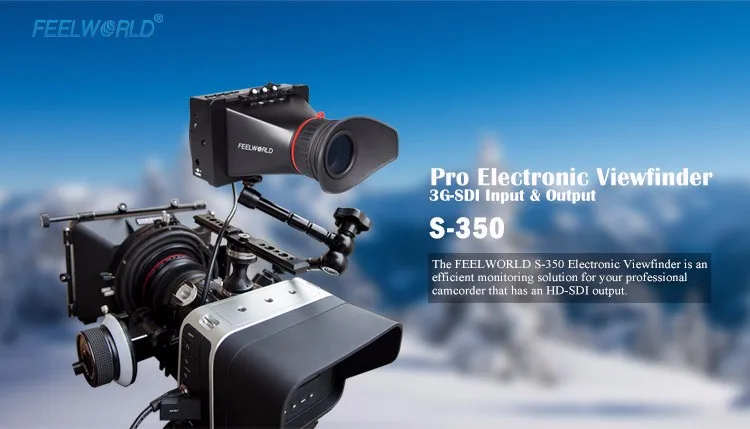

S-350 is FEELWORLD New 3G HD/SD-SDI Electronic View Finder .This EVF Electronic View Finder is transforming the form factor of DSLR cameras for video with our electronic viewfinder.

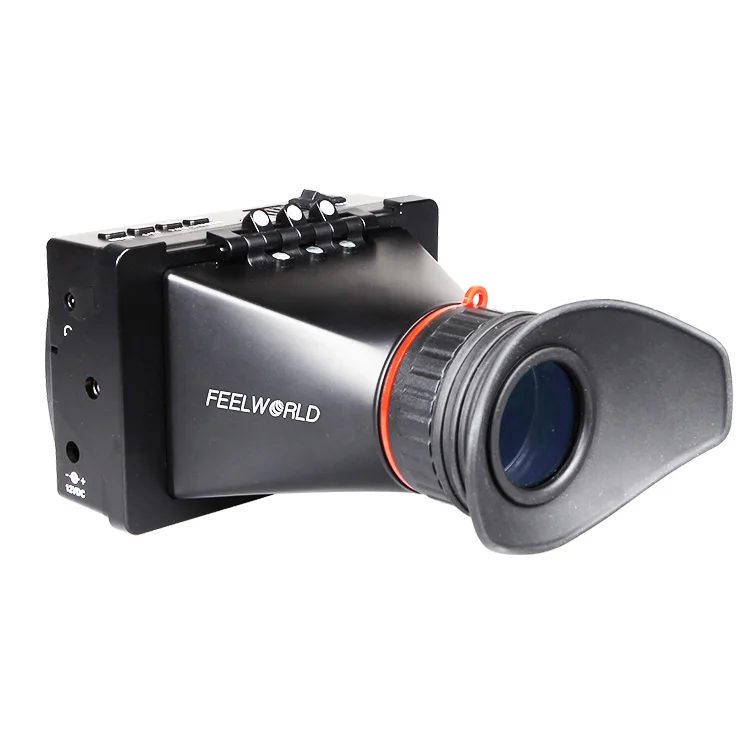

The EVF is a 3.5” TFT-LCD Max. resolution up to1920*1440 . This electronic viewfinder allows you to operate the DSLR camera or any camcorder with SDI and HDMI output, with the correct form factor for video with the camera “in-line” to your rod system (the most stable way) and your eye in the EVF offset. In addition, brightness, contrast, hue and saturation can be adjusted. Ideal for indoor and outdoor filming.
Parameters
| Description | 3.5 inch electronic viewfinder sdi hdmi input for pro video display | ||
| Model | S350 | ||
| Resolution | 800x480 | ||
| Dot pitch | 0.0315(W) x 0.0945(H) | ||
| Aspect ratio | 15:9 | ||
| Brightness | 315cd/m² | ||
| Contrast | 800:1 | ||
| Backlight | LED | ||
| Response time | 10ms | ||
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) | ||

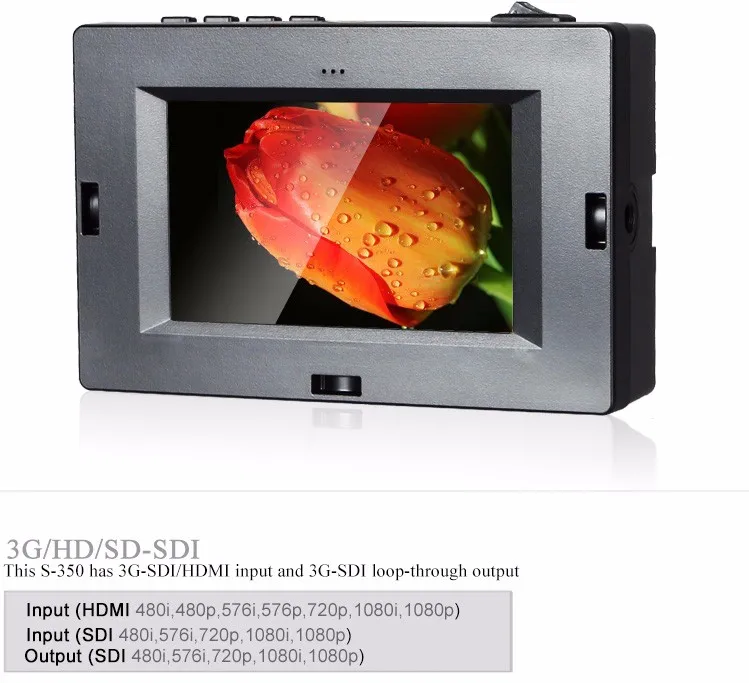

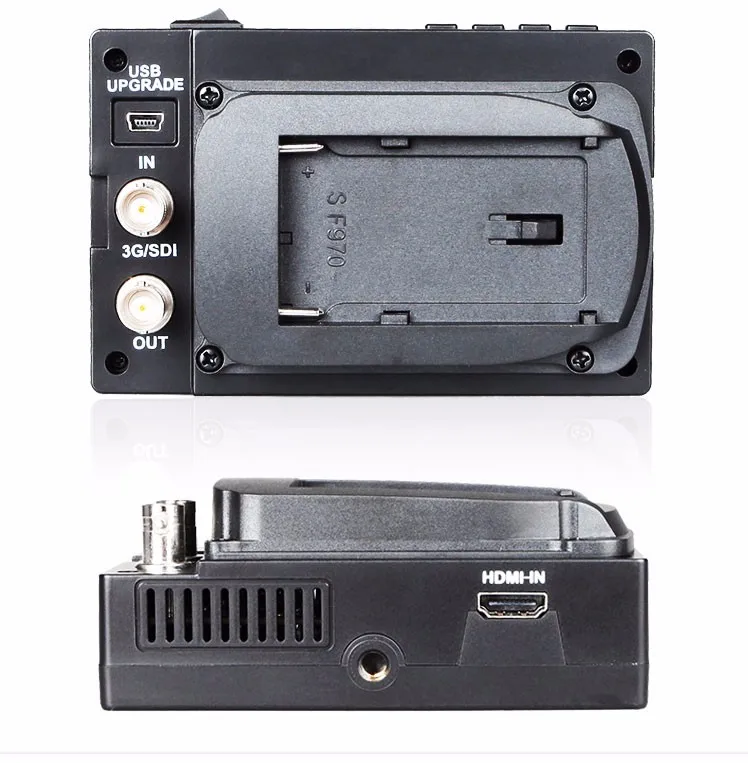

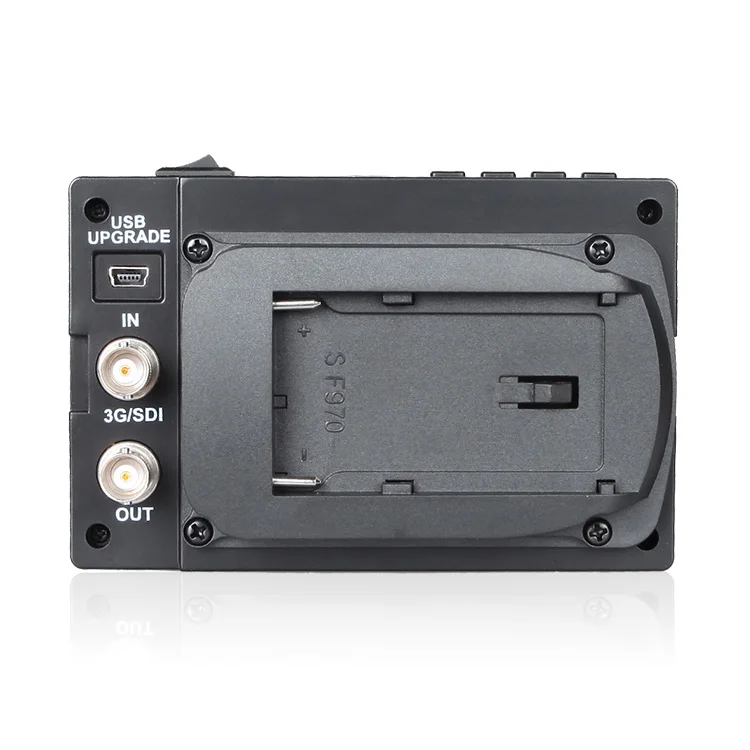

| Inputs | HDMI,SDI | ||
| Outputs | SDI,Earphone jack | ||
| SDI Support Format | 576i | ||
| 480i | |||
| 1080i(60/59.94/50)1080p(30/29.97/25/24/24fps/23.98/23.98fps) | |||
| 720p(60/59.94/50/30/29/25/24/23.98) | |||
| 1080i(60/59.94/50) 1080p(60/59.94/50) | |||
| HDMI Support Format | 480i / 576i / 480p/576p | ||
| 1080i (60/59.94/50) | |||
| 720p (60/59.94/50/30/29/25/24/23.98) | |||
| 1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) | |||
| Power Consumption | ≤6W | ||
| Input Voltage | DC 6V ~ 18V | ||
| working Temperature | -20℃~50℃ | ||
| storage Temperature | -30℃~65℃ | ||
| Install Way | 1/4"-20 Thread Socket | ||
| Unit Size | 124.3Lx87.5Hx178.5D | ||
| Unit Weight | 344g | ||
| Advanced Features | |||
| *Peaking Focus Assist(Red-outline peaking focus based on Mono background) | |||
| *Center Marker | |||
| *Screen Marker(80%,85%,90%,93%,96%,2.35:1) | |||
| *Image Freeze | |||
| *Image Flip(L/D,L/R) | |||
| *Camera 5D II Mode | |||
| *Pixel-to-Pixel | |||
| *Check Field(Red,Green,Blue,Mono) |
| Standard Accessories | Packing Details | |
| F970 Battery Plate | Box size | 26.5x15x9.7CM |
| Mini HDMI Cable | Per box G.W. | 2.5kgs |
| Operation Manual | Per Carton | 10PCS |
| Carton Size | 53X37X33CM | |
| N.W. | 13kgs | |
| G.W. | 14kgs | |
Product Description

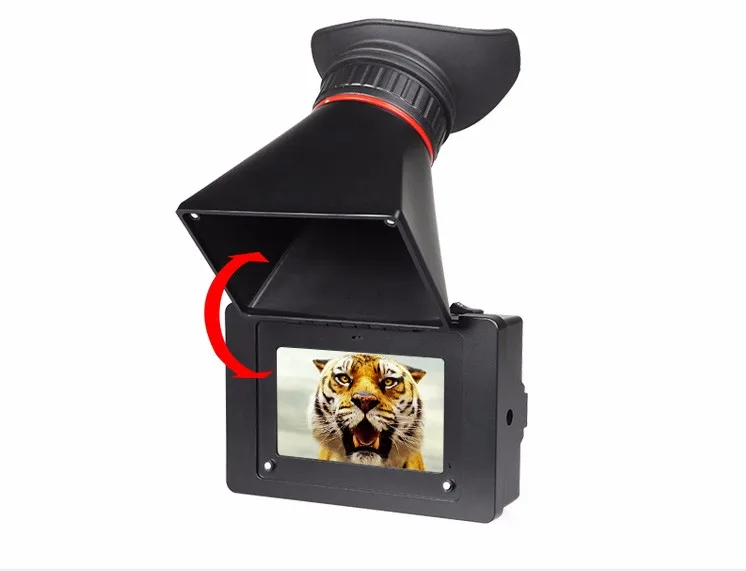

3.5 HD LCD Display
The FEELWORLD S-350's high resolution display provides excellent picture quality and color reproduction for exact video monitoring.
Advanced Feature
1. Custom Color Temperature

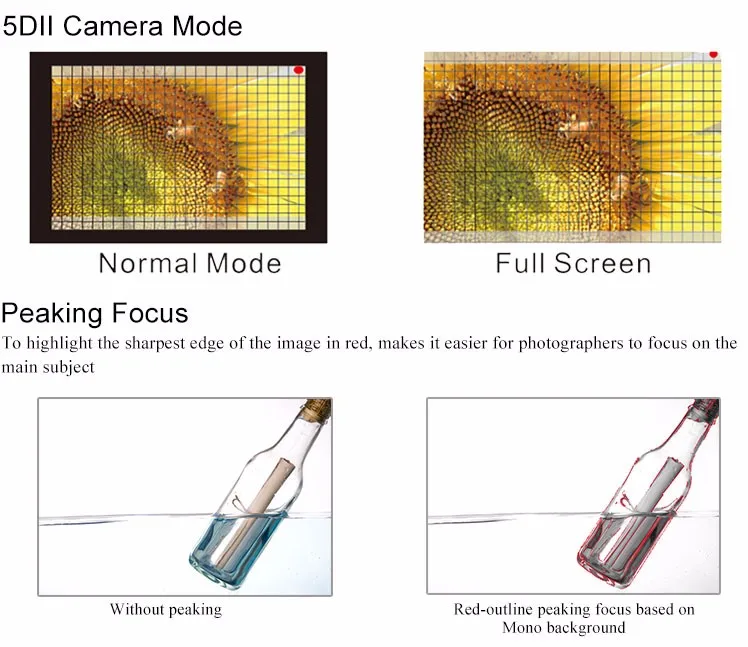

2. Peaking Focus Assist(Red-outline peaking focus based on Mono background)
3. 4:3&16:9 ratio switch

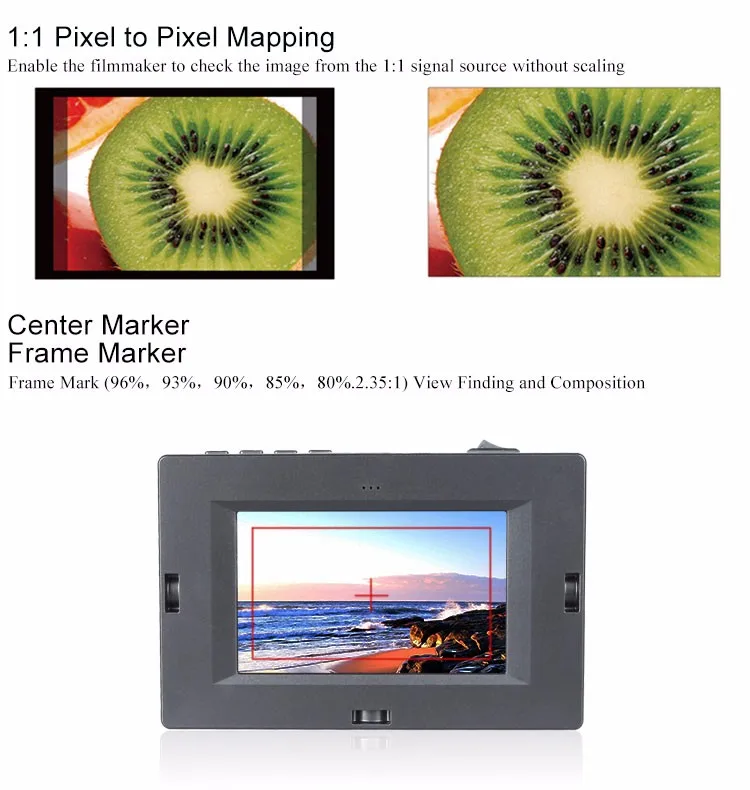

4.1:1 pixel-to-pixel mapping
5. External Battery
6. Centre Marker
7. Screen Marker(80%,85%,90%,93%,96%,2.35:1)
8. Camera 5D II Mode
9. Image Freeze&Flip(U/D,L/R)

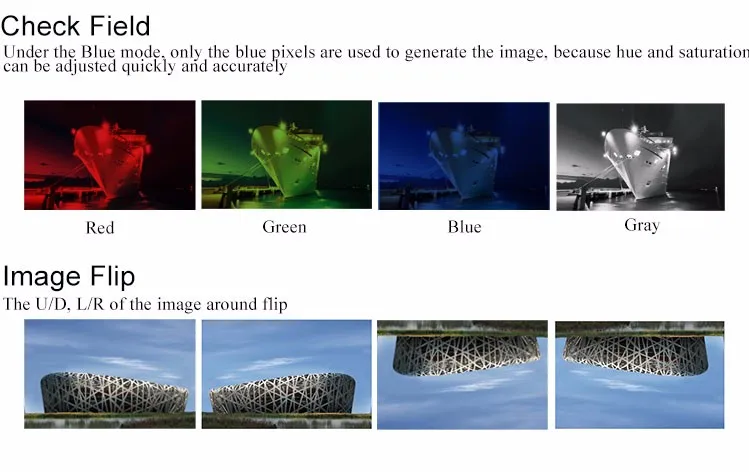

10. Check Field (Mono/Red/Green/Blue)
11. Magnifier
12. Side Earphone Jack
