New craftmanship makes more airflow, lower power consumption.
"We promise the products you will get are as true as you can see !"
Type: D1G146-L190-01F-48

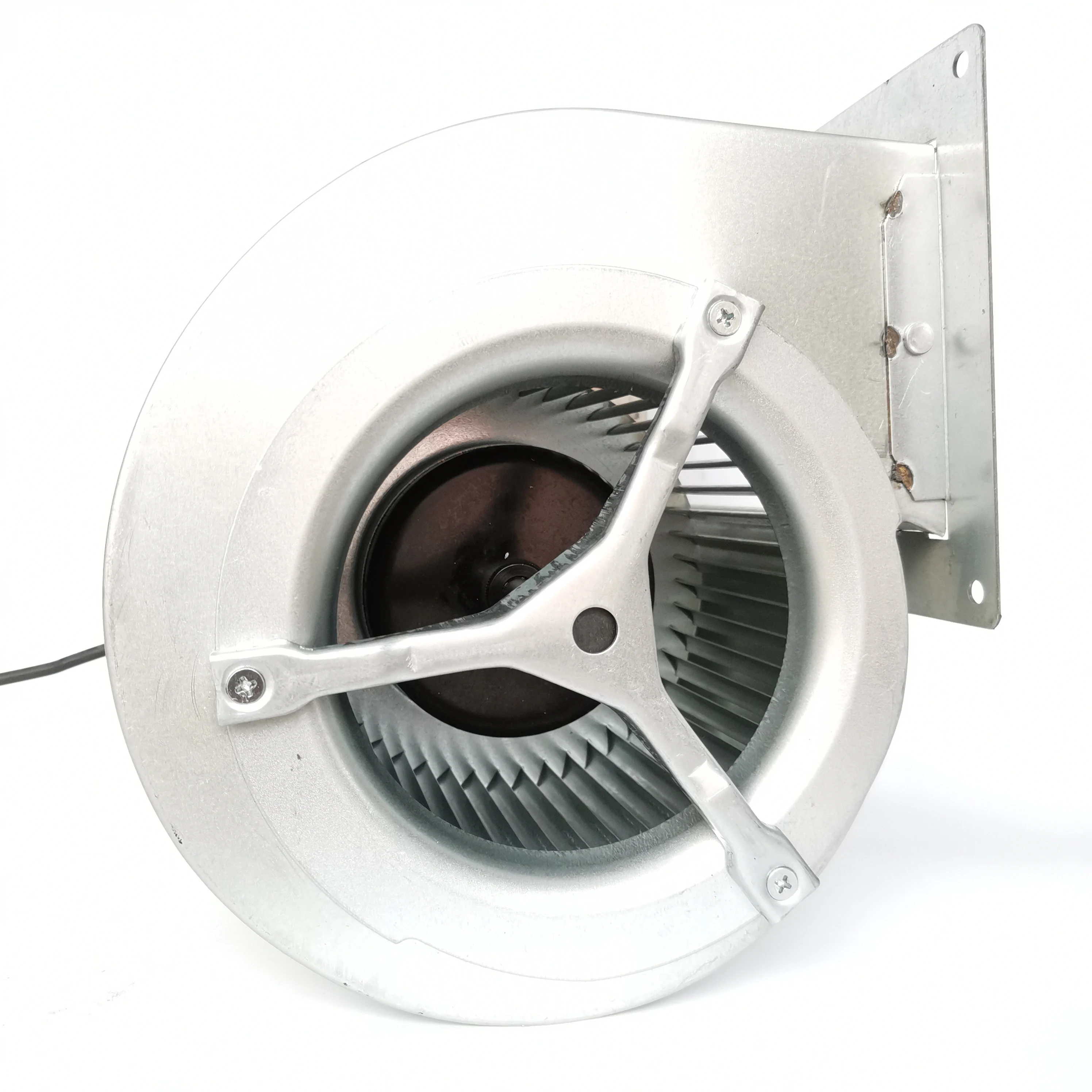

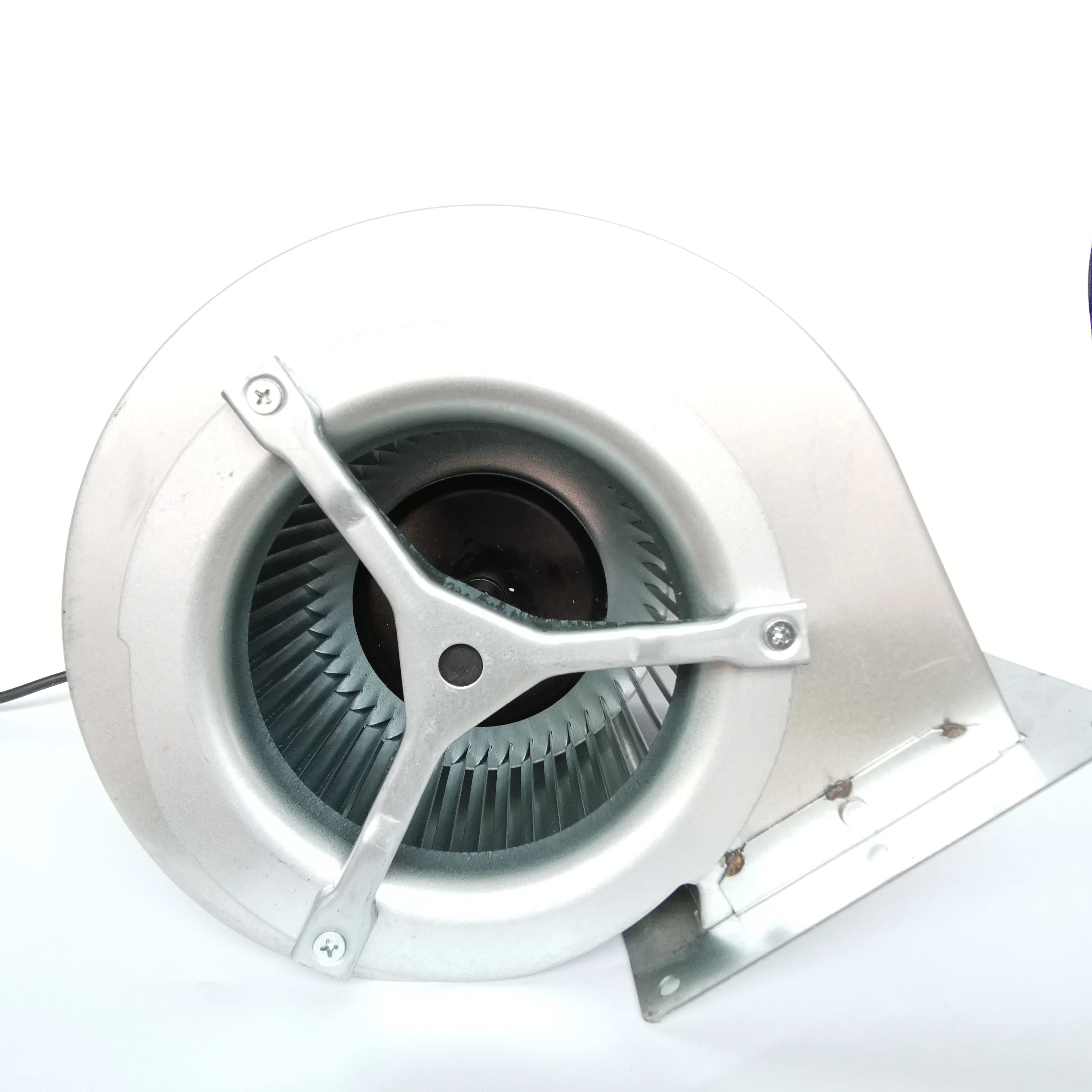

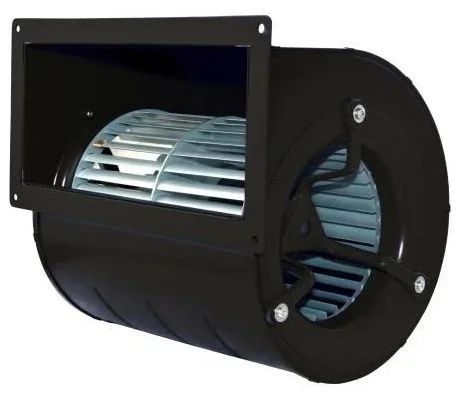

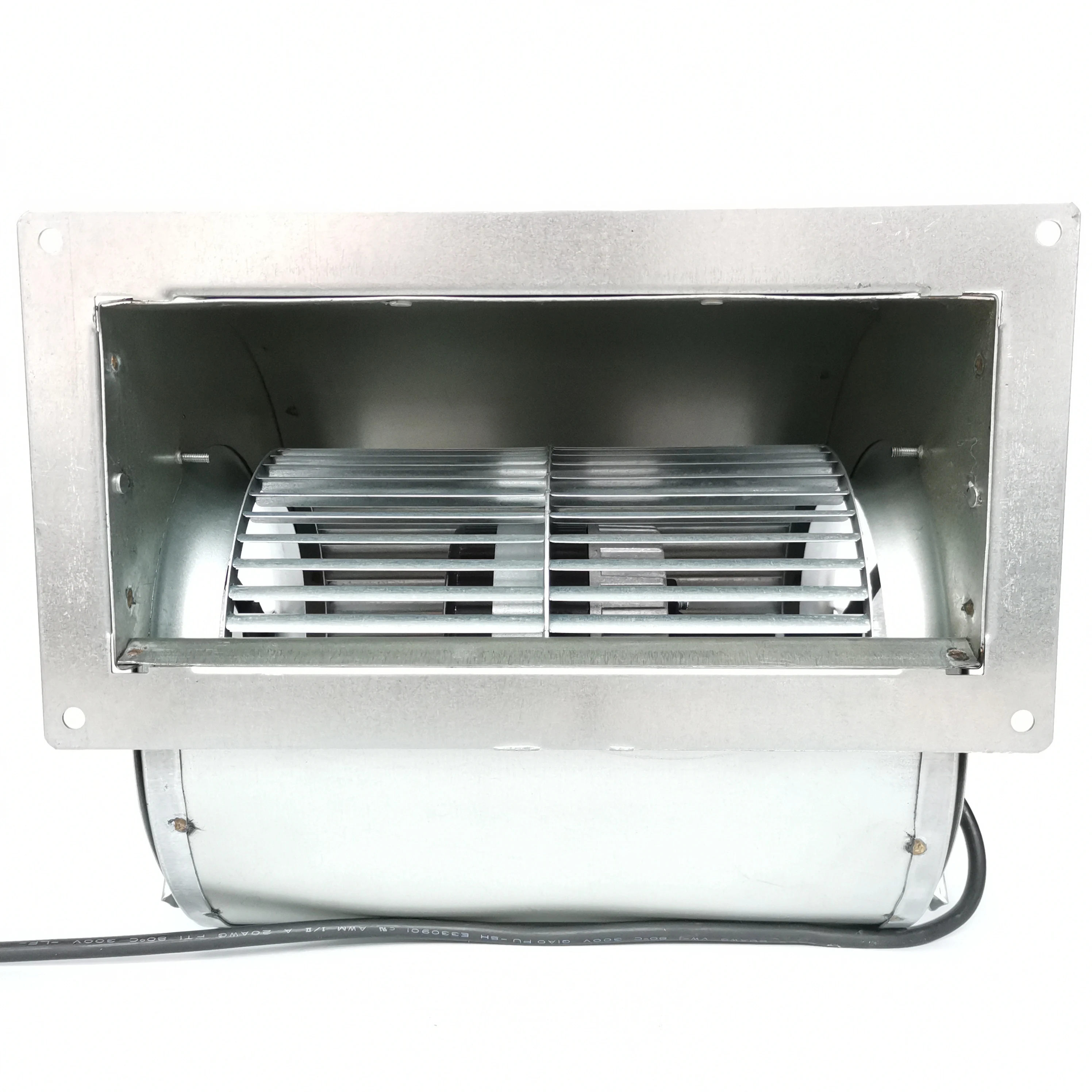

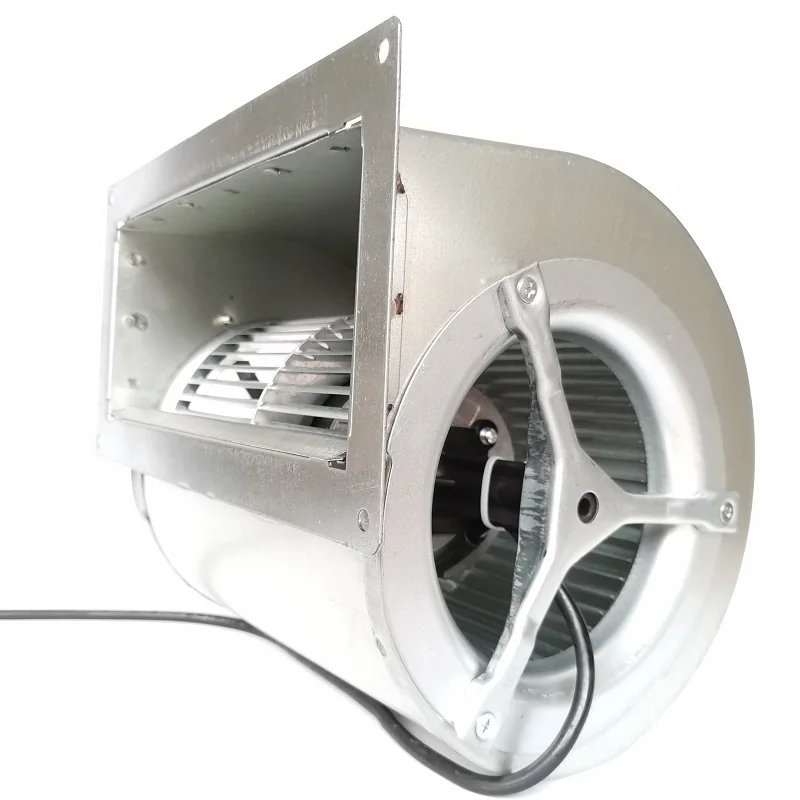

Product Pictures
(PS: ANNENG Reserved, Pirates Must Investigate.)
Product Datasheet
Specification
Model Type: D1G146-L190-01F-48 / Motor Type: 92mm
Rated Voltage
Frequency
Rated Current
Input Power
Speed
Air Flow
Air Flow
Static Pressure
(VDC)
(Hz)
(A)
(W)
(RPM)
(CFM)
(m3/h)
(Pa)
24/48
/
7.4/3.7
173
1630
681
1159
517
Details Description
Current Leakage
<=0.25mA
Operation Mode
continuous operation S1
Direction of Rotation
clockwise, seen on rotor
Mounting Position
at will
Insulation Class
"F"
Cable Length
450mm

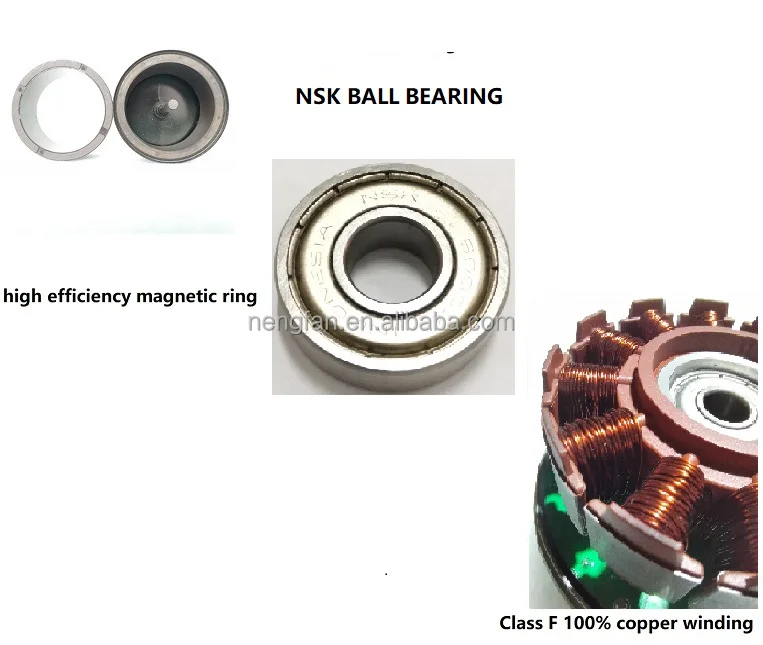

Bearing
ball bearing (NSK)
Net weight
3.55/4.0kg
Surface of Rotor
electrophoresis
Number of Blades
48
Type of Protection
IP44 or IP55
Speed control
0-10v / PWM signal
Approval
CE
Operate Life
>=40,000hours
*Motor Protection Function
1. Soft Start (8 seconds)
2. Polarity Protection
3. Undervoltage Protection
4. Overvoltage Protection
5. Current Limit Protection
6. Over Current Protection
7. Blocking Protection
8. 3 Self Starting Function
9. Stepless Speed regulation Function
10. FG Speed Signal Output (open drain)

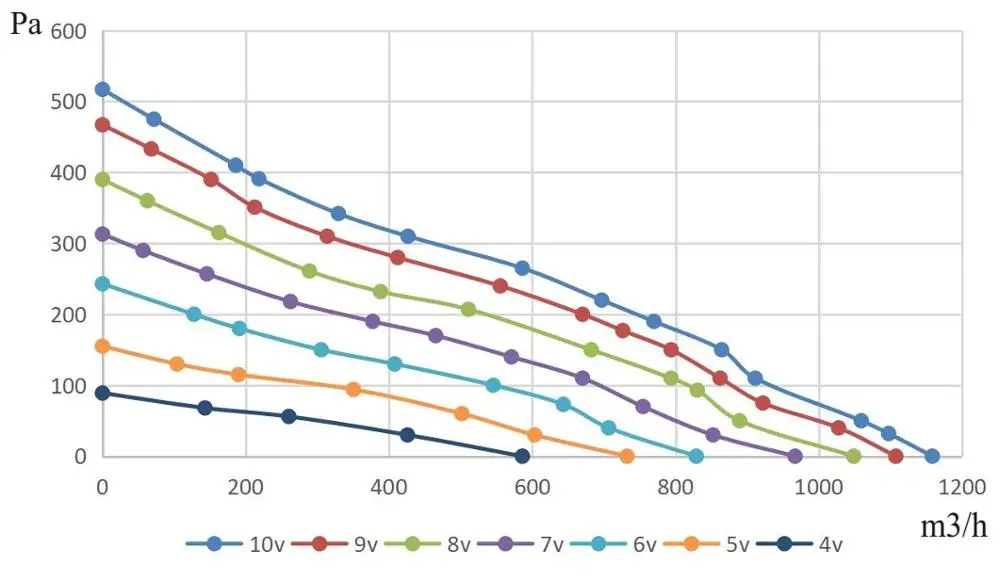

Characteristic Curves

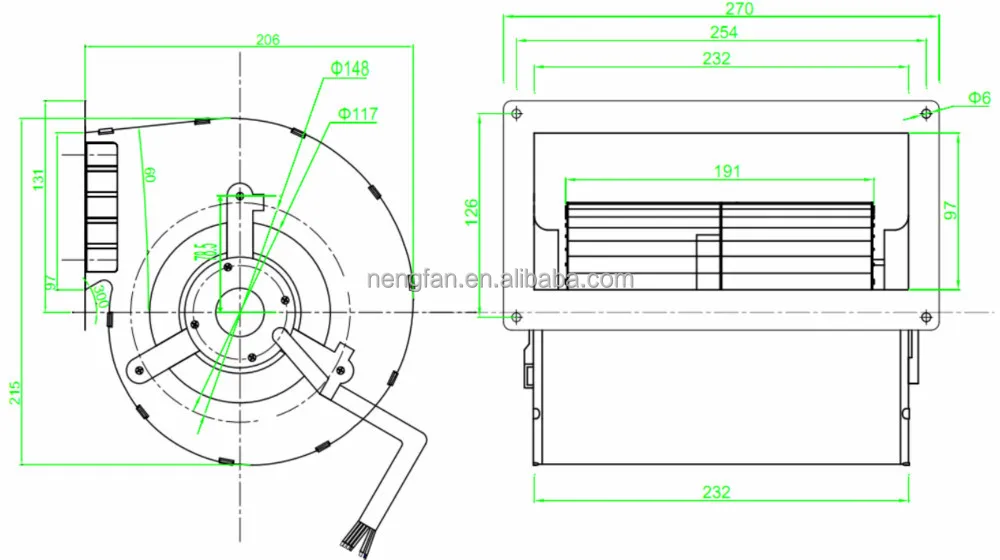

Drawing
Factory Display
Production Line
Packaging
1. for Sample, packing individually by foam carton;
2. for Mass, pallet package 120x100x120CM.
Certifications
