The most competition price laser leather cutting machine
- Category: >>>
- Supplier: Guangzhou Han Ma Automation Control Equipment Co. Ltd.
Share on (60439838033):
Product Overview
Description
The most competition price laser leather cutting machine
Product Description
Laser leather cutting machine HM-1310 applies high precision steppermotor as drive part, utilizes three original high speed guide rail in axis X and Y imported from Korea, uses four pieces of laser lens imported from Singapore, which enables the machine to work fast and accurately. The design for the laser path system improves the regulating accuracy and the working efficiency of laser ray.
In a word, HM-1310 is an ideal choice for professional engraving and cutting applications.
Model HM-1310
Specifications
Net weight | 260 KG |
Dimension | 1850*1500*1100 mm |
Cutting speed | 0-64000 mm/min |
Worktable size | 1300*1000 mm |
Laser power | 80/100/120/150/180W (optional) |
Max cutting thickness | Decided by laser power and material. For example, 30mm acrylic with 150W laser tube. |
Resolution ratio | 0.025 mm |
Min shaping character | Chinese 2mm/ English Letter 1mm |
Repositioning accuracy | +/- 10% |
Gross power | <1500w |
Operating humidity | 5%-80% |

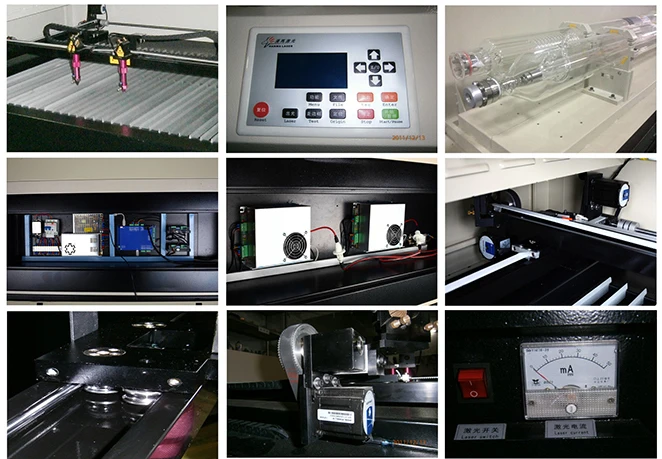

Standard Devices of HM-1310
Laser head *1
Control panel*1
Laser tube*1
Stepper motor*1
X axis*1
Y axis*2
exhaust fan*1
air pump*1
Water chiller*1

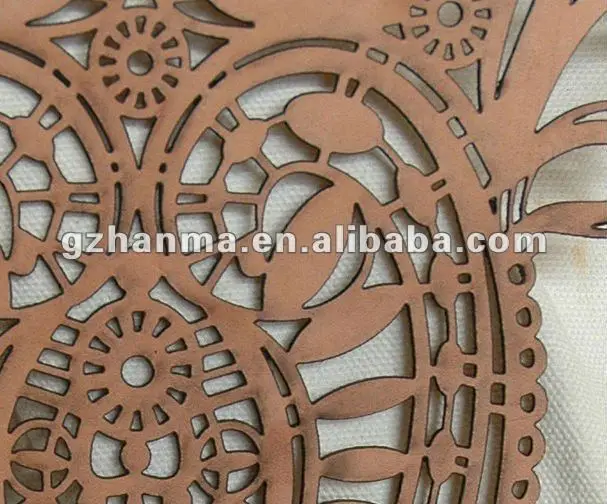

Samples
Our Services
Warranty
The warranty for whole machine is effective 1 year from the Ex-Factory Date. But for the laser tube and focus lens and the reflective mirrors, the warranty is 9 months.
1. We will send you the spare parts and offer tech support for free during warranty when there is a machine fault, including the part fault.
2. User will need to send back the old parts to us within one week after receiving the new parts,(we will inform you the address for returning the old parts) And a tracking number must be provided as voucher.
3. If we don’t get the old part(or tracking number) one week after user receiving the new one, we will stop the machine warranty until we receive the old part. And user must take responsibility for his own loss during this period.
4. We will charge for replacing/repairing (including labor costs and transportation costs) when the warranty is expired.
5. User will need to buy new parts for replacing from us(or with our permission if buy from other company), If not, we won’t take any legal responsibility when there’s any tech problem or machine fault, meanwhile, we will stop the warranty.
6. If there’s any problem in future, the technical online support is provided. When necessary, our technicians will fly to your places.
Exhibitions

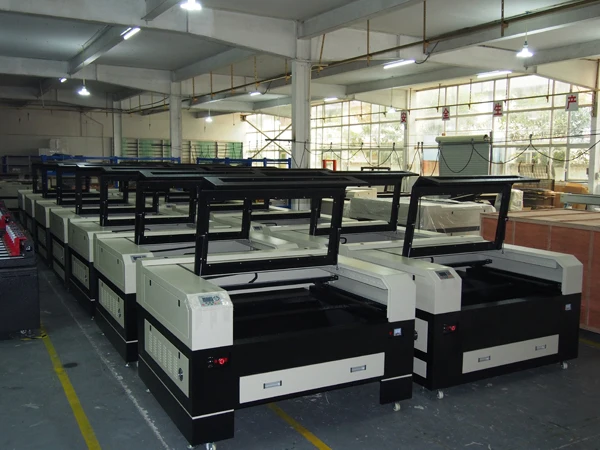

Have been sold to all over the world
FAQ
About machine and parts
What’s the difference between the different laser tubes?
Usually, the power of the tube is decided by two parameters:
1. The length of the tube, the longer the tube is the more powerful.
2. The diameter of the tube, the bigger the tube is the more powerful.
2. The diameter of the tube, the bigger the tube is the more powerful.
About software
What software is suggested to design my jobs?
CorelDraw and AutoCAD are suggested. You can design all your artworks in these two software and then send to the LaserGRAV software to set the parameters easily.
About material application
Can this cut metal? What is the max cutting thickness?
1.No, for cutting metal, you will need at least 200watt laser.
We only focus on cutting non-metals at present.
We only focus on cutting non-metals at present.
2.The max cutting thickness is decided by the laser power and material.
For example, 30mm acrylic can be cut with 150W laser tube.
Packaging & Shipping
Within 3 days after receiving payment
The machine will be packed in wooden case, then it will be sent to your designated port.
The carriage from our factory to the port is paid by us.
Company Information
Certificate
About us
Guangzhou Hanma Laser Equipment Co.,Ltd is a high-tech enterprise specialized in researching and developing laser processing, integrated product and sales. With the application of advanced technology and scientific management, Hanma Laser wins itself good reputation and lots of loyal customers in global market. Over the past years, our products have been exported to American, Western Europe, Southeast Asia, Middle East and other regions.
Our company manufactures series of machines such as metal and nonmetal laser cutter&engravor ,laser die board cutter which are all custom made as required. We take pride in the good quality, stability and excellent after-sales service.
More information, please visit our website: www.chineselaser.com.cn
Contact me
Please feel free to contact me for more information.Thanks.
Selina LV
WhatsApp: +86 18814137171
Skype: Selina-lv66
Website://www.chineselaser.com.cn
Address:No.6 Huashan Rd, Shilou Town, Panyu Dist, Guangzhou. China
