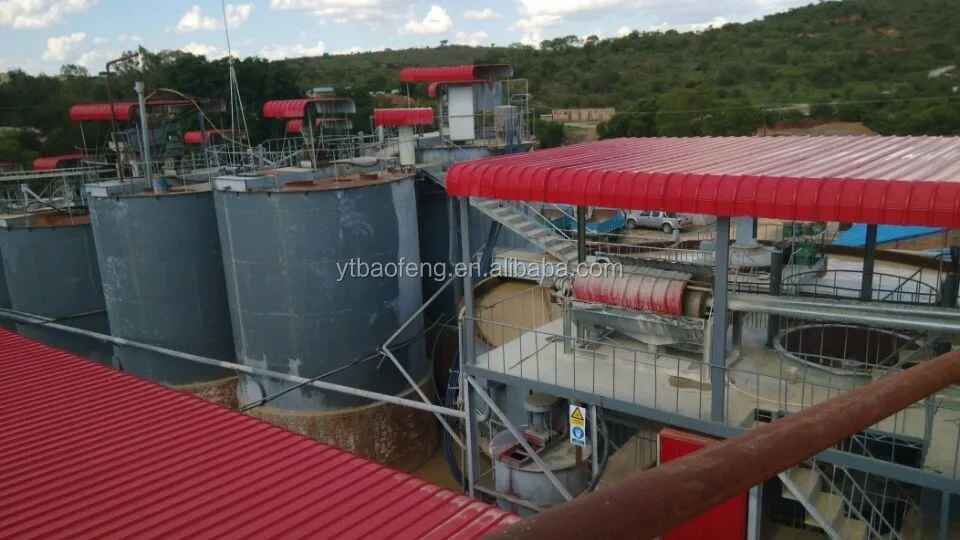

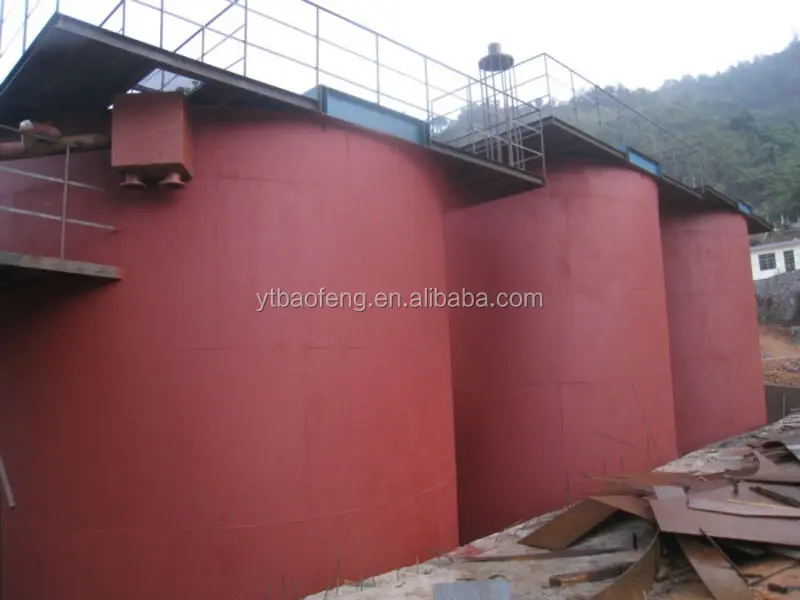

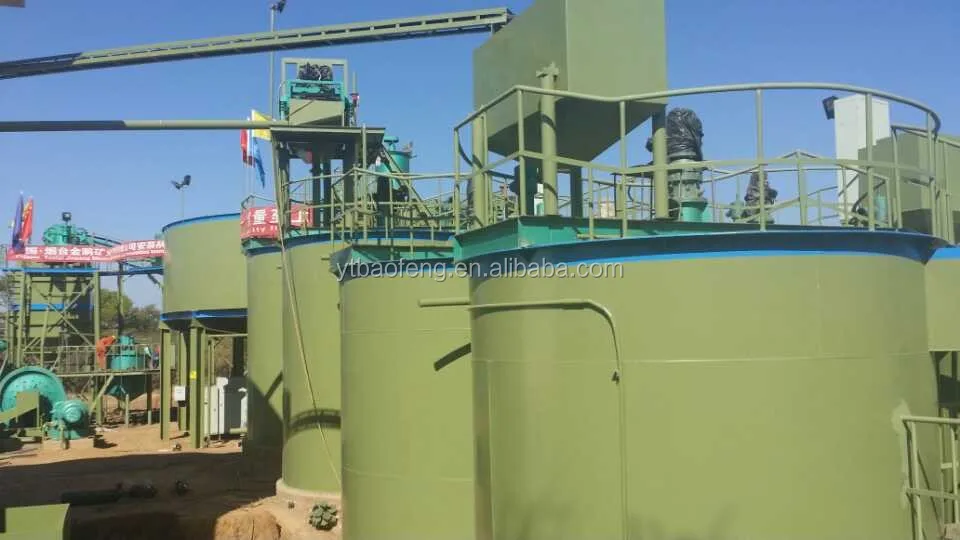

large capacity and high efficency leaching tank for mineral processing plant

Product Overview

Description

PRODUCT INTRUDUCTION



Double-impeller leaching tank  is a equipment used for gold cyanidation leaching process and absorption, two transmission ways, one is the planet-cycloid reducer drive; the other is the plane envelope reducer drive.

This equipment working conditions: pulp concentration ≤ 45%, pulp concentration ≤ 1.4 t / m.



WORKING PRINCIPLE







1. Vertical axis       2. Agitator       3. Impeller

4. Drive of motor      5. Beam           6. Railing





CHARACTERISTICS



(a) high gold recovery rate

(b) adopt a planet-cycloid reducer or flat envelope Reducer drive, high-efficiency to 92%;

(c) special structure compared with the same type equipment reducing the motor power, energy-saving rate 27.3%;

(d) Little chance of accident happening, high overload capacity;

(E) Light weight, low-cost, long service life;

(f) low noise;

(g) compact structure.





 Technical parameters



Model	Cylinder diameter mm	Cylinder height mm	Effective volume m3	Power KW	Impeller rotation speed (rpm)
SJ3550×4000	3550	4000	40	4	43
SJ4000×4500	4000	4500	50	5.5	33.5
SJ4500×5000	4500	5000	71.6	7.5	33.5
SJ5000×5600	500	5600	98	7.5	31.9
SJ5500×6000	5500	6000	112	11	31
SJ6000×6500	6000	6500	166.7	18.5	29















COMPANY PROFILE



Yantai Baofeng mining machinery Co., Ltd is an high-tech joint stock enterprise jointly founded by technicians from domestic famous grade A designing institutes with a floor space of 50,000 square meters.Now our company has more than 500 staffs and has multiple subsidiaries such as reaching institute of ore dressing and smelting,design institute of metallurgical mine,machinery factory,automatic research institute,installation company and so on.It has a history of over 30 years in mine design and development and manufacturing of mine equipment.
