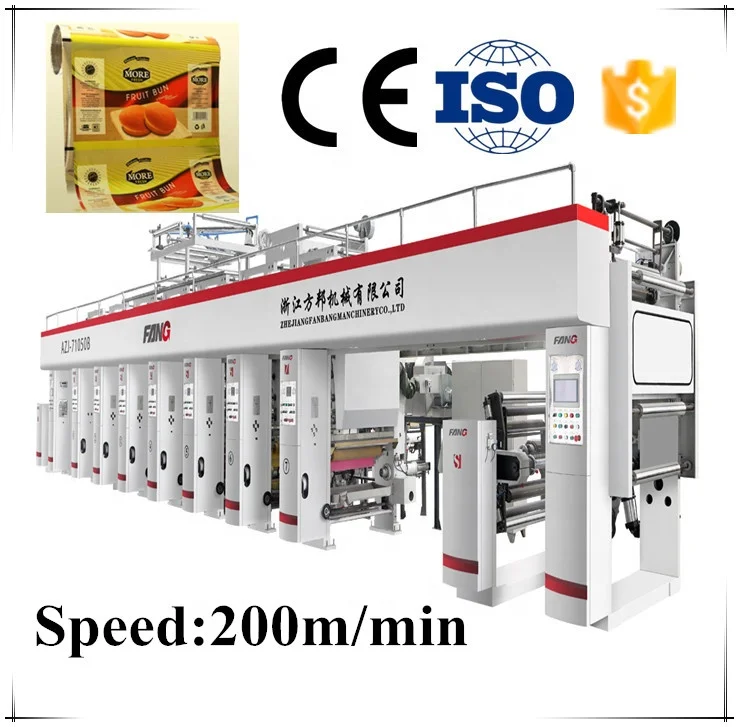

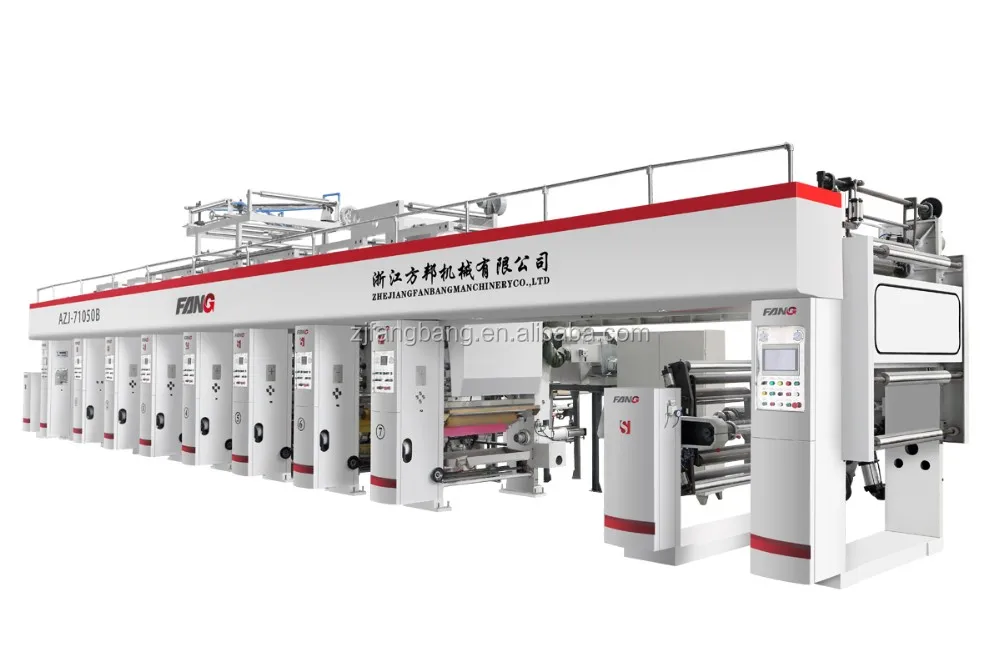

Rotogravure Printing Machine BOPP, PVC, PE, OPP,2/4/6/8/10 color
Rotogravure Printing Machine BOPP, PVC, PE, OPP,2/4/6/8/10 color
Rotogravure Printing Machine BOPP, PVC, PE, OPP,2/4/6/8/10 color
Rotogravure Printing Machine BOPP, PVC, PE, OPP,2/4/6/8/10 color

Rotogravure Printing Machine BOPP, PVC, PE, OPP,2/4/6/8/10 color

Share on (60439983646):


Price:RUB 3,790,900.00 - RUB 12,889,060.00

Quantity:


Product Overview

Description

This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.

SPECIFICATIONS FOR AZJ-C Series
Type
AZJ-8850C
AZJ-81050C
AZJ-81250C
Max. Width of Web
850mm
1050mm
1250mm
Max. Printing Speed
200m/min
200m/min
200m/min
Max. Diameter of Unwind/Rewind
ø600mm
ø600mm
ø600mm
Interal Diameter of Roll Core
ø76mm
ø76mm
ø76mm
Diameter of Printing Cylinder
ø120~ø300mm
ø120~ø300mm
ø120~ø300mm
Accuracy of Registration
±0.1mm
±0.1mm
±0.1mm
Tension Control Range
3~25kg/Full Width
3~25kg/Full Width
3~25kg/Full Width
Heating Power of Oven
108kw
135kw
162kw
Total Power
about 168kw
about 200kw
about 231kw
Weight of Machine
about 25000kg
about 27000kg
about 29000kg
Overall Dimension
L16000*W3500*H3400mm
L16000*W3700*H3400mm
L16000*W3900*H3400mm
MAIN FEATURES
Full automatic color registration system.
Material cost saving.
High Efficient production.
31 years experienced.
Non-standard customied.

Certifications
Customer Factory

Customers' factory working shop.


Samples
