1000 liter mash/lauter tun, 1000L Brew kettle and whirlpool tank
- Category: >>>
- Supplier: Jinan Rainbow Machinery Co. Ltd.
Share on (60440064596):
Product Overview
Description
Find out a perfect brewing system........
Reliable supplier for turnkey beer brewery system......
Product Description
1000 liter mash/lauter tun, 1000L Brew kettle and whirlpool tank
Customized best price Turnkey brewery system beer brewery beer machine

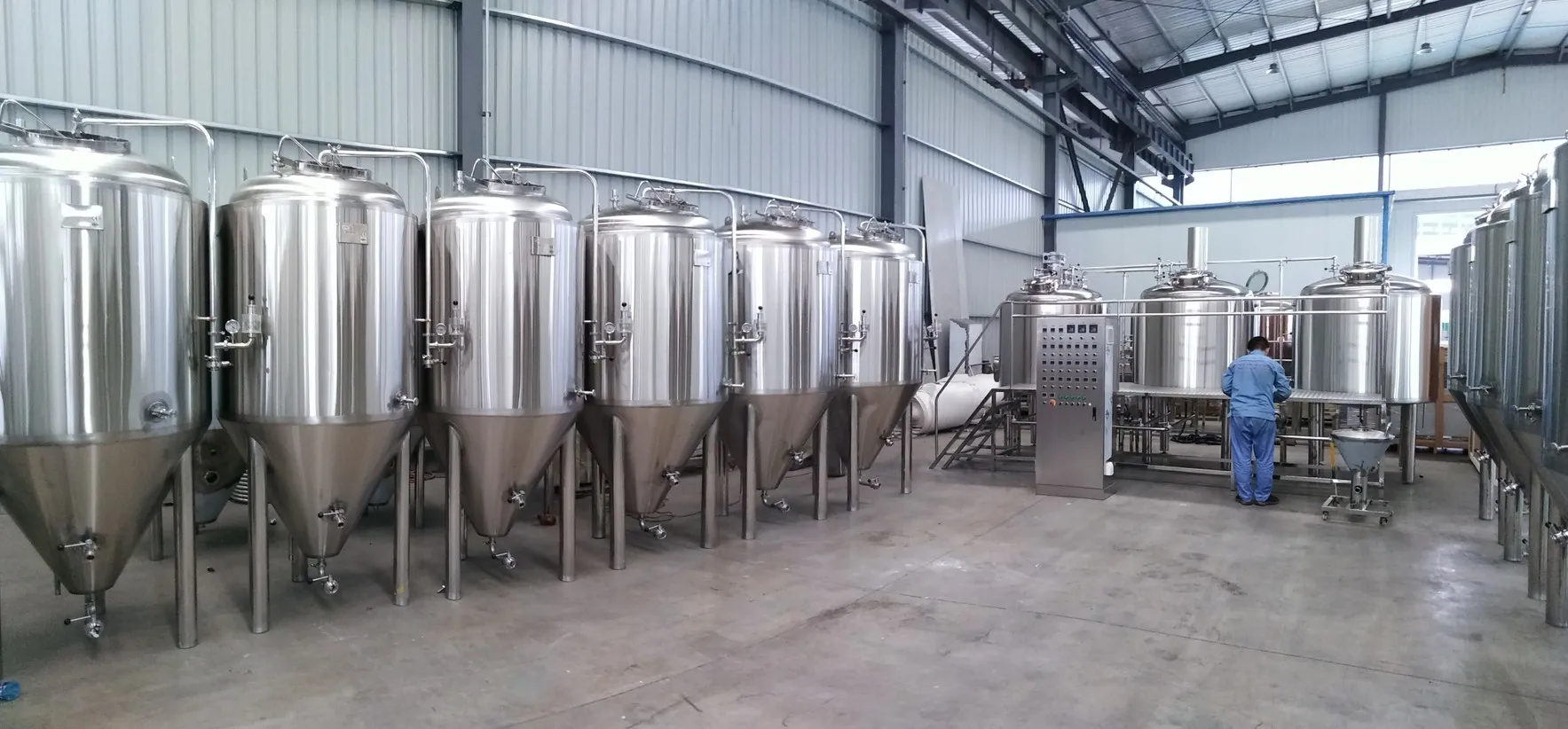

Complete turnkey beer brewing system:
1. Malt Miller
2. Brewhouse system
3. Fermentation system/Beer fermenter, Unitank, Bright beer tank
4. Cooling system
5. CIP cleaning system
6. PID/PLC control system
7. Bottling system,
8. kegging system....,
For more turnkey brewery system detailed specs and quotation, pls contact us for details!
Reference turnkey beer brewery system, complete fermentation equipment for beer brewing system
Customized best price Turnkey brewery system beer brewery beer machine
Complete turnkey beer brewing system:
1. Malt Miller
2. Brewhouse system
3. Fermentation system/Beer fermenter, Unitank, Bright beer tank
4. Cooling system
5. CIP cleaning system
6. PID/PLC control system
7. Bottling system,
8. kegging system....,
For more turnkey brewery system detailed specs and quotation, pls contact us for details!
Reference turnkey beer brewery system, complete fermentation equipment for beer brewing system
Specification
Reference configurations for 1000L turnkey brewery system beer brewkettle, mash tun, whirlpool tun brewhouse system
Items | Equipment | Specification | Quantity | |||
Unit I--Malt Miller | ||||||
Malt Miller | Malt miller | 500kg/h | 1 | |||
Unit II--Brewhouse system | ||||||
Brewhouse | Mash tun/Lauter | 1000L | 1 | |||
Brew kettle/Whirlpool | 1000L | 1 | ||||
Hot liquor tank | 2000L | 1 | ||||
Plate heat exchanger | 10m² | 1 | ||||
Wort pump | 3m³/h | 1 | ||||
Hot water pump | 3m³/h | 1 | ||||
Sanitary piping system | 32 | |||||
Working platform | SUS304 | |||||
Unit III--Fermentation system | ||||||
Fermentation | Fermenter | 1000L | 6-12 | |||
Aeration&Yeast adding tank | 30L | |||||
Unit IV--Cooling system | ||||||
Cooling | Glycol water tank | 1500L | 1 | |||
Glycol chiller | 5HP | 2 | ||||
Glycol water pump | 3m³/h | 1 | ||||
Unit V--CIP system | ||||||
CIP | Alkali tank | 100L | 1 | |||
Sterilization tank | 100L | 1 | ||||
CIP pump | 3m³/h | 1 | ||||
Unit VI--PID control system/Siemens PLC control system | 1 | |||||
Free spare parts: butterfly valves, CIP balls, Tri clamps, gaskets, sanitary hoses, Saccharimeter, measuring cylinder, sight glass, sample valves, cooling solenoid valves, Bung apparatus, PT100 sensors...etc | ||||||

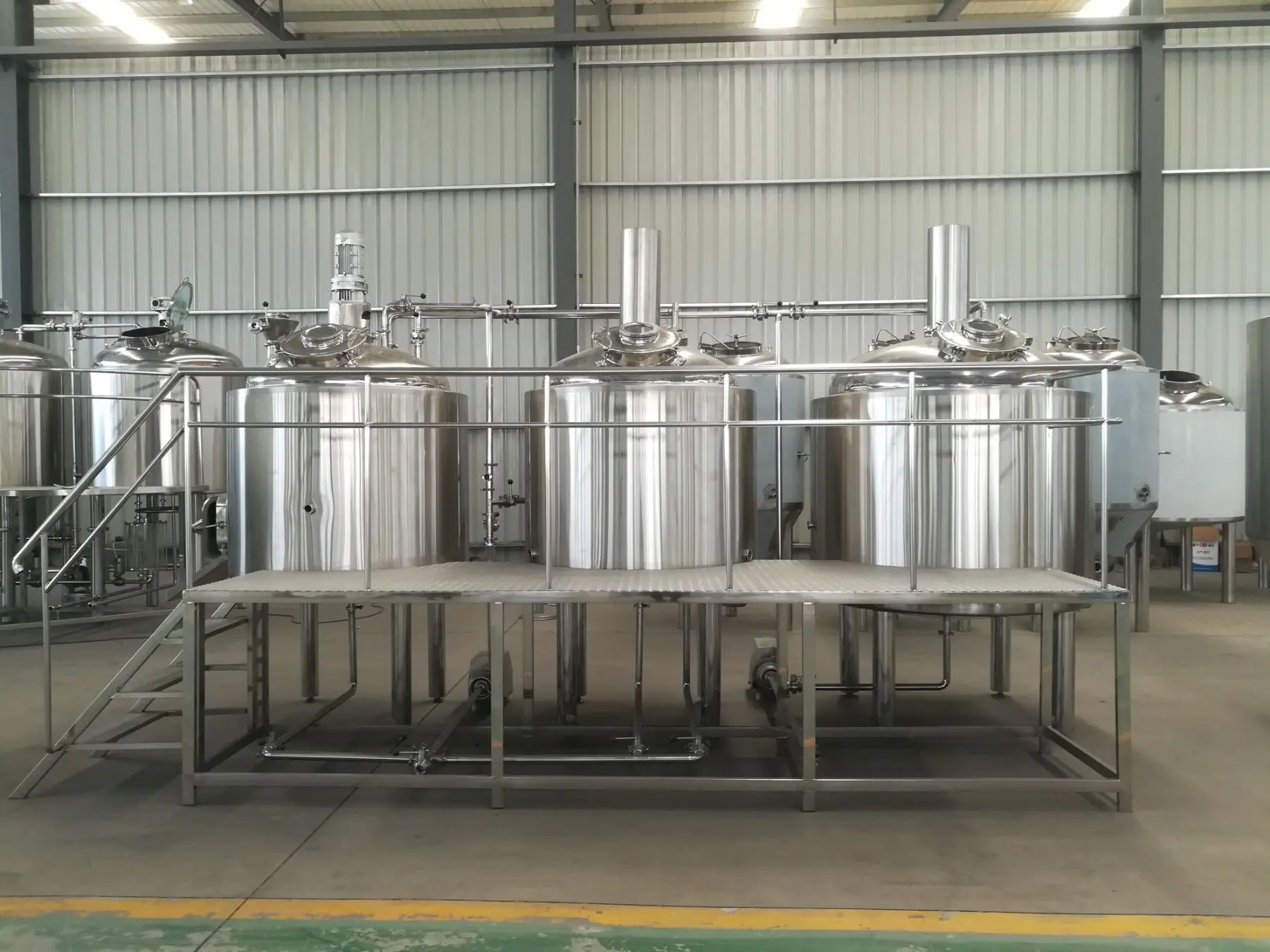

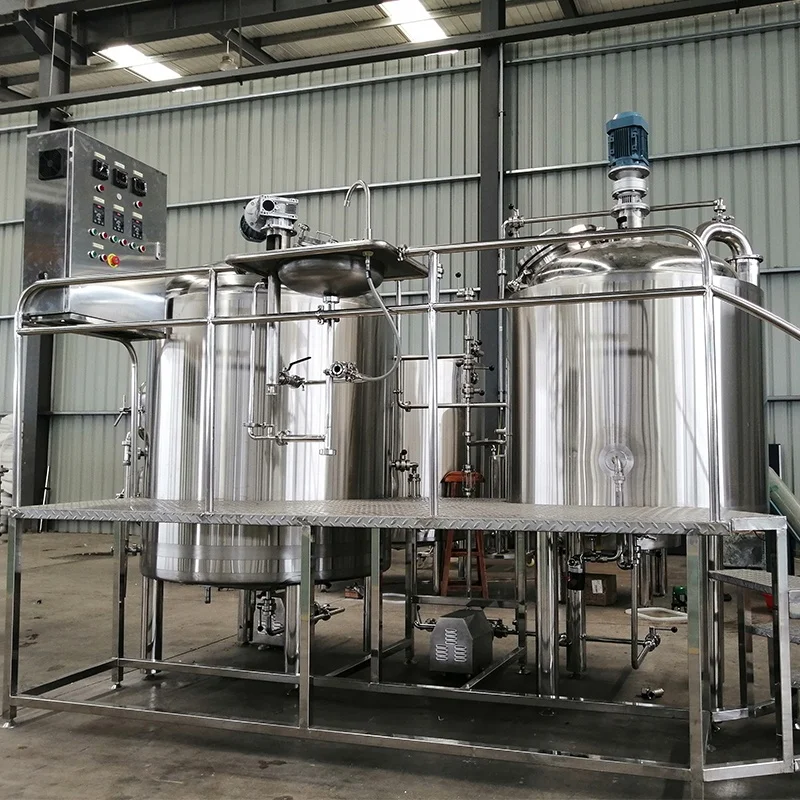

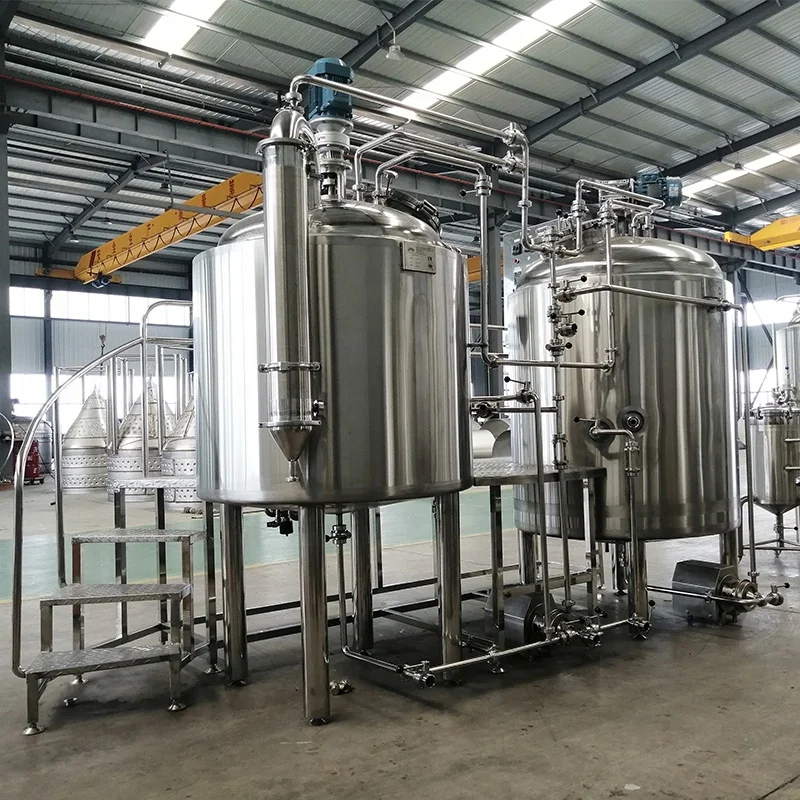

1. Brewhouse system
-Capacity:
useful capacity 1000L, total capacity: 1300L with 30% headspace
-Heating method: Electric heating, steam heating, gas fire heating, HERMS....
Brewhouse combination:
1. Mash/lauter Tank , Kettle/whirlpool Tank
2. Mash tank, Lauter Tank , Kettle/whirlpool Tank
3. Mash /lauter Tank , Kettle , Whirlpool Tank
4. Mash tank , Lauter tank , Kettle ,Whirlpool tank
5. Rice cooker, Mash tank, Lauter tank, Kettle, Whirlpool tank
Brewhouse combination:
1. Mash/lauter Tank , Kettle/whirlpool Tank
2. Mash tank, Lauter Tank , Kettle/whirlpool Tank
3. Mash /lauter Tank , Kettle , Whirlpool Tank
4. Mash tank , Lauter tank , Kettle ,Whirlpool tank
5. Rice cooker, Mash tank, Lauter tank, Kettle, Whirlpool tank
-Dome top and cone bottom, 160 degree
-Interior Shell: SUS304, thickness: 3.0mm
-Exterior Shell: SUS304, thickness: 2.0mm
-Insulation: Polyurethane-thickness: 100mm
-Insulation: Polyurethane-thickness: 100mm

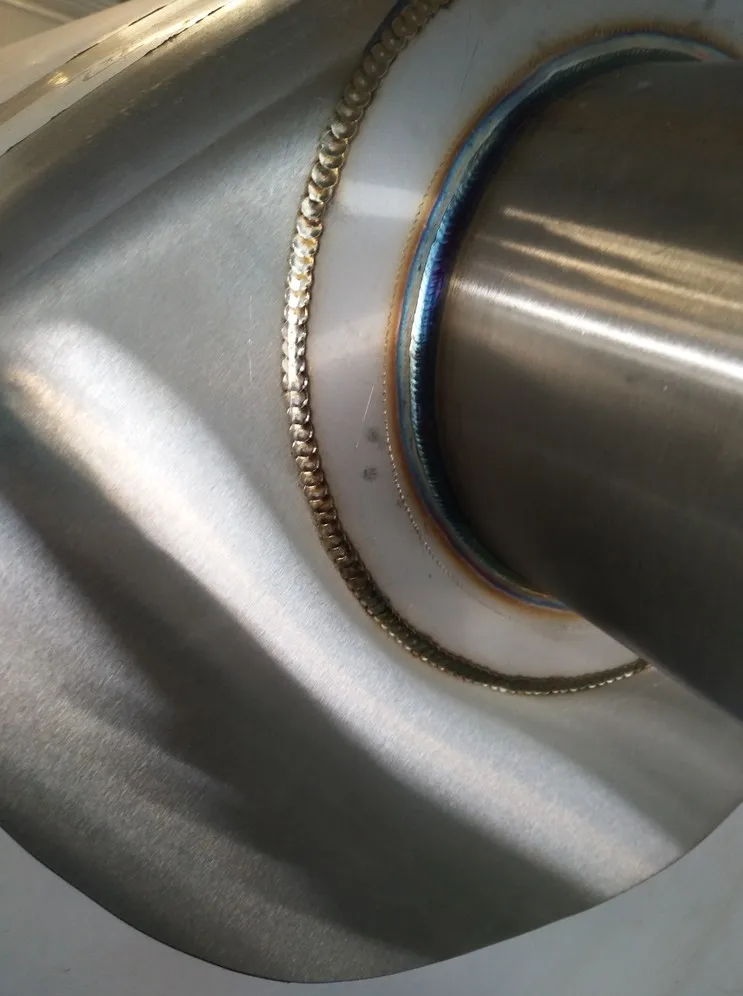

-100% TIG welding with pure argon gas shield
-Interior Finish: Fine polishing to 0.4~0.6μm without dead corner

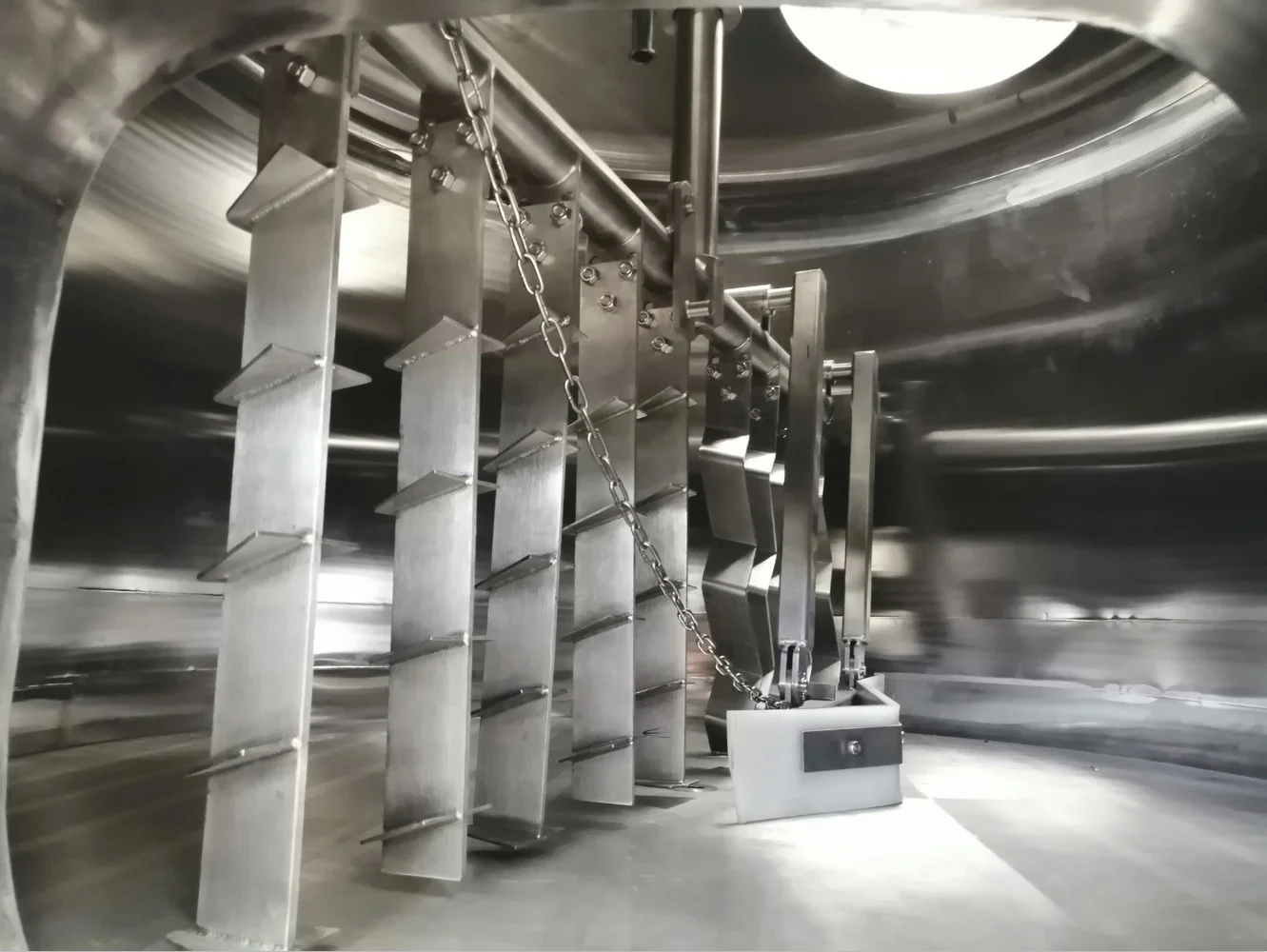

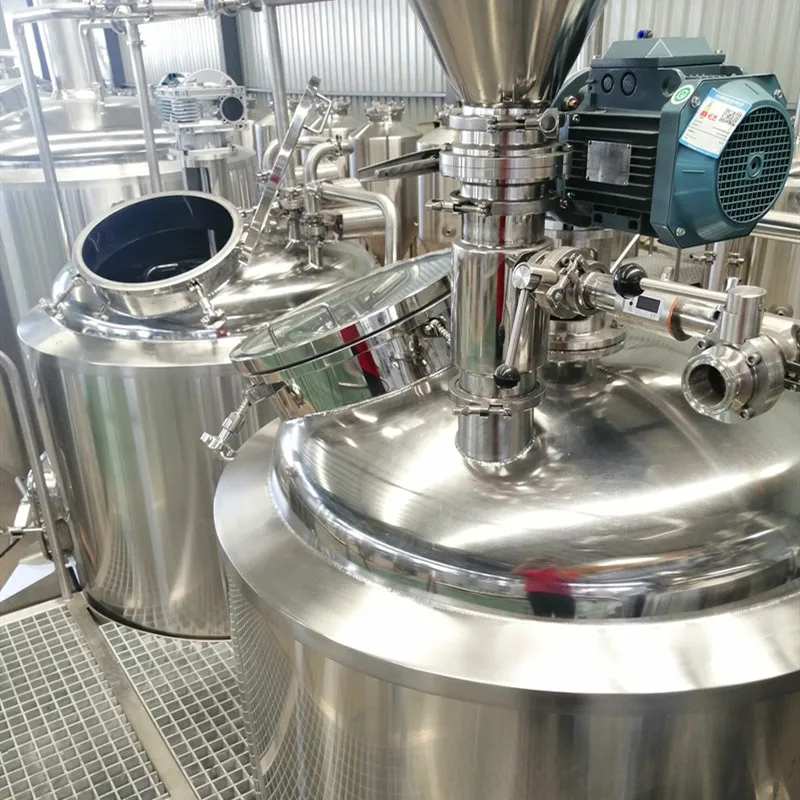

-Agitator motor (UL listed)

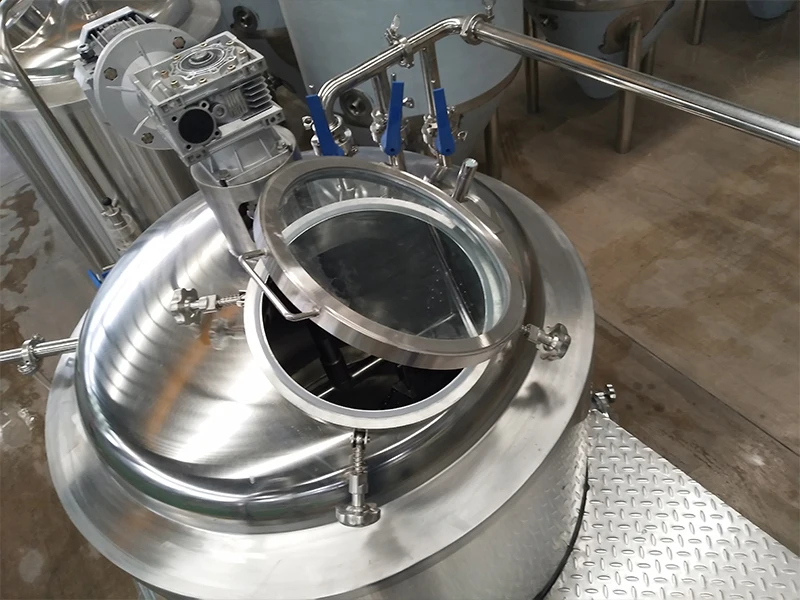

-Top mounted manway with glass

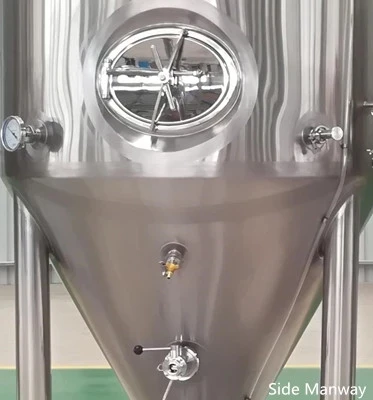

-Side manway for spent grains
-Easy-clean and detachable sparging arm

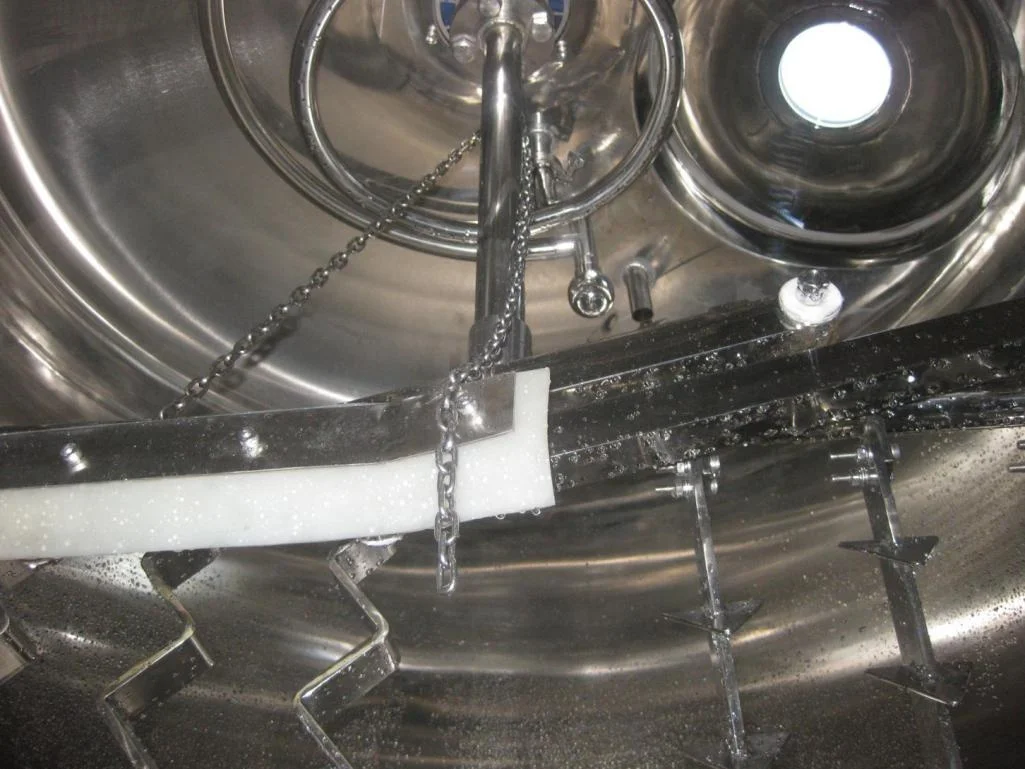

-Easy-clean and detachable false bottom, thickness 5.0mm, tapered-profiled perforations (wedge shape)
-360° CIP spraying ball, 2 pieces
-360° CIP spraying ball, 2 pieces
-Thermowell with high accuracy temperature sensor: PT100
-4 support legs with height adjustable pad. ************************************************************************************************************

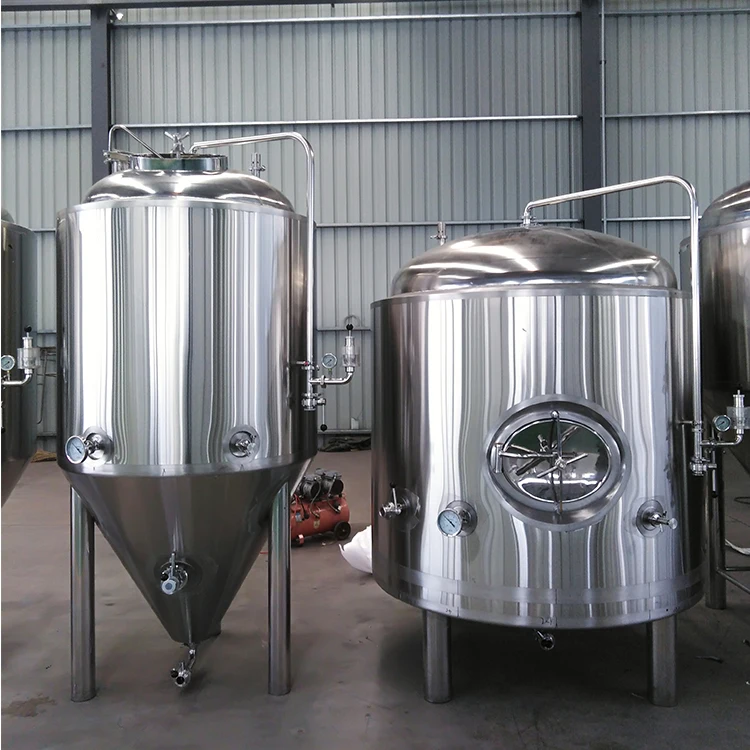

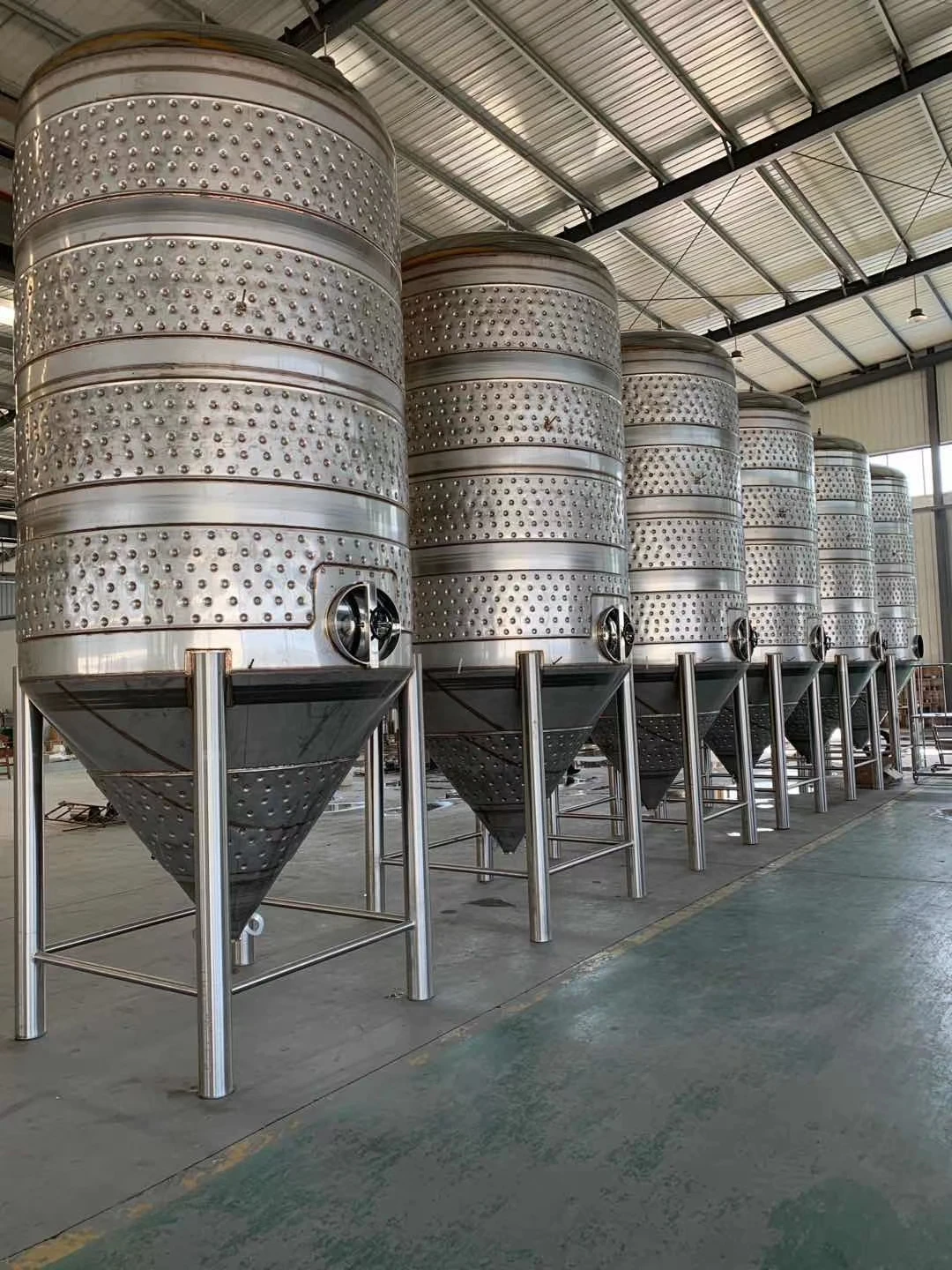

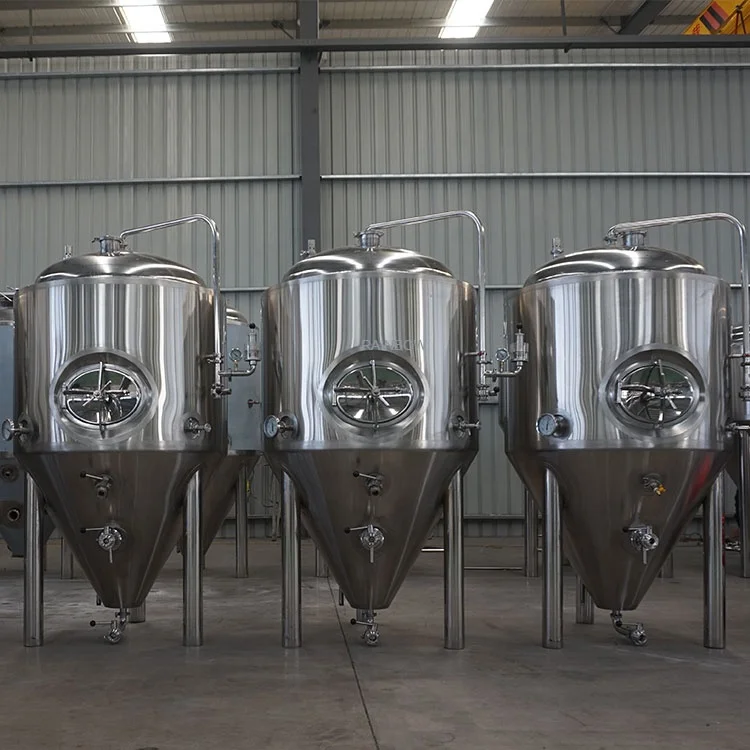

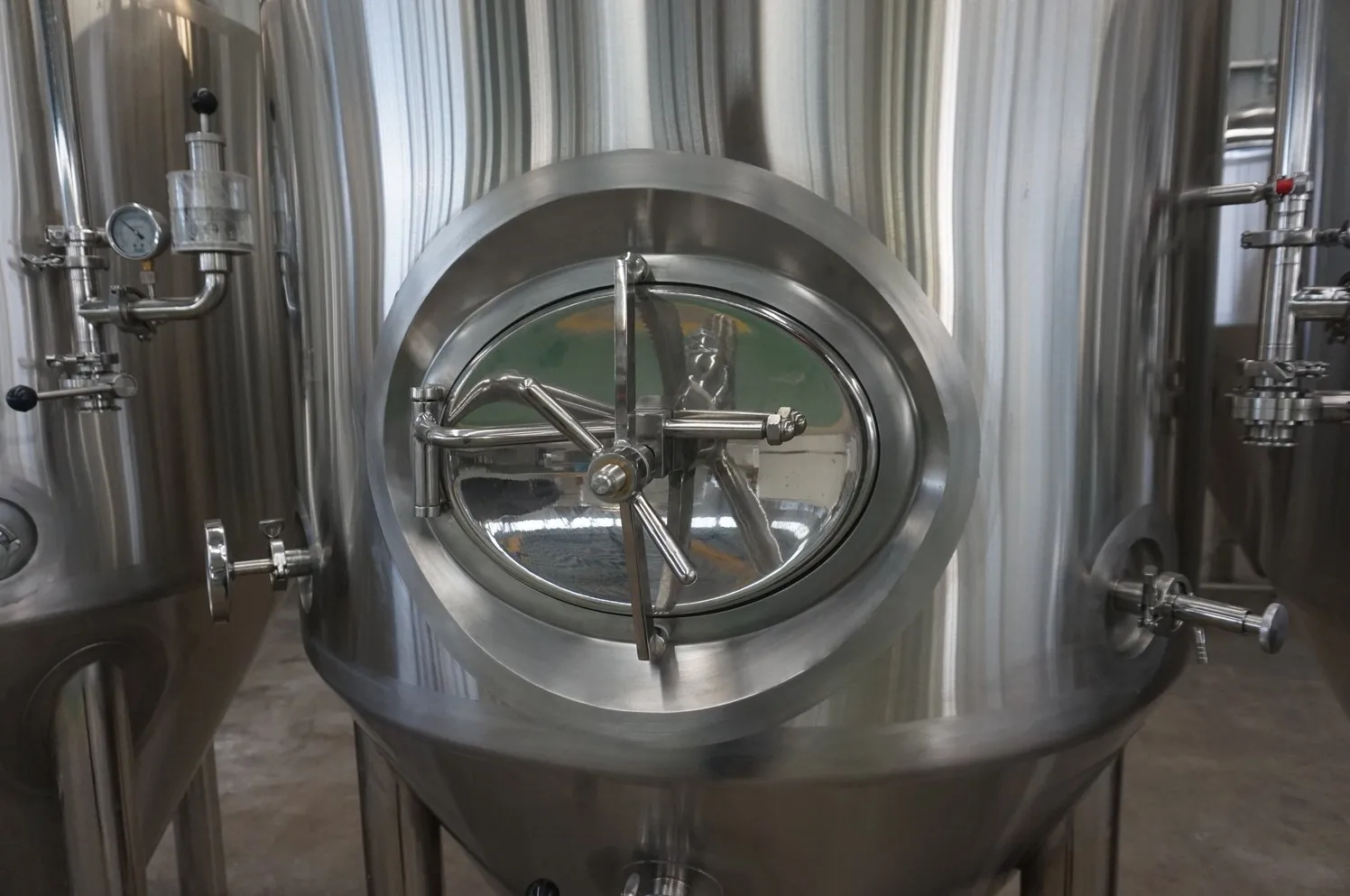

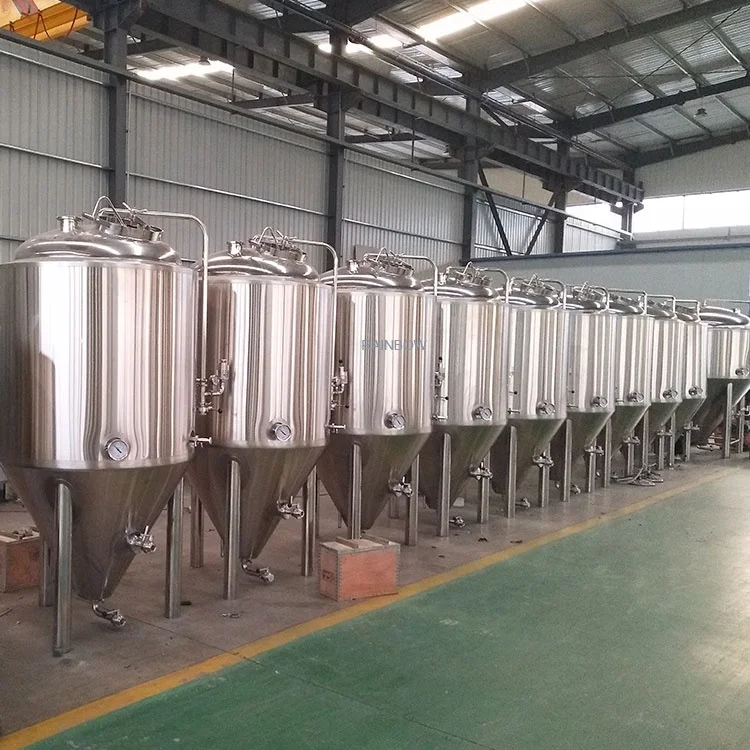

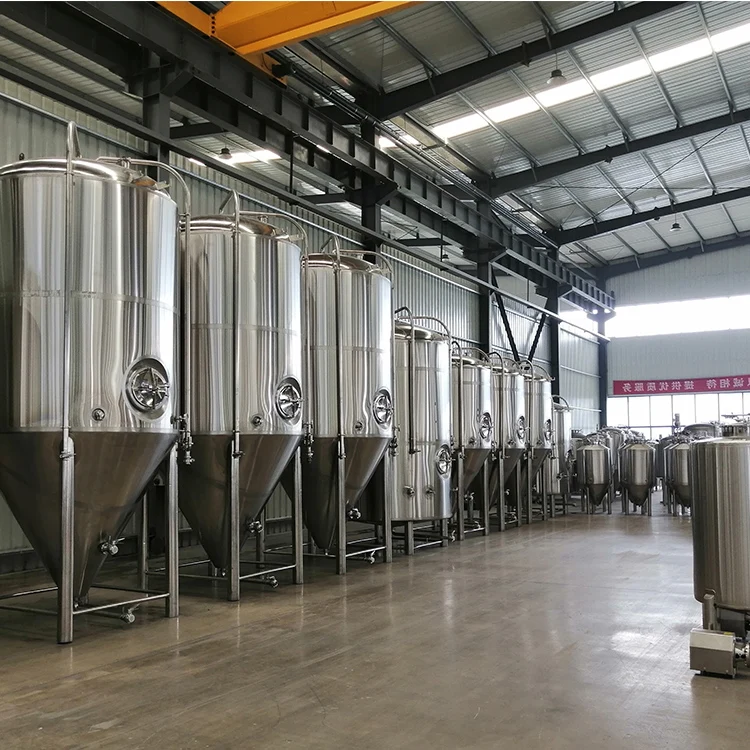

2. Fermentation System-beer fermenter/fermentation tank, unitank
Total capacity: 1250L
Useful capacity: 1000L
Dimension: φ1200*2650mm
-Inside wall, SUS 304, thickness: 3mm
Useful capacity: 1000L
Dimension: φ1200*2650mm
-Inside wall, SUS 304, thickness: 3mm
-Outside wall, SUS 304, thickness: 2mm
-Cooling jacket: both on cylinder and cone parts, SUS
304 -Insulation: Polyurethane, thickness:100mm
304 -Insulation: Polyurethane, thickness:100mm
-Dome top and cone bottom,60 degree

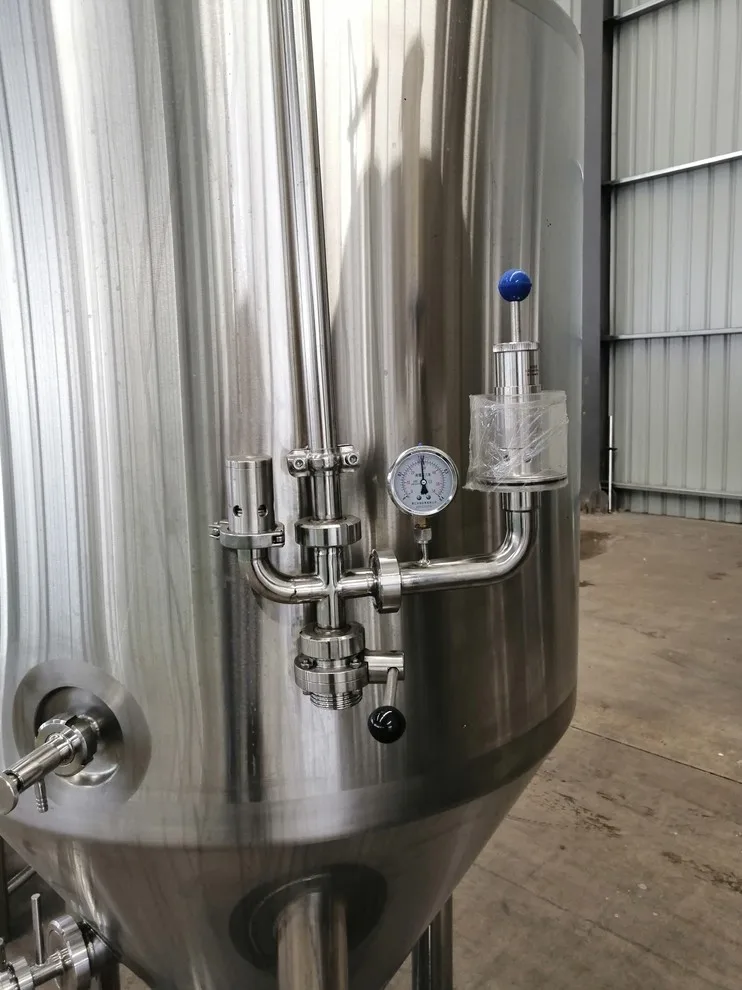

-Working pressure: 0.2Mpa -Relief/vacuum valve
on top -Sample valve
on top -Sample valve
-Rotating racking arm with butterfly valve
-Inside CIP arm with 360° CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Discharge arm with butterfly valve

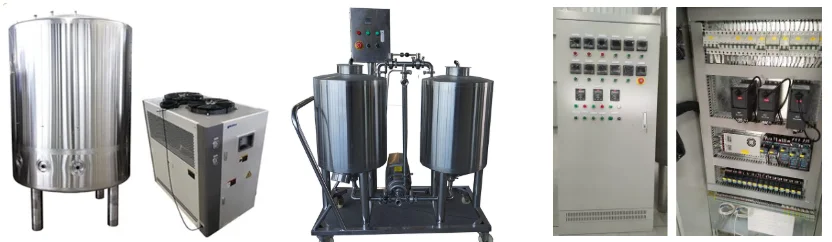

3. Glycol cooling system Turnkey complete beer brewing system Glycol water tank -Interior Shell: SUS304, T3.0mm; -Exterior Shell: SUS304, T 2.0mm; -Insulation: PU, T 100mm -100% TIG welding with argon gas shield -Thermowell with high sensor: PT100 Glycol Chiller -Condenser type: Efficient inner fin coil type -Noise level:＜61db Glycol Water Pump: CE/UL Listed | 4. CIP system-Alkali tank -Sterilization tank -Shell: SUS304; T 2mm -Interior Finish: 0.4~0.6μm/Mirror Polishing -Pipelines and valves -CIP Pump: CE/UL Listed -CIP reinforced hose Optional Heating Elements Controller Tank added | 5. PID/Siemens PLC system -Mashing temperature setting -Boiling temperature setting -Lautering temperature -pumps speed controlling by VFD, DANFOSS -Mash agitator speed controlling by VFD, DANFOSS -HLT pump controlling -Fermentation temperature setting -Cooling system Controlling |

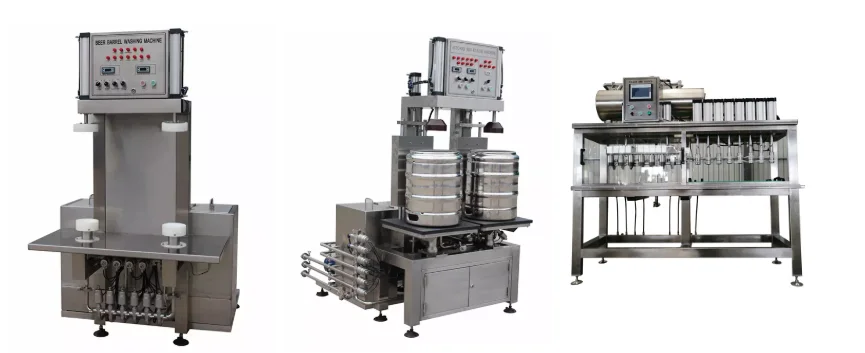

Keg washing machine Power: 2.2kw Capacity: 80-100 kegs/hour Suitable for: 5L-50L kegs, US standard kegs Keg filling machine Power: 0.2kw Capacity: 80-100 kegs/hour Suitable for 5L-50L kegs, US standard kegs | Bottling machine(filling & capping) 1.Automatic control by PLC, all parameters can be adjusted. 2.Filling and capping process can be finished one time. 3.With CO2 pressurization 4.Adopt isobar filling method and with unique pressure maintaining system，performance stable and reliable, beer loss minimum. 5.With pressure compensator, to guarantee a stable filling process. |

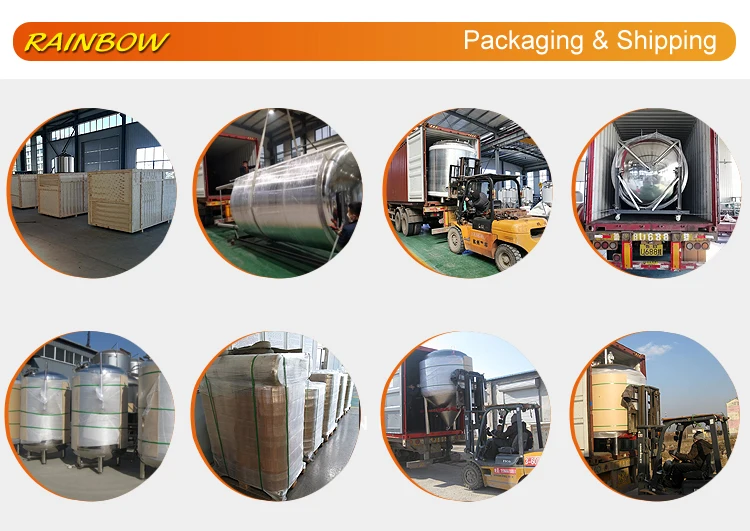

Packing & Delivery
Full containers or LCL shipping, the brewing equipment packedwith PVC film, or wooden case, or steel frame.
1. All brewing equipment fermentation tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All brewing eequipment, fermentation tanks accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all brewing/fermentation equipments will be well fixed to the containers.
1. All brewing equipment fermentation tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All brewing eequipment, fermentation tanks accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all brewing/fermentation equipments will be well fixed to the containers.
FAQ
1. Are you factory?
-We are factory manufacturer for turnkey beer brewing equipment, fermentation equipment, micro brewery system with over 15 years experience for complete turnkey beer brewing system.
2. Heating sources?
-Electric/steam/gas fire/RIMS/HERMS
3. Copper cladding brewhouse?
-Yes, Red copper brewhouse cladding is available
4. CE/UL Listed control panel?
-Yes, Both CE UL certificated
5. Door to door deliver and destination customs?
-Yes, we have recommendation forwarders to do the task.
6. MOQ?
-MOQ is one tank, like fermenter or brew kettle, etc.
Contact US:
-We are factory manufacturer for turnkey beer brewing equipment, fermentation equipment, micro brewery system with over 15 years experience for complete turnkey beer brewing system.
2. Heating sources?
-Electric/steam/gas fire/RIMS/HERMS
3. Copper cladding brewhouse?
-Yes, Red copper brewhouse cladding is available
4. CE/UL Listed control panel?
-Yes, Both CE UL certificated
5. Door to door deliver and destination customs?
-Yes, we have recommendation forwarders to do the task.
6. MOQ?
-MOQ is one tank, like fermenter or brew kettle, etc.
Contact US:
James
Sales Manager
JINAN RAINBOW MACHINERY CO., LTD.
Add:Hisense Valley, Fenghuang Rd., Gaoxin Dist., 250101 Jinan, Shandong, China
Tel/Fax: +86-531-66592692
Whats'app/Mobile: +86-18678771187
Email: rainbowsales@hotmail.com
Sales Manager
JINAN RAINBOW MACHINERY CO., LTD.
Add:Hisense Valley, Fenghuang Rd., Gaoxin Dist., 250101 Jinan, Shandong, China
Tel/Fax: +86-531-66592692
Whats'app/Mobile: +86-18678771187
Email: rainbowsales@hotmail.com
