Deya rotary trommel sieve introduction
A rotary trommel sieve, trommel screen, also known as rotary screen, is an essential unit which is used mainly in the mineral and solid-waste processing industries. It consists of a perforated cylindrical drum which is normally elevated at an angle at the feed end. Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Rotary trommel sieve, trommel screen features comparing with vibrating screen
Trommel screens are cheaper to produce than vibrating screens. They are vibration free which causes less noise than vibrating screens. Trommel screens are more mechanically robust than vibrating screens allowing it to last longer under mechanical stress.
However more material can be screened at once for a vibrating screen compared to a trommel screen. This is because only one part of the screen area of the trommel screen is utilised during the screening process whilst the entire screen is used for a vibrating screen.
Trommel screens are also more susceptible to plugging and blinding, especially when different sized screen apertures are in series. Plugging is when material larger than the aperture may become stuck or wedged into the apertures and then may be forced through which is undesirable. Blinding is when wet material clump up and stick to the surface of the screen. The vibrations in the vibrating screens reduce the chance of plugging and blinding.
Rotary trommel sieve, trommel screen technical parameter
| Model | Capacity (T/H) | Motor (KW) | Drum size (mm) | feed size (mm) | Overall size (mm) | Weight (KG) |
| GTS-1015 | 5 to 20 | 3 | 1000x1500 | less than 200 mm | 2600x1400x1700 | 2200 |
| GTS-1020 | 10 to 30 | 4 | 1000x2000 | less than 200 mm | 3400x1400x2200 | 2800 |
| GTS-1225 | 20 to 80 | 5.5 | 1200x2500 | less than 300 mm | 4200x1500x2680 | 4200 |
| GTS-1530 | 30 to 100 | 7.5 | 1500x3000 | less than 300 mm | 4500x1900x2820 | 5100 |
| GTS-1545 | 50 to 120 | 11 | 1500x4500 | less than 400 mm | 6000x1900x3080 | 6000 |
| GTS-1848 | 80 to 150 | 15 | 1800x4800 | less than 400 mm | 6500x2350x4000 | 7500 |
| GTS-2055 | 120 to 250 | 22 | 2000x5500 | less than 400 mm | 7500x2550x4800 | 9600 |
| GTS-2265 | 200 to 350 | 30 | 2200x6500 | less than 400 mm | 8500x2750x5000 | 12800 |
Note: Above capacity is for reference, different materials with different capacity. Please contact Deya for more information.

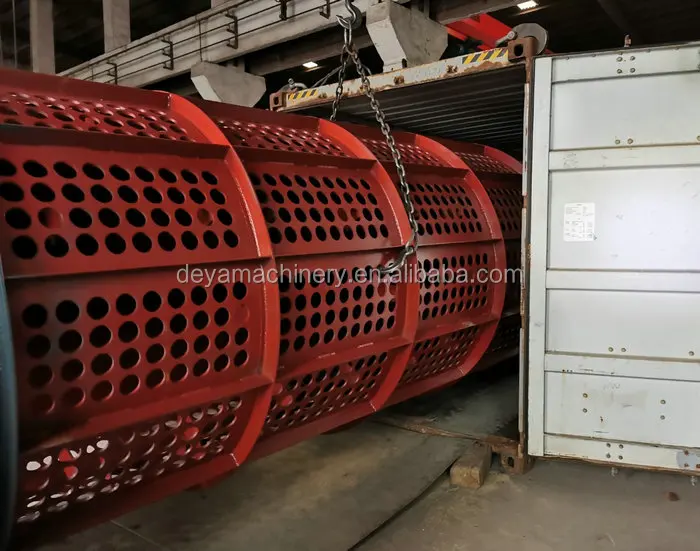

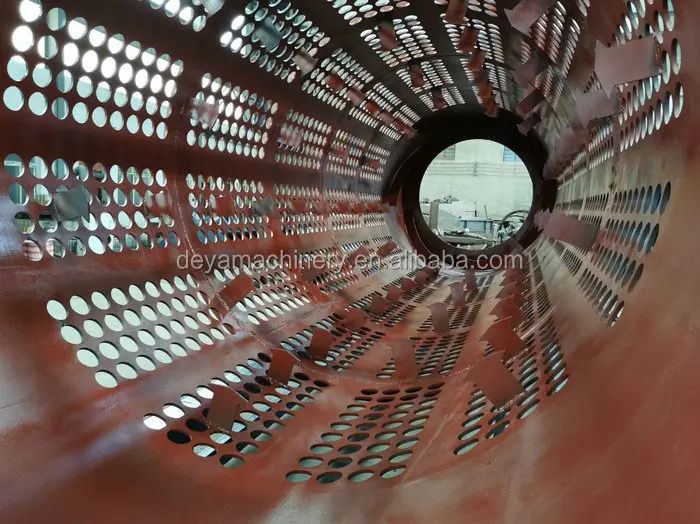

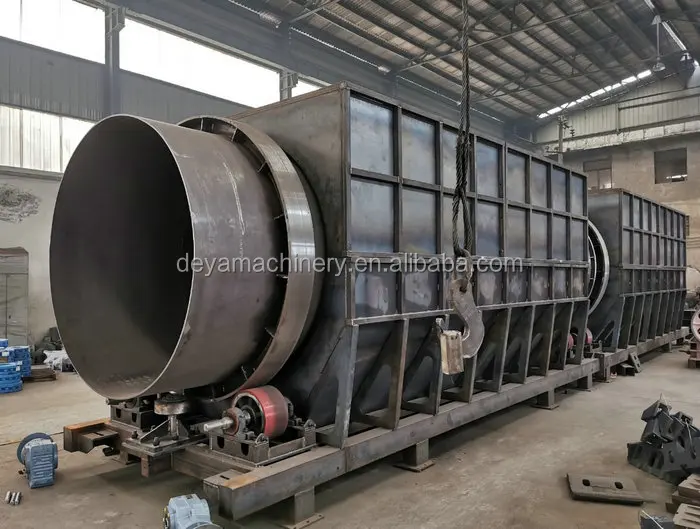

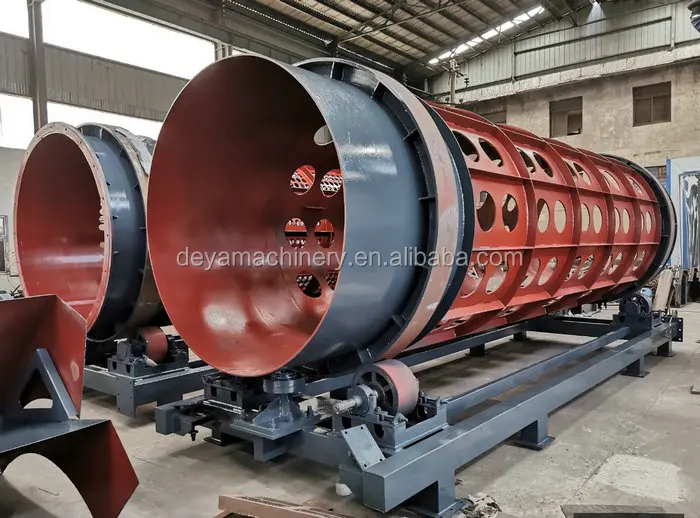

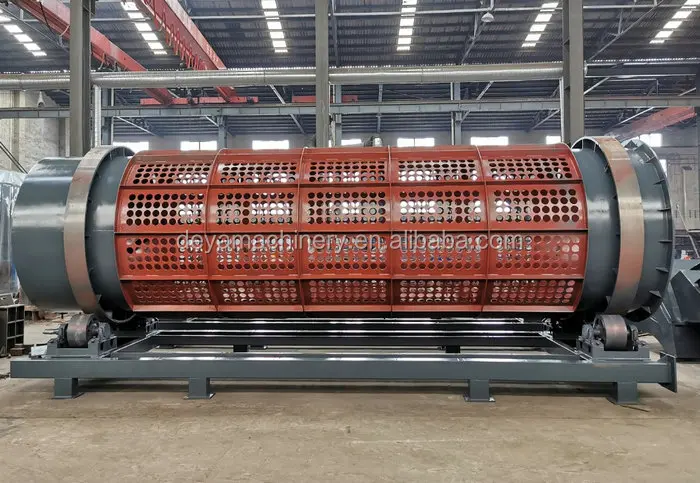

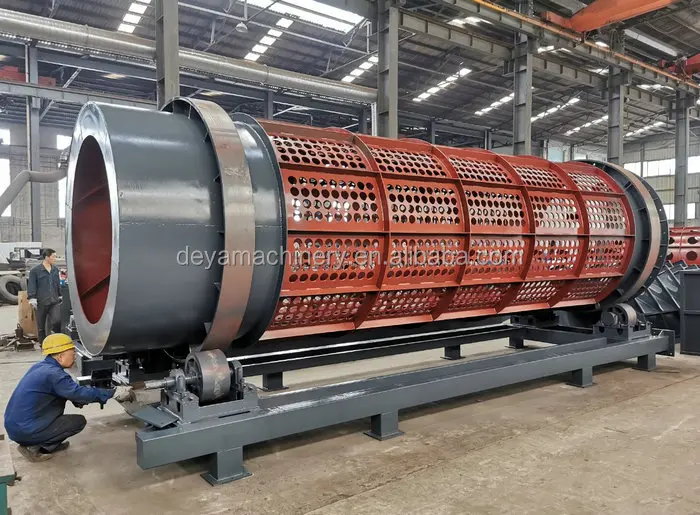

Pictures of rotary trommel sieve produced by deya machinery
Packaging & Shipping
Deya Machinery offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Deya workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Our Services
-Pre-sale services
Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.
-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as the clients’ request. Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
Company Information
Henan Deya Machinery Co., Ltd. is a professional manufacturer of crushing equipment, mineral processing equipment, construction machinery equipment and their spares; the company was established in early 1990’s with an area of one hundred and twenty thousand square meters which includes forty thousand square meters of standard industrial workshop.
Deya Machinery lays much emphasis on quality and service; the company has acquired ISO 9001: 2008 certificate, and it has independent quality control department and after sale service department. Main equipment includes Sand making machine, Cone crusher, Jaw Crusher, Vibrating screen, Ball Mill, complete crusher plant and mineral process plant. Main processing equipment includes φ8.0m, φ5.0m hobbing, φ6.3m, φ5.0m heavy vertical lathe, φ3.5m, φ2.5m CNC vertical lathe, φ6.0m × 18.0m barrel sleeper, φ220mm, φ160mm boring, φ160mm boring and milling machine, CNC cutting machine, milling machine, automatic welding center, 60mm × 3m Bending and other NTU, fine processing equipment.
As a customer oriented company, Deya People with high level of professionalism, and responsibility; total satisfaction from clients becomes the top priority, and long-term cooperation is what we always sought and cherished for. The products have exported to over 50 countries like Indonesia, Philippines, Vietnam, India, Pakistan, Turkey, Tanzania, Zambia, South Africa, Ghana, Peru, Bolivia, Mexico, Chile, etc. We sincerely hope can establish business cooperation with your esteemed company in the long run.
FAQ
1. Quality control
All the equipment offered by Henan Deya Machinery Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Deya Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.
2. Way of payment
Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
3. Delivery time
Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).
5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.
6. Installation
Deya has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety.
7. Equipment warranty
Equipment from Henan Deya Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
