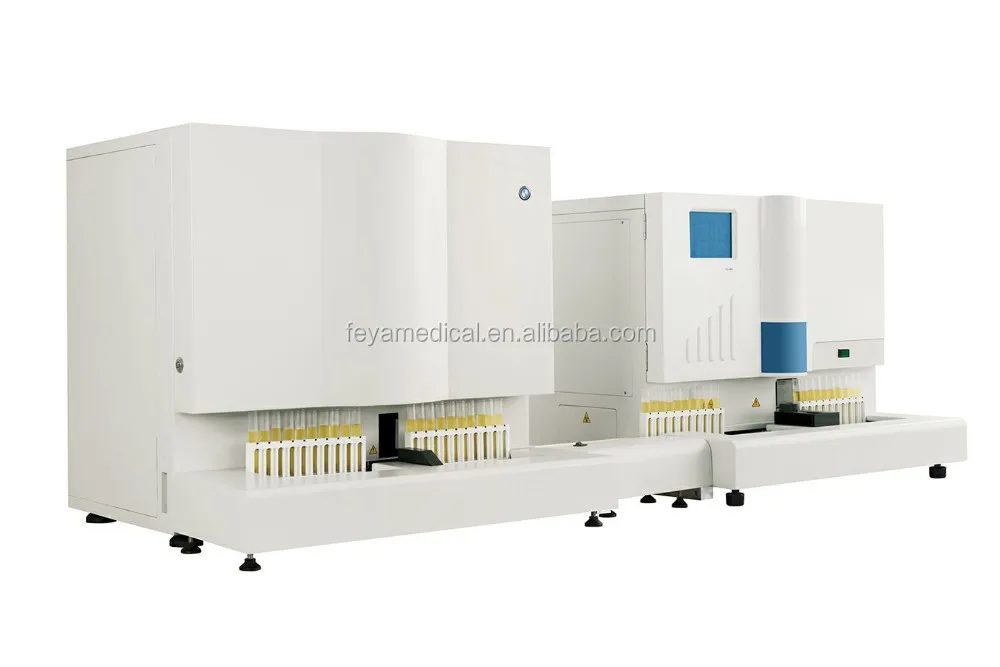

FY DJ 8602 Automatic Urine Chemistry Analyzer and Urine Sediment Analysis Workstation

FY-DJ-8602 Automatic Urine Chemistry Analyzer and Urine Sediment Analysis Workstation

Main Specification:

1. Principle: Apply the world-level neuron model and use the technology of “Machine

vision”+ “ SVM” ( Support vector machine ) to achieve the specimen image

segmentation and the automatic identification, classification and counting of the urine

formed elements.

2. Standardization: Fully comply with the requirements of NCCLS and CCCLS

recommendations on the standardization of the urinary sediment examination so as to

develop the urinary sediment examination toward the standardization and favorably

guarantee the quality control management of the urinary sediment examination.

Our company is ISO9001/ISO13485 certified.

Quality control: Standard quality control product is provided so that the software can

generate the standard quality control chart automatically.

3. Leading Parts and Patents:

1. Fully-automatic recognition software (indicated in the product registry)

2. Through the automatic focusing, tracing and collection of the high speed camera

system(More than 600 frames / specimen), finish the amplification, segmentation and

identification of the urine formed elements so as to effectively quicken the

examination speed and save the time.

3. Focus-free technique: compared with the traditional auto focus technique, it is more

time-saving

4. Dual microcomputer processing system: compared with the traditional multichannel,

the speed is increased for over 30%.

5. The “walk away” technique is adopted so that the specimen can be processed

automatically during the whole course and an alarm will be given upon completion of

specimen processing. The unattended operation is realized in deed.

6. Function of automatic refilling: the system itself can judge the quantity of cleaning

liquid and maintenance liquid required for machine maintenance and refill it when

necessary (this function is applicable for hospitals needing a large number of

specimens)

7. Technique of sample adding with peristaltic pump: compared with the traditional

injection pump, it is simpler and can avoid effectively the crossed contamination.

8. Noise-free imaging: the internationally advanced technique of optical imaging can

recover the original form of the substance receiving the microscopic examination to

the utmost extent, which can avoid the image distortion which is frequently met in the

traditional microscopic examination system of urinary sediment.

9. The guide screw can run X/Y/Z all round to capture the clearer images

10. Double channels and high & lower lens can shoot visible cells from ten fields of vision,

180° all round, with higher recognition rate. The technique of negative sieving can

automatically sieve the negative specimen and recognize the positive ones

automatically, increasing the detection speed

4.Examination Items:

1. Urine formed elements in the urine

2. Classification of poikilocyte (red blood cell phase)

3. Other elements required by a clinician (pectoral ascites, cerebrospinal fluid, etc.)

5. Specimen Handling:

1. Samples are injected with the internationally universal 5X10 tube banks: put and

move automatically the test tube rack to judge the availability of specimen. The rack

will skip automatically when no specimen is available and an alarm will be given

when the rack is filled up.

2. Automatic injection, cleaning, dilution, mixing, dyeing (optional), focusing,

collection, segmentation, identification and calculation. The whole process is really

automatic.

3. Rapidly screen out the negative specimens, actively to automatically identify the

positive specimen and conduct the classification and counting of the urine formed

elements of the urinary sediment.

4. 3D sample-adsorption mechanism can automatically mix the specimen evenly and the

specimen is fed in a photo-electric sensing way

5. High-precision fluid flow control technique allows the specimen run to the counting

module accurately at a uniform velocity

6. Speed:

1. Examination speed: T≤60(indicated in the product registry) seconds per specimen,

examine 60~100 specimens per hour;

2. Speed of specimen test tube position switch <0.1s.

7. The function of emergency treatment: the specimen for emergency treatment is

entered in with priority. It can be detected as soon as arrives. There is no need to

interrupt the system

8. Specimen handling: The specimen can be directly put on the device if it is the initial

urine or examined if the urinary sediment. Two modes you can have either.

9. Volume of specimen: Minimum 2ml, minimum suction quantity 1.0ml

10. Full-automatic digital microscope control platform:

1. Adopt the international advanced distributed control technology and modular

embedded structure, be capable of automatic adjusting the condenser and brightness

of the lamps and realizing the three-dimensional control of the stage;

2. Focusing range: Min. step of the Axles X, Y and Z of high-precision ≤0.625um, Min.

step of focusing ≤0.04um;

3. To conform to the international trend, capture the image and scan layer by high

speed CCD digital imaging system, thus fully meeting the vision positioning and

greatly increasing the examination speed.

4. The microscope and optical system is dust-free; the platform adopts the non-noise

transmission technology; the step is smaller; the positioning is more precise and the

transmission is stable, thus meeting the high-precision and accurate resetting and

returning standards.

11. Flow counting cell: adopt the advanced international light rubber technology, and the

cavity spacing of the counting cell is controlled within the range of 0.05~0.1mm so as

to reduce the sedimentation time and enhance the examination speed; degree of

parallelism <0.002mm, thus providing the best vision range and best articulation.

12. Full-automatic cleaning of pipe system:

1. The advanced vertical type sample suction needle to rinse the external wall ,so that

the crossed contamination is avoided in detail.

2. Clean the counting cell, pipe system, prime needle inner and outer walls in the

positive and negative directions so as to fully avoid the cross contamination.

13. Training Function: Be equipped with the self-studying function and provide a

large quantity of atlas so as to promote the identification capacity.

14. Detection sensitivity: one objective/ul, no centrifuge detection of specimen, without

omission

15. Detection rate: the detection rate of samples with a concentration of around 5 ul is

above 98%

16. Accuracy: over 95%

17. Repeatability detection: CV%≤5%

18. Crossed contamination: concentration ≤5000 /ul: ≤1 /ul; concentration 5000 ~ 10000

/ul: ≤2 /u

19. Online network function:

1. Adopt bi-directional communication interface;

2. Be capable of connecting with any urine analyzer and automatically delivering the

dry-chemistry test results;

3. It can be networked with the Lis system or His system in the hospitals via the COM or

RJ45 interface, realizing the file sharing

20. Report model:

1. Use the international general measuring unit, i.e., XX piece/ul; comply with the

requirements of the urinary sediment examination standard of the Ministry of Health.

2. The report can be edited and customized according to the needs with flexible

models.

3. The report result are the integration of the dry-chemistry test results of the urine

analyzer, data and image examined by the microscope for the urinary sediment and

the clinical information of the patient so as to facilitate the doctor to master more

comprehensive information about the patient and facilitate the patient to own their

right to be informed.

21. Number of data storage: ≥600000

22. Configuration requirements: the built-in high performance quad-core processor, mass

hard disk space, 19-inch liquid crystal display and laser printer.
