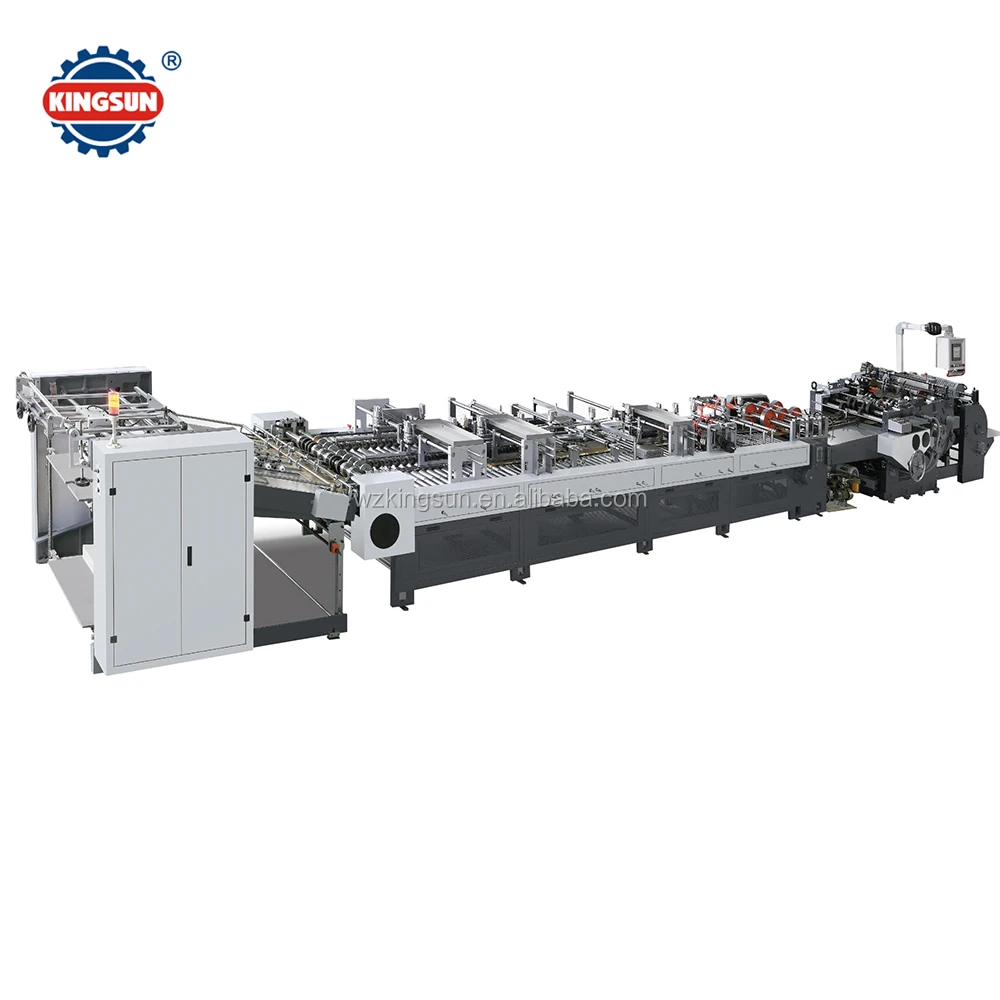

KB 1040 Paper shopping bag making machine for sale New

Product Overview

Description

KB-1040 Paper shopping bag making machine for sale

Features:

1. Sheet-fed, paper can be printed or non-printed.


2. Applicable paper: Kraft paper, art paper, duplex paper, white paperboard, gray paperboard (including laminated paper)


3. Main processes: automatic paper feeding to side guide for positioning; crease it via rolling device; then one-side gluing, tube folding & forming; bottom folding, horizontally creasing the line, bottom opening, gluing & pressing; finally output of finished bags.



Technical specifications:

Model	KB-1040	KB-1240
Bag width	180-350mm	260-450mm
Bag depth	70-150mm	100-180mm
Bag length	290-600mm	380-620mm
Paper width	530-1040mm	620-1240mm
Paper length	290-600mm	380-740mm
Paper range	Kraft paper: 80-200g art paper + PP laminated: 100-200g white paperboard: 180-250g gray paperboard + PP laminated: 150-250g
Speed	40-70pcs/min	40-75pcs/min
Glue type	Water glue (hot melt glue system optional for side gluing)
Total power	10kw	13kw
Weight	10T	13T
Overall dimensions (L x W x H)	13000 x 1800 x 1700mm	13300 x 2100 x 1700mm
