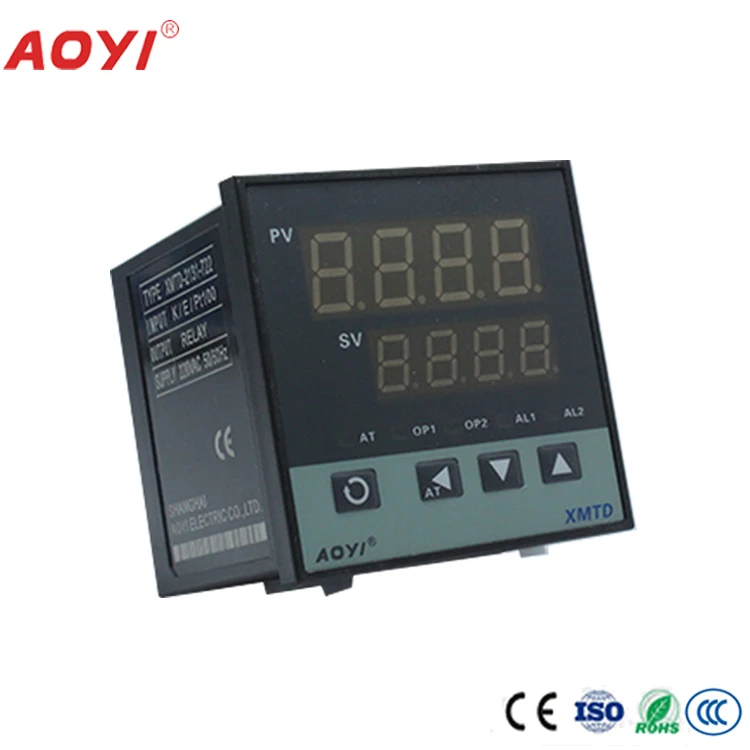

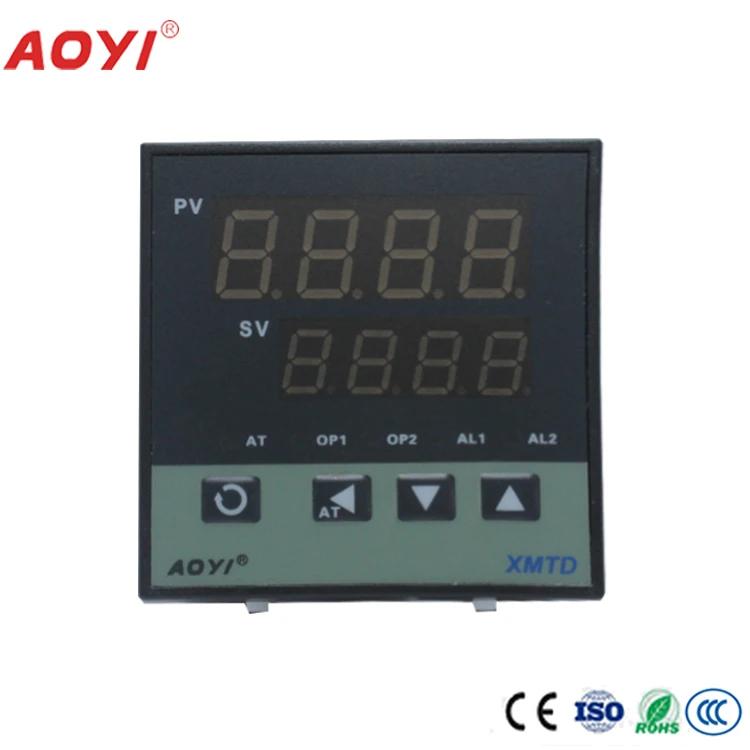

Digital temperature and humidity controller PID Controllers XMTD 2 digital shower temperature control
- Category: >>>
- Supplier: Shanghai Aoyi Electric Co. Ltd.
Share on (60440444206):
Product Overview
Description
Model | XMTD-2131-721 |
Dimensions(mm) | 72*72*76 |
Temperature Control Range | Corresponding to the specifications of the applicable range, the default maximum 400°C |
Input Specification | K, J, E, S, N, T, B, R, Wre |
Precision Class | 0.5Class |
Ambient Temperature | -5°C~40°C |
Working Voltage | AC220V 50Hz (Other Voltage to be ordered) |
Alarm Output | One upper limit Alarm Alarm acts when at deviation of 10 (changable) One lower limit Alarm Alarm acts when at deviation of 100 (changable) |
Work Power | Transformer AC220V±10% |
Contact Capacity | 250VAC/3A (resistive) |
Contact Electrical Life | >10x104 Times |
Output | Relay contact ON/OFF |
Main Usage | controlling temperature of AC contacter or ON/OFF in intermediate relay |
Specification
Introduction
XMT Series Intelligent Temperature Controller adopts SCM for core which Micro anti-interference, large-capacity and advanced PID self-tuning method, and advance SMT technic, and the red/green double rows display measurement-value and setting-value at the same time.use advance components with software,
multiple digital filter technology,stable performance, higher measurement accuracy and strong
anti-interference. Various kinds of parameters can be set in the panel, it can realize various classic or modern controlling technology like two digis, three digits, intelligent PID, and parameter auto-optimization& auto-adjusting according to different require, and is mainly uses in self-control system like machines,chemical,ceramic,light industry,metallurgy petrifaction, petrochemical and heat treatment.
Notice
--Thermal resistance or thermocouple input and measuring range both can be set freely.
--Software adjust zero and full scale, temperature measuring of cold-end alone, amplifier constant-zero, display accuracy is better than 0.2%FS.
--The method of fuzzy theory combine with the traditional PID makes the temperature be controlled quickly and smoothly.
--The method of advanced PID parameter self-tuning saves a third time as compared with ordinary instrument.
--The output signal is optional: relay output, DC12V driver solid state relay, 4-20mA current
--Alarm output: two circuit user-defined alarm output.
Model | XMTD-2131 |
Max Load Current |
|
Input Specifications | Thermocouple: K, J, E Thermal Resistance: Pt100 |
Output Signal | Relay output, Voltage output |
Temp Control Range | (0-400℃ default) K(0-1350℃) ,J(0-1000℃) ,E(0-1000℃),Pt100(-200-650℃) |
Precision | 0.5 class(±0.5%F+1) |
Sampling Rate | Twice per second |
Regulating Methods | Intelligent PID control, according to the value of P,I,D parameters, we can get P(P=0 is on-off control),PI,PD,PID regulating mode |
Alarm function (optional) | Upper limit, lower limit, deviation value, absolute value |
Power supply | 220AC±10% 50/60HZ ( for customization) |
Power Consumption | ≤3VA |
Contact Capacity | AC250V 2A (Resistive Load) |
Contact Life | >10x104 times |
Main Usage |
|
General Information | |
Ambient temperature | -10-50℃ |
Relative humidity: | ≤85%RH (non-corrosive) |
Storage temperature | -25~75℃ |
Dimension | 72*72*76 mm |
Mounting size | 68*68mm |
Installation Mode | Panel Type |
Waterproof level | IP67 |
Dimension
Summary
Widely be used in industries relating with temperature, such as plastic, machinery, chemical industry, ceramic, light industry, metallurgy, heat treatment, etc. XMT series intelligent temperature controller is one kind of intelligent temperature adjustment device with digital temperature display, and it owns reliable power module, advanced PID self-setting methods, fuzzy PID control with advantages of good control effect, simple operation, high reliability and so on.
Temperature controller types when divided by main control output function: relay output, logic electric level output, phase-shift impulse output, zero-crossing impulse output, current output(0-20mA, 4-20mA_, controlled silicon output, etc.
Temperature controller types when divided by input signal: thermocouple input(K, J, E, S, N, T, B, R, WRe), thermal resistance input (Cu50, Pt100), linear voltage signal input(0-5V,1-5V), linear current signal input(0-10mA,0-20mA 4-20mA, outward shunt resistance is required).
Input Signal & Measuring Range
|
| Measuring Range | Input Signal | Measuring Range | |
Thermocouple | K | 0°C~1350°C | Thermal Resistance | Pt100(1) | -200°C~650°C |
J | 0°C~1000°C | Pt100(0.1) | -199.9°C~199.9°C | ||
E | 0°C~1000°C | Cu50 | -50°C~150°C | ||
S | 0°C~1750°C | Linear Signal (To be ordered) | 0-5V | -1999~+9999 Can be defined by user | |
N | 0°C~1300°C | 1-5V | |||
T | 0°C~400°C | 0-10mA | |||
B | 0°C~1800°C | 0-20mA | |||
R | 0°C~1750°C | 4-20mA | |||
Rwe | 0°C~2300°C | …… | |||
product recommendati
Company Information
Certifications
Packaging & Shipping
FAQ
1. Q: Can you provide OEM service?
A: Yes, we can.
2. Q: What's the MOQ?
A: For testing purpose, 1pc is ok.
3. Q: Can you provide trade assurance service?
A: Yes, we are member of the Alibaba trade assurance scheme.
4. Q: What's the lead time?
A: General lead time is 15 days after payment.
5. Q: What's your waranty?
A: We provide 12 months warranty against manufacturing defective.
