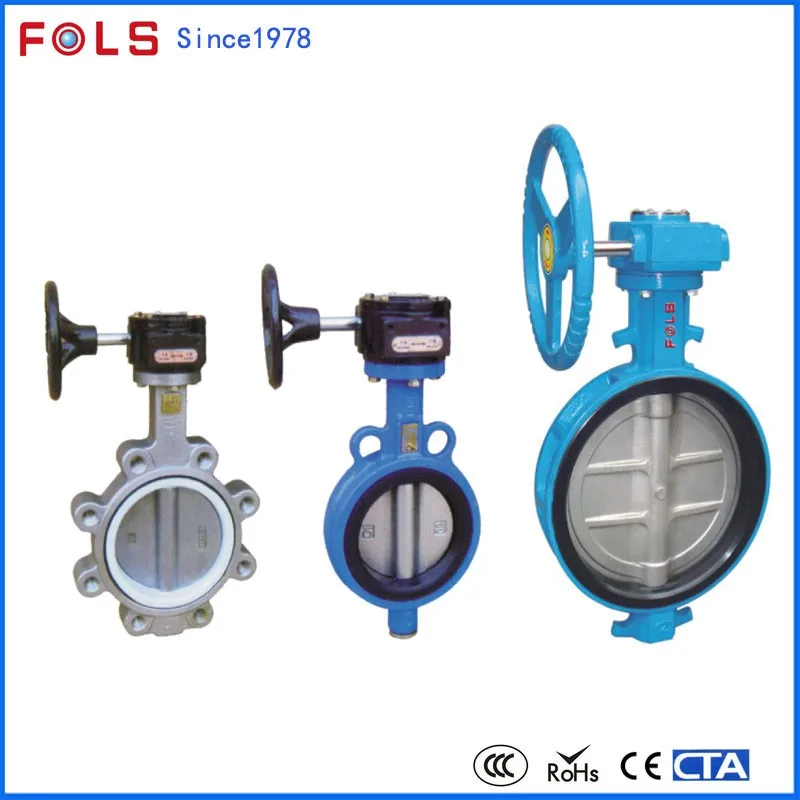

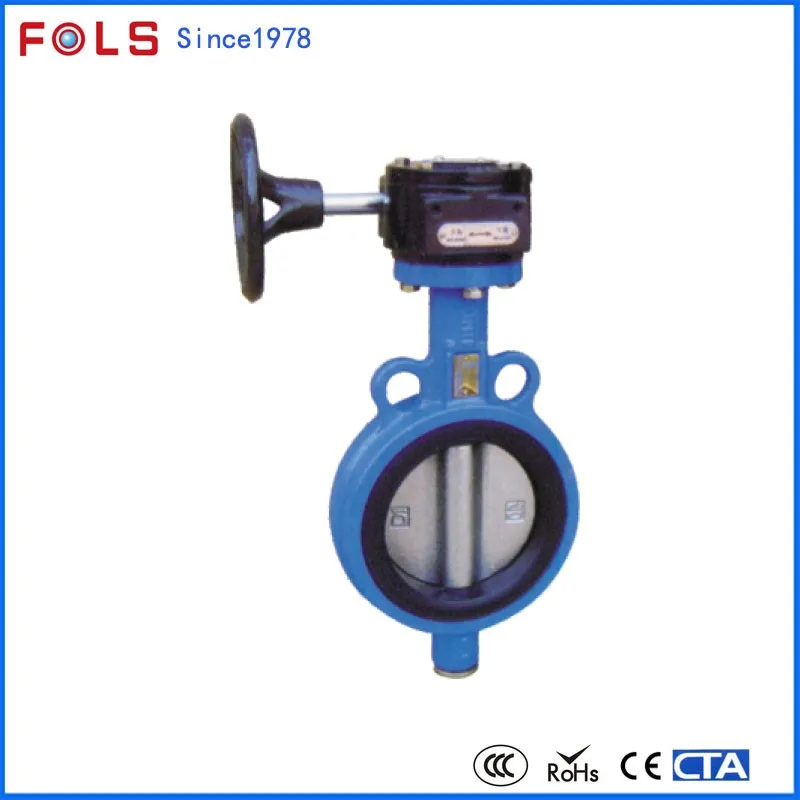

wafer type butterfly valves with worm gear box

Product Overview

Description



wafer type butterfly valves with worm gear box



Parts Name	Material
Valve body	Dutile iron, stainless steel, Cast Seel
Valve seated seal	NBR, PTFE, EPDM
Valve disc	Stainless steel
Valve stem	Stainless steel
Bonnet bush	Bronze



Feature of butterfly valve:

   A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. Our FOLS elelctric valve actuator turns the disc either parallel or perpendicular to the flow,  In operation, the butterfly valve is fully open or closed when the disc is rotated a quarter tur,  FOLS electric valve actuator has the  multi-funtion such as: ON/Off function, regulating functhion (whatever you can adjust the dis of butterfly valve), it depens on your technical for butterfly valve.

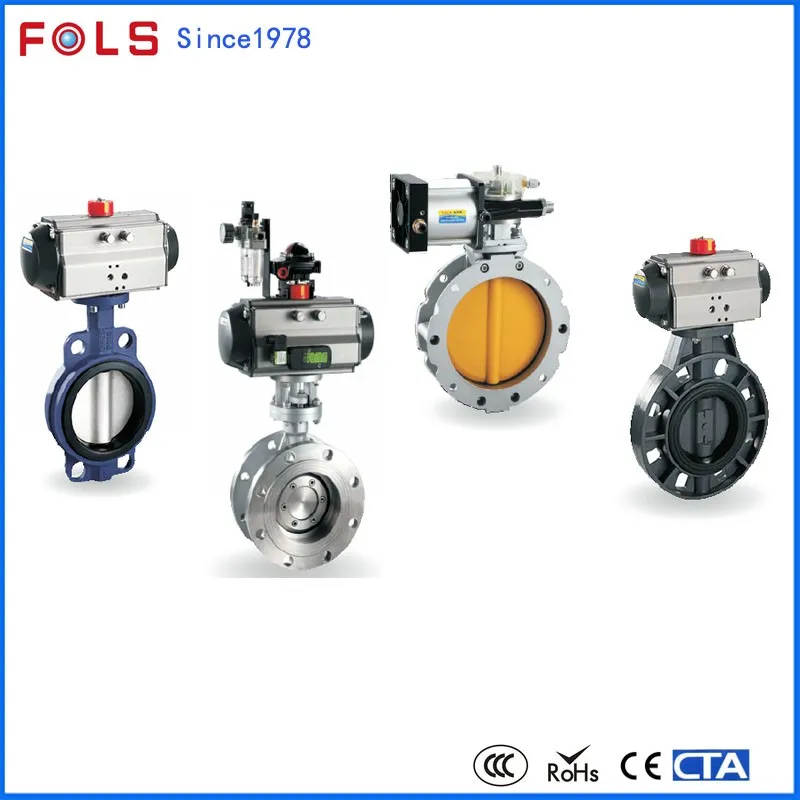

  We have different kinds of butterfly valves, each adapted for different pressures and different usage. The zero offset butterfly valve, double offset butterfly valve, the triple offset butterfly valve. also has different connect type: flange conn- ection butterfly valve, wafer-style butterfly valve, At last: Concentric butterfly valves, Doubly-eccentric butterfly valves(d ouble-offset butterfly valve) Triply-eccentric butterfly valves ( triple-offset butterfly valves), We waiting for your selectin.



Pindly noted: all this butterfly valves can assemble our electric actuators



 Our valve actuators for difference sizes butterfly valve



Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AV220V,       AC24V,     AC110V ,    AV220 ,       AC380,      DC24V (choose options)
Input signal	4-20mA
Output signal	4-20mA
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C  to +60°C
Pilot circuit option	A:with limit position switch style (standard) B: with neutral position switch style ( passive contact) C:with potentiometer style D: both potentiometer and neutral position switch style E: with control module style ( Modulating Applications) F: DC motor control circuit style G:Three-phase current 380V control circuits style H:Three-phase current 380V, both neutral position switch and potentiometer style



















2. Delivery way: By express, By Sea, By air.





3. Payment term: TT Western Union L/C etc.





4. Payment condition:
Payment: T/TSample cost: 100% payment.
Order payment:  T/T , 35% deposits before production, 65% balance to be paid before dleiverying

5. Delivery time:
Sample days: 5 working days
Order days: 15 days





6. Shipping freight are quoted under your requests





7. Shipping port: Guangzhou, Shenzhen





8. Discounts are offered based on order quantities



9. MOQ:1pcs sample
