UNIPOL 1202 Automatic Precision Grinding/Polishing Machine, rock lapping machine

Model:

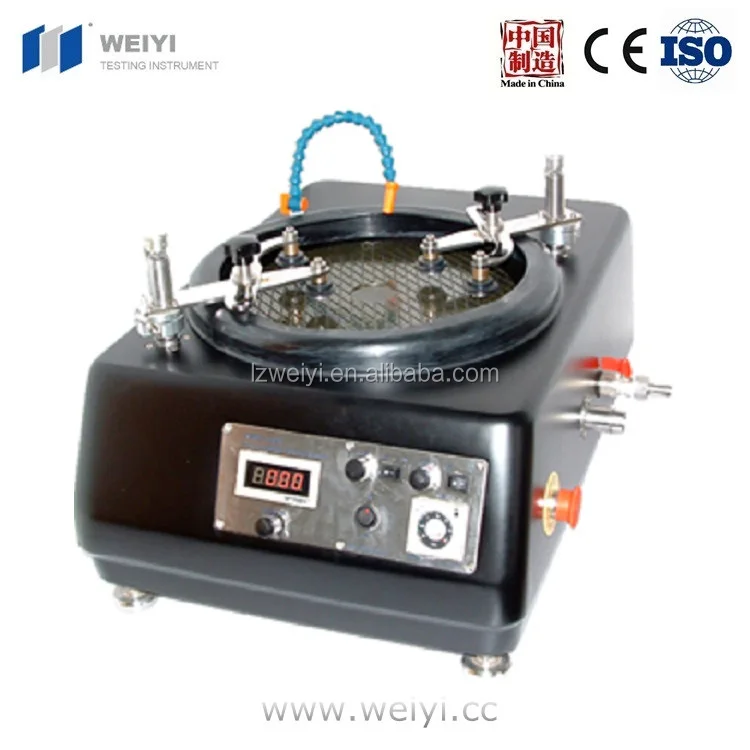

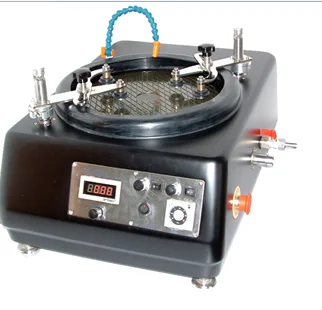

UNIPOL-1202 Automatic Precision Grinding/Polishing Machine

Brief

Introduction:

UNIPOL-1202 Automatic Precision Grinding/Polishing Machine is a new generation product, specialized processing crystal, ceramic, metal, rock, mineral, refractories, PCB board, composite material. It equip with the dia.300mm grinding/polishing disc and two processing step, can be used to grind and polish dia≤100mm or rectangular flat surface. If you choose the right accessories, it can automatic batch product with high quality and surface grinding products. Stepless adjustable swing frequency, realize surface more smooth grinding.

Main Feature:

1. Super flat polishing disc(Flatness is each one 25×25mm less than 0.0025mm)
2. Super precision rotary shaft(Tray runout less than 0.010mm)
3. Working position: 2pcs
4. Digital display stepless speed adjustable

5. Automatic stop working timer
6. Can choose automatic slurry feeder or circulating pump

Technical

Parameter:

1. Grinding disc rotary speed:0—125RPM, Stepless speed adjustable
2. Working position:2pcs
3. Sample holder swing time:0-9 time/min
4. Dia. Grinding disc:300mm
5. Dia. Sample holder:105mm
6. AC power supply:110/220V;power:320W
7. Tray runout:0.02/100mm
8. Mechanical arm can swing:0-99.99H

Specification:

Size:700 x420x350mm  Weight:80kg

Standard

Accessories:

Optional

Accessories :

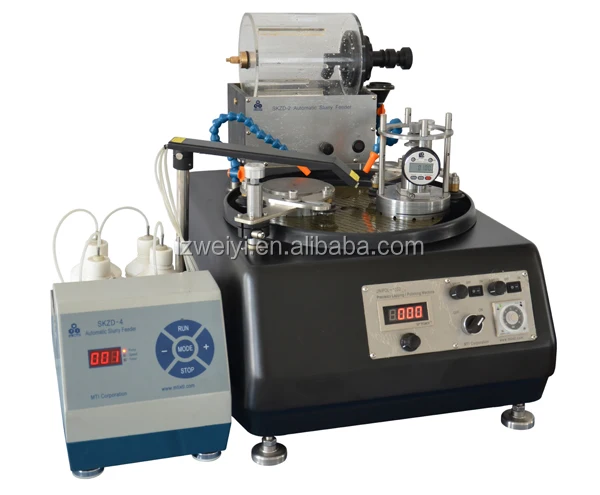

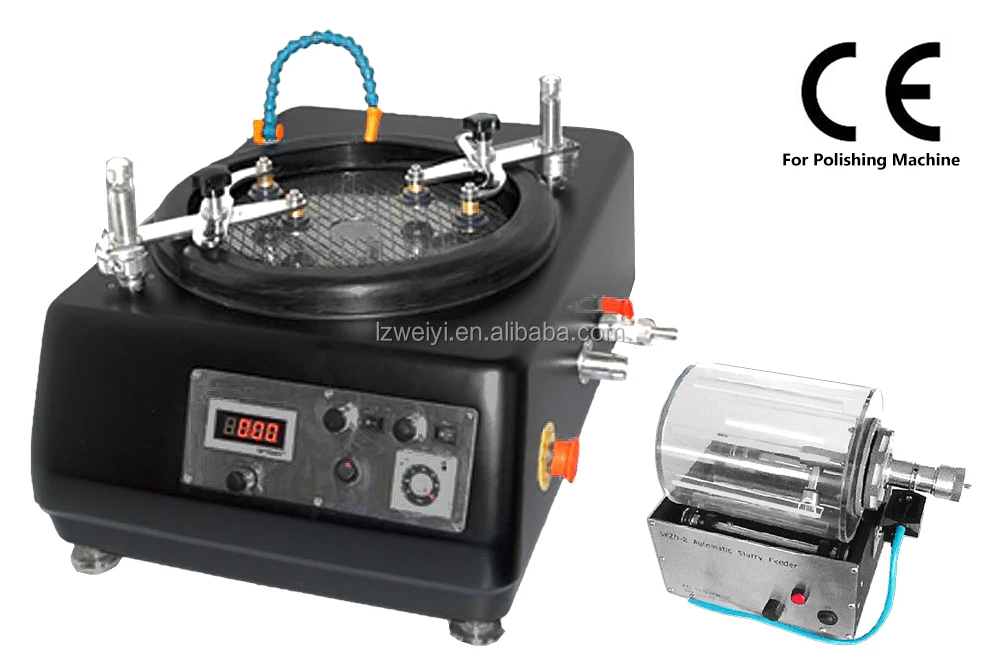

 1. SKZD-2 Automatic slurry feeder
 2. YJXZ-12 Cutting coolant circulating tank with pump
 3. GPC-50 Polishing fixture for precision / automatic thinning and polishing
 4. "00"Precision thickness checker
 5. SKZD-3 Automatic slurry feeder
 6. Ceramic grinding disc
 7. Glass grinding disc
