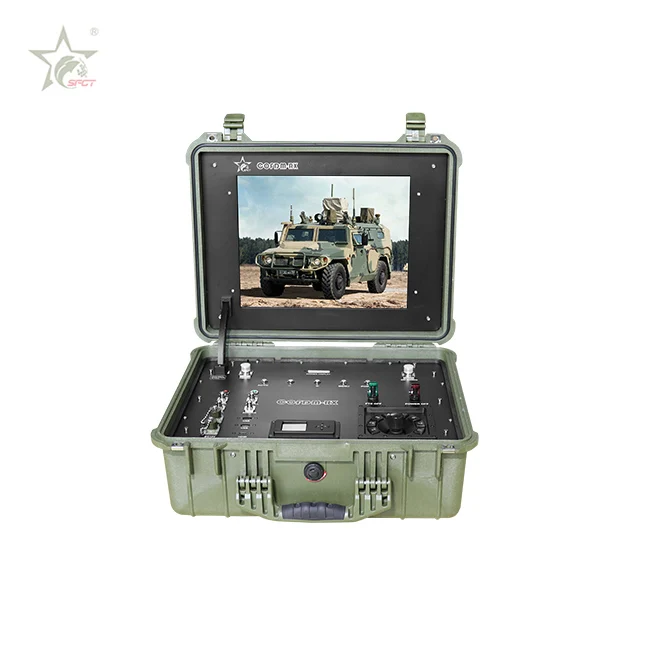

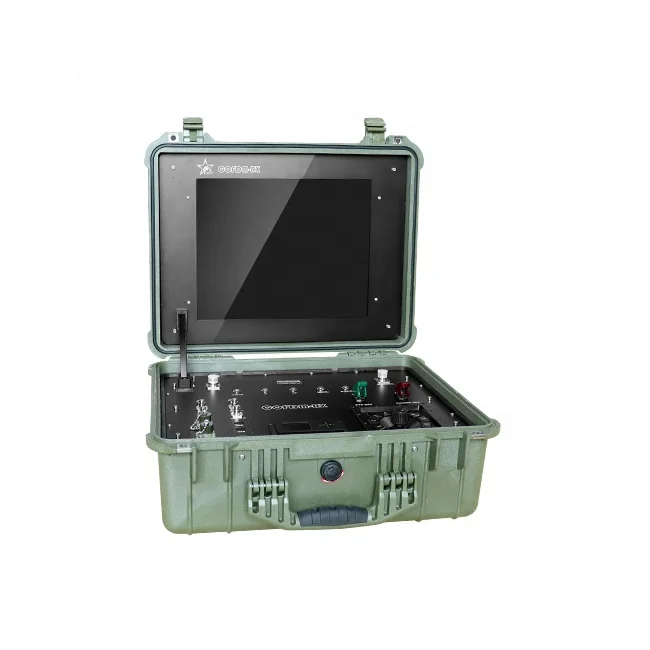

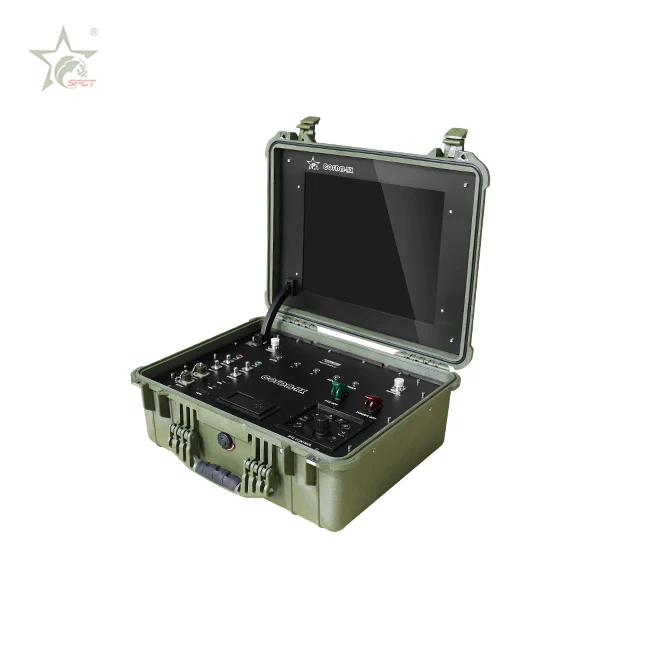

17inch Car Monitor Long Range Video Transmitter PTP
Shenzhen Safe Guard Co., Ltd
Description
17inch Car Monitor Long Range Video Transmitter PTP
---- Summarize
17inch Car Monitor Long Range Video Transmitter PTP(SFGT-DR5000) with BNC/ HD-SDI Connector .
17inch Car Monitor Long Range Video Transmitter PTP(SFGT-DR5000) is a new mobile full 1080P HD NLOS Long Range Wireless Data Transmission System, and this COFDM wireless video transmitter is used as Wireless video surveillamces system.
17inch Car Monitor Long Range Video Transmitter PTP(SFGT-DR5000) is popular among military, inspectation section, police, army, fireman to install in station, building or helicopter, UAV ( unmanned aerial vehicle ) to live broadcast data (audio, video, images)
17inch Car Monitor Long Range Video Transmitter PTP
---- Features
- High quality image and high definition video transmission
- High speed mobile transmission, max speed 450km/h;
- Adjustable RF power( 2-8W ), up to 50km NLOS distance
- Broad-spectrum: in UAV shooting, Live broadcasting...
- COFDM modulation & stable transmission
- COFDM modulation
- AES data encryption
- Strong ability of anti-interference, diffraction and penetration
Specification
17inch Car Monitor Long Range Video Transmitter PTP
---- Specification
| Frequency range Output | 300-4400MHz(optional), 1.2G-4.4GHz(customized) |
| RF bandwidth | 2/2.5/4/8MHz(adjustable) |
| Power output | 5-8W(adjustable) |
| SHG | >52dBc |
| Encryption | AES 128 / 256 bits |
| Modulation | COFDM, 2K ,QPSK |
| Constellation | QPSK,16QAM |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Carrier | 2K,8K |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| AV input | RCA jack: D1 standard definition
SDI:HD1080I/1080P, 720P, 576, 480 |
| CNR(weighting)dB | ≥58 |
| ≥58 | ≥50 |
| Max speed rate | 450km/h |
| Balanced audio input range | Vmax=±15V |
| Unbalanced audio input range | Vmax=3Vpp |
| Standard | SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M |
| Input range (mV) | 800±80 |
| HDCP protocol | Yes |
| Decryption mode | AES |
| Transfer rate | In general 2/4/6/8Mbps,15Mbps max |
| Audio encoding mode | MPEG1 Layer2 |
| Video resolution | Minimum 720P Maximum 1080P 1920X1080 |
| Video coding | H.264/MPEG-4 |
| Video rate | 500kbps-16.68Mbps(autoadaptation) |
| Formate | YcbCr4:2:2 |
| Working Temperature | -25℃~55℃ |
| Storage Temperature | -40℃~70℃ |
| Voltage | DC11-14.5V |
| Current | 1.9A |
| Transmission distance | 1-100km max LOS(from air to ground); 5km max NLOS(in city) |
| Dimension | 200*120*60mm |
| Weight | 1kg |
Application
Our Wireless Long Range Video Transmitter PTP( SFGT-H5000B) is widely used in unmanned control systems for frontier defense, monitoring and recording, public security and protection, plice, army, fire control, emergency areas, etc.
Our Services
Shipping&Package of Wireless Long Range Video Transmitter PTP
1.in carton and suitable for international freight
2 Delivery 5-7 days after confirmation of the order
Warranty of Wireless Long Range Video Transmitter PTP
- Twelve months free warranty for equipment
- Three months for components
- Replacement parts will be charged after one year
Solutions
Safe Guard dedicate in design and manufacture high performance secured wireless transmission products with advanced COFDM, TDD/FDD and tactical IP MESH technology.
We provide standard & bespoke solutions to meet individual applications in LOS/NLOS environment. Especial like UAV surveillance, marine communication, UGV, RC Robots, firefighting, tactical soldier and ENG videography etc.
Before the solutions, we'd like to know some details to meet your usage demand:
1. How far is the transmission distance that you need?
2. Where to install the transmitter and receiver, for example UAV to ground station or others?
3. Are there many obstacles between transfer, LOS(Line-of sight) or NLOS(Non line of sight)?
If NLOS, what kind of the obstacles between them, buildings/mountains?
4. What's the video output of your camera? SD, HD and IP streaming outputs?
